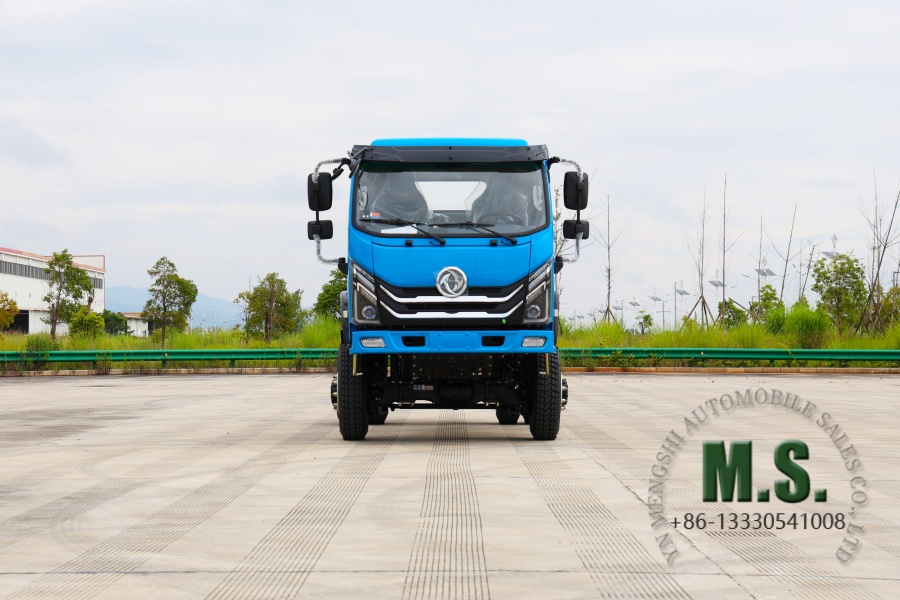

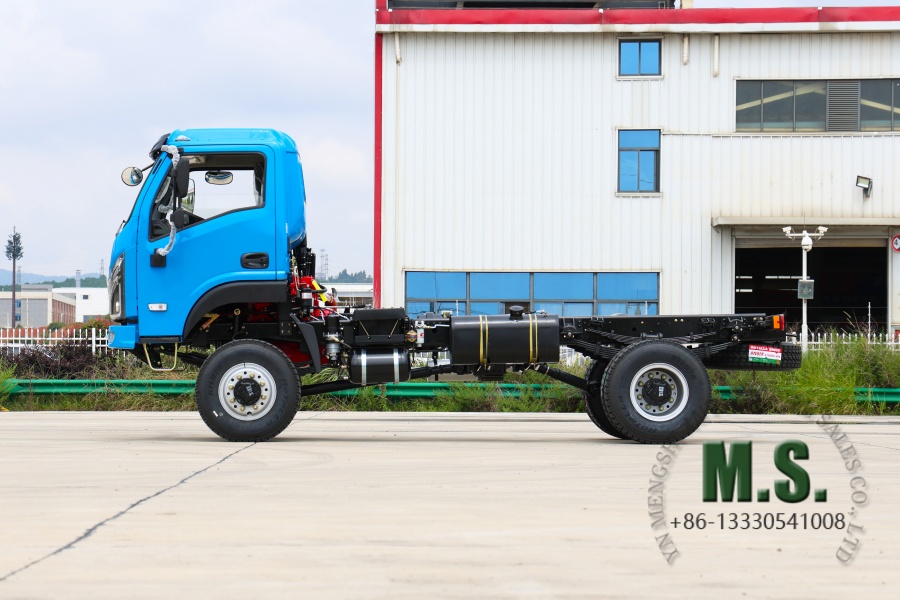

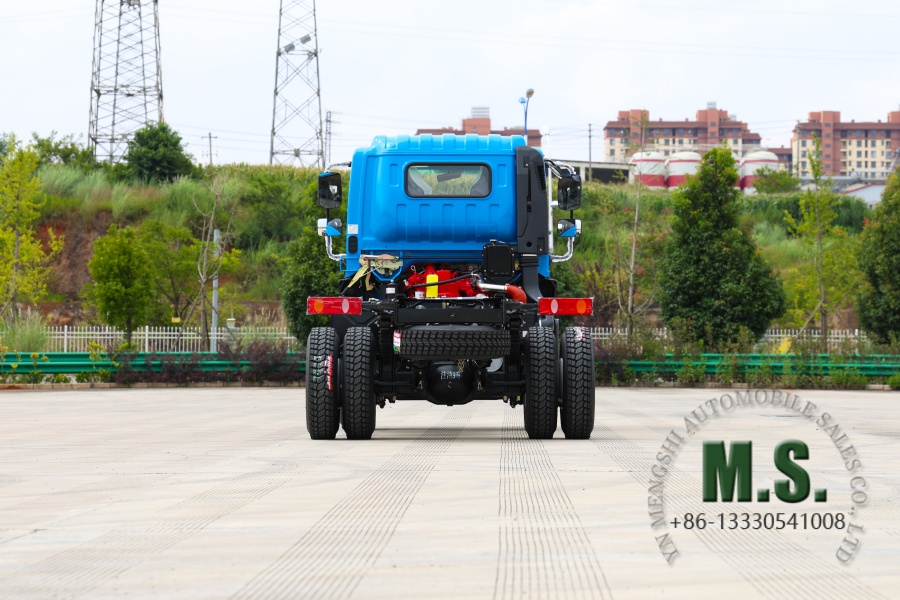

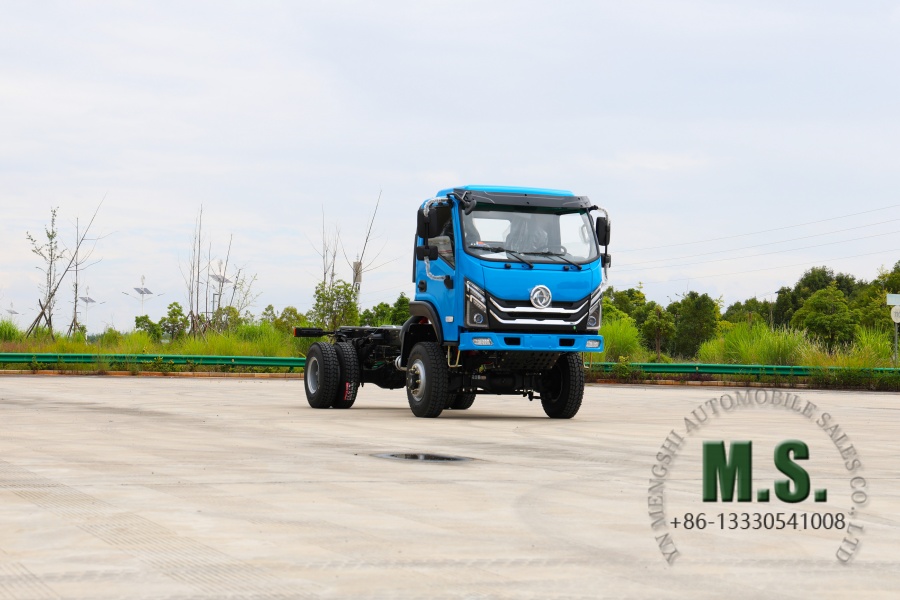

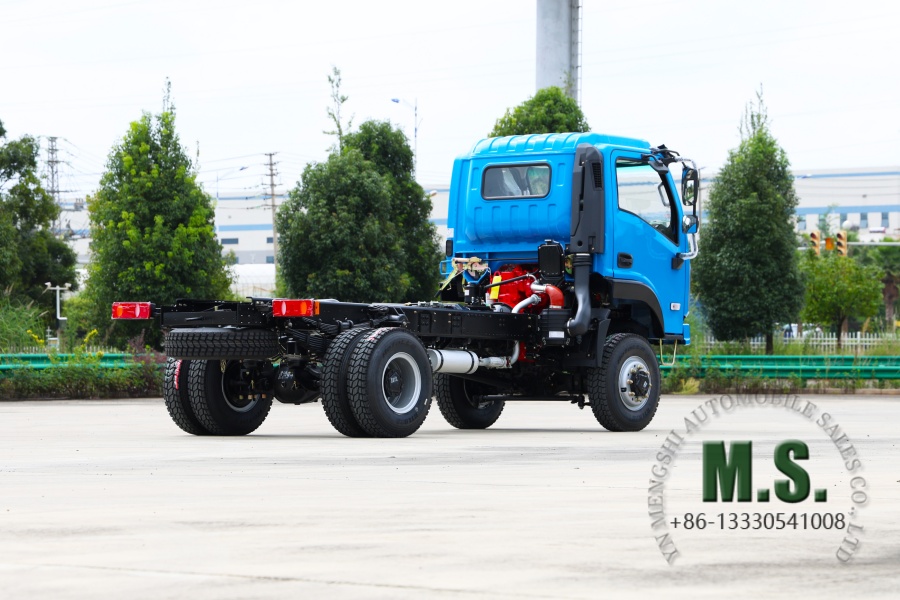

Our 4×4 flathead light truck chassis features a 150HP engine, built for mountain and off-road operations. With high-low transfer case and great fording & obstacle-crossing performance, this Class 2 chassis supports custom modification for special vehicles. We are a professional manufacturer supplying durable 4WD off-road chassis for export.
Basic configuration | |
|---|---|
Parameter | Value |

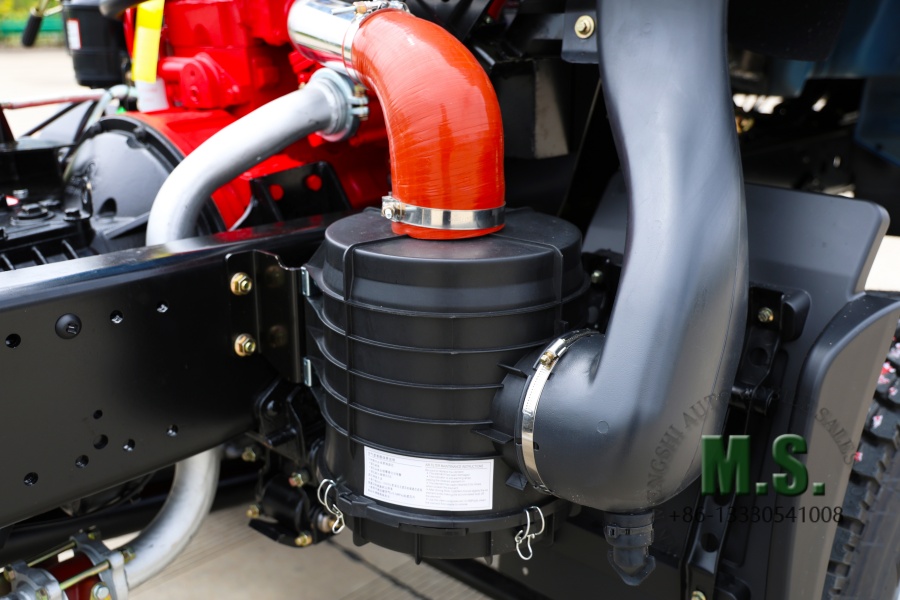

Engine | Cummins EQ140 |

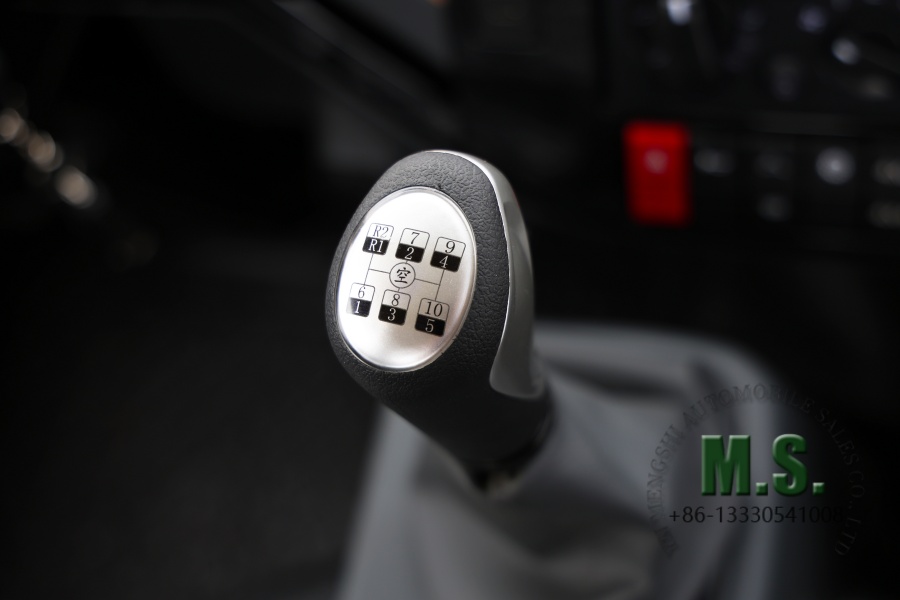

Transmission | Manual, ten gears |

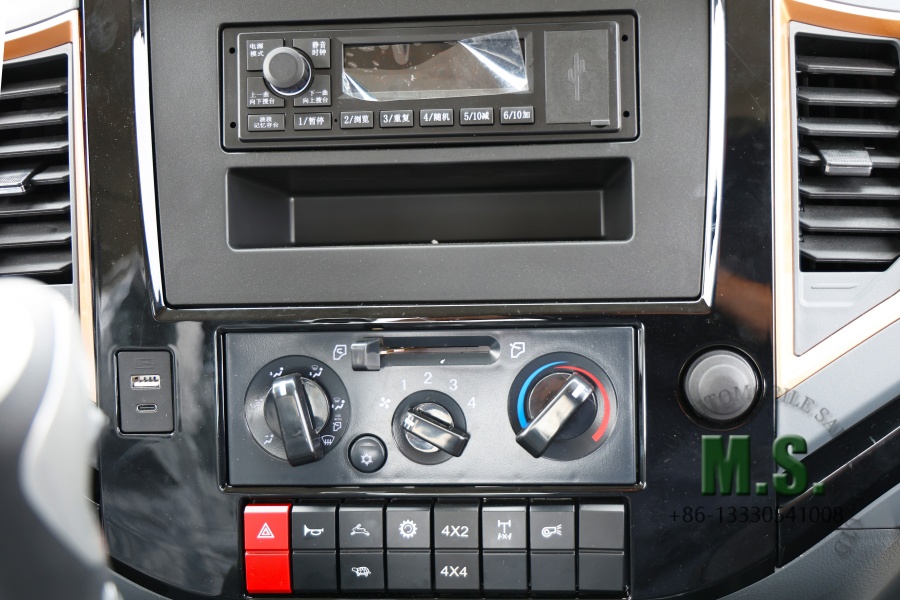

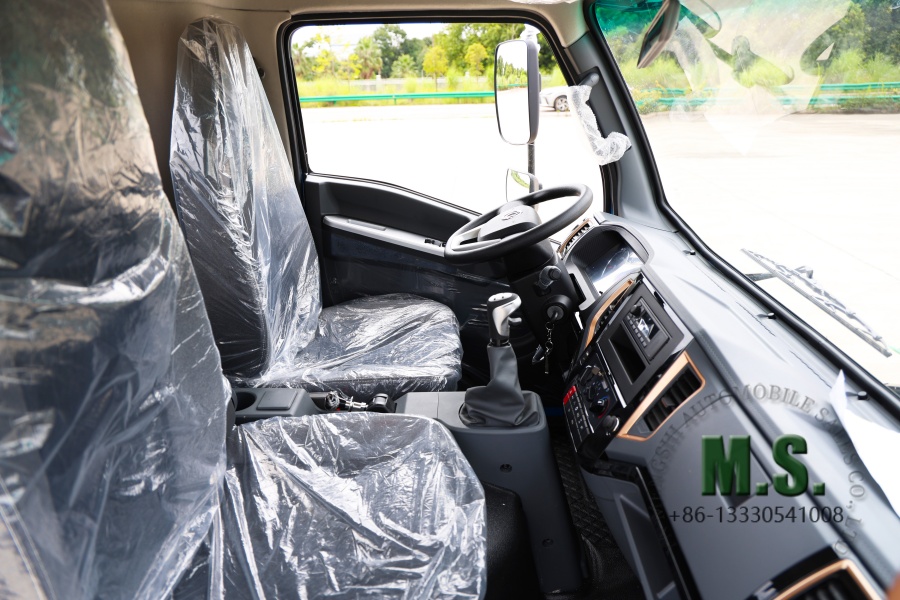

Cab | Flathead single row |

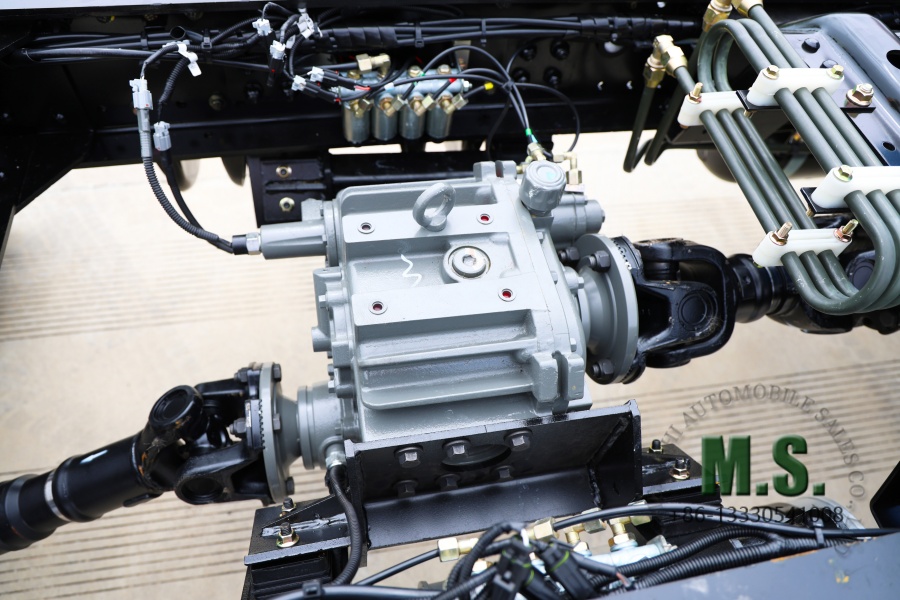

Transfer case | High and low speed, two gears |
Frame | 800×190 (8+6) |
Suspension | Leaf spring, 10+10 |

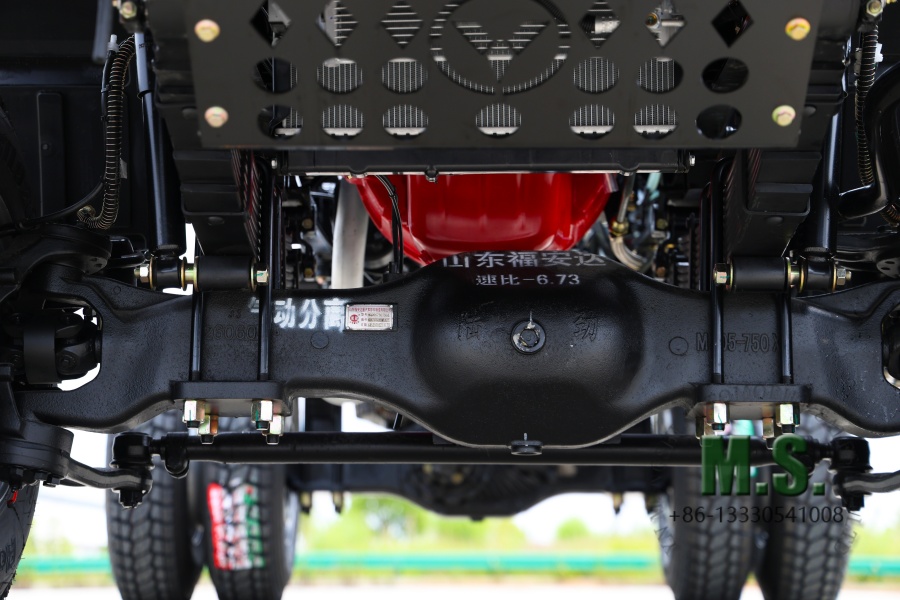

Axle | 4.5T / 8T |
Tyres | 8.25R16LT (6+1) |
Overall dimensions | 6080×2290×2700 mm |
Superstructure length | ≥4300 mm |
Wheelbase | 3700 mm |
Track width | 1820 / 1750 mm |
GVW (gross vehicle weight) | 12500 kg |
Chassis curb weight | 3950 kg |
Approach angle | 37° |
Departure angle | 30° |
Fuel tank capacity | 180 L |
Distance from ground to top of frame | 890 mm |
Fording depth | 630 mm |
Obstacle height | 530 mm |
Max speed | 85 km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
