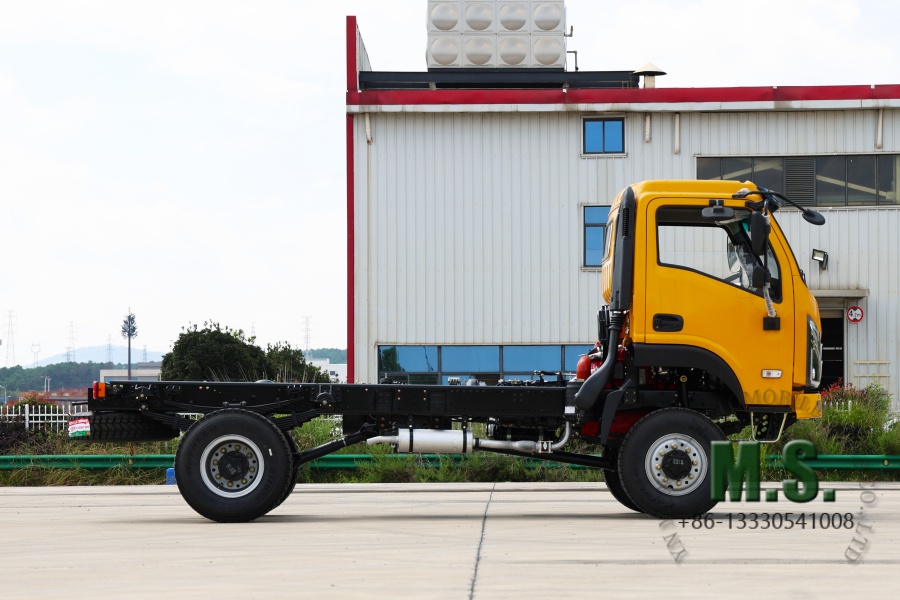

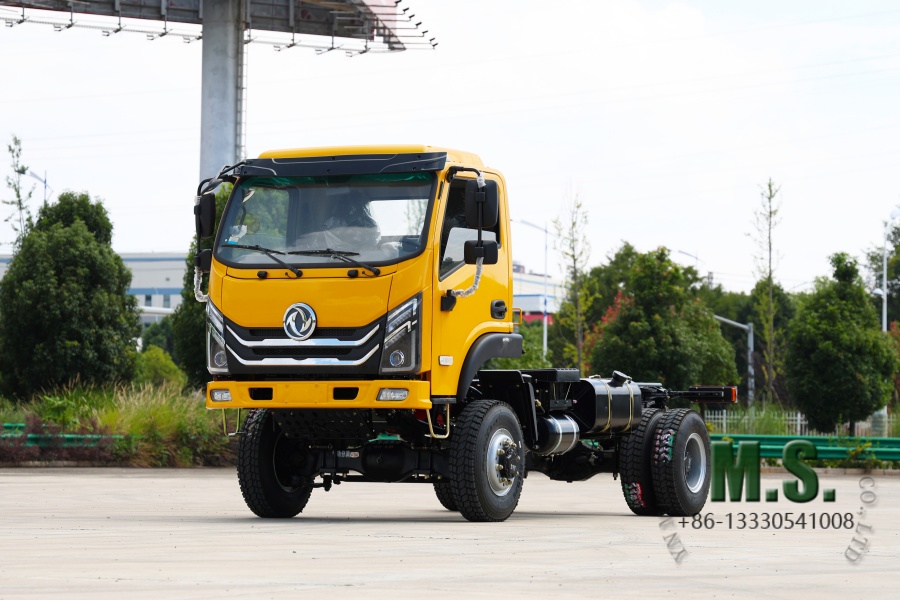

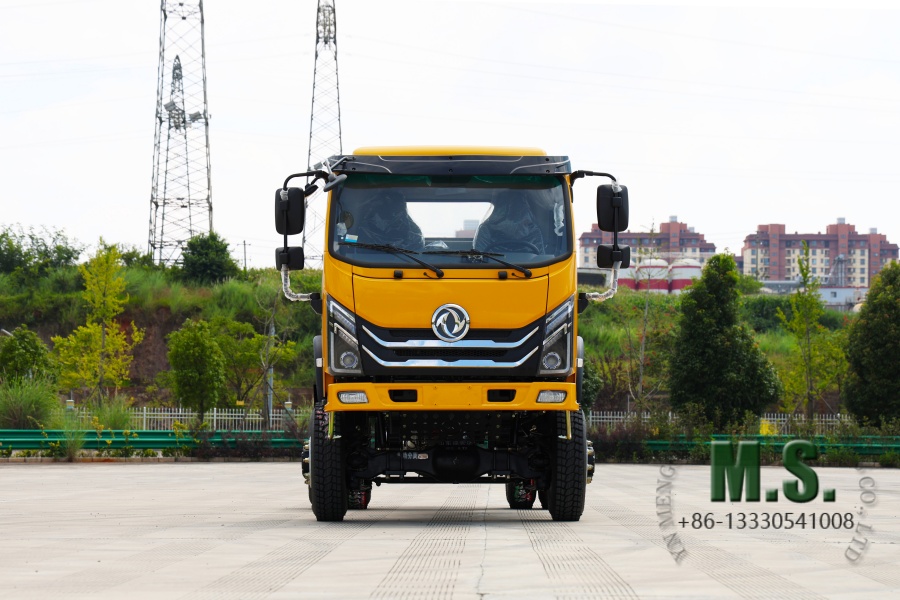

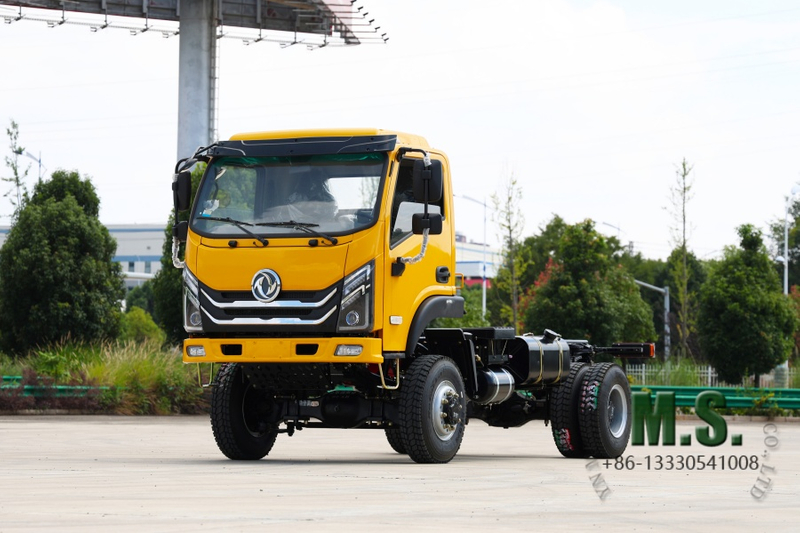

4WD Flathead Truck Chassis

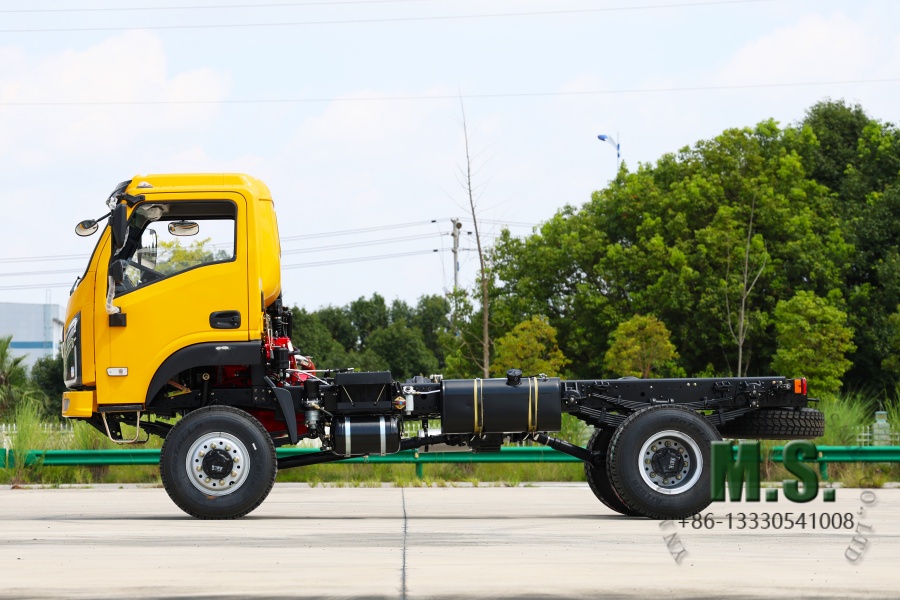

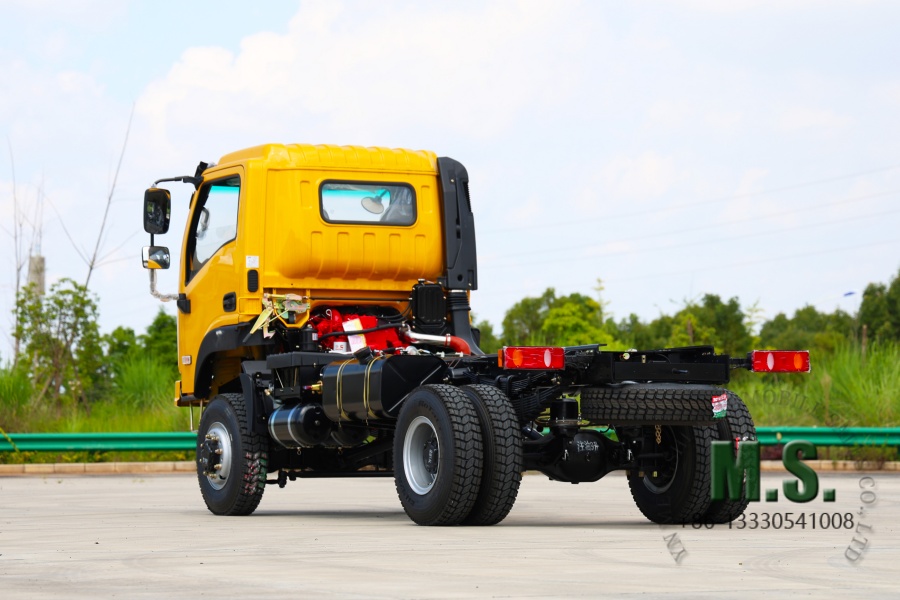

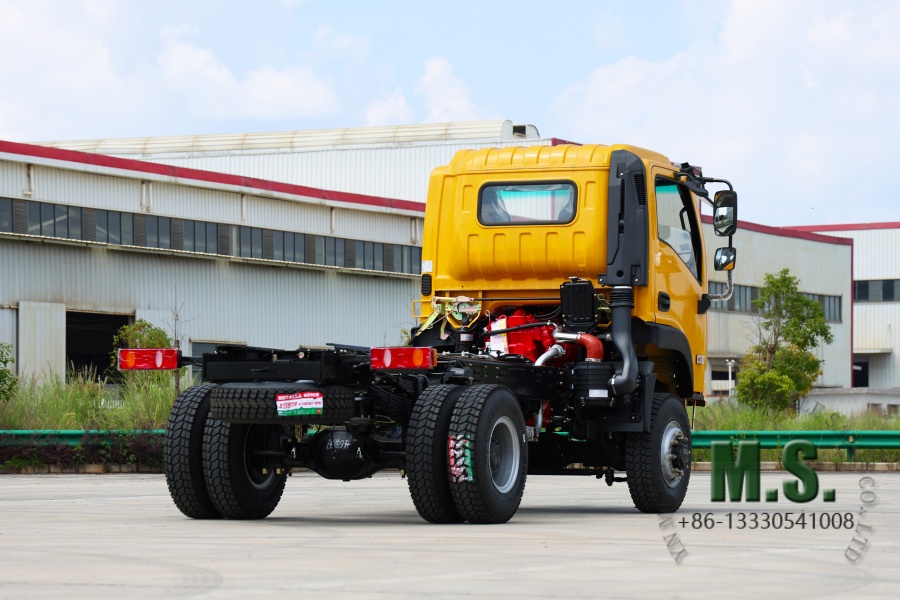

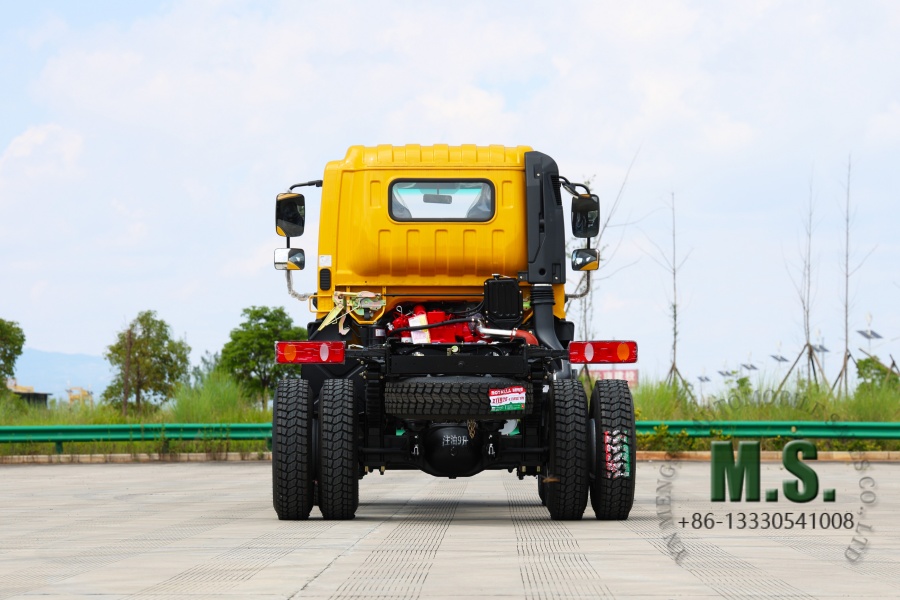

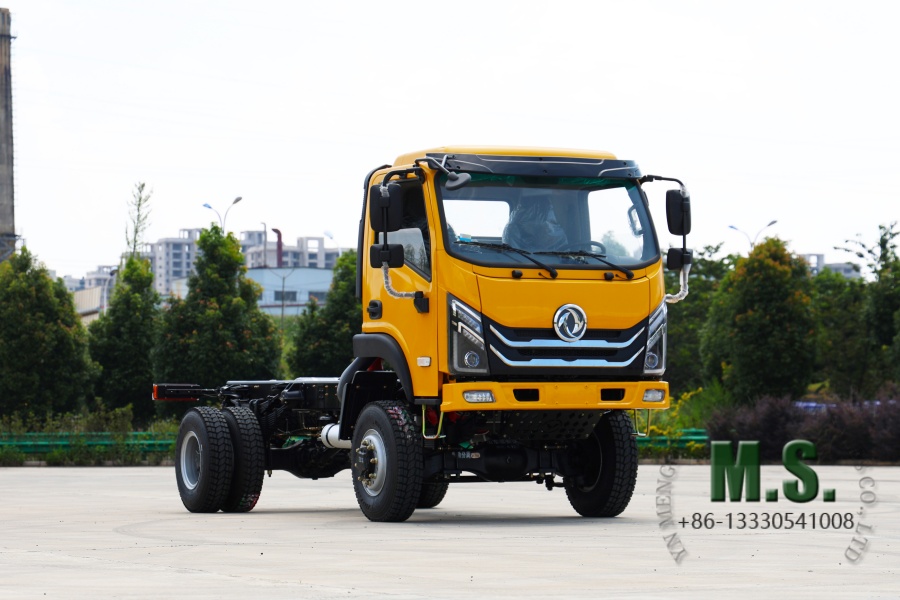

This 4WD flathead truck chassis is equipped with a reliable Cummins EQB140 engine and a manual 10-speed transmission. It features a high/low speed transfer case for enhanced off-road capability, paired with a flathead single-row cab that provides excellent forward visibility. With a 4.5T/8T axle configuration, heavy-duty leaf spring suspension, and 8.25R16LT tires, this chassis is engineered to handle demanding off-road and mountainous terrain. The superstructure length of ≥4300mm offers versatile customization options for various special vehicle applications.

Quantity:
Availability:





Inquire Add to Basket

This 4WD flathead truck chassis delivers outstanding off-road performance and versatile customization for specialty vehicle applications. Powered by a reliable Cummins EQB140 engine, it combines 4x4 traction with a high/low speed transfer case to conquer mountain roads and rough terrain with confidence. The impressive 37° approach angle, 30° departure angle, 630mm fording depth, and 530mm obstacle height make it a true all-terrain performer. With a ≥4300mm superstructure length, it adapts easily to various special vehicle conversions. Built on a robust 12500kg GVW platform with proven Cummins power, this chassis is the ideal foundation for off-road specialty vehicles.

Basic configuration
Specification	Details

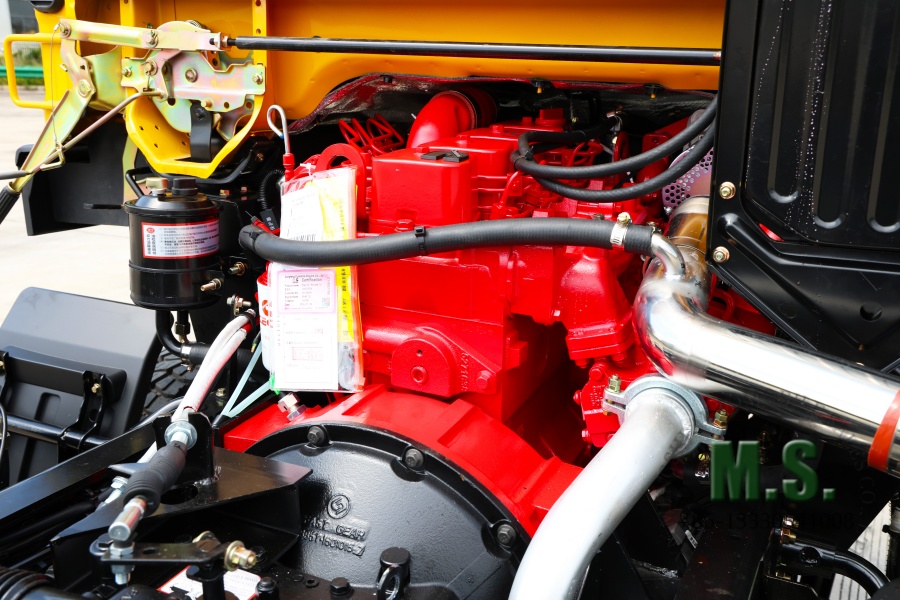

Engine	Cummins EQB140
Transmission	Manual 10-speed

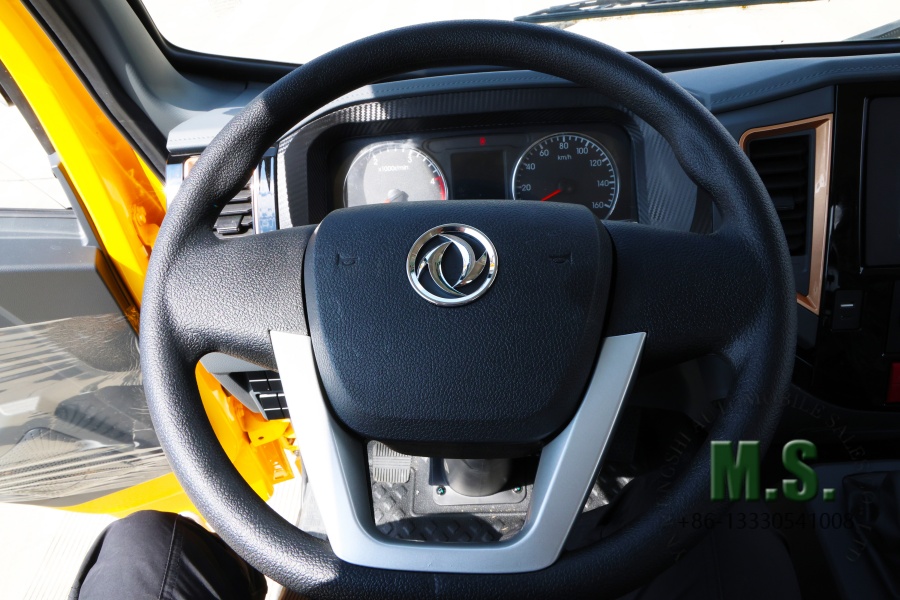

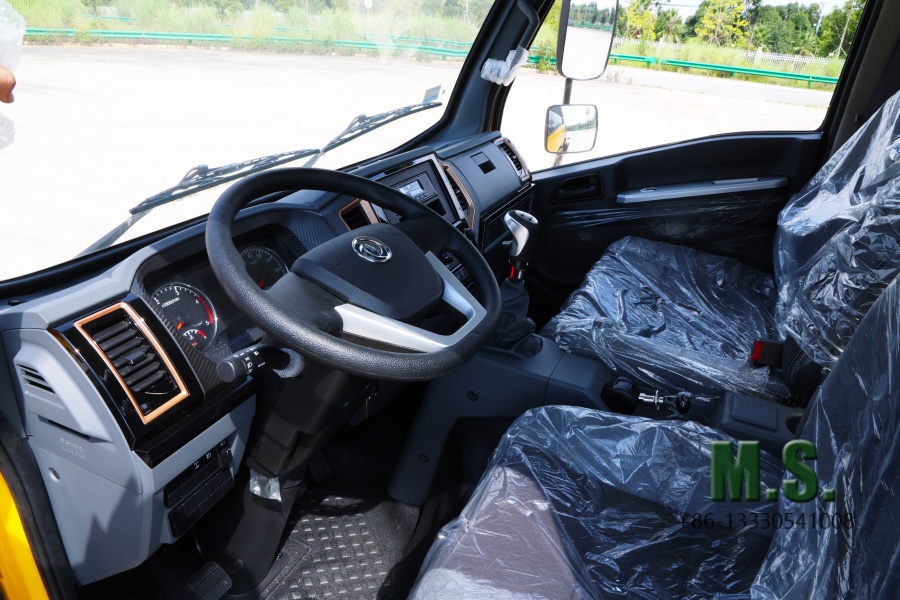

Cab	Flathead single row

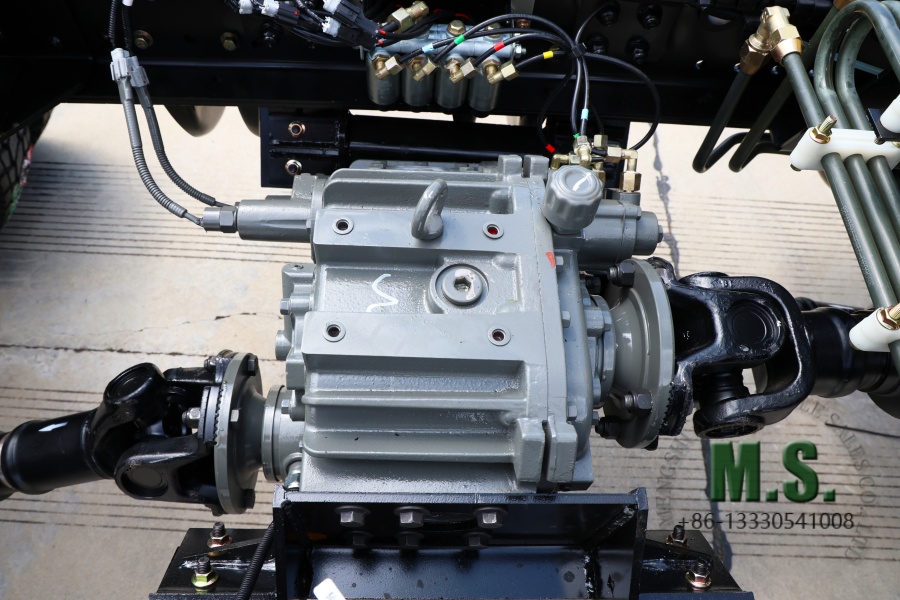

Transfer Case	High and low speed
Frame	800×190 (8+6)

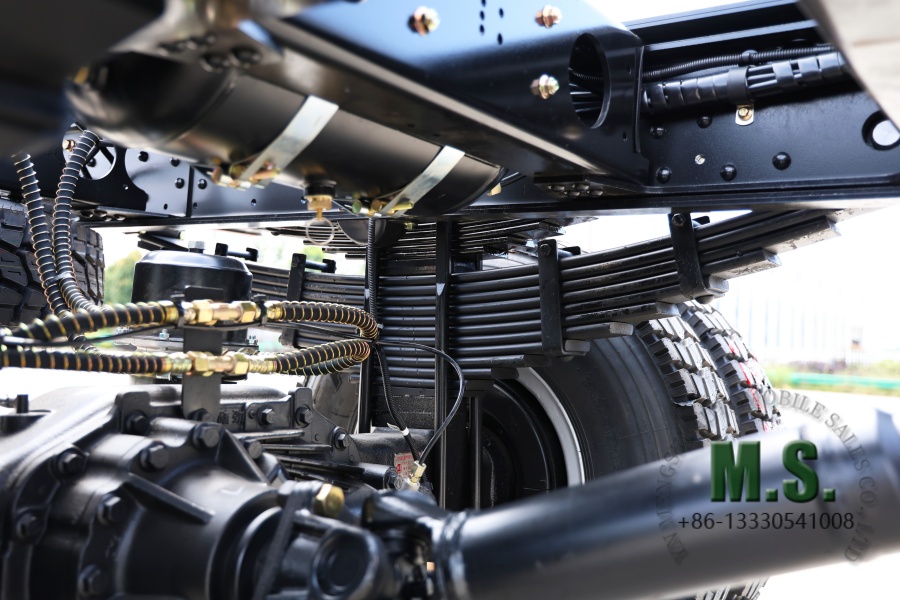

Suspension	Leaf spring 10/8+10
Axle	4.5T/8T

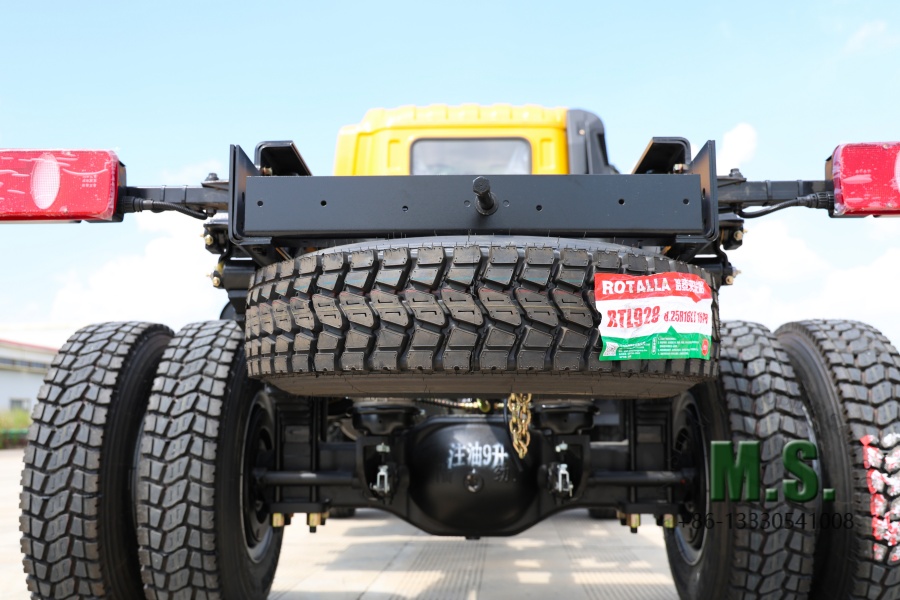

Tyres	8.25R16LT (6+1)
Overall Dimensions	6080×2290×2700mm
Superstructure Length	≥4300mm
Wheelbase	3700mm
Track Width	1820/1750mm
GVW	12500kg
Chassis Curb Weight	3950kg
Approach Angle	37°
Departure Angle	30°
Fuel Tank Capacity	180L
Frame Top Ground Clearance	890mm
Fording Depth	630mm
Obstacle Height	530mm
Max Speed	85km/h

Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
