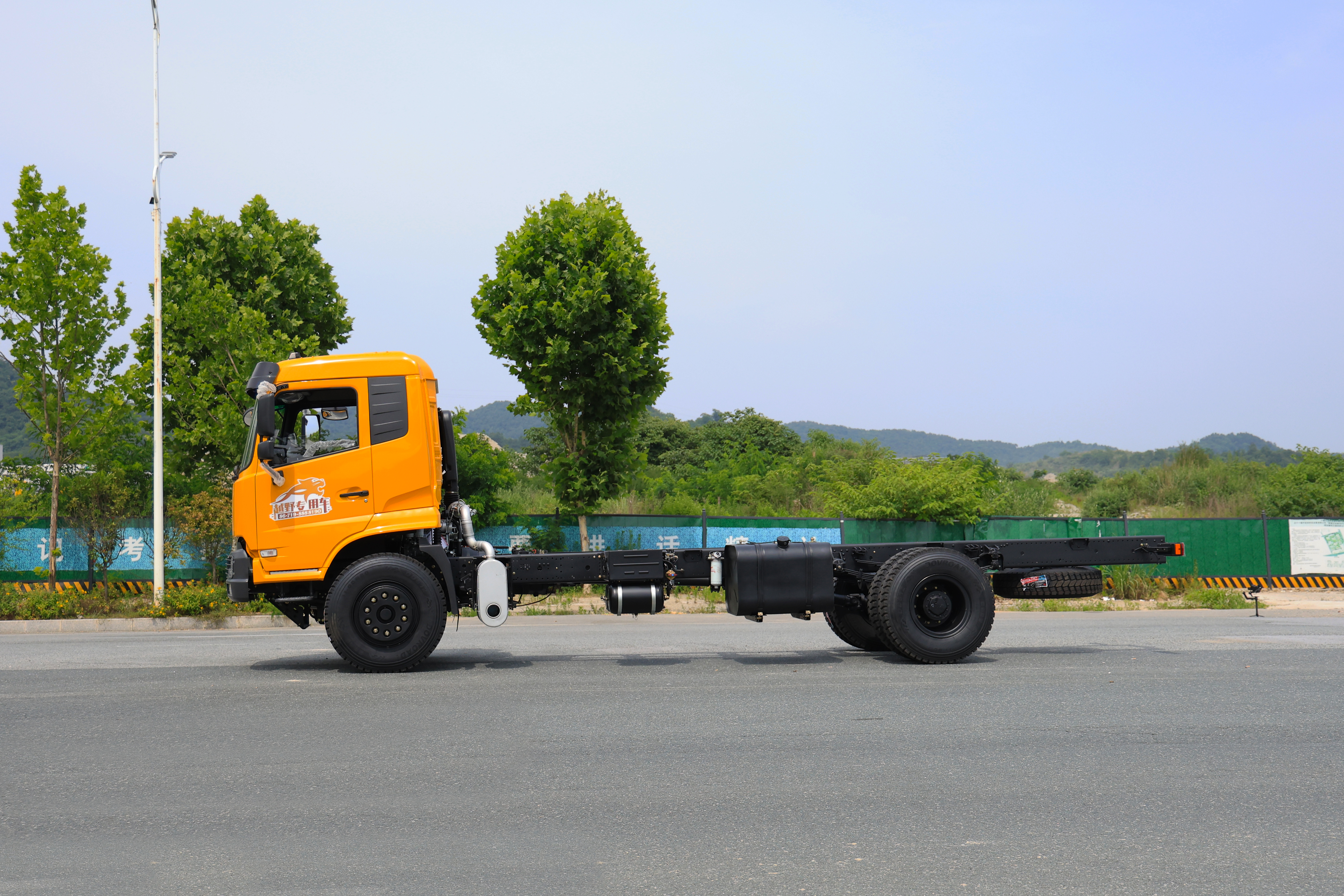

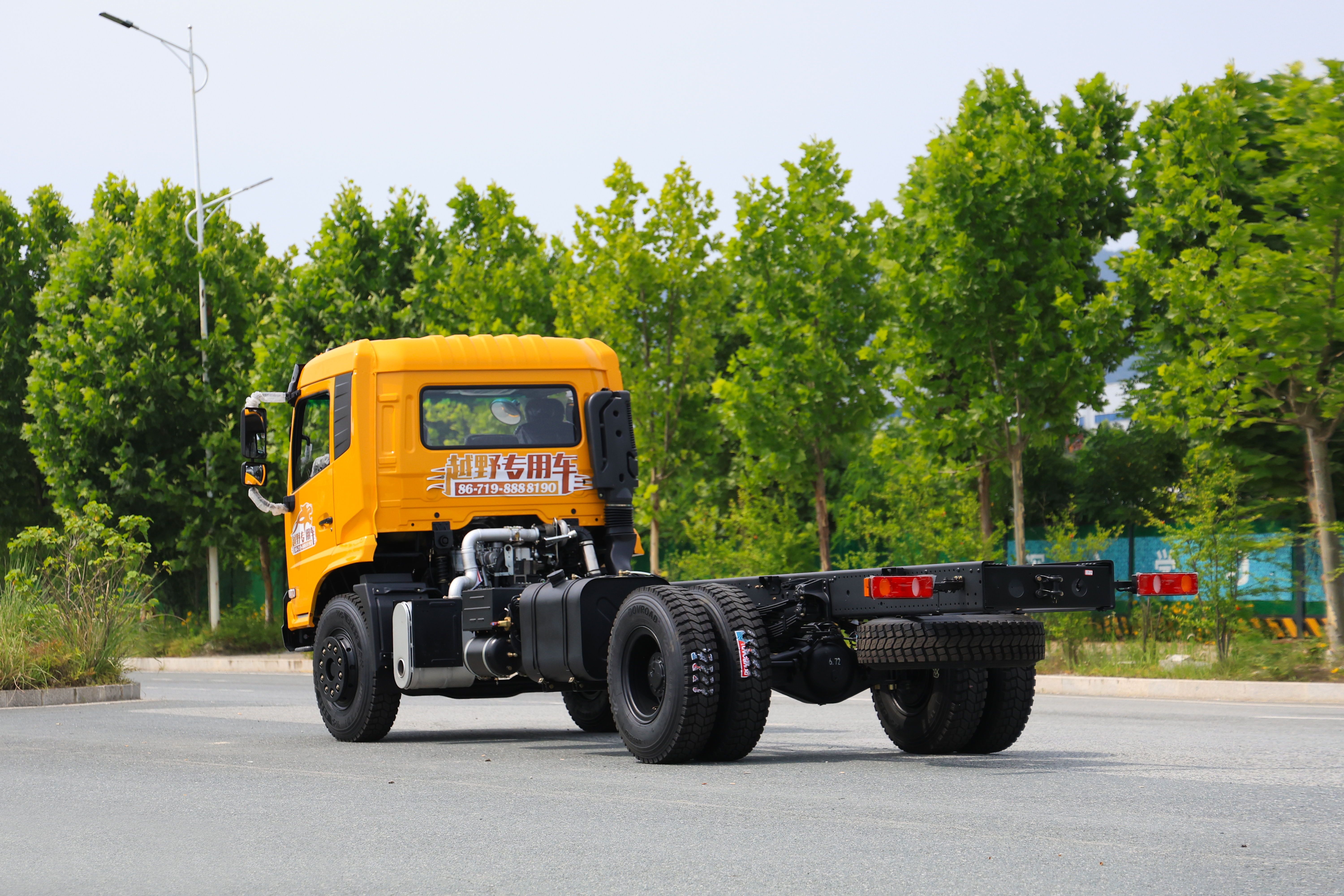

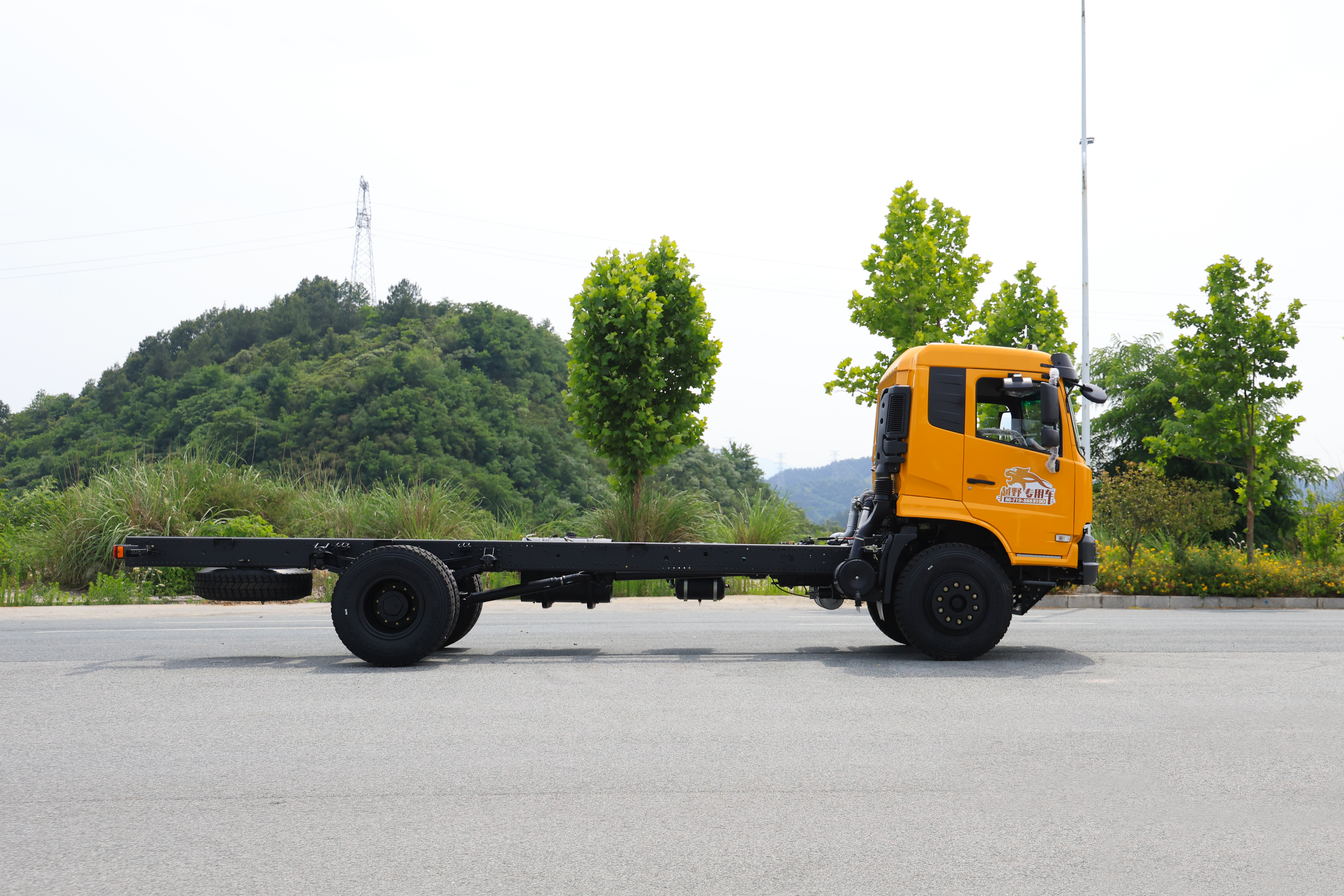

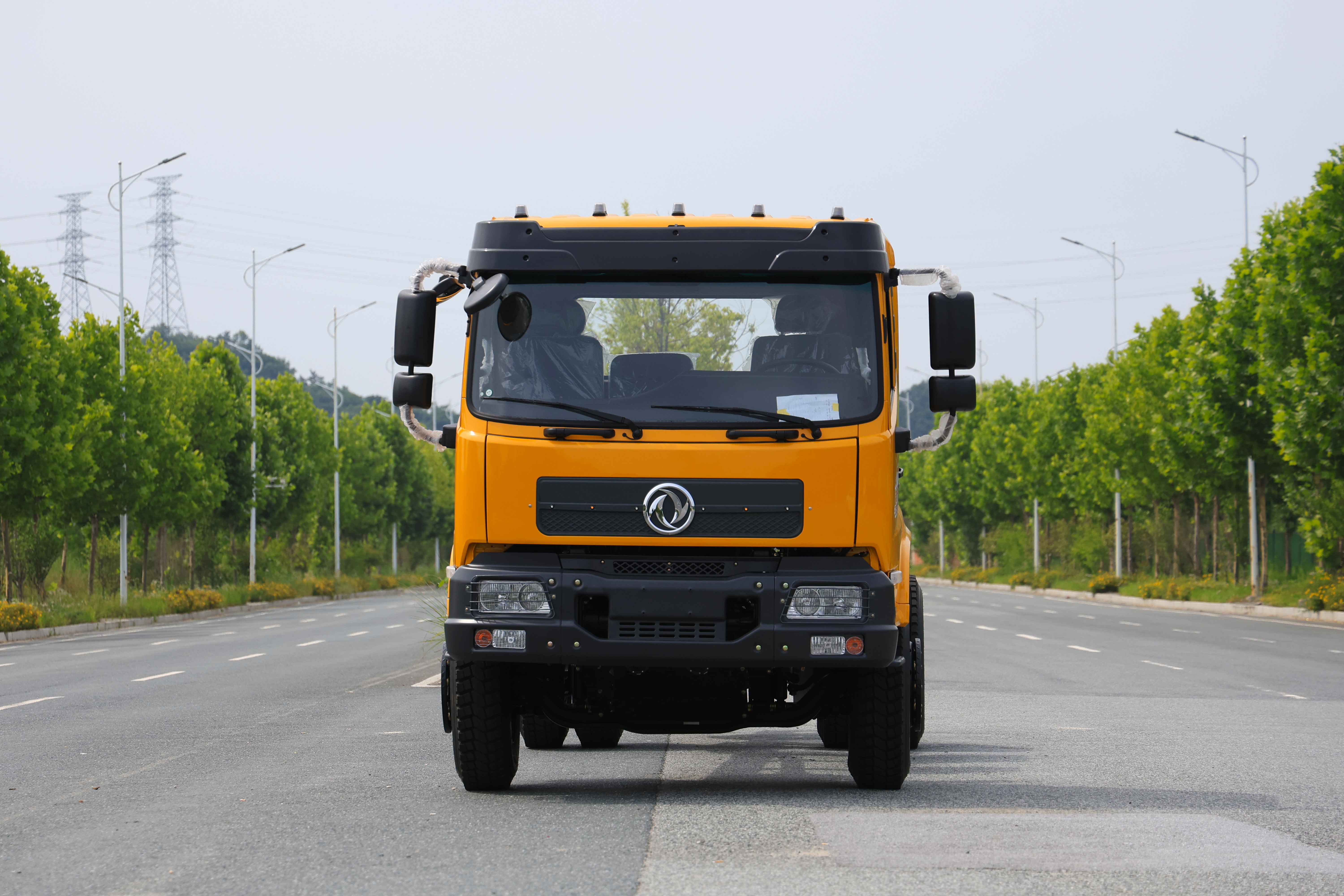

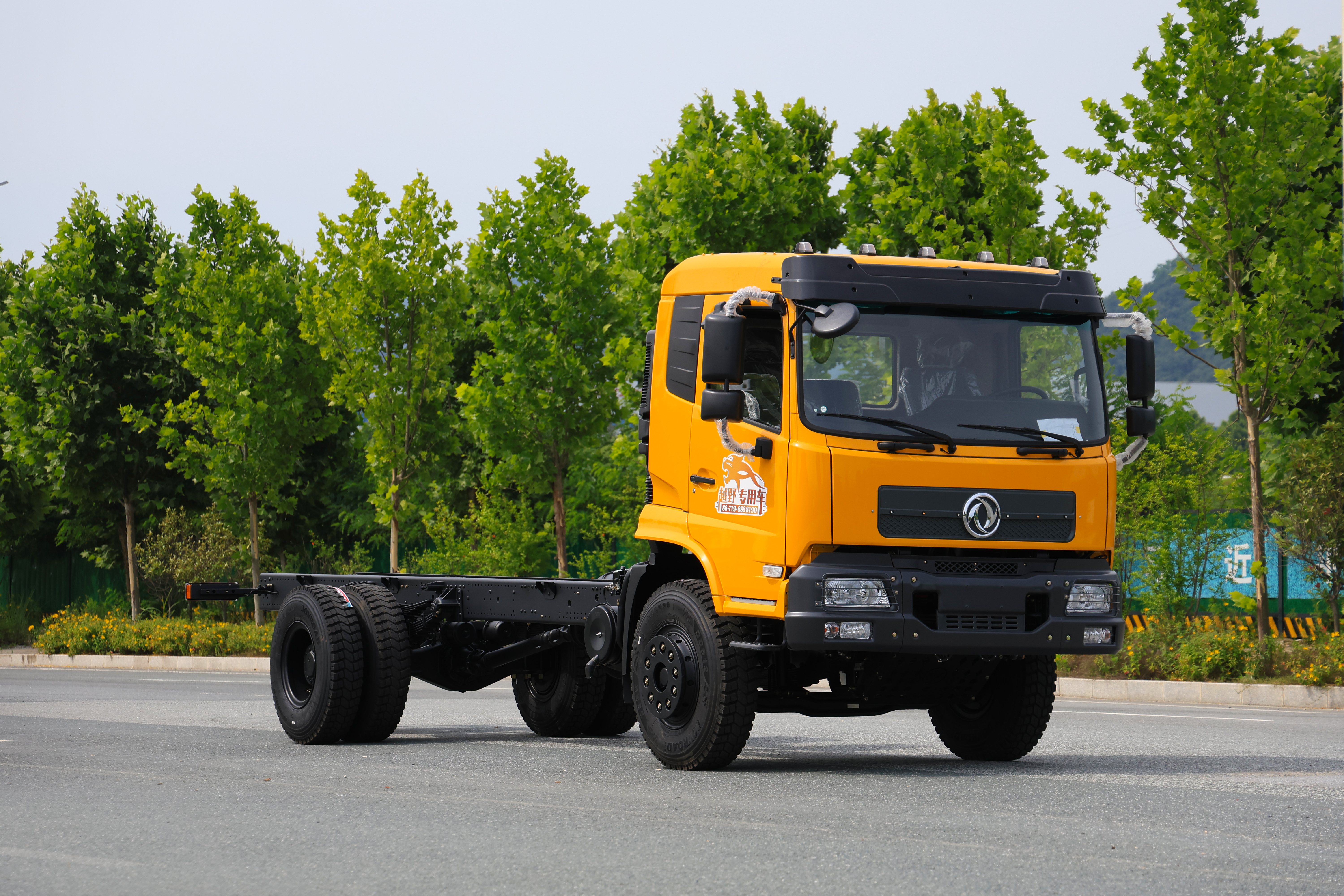

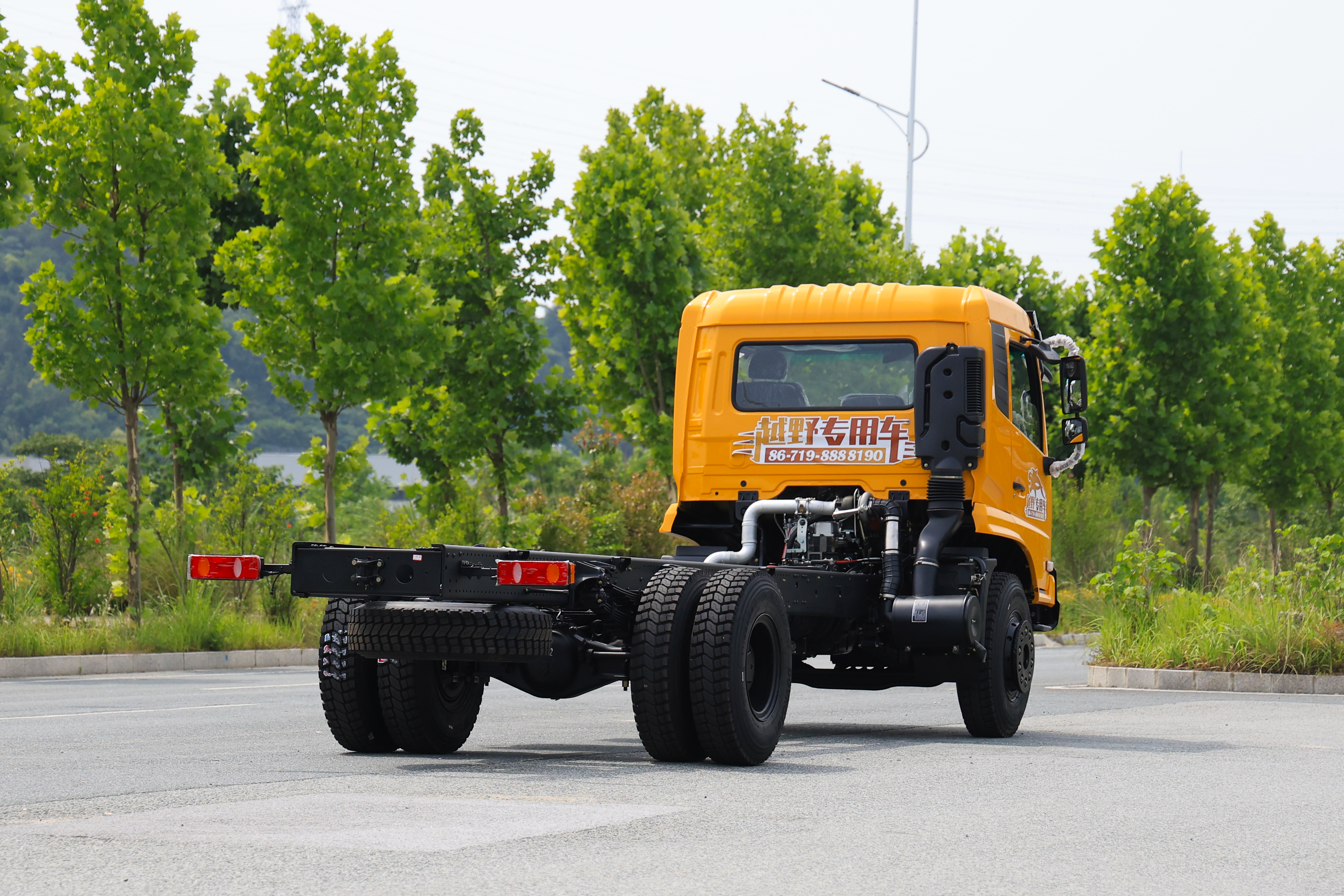

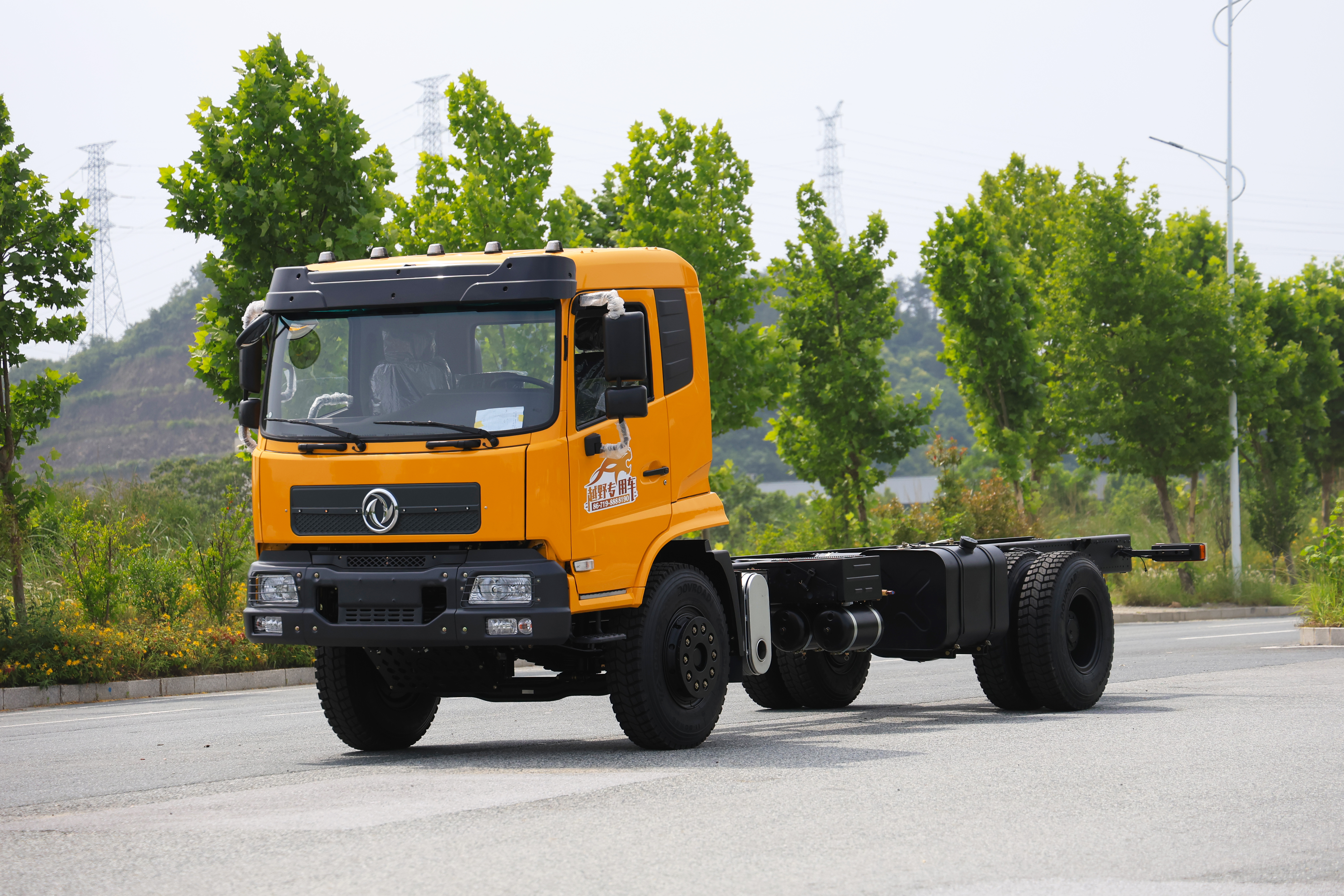

Dongfeng off-road 4WD chassis with 260 horsepower. It can be converted into 4WD dump trucks and 4WD cargo trucks, and private customization is available!
Basic configuration | |
|---|---|
Tiple | 4×4 |
Engine Horsepower | Yuchai 260 horsepower |
Power | 191kW |
Torque | 1000N.m |
Displacement | 7255ml |
Emission Standard | Euro-2 |
Gearbox | Manual 8-speed |
Transfer Box | Ten gears |
Gorss Weight | 19500kg |
Axle | 6.5T/13T |
Suspension | Leaf Spring |
Wheelbase | 5100mm |
Track Width | 2020/1850mm |
Overall Dimension | 9080x2580x2970mm |
Superstructure length | ≥6490mm |
Approach/Dparture Angle | 16º |
Gradeability | 13% |
Minimum Ground Clearance | 330mm |
Obstacle Crossing Height | 330mm |
Wading Depth | 470mm |
Tire | 11.00R20 (6+1) |
Fuel Tank | 300L |
Fuel Consumption | 19L/100km |
Max Speed | 85km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
