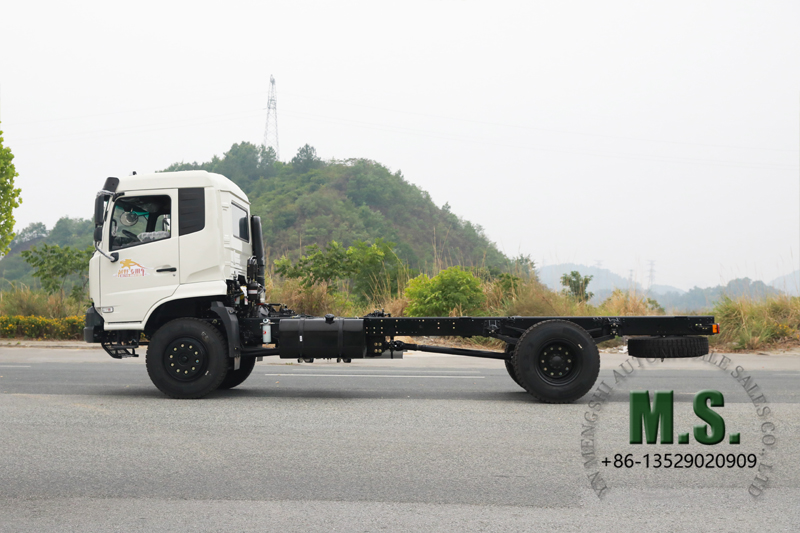

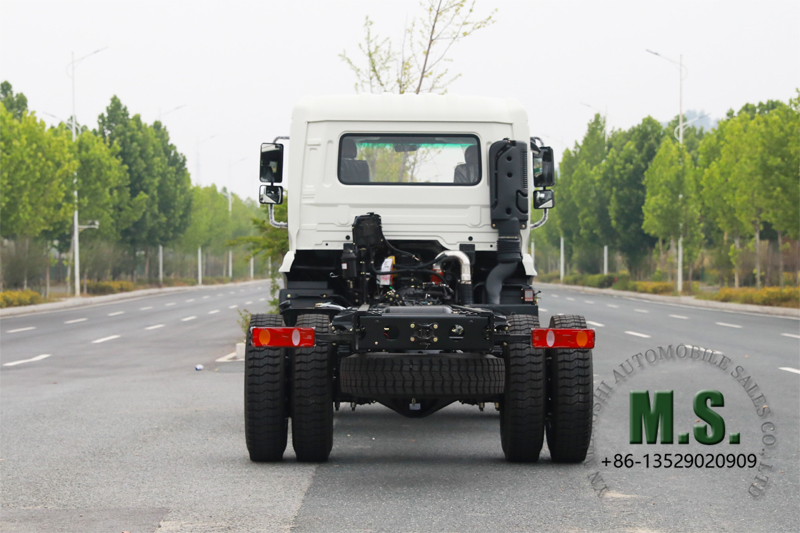

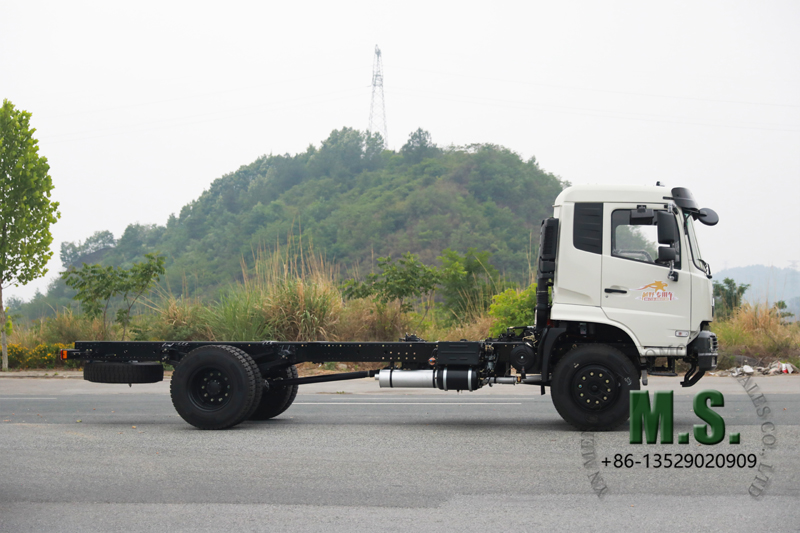

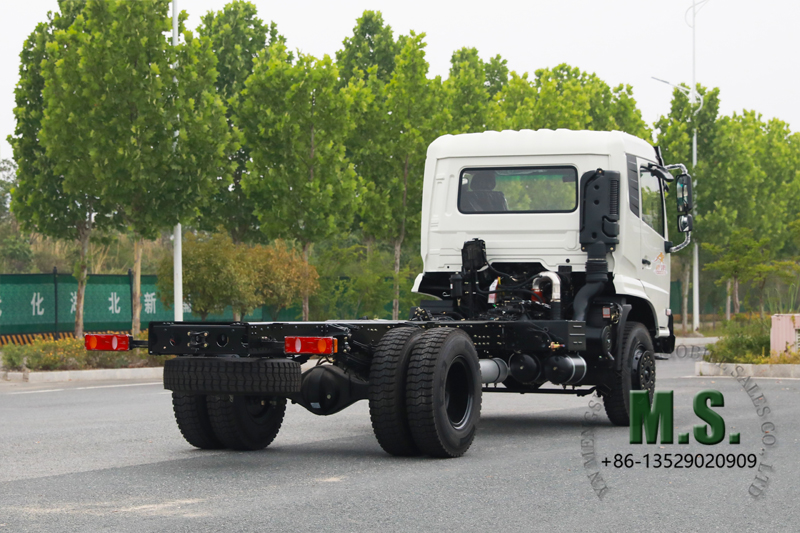

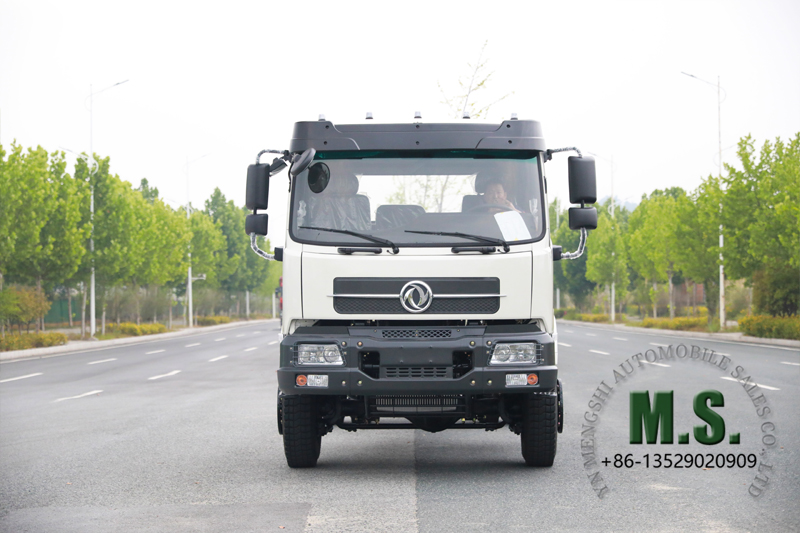

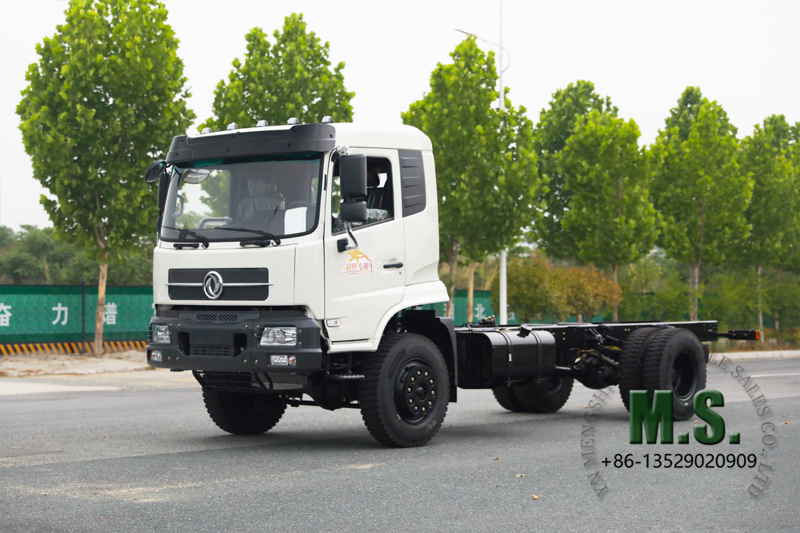

This Dongfeng 4x4 truck chassis with a 210hp Cummins engine and cab is a 4WD off-road chassis. It’s a dedicated Dongfeng 4x4 special vehicle chassis, suitable for modifications into trucks, freight vehicles, or dump trucks. As a mountain-forest off-road chassis and all-wheel drive special vehicle modification base, this 210hp single-axle off-road chassis offers robust off-road capability.
Basic configuration | |
|---|---|
| Engine | Cummins B210 33 |
| Horsepower | 210Hp |
| Rated Power | 155kw |
| Max Torque | 700N.m |
| Displacement | 5.9L |
| Emission Standard | Euro-2/3 |
| Gearbox | Manual 8-speed |
| Transfer Box | High and low, 2 Speed |
| Wheelbase | 4700mm |
| Track Width | 2035/1818mm |
| Overall Dimension | 8250×2430×3080mm |
| Frame | 860*250(8+6 Double layer)mm |

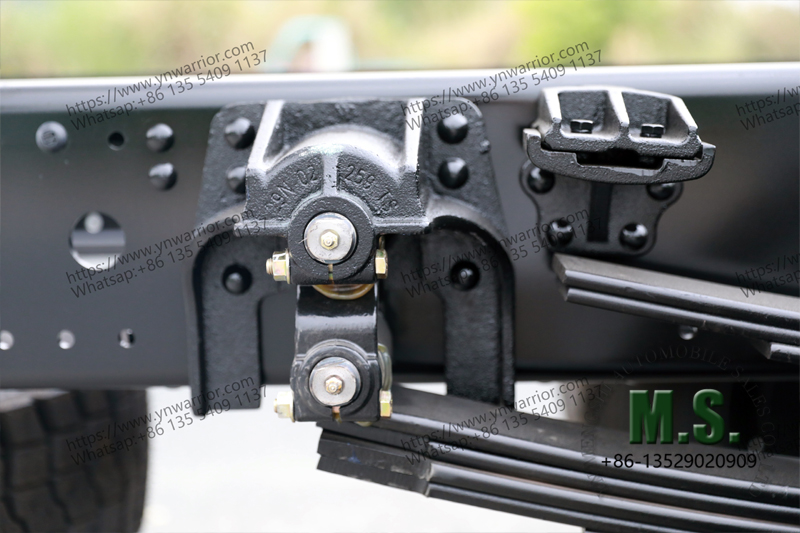

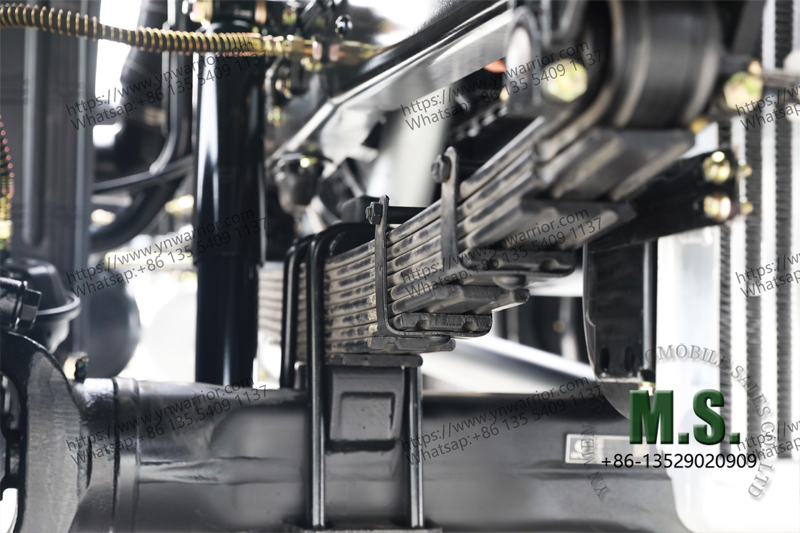

| Leaf Spring | 9/8+9 |
| Superstructure Length | >6000mm |
| Approach/Dparture Angle | 26°/15° |
| Front/Rear Overhang | 1340/2210mm |
| Curb Weight | 5460kg |
| G.V.W | 15000kg |
| Axle | 5T/10T |
| Minimum Ground Clearance | 280mm |
| Obstacle Crossing Height | 470mm |
Wading Depth | 580mm |
| Ground Clearance of Rear Frame | 1090mm |

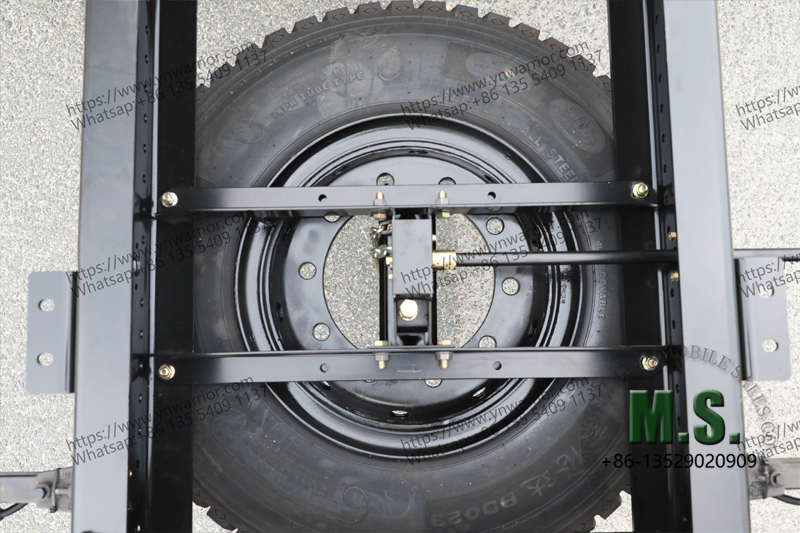

| Tyre | 10.00R20(6+1) |
| Fuel Tank | 300L |
| Max Speed | 90km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
This Dongfeng 4x4 truck chassis with a 210hp Cummins engine and cab is a 4WD off-road chassis. It’s a dedicated Dongfeng 4x4 special vehicle chassis, suitable for modifications into trucks, freight vehicles, or dump trucks. As a mountain-forest off-road chassis and all-wheel drive special vehicle modification base, this 210hp single-axle off-road chassis offers robust off-road capability.
Basic configuration | |
|---|---|
| Engine | Cummins B210 33 |
| Horsepower | 210Hp |
| Rated Power | 155kw |
| Max Torque | 700N.m |
| Displacement | 5.9L |
| Emission Standard | Euro-2/3 |
| Gearbox | Manual 8-speed |
| Transfer Box | High and low, 2 Speed |
| Wheelbase | 4700mm |
| Track Width | 2035/1818mm |
| Overall Dimension | 8250×2430×3080mm |
| Frame | 860*250(8+6 Double layer)mm |
| Leaf Spring | 9/8+9 |
| Superstructure Length | >6000mm |
| Approach/Dparture Angle | 26°/15° |
| Front/Rear Overhang | 1340/2210mm |
| Curb Weight | 5460kg |
| G.V.W | 15000kg |
| Axle | 5T/10T |
| Minimum Ground Clearance | 280mm |
| Obstacle Crossing Height | 470mm |
Wading Depth | 580mm |
| Ground Clearance of Rear Frame | 1090mm |
| Tyre | 10.00R20(6+1) |
| Fuel Tank | 300L |
| Max Speed | 90km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.






















For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.


For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.
