Basic configuration | |
|---|---|
Tiple | 4×4 |
Engine Horsepower | 康明斯EQB150-20 |
Power | 150kW |
Frame | 800×190（8+6） |

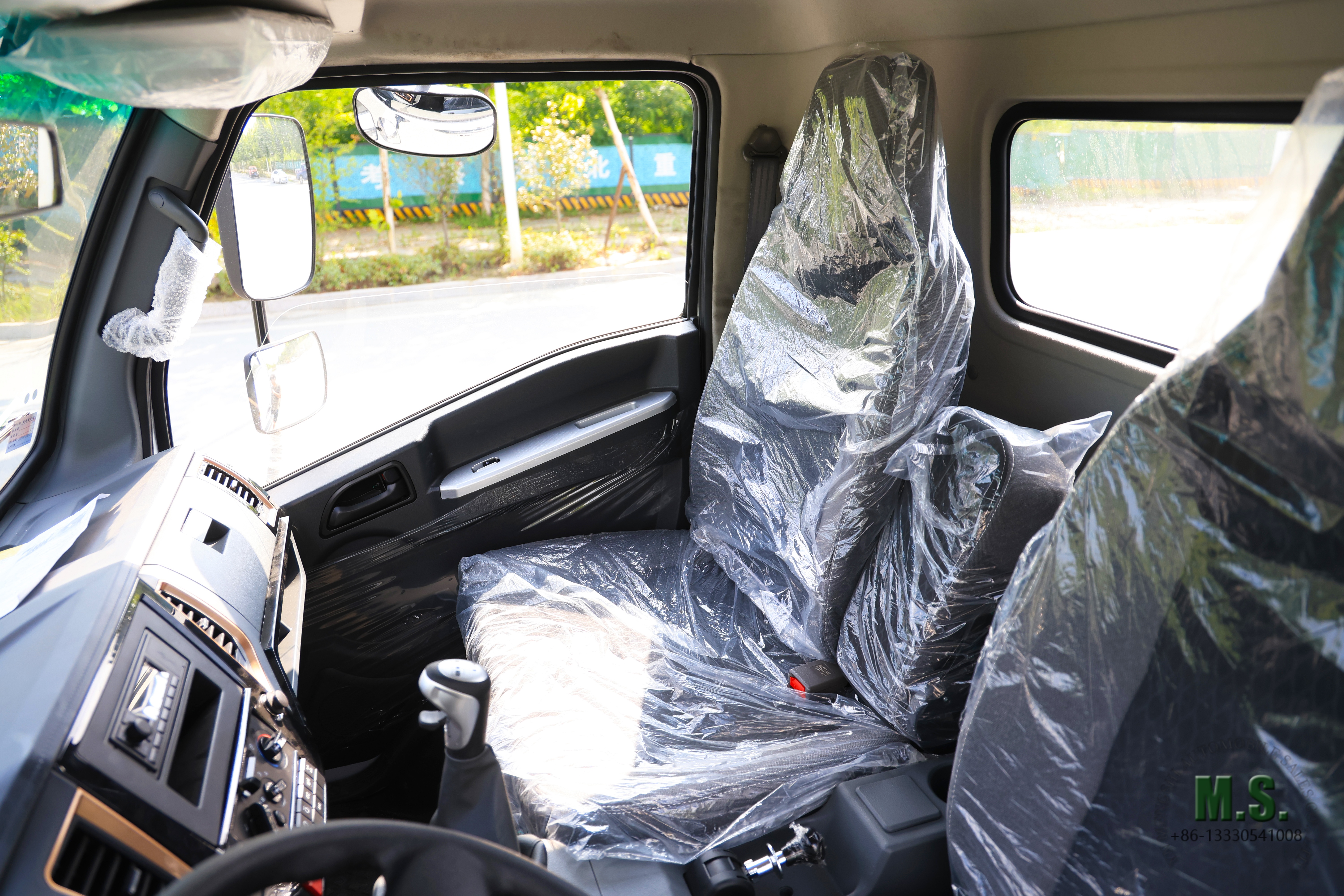

Cab | Flathead single row |
Emission Standard | Euro-2 |
Gearbox | Manual 8-speed |
Transfer case | High and low speed |
Gorss Weight | 12500kg |

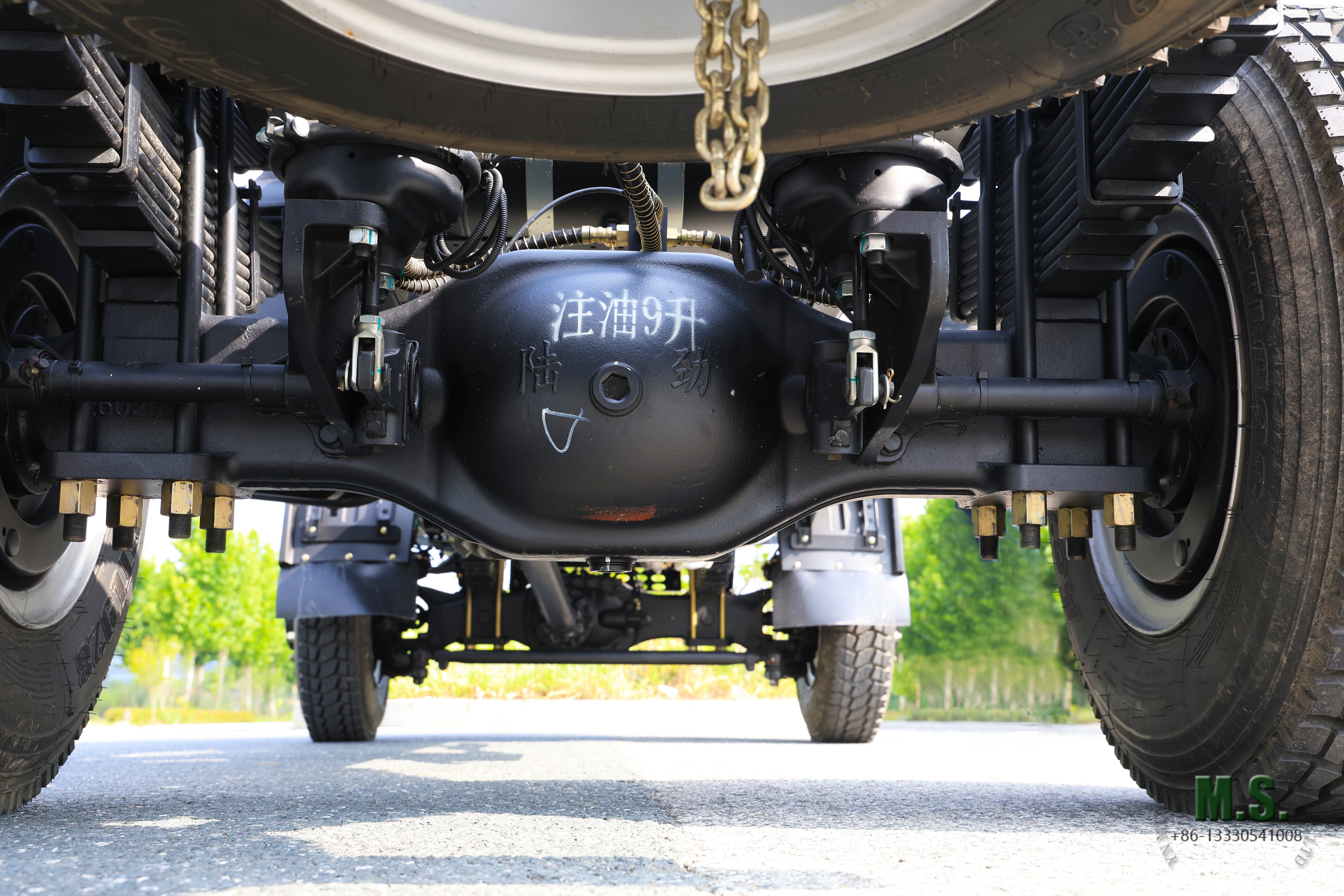

Axle | 4.55T/8T |
Suspension | Leaf Spring |

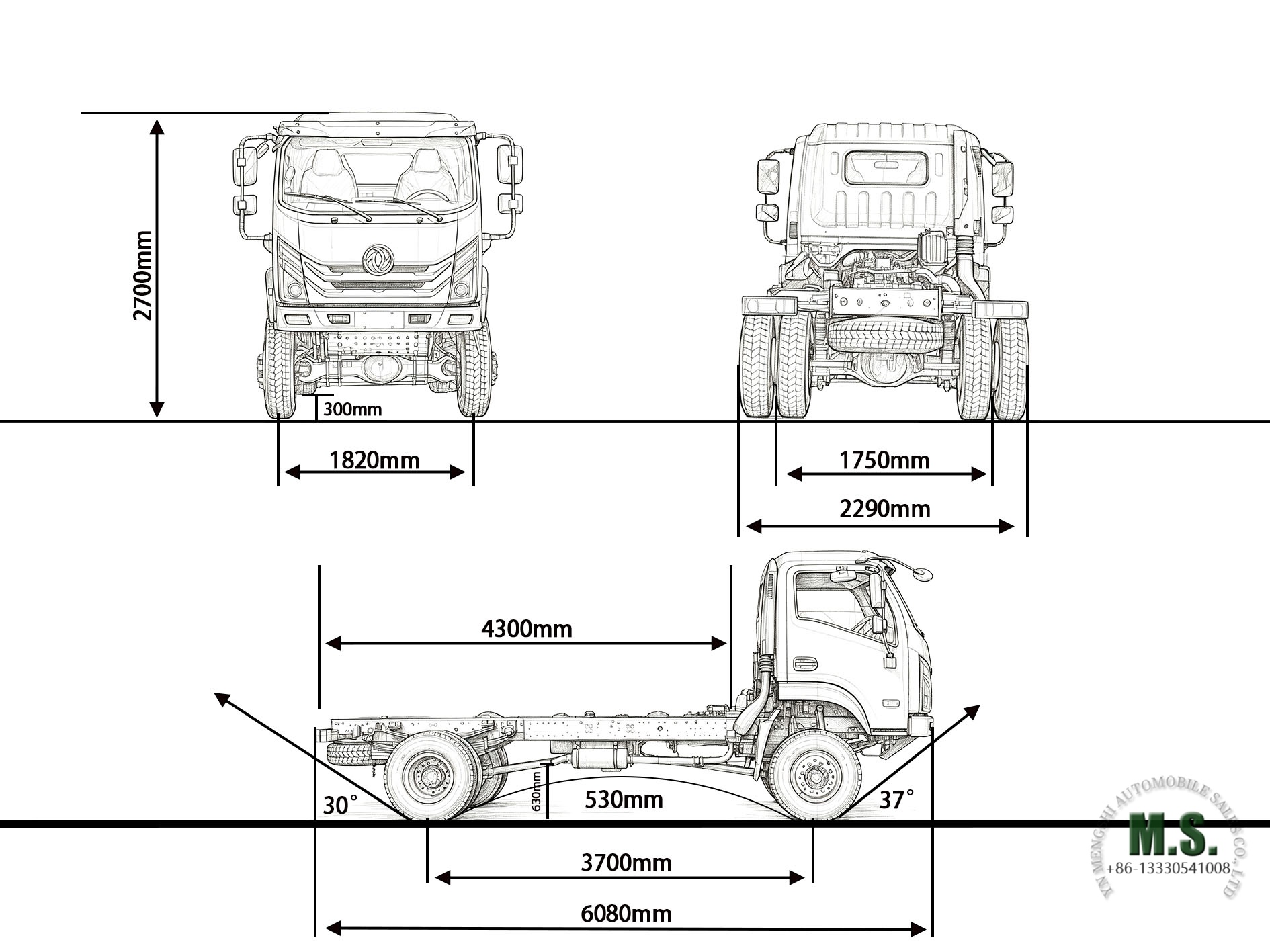

Wheelbase | 3700mm |
Track Width | 1820/1750mm |
Overall Dimension | 6080×2290×2700mm |
Superstructure length | ≥4300mm |
Approach/Dparture Angle | 37º |
Gradeability | 60% |
Minimum Ground Clearance | 300mm |
Obstacle Crossing Height | 340mm |
Wading Depth | 530mm |
Tire | 8.25R16LT（6+1） |
Fuel Tank | 180L |
Distance from ground to top of frame | 530mm |
Max Speed | 85km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
