Basic configuration | |
|---|---|
Engine | B170 33 |
Transmission | Five gears (manual) |
Transfer Case | High and low speed |

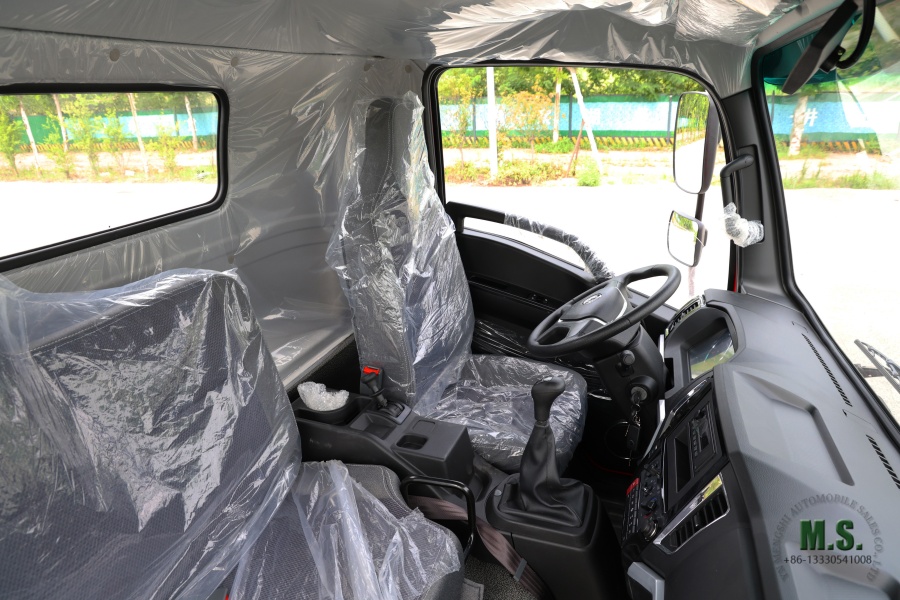

Cab | Flathead single row |

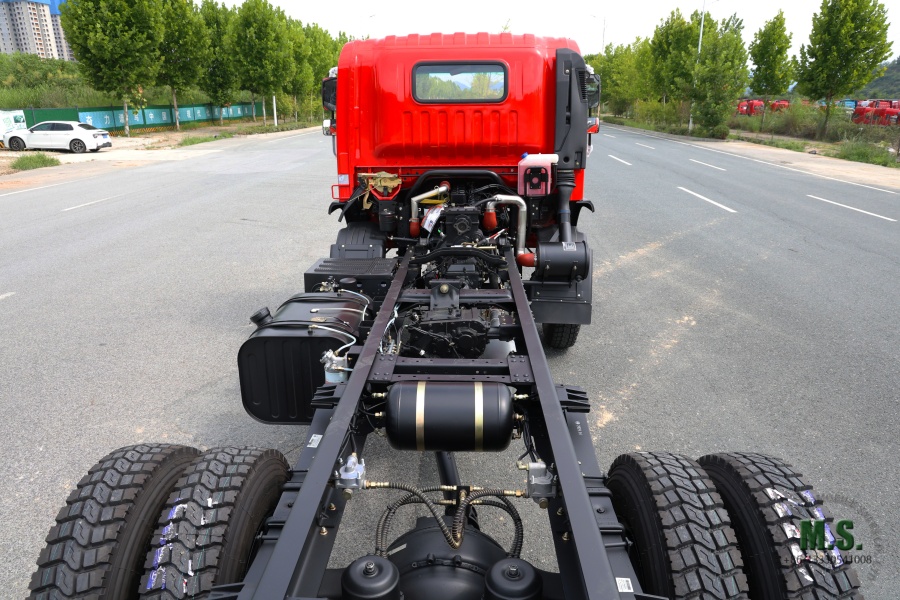

Frame | 860×250, double layer |

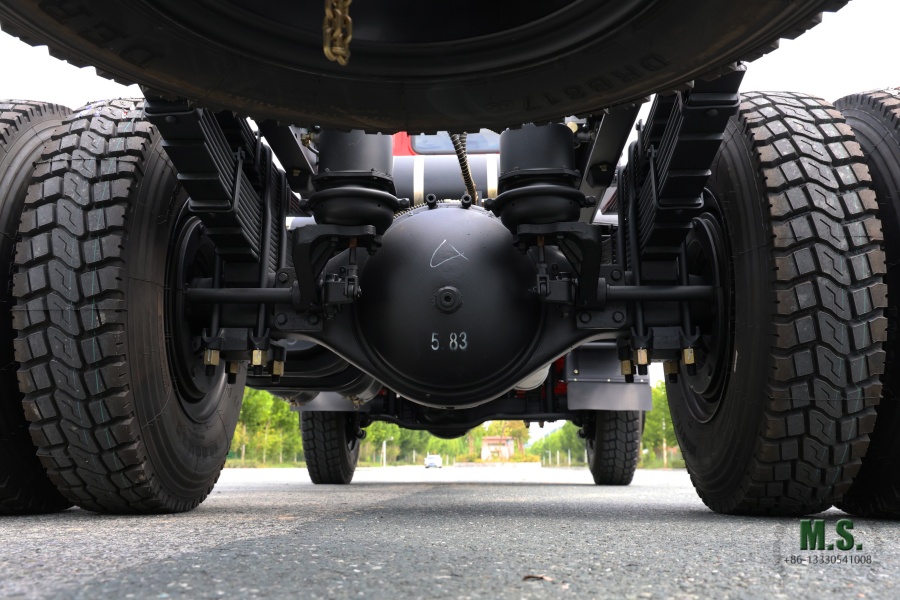

Axle | 5T/10T |
Suspension | Leaf spring 9/8+10 |
Tyres | 10.00R20 (6+1) |

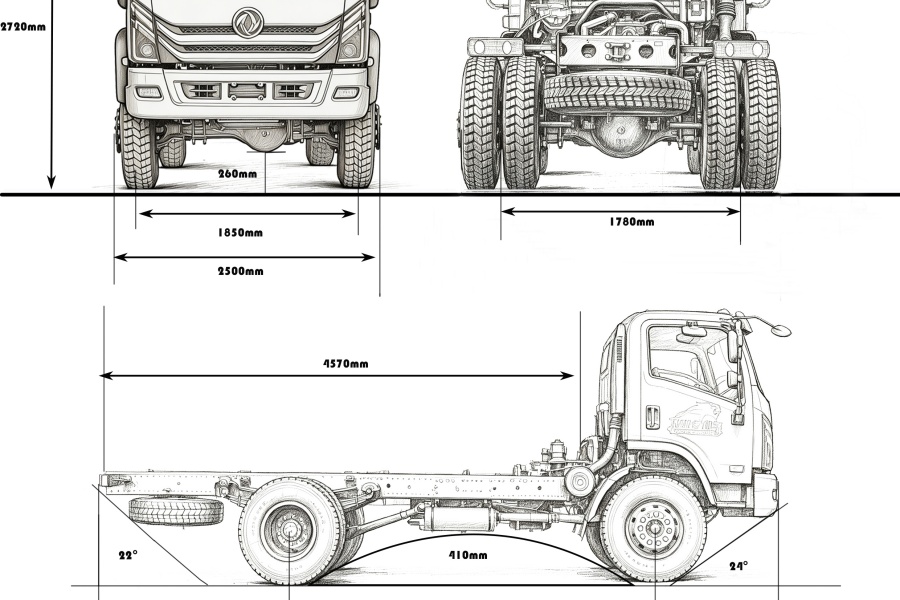

Overall Dimensions | 7240×2500×2720 mm |
Wheelbase | 3800 mm |
Trackwidth | 1850/1780 mm |
GVW (Gross Vehicle Weight) | 15000 kg |
Chassis Curb Weight | 5230 kg |
Approach Angle | 24° |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
