140-horsepower 10-ton Gross Weight Dongfeng 4x4 Truck Chassis Modern Design_Cummins Engine, Very Cost Effective, Double Rear Tyre, Durable Chassis_Manufacturer Direct Factory Price

Direct sales from the manufacturer: Dongfeng Good Price 4x4 Modern Design Chassis with Cab.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Dongfeng 4x4 drive refrigerated trucks chassis with cab, modern design, durable quality, very friendly price.


Basic configuration

 Engine Cummins B140 20
Horsepower140Hp
Rated Power103kw
Max Torque502N.m
Displacement5.9L
Emission StandardEuro-2
 Gearbox Manual Five-speed
 Transfer Box 2 Speed
Wheelbase3300mm
Track Width1806mm
Chassis Overall Dimension5355×2350×2920mm
Superstructure Dimension3750mm
Approach/Dparture Angle30°/36°
Gradeability60%
Minimum Ground Clearance200mm
Obstacle Crossing Height450mm
Wading Depth470mm
Ground Clearance of Rear Frame930mm
Front Hang/Rear Hang1130/925mm
Tyre8.25R16LT(6+1)
Fuel Tank160L
Axle2.8T/8T
Curb Weight4082kg
G.V.W10800kg
Max Speed90km/h


Note: This specification is for reference only,  please refer to the actual vehicles. The factory reserves the final right to interpret the specification.

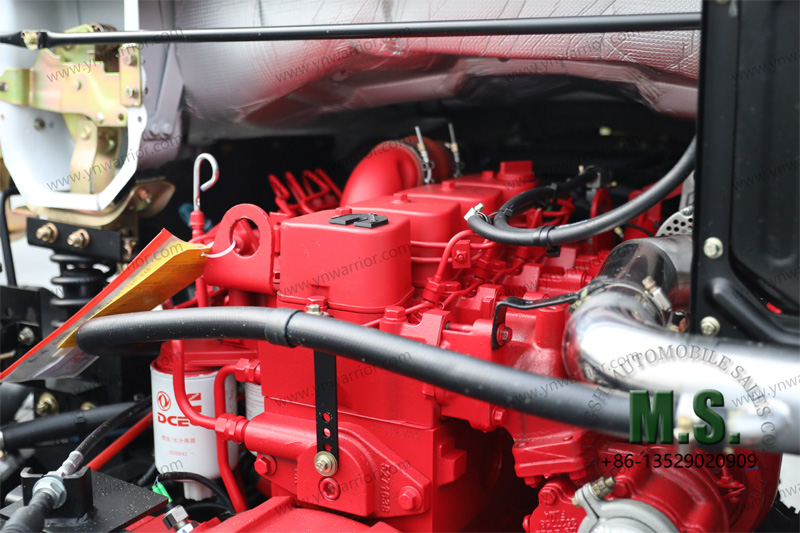

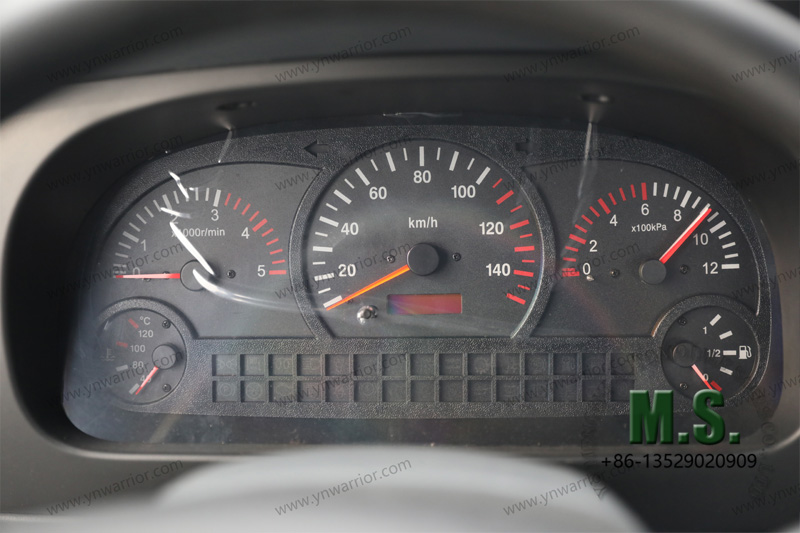

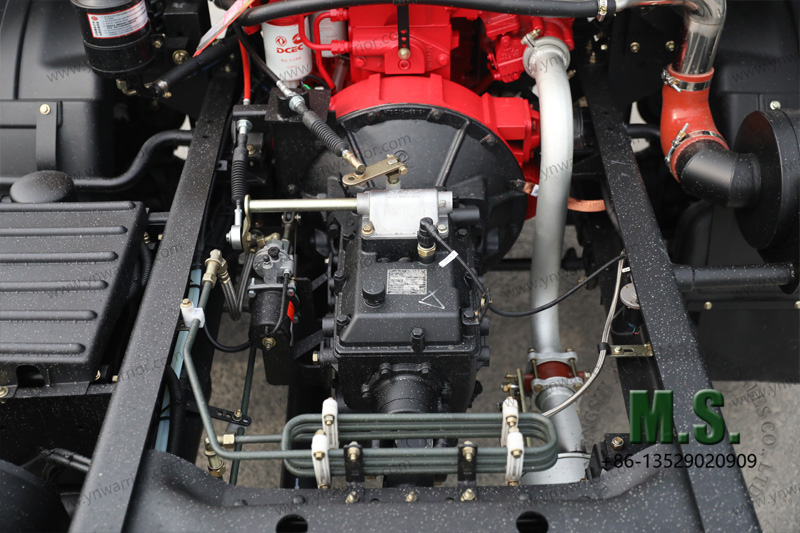

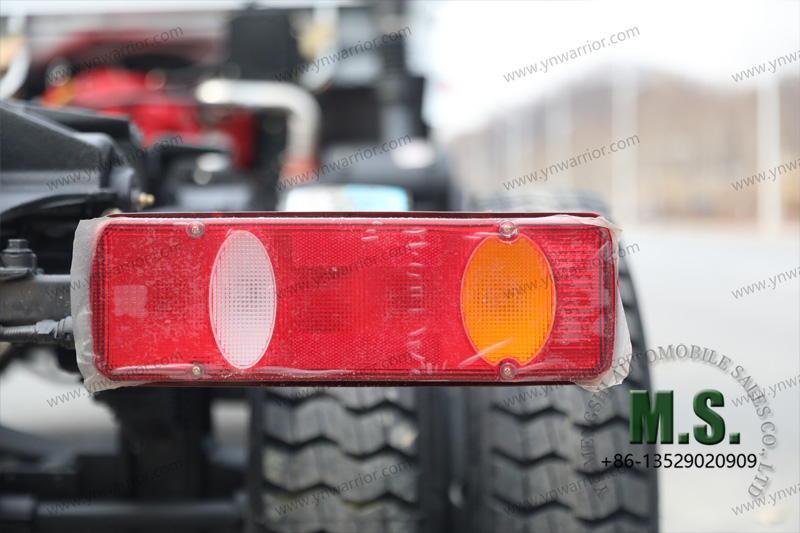

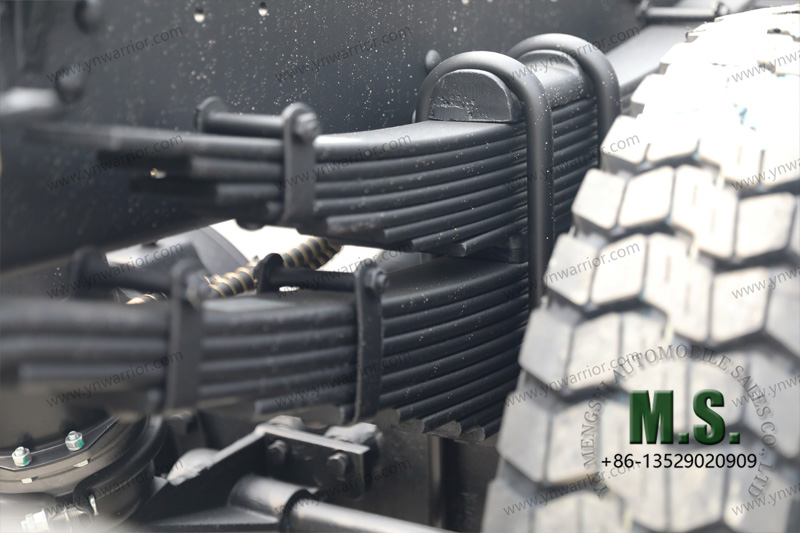

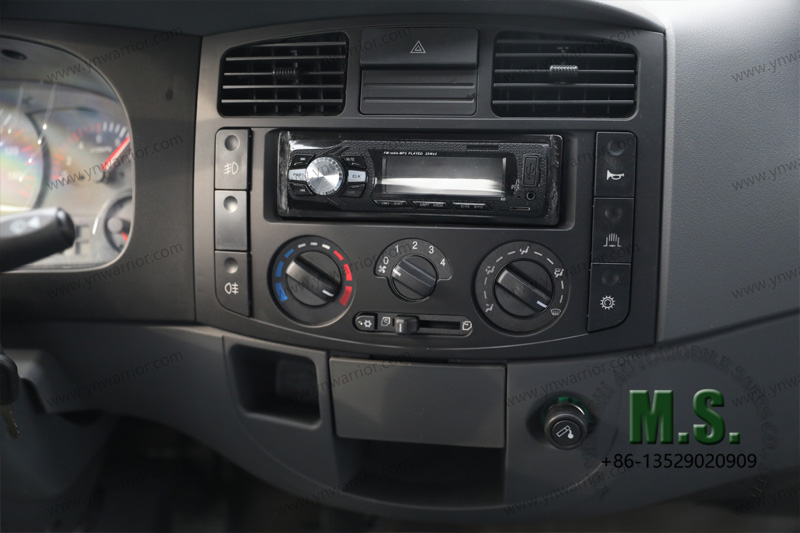

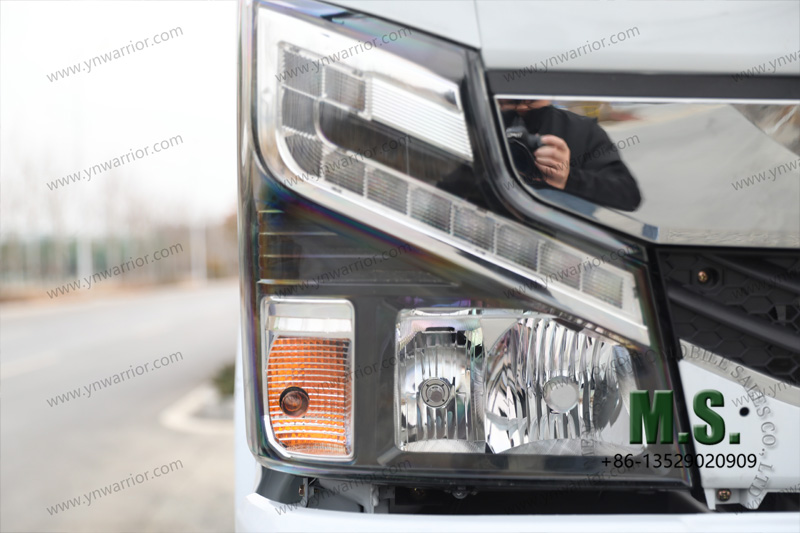

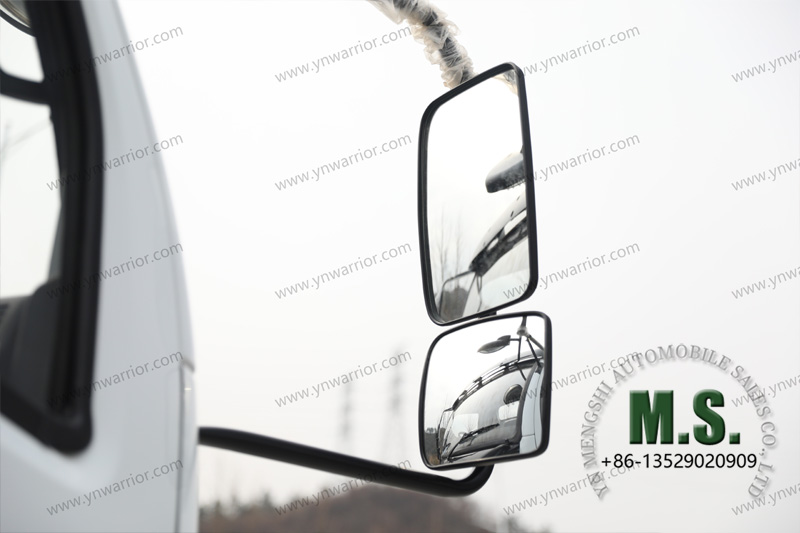

Dongfeng 4x4 modern cab truck chassis with cab medium duty authentic Cummins 140-horsepower engineDongfeng 4x4 modern cab truck chassis with cab medium duty cabDongfeng 4x4 modern cab truck chassis with cab medium duty FAST manual transmissionDongfeng 4x4 modern cab truck chassis with cab medium duty good design front head lightDongfeng 4x4 modern cab truck chassis with cab medium duty instrument panelDongfeng 4x4 modern cab truck chassis with cab medium duty leaf spring suspensionDongfeng 4x4 modern cab truck chassis with cab medium duty multi function instrument dashboardDongfeng 4x4 modern cab truck chassis with cab medium duty rear brake lightDongfeng 4x4 modern cab truck chassis with cab medium duty reverse camera

未标题-1

transportation

        For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.

       For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

payment

       On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

custom

       Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.
