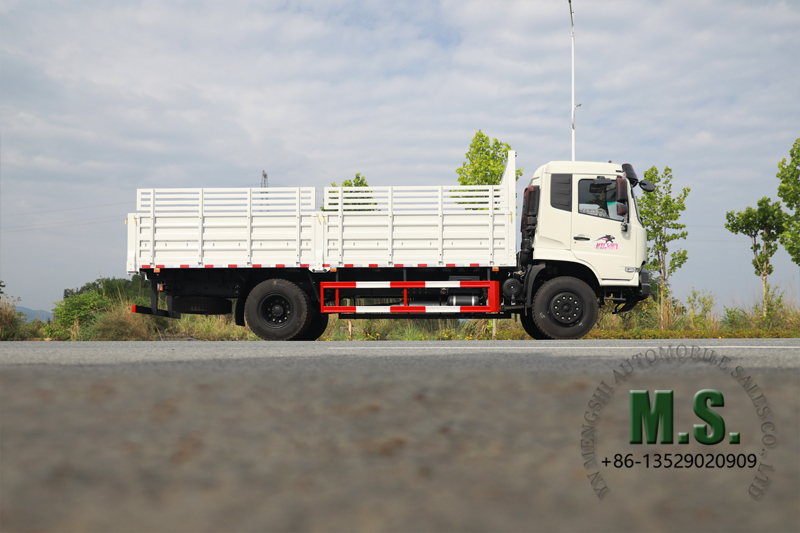

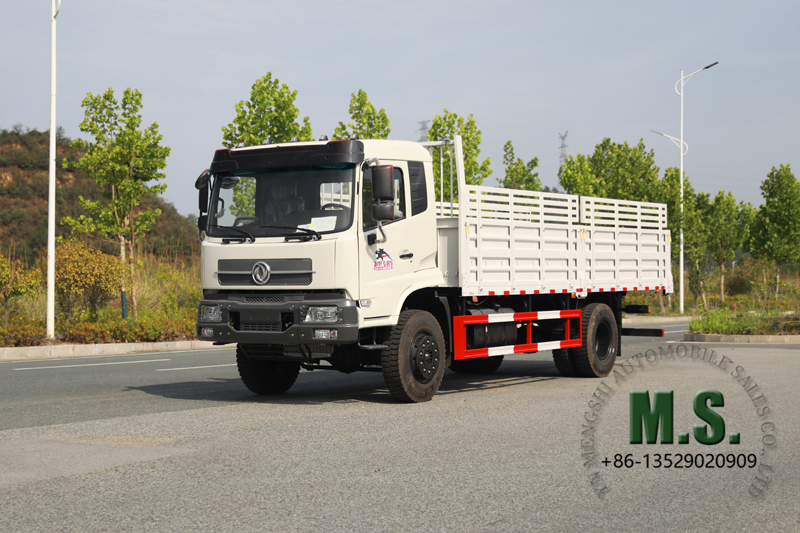

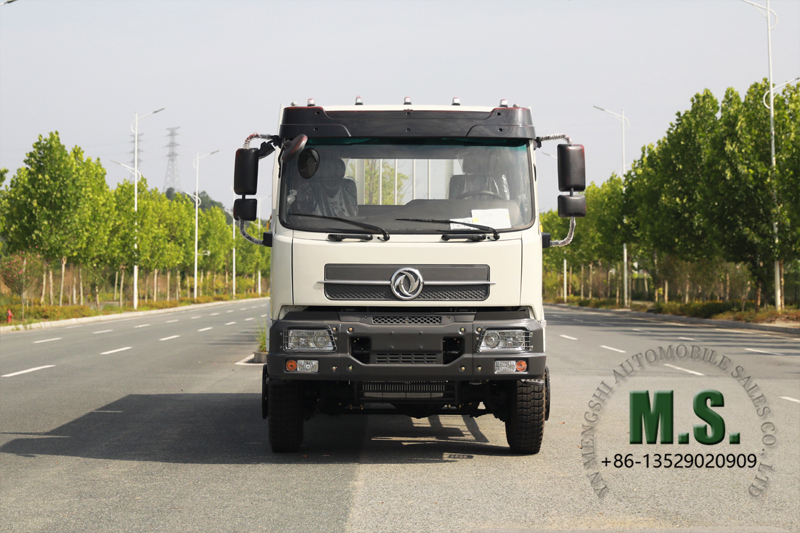

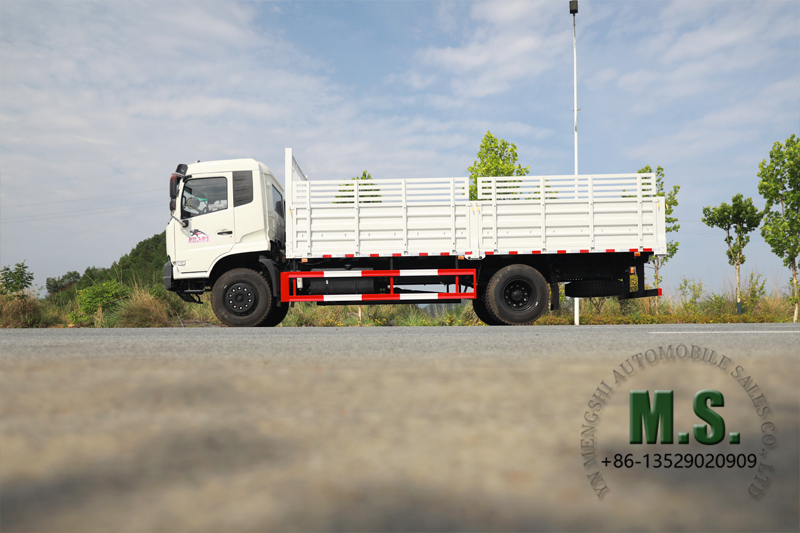

This Dongfeng 4x4 truck chassis with a 210hp Cummins engine and cab is a 4WD off-road chassis. It’s a dedicated Dongfeng 4x4 special vehicle chassis, suitable for modifications into trucks, freight vehicles, or dump trucks. As a mountain-forest off-road chassis and all-wheel drive special vehicle modification base, this 210hp single-axle off-road chassis offers robust off-road capability.
Basic configuration | |
---|---|
Engine | Cummins B210 33 |
Horsepower | 210Hp |
Rated Power | 155kw |
Max Torque | 700N.m |
Displacement | 5.9L |
Emission Standard | Euro-2/3 |
Gearbox | Manual 8-speed |
Transfer Box | High and low, 2 Speed |
Wheelbase | 4700mm |
Track Width | 2035/1818mm |
Overall Dimension | 8250×2430×3080mm |

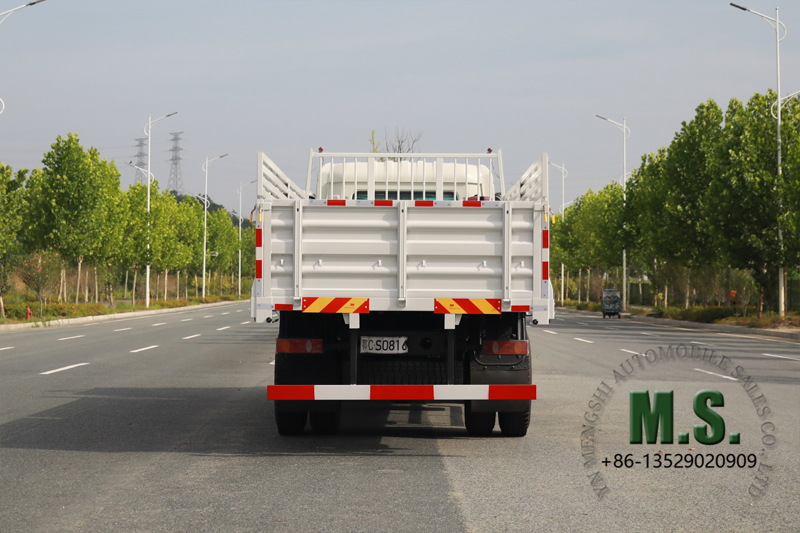

Cargo Box Dimension | 5110x2430x3080mm |
Frame | 860*250(8+6 Double layer)mm |
Leaf Spring | 9/8+9 |
Superstructure Length | >6000mm |
Approach/Dparture Angle | 26°/15° |
Front/Rear Overhang | 1340/2210mm |
Curb Weight | 6750kg |
G.V.W | 15000kg |
Axle | 5T/10T |
Minimum Ground Clearance | 280mm |
Obstacle Crossing Height | 470mm |
Wading Depth | 580mm |
Ground Clearance of Rear Frame | 1090mm |
Tyre | 10.00R20(6+1) |
Fuel Tank | 300L |
Max Speed | 90km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
