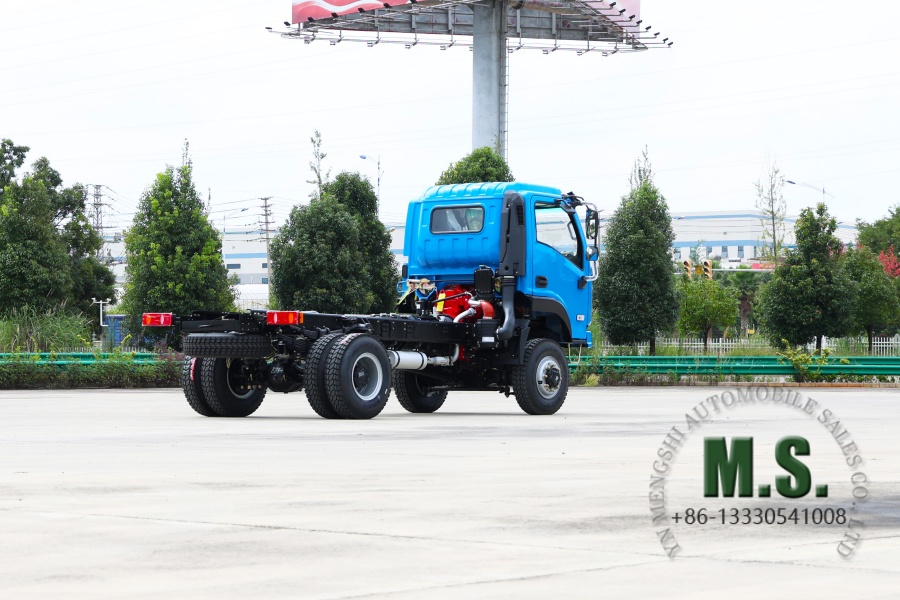

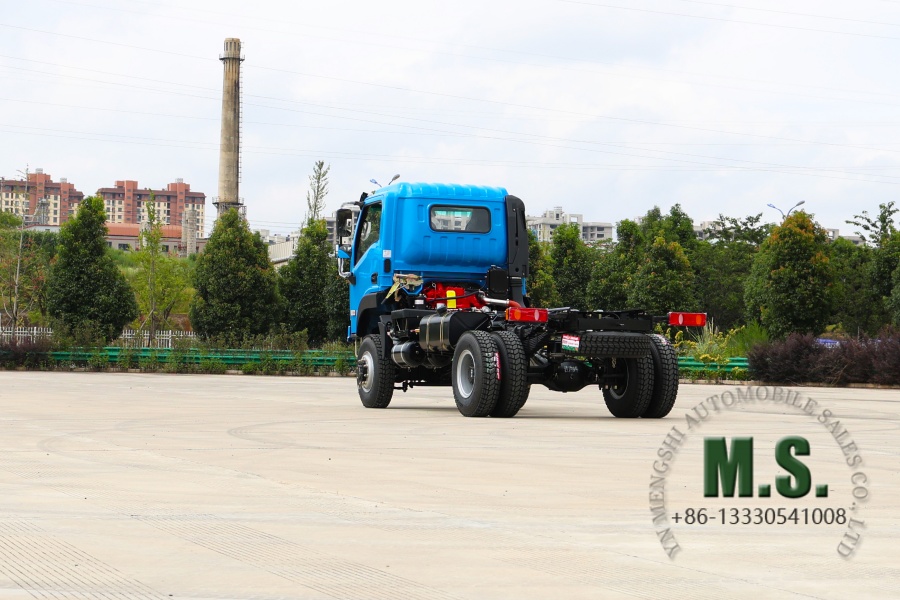

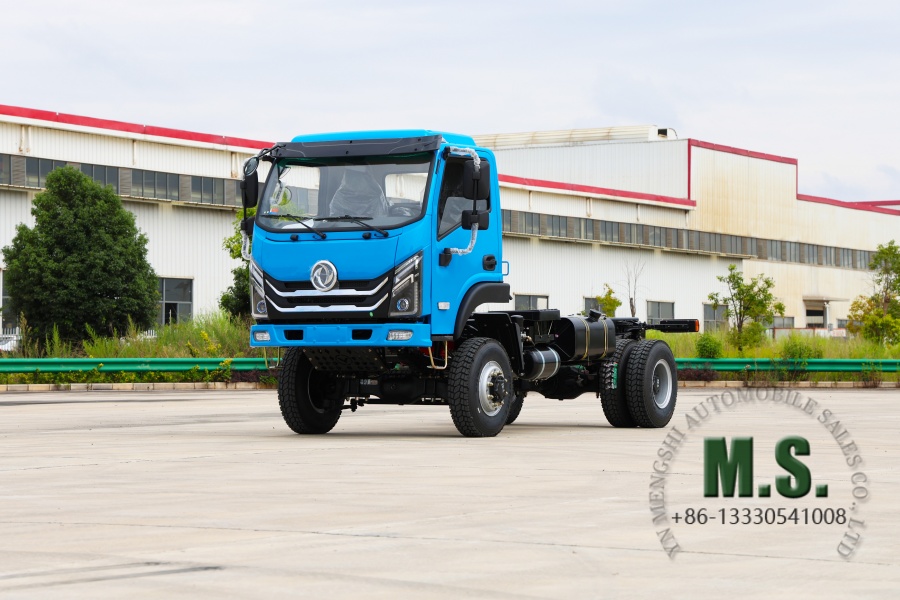

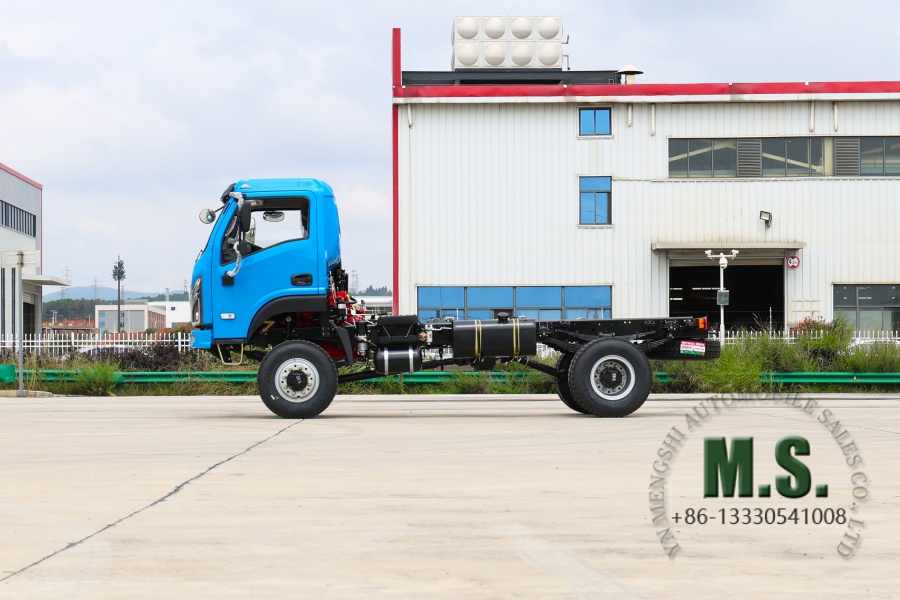

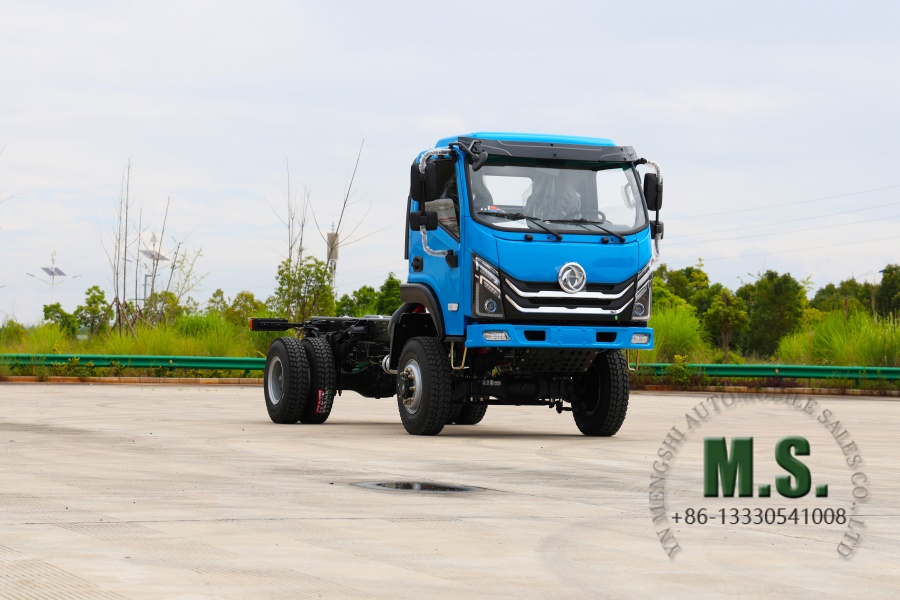

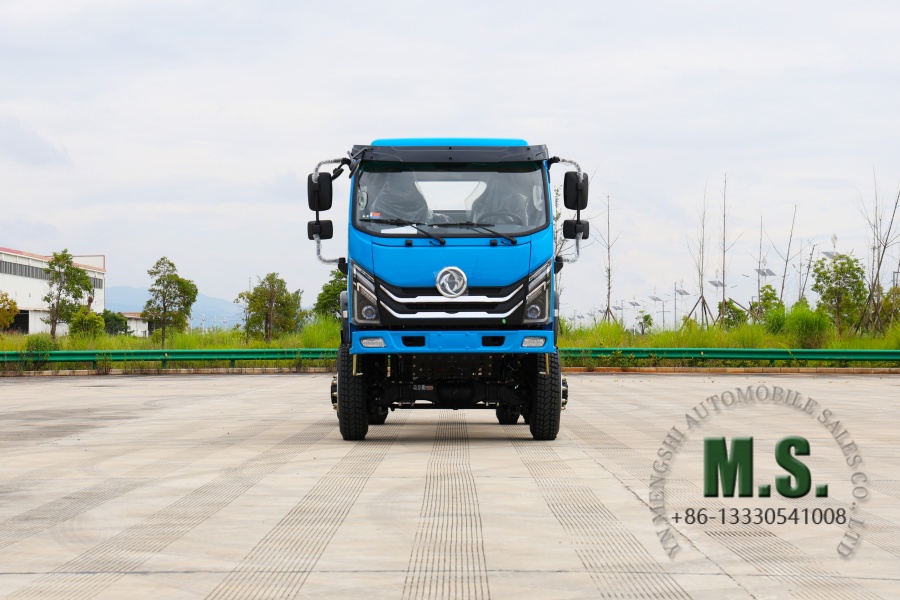

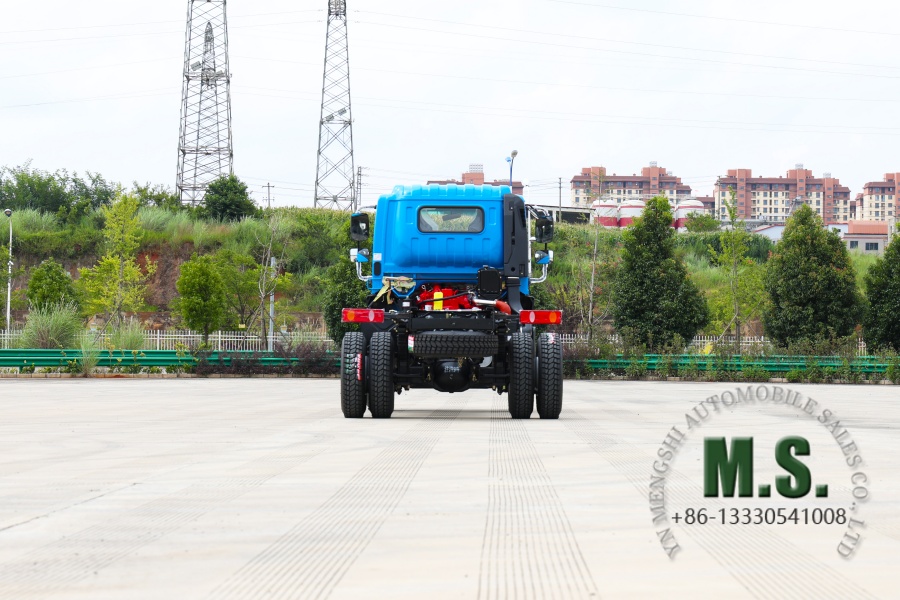

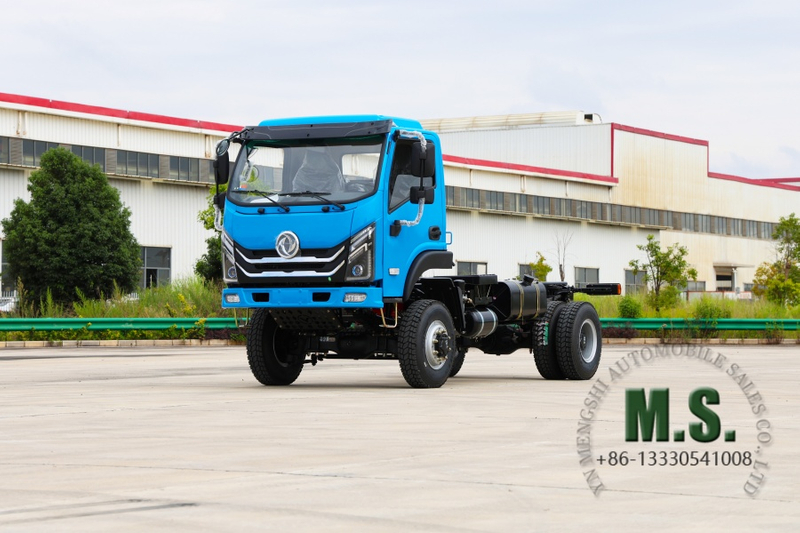

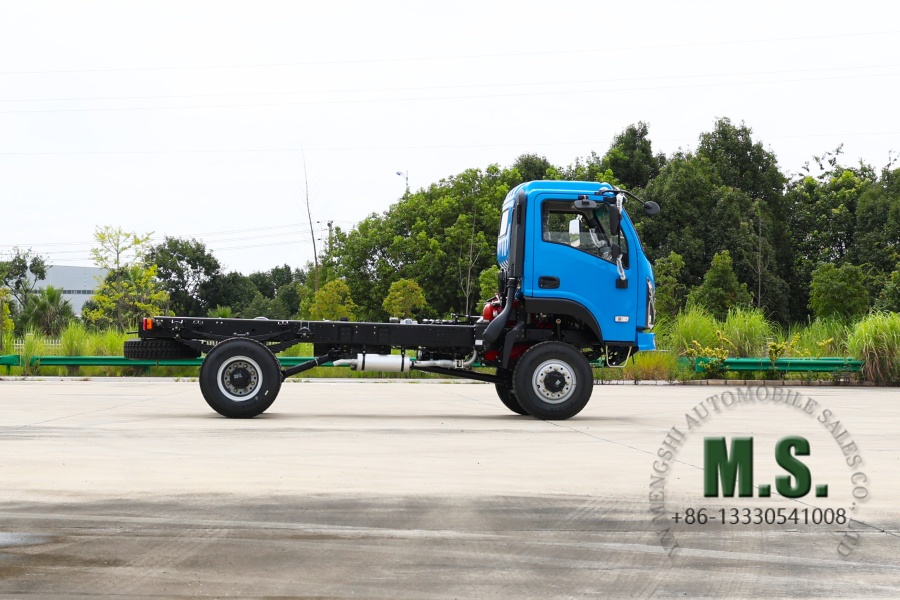

This 4WD flathead light truck chassis boasts reliable Cummins power and high-low speed transfer case for great all-terrain performance. It features 37° approach angle, 630mm fording depth and 530mm obstacle crossing height, easily tackling mountain and rough roads. The long refitting space supports various special vehicle conversions. Durable frame and heavy-duty axles ensure stable load capacity, your ideal rugged base chassis for off-road projects.
Basic configuration | |
|---|---|
Specification | Details |
Engine | Cummins EQB140 |
Transmission | Manual 8-speed |

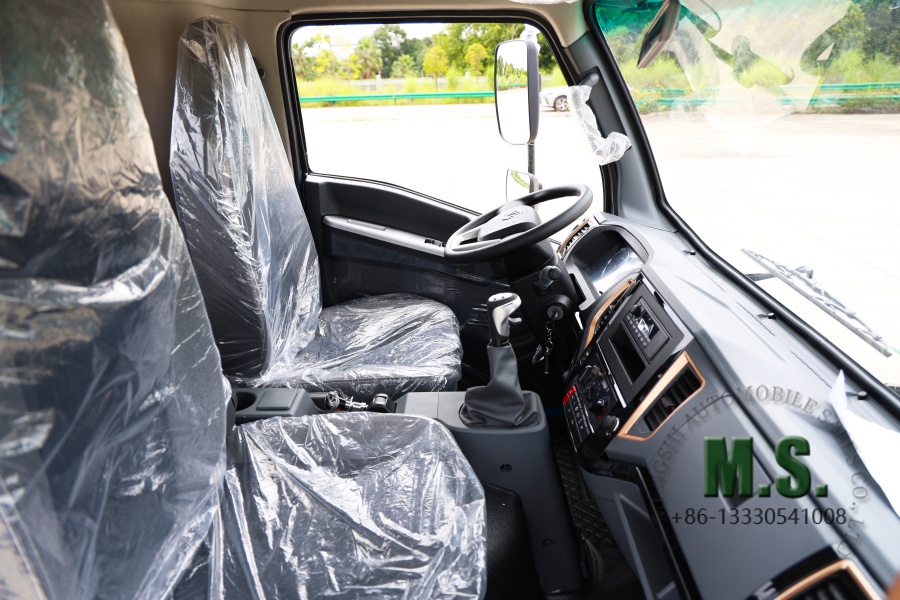

Cab | Flathead single row |

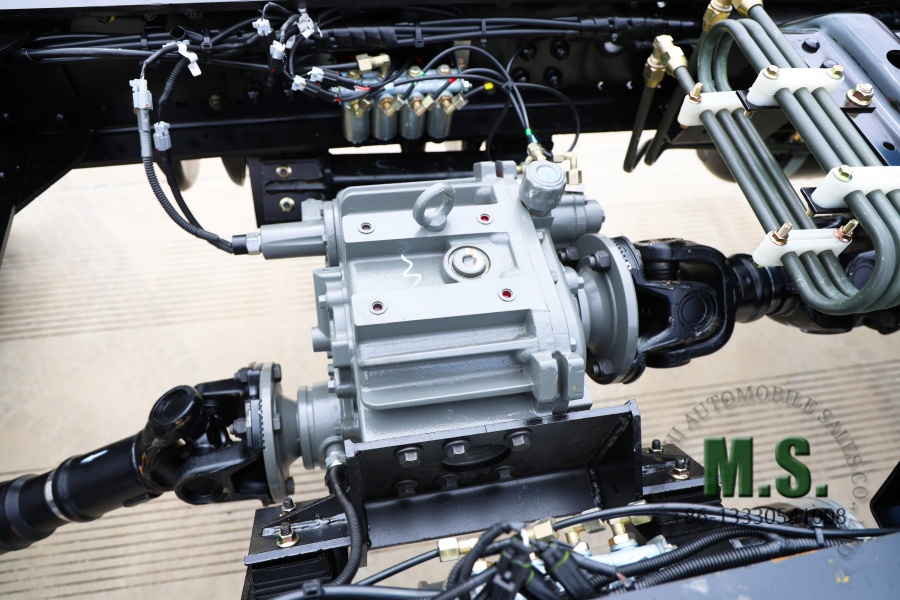

Transfer Case | High and low speed |
Frame | 800×190 (8+6) |

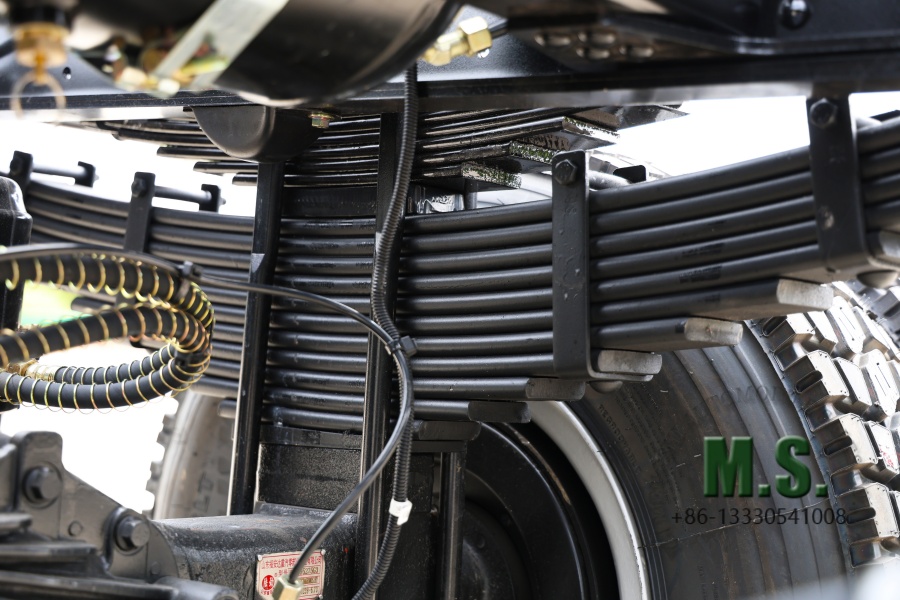

Suspension | Leaf spring 10/8+10 |

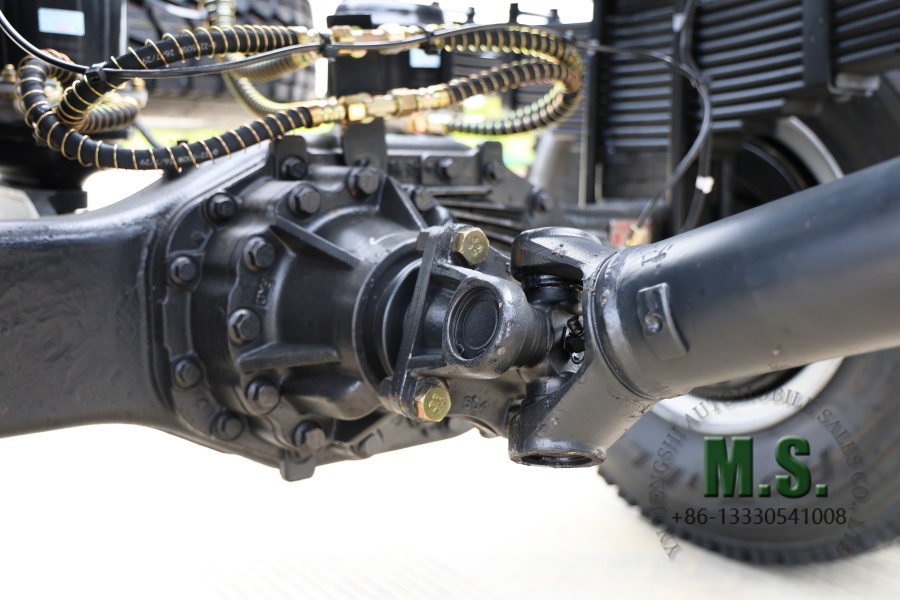

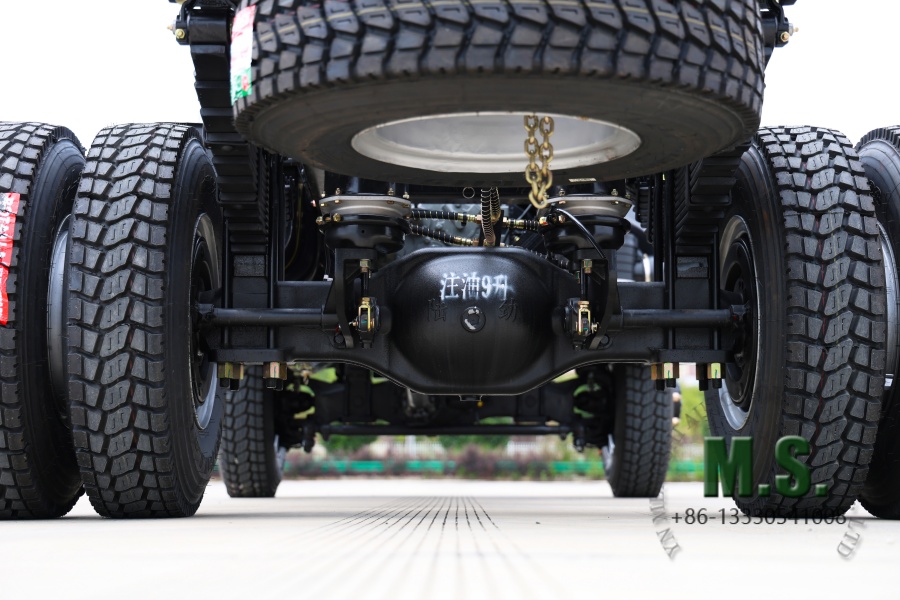

Axle | 4.5T/8T |
Tyres | 8.25R16LT (6+1) |
Overall Dimensions | 6080×2290×2700mm |
Superstructure Length | ≥4300mm |
Wheelbase | 3700mm |
Track Width | 1820/1750mm |
GVW | 12500kg |
Chassis Curb Weight | 3950kg |
Approach Angle | 37° |
Departure Angle | 30° |
Fuel Tank Capacity | 180L |
Frame Top Height | 890mm |
Fording Depth | 630mm |
Obstacle Height | 530mm |
Max Speed | 85km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
