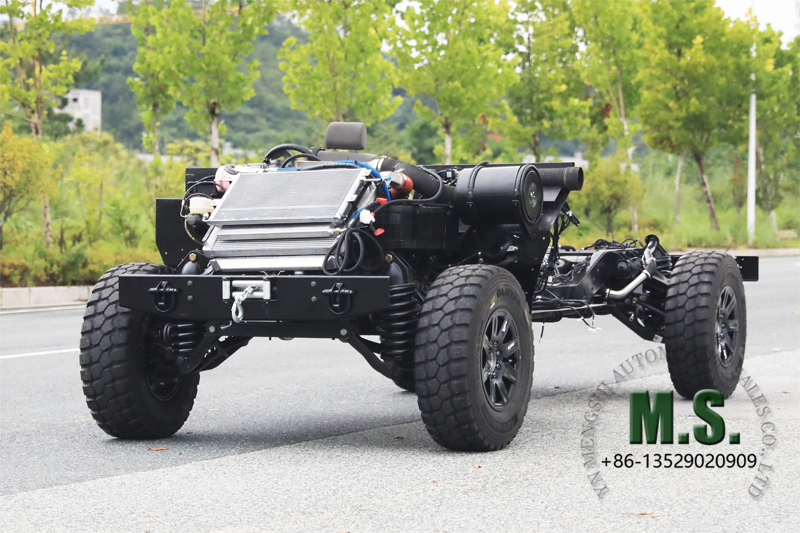

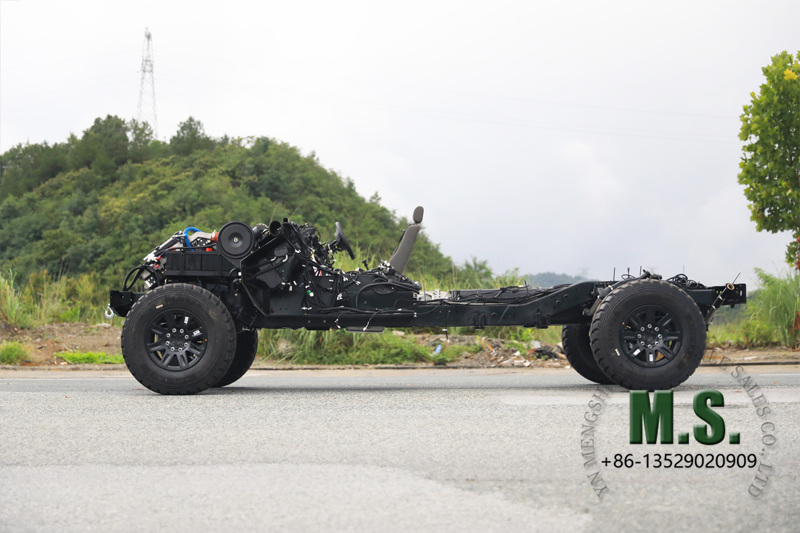

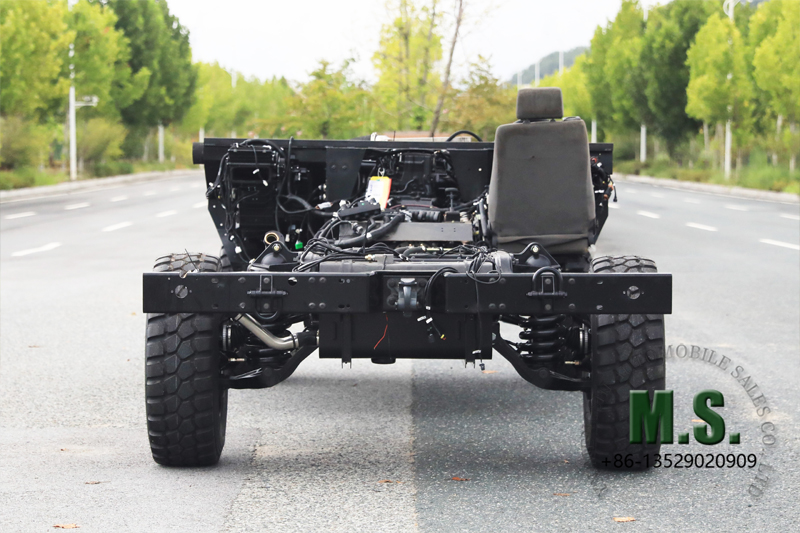

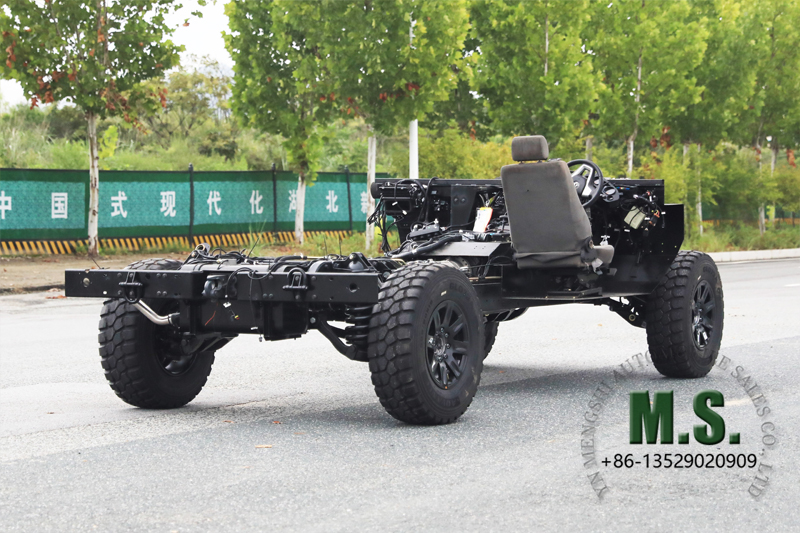

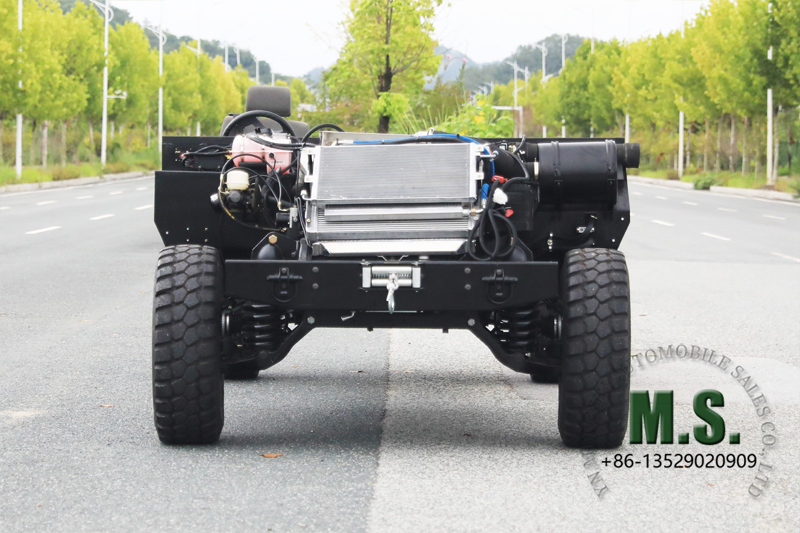

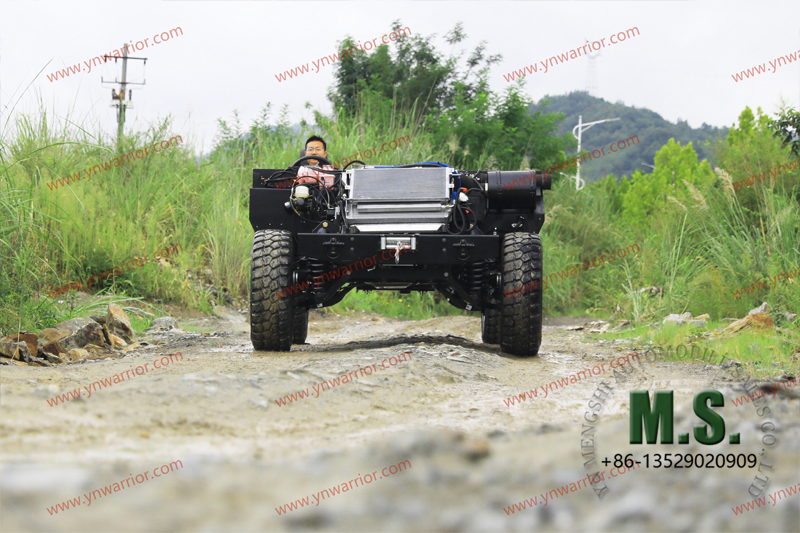

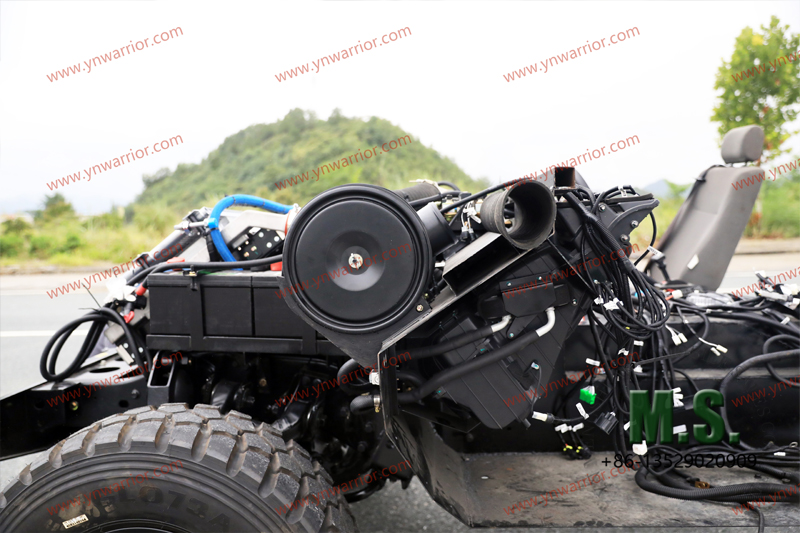

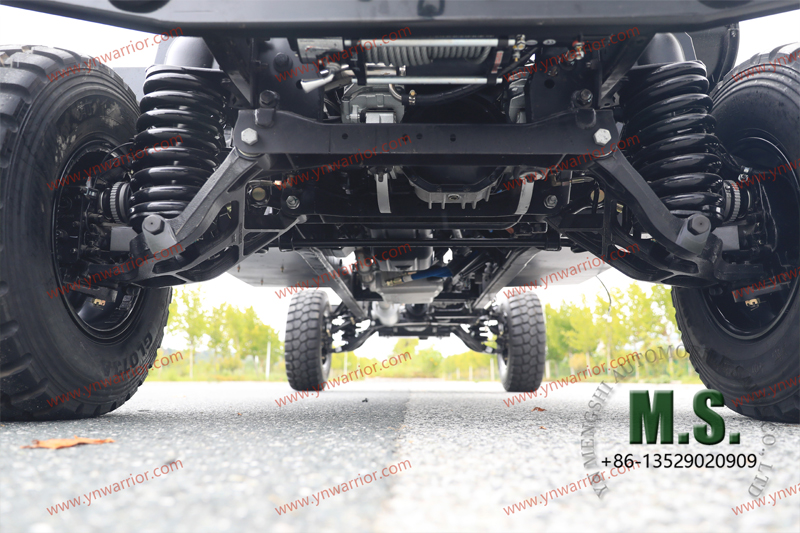

Rolling chassis of military standard classic high - mobility off - road all - terrain vehicle but civil version. It can be equipped with any high - end or military - grade features such as a central tire inflation system or bullet - proof tires
LHD/RHD, Euro 6 optional.
Basic configuration | |
|---|---|

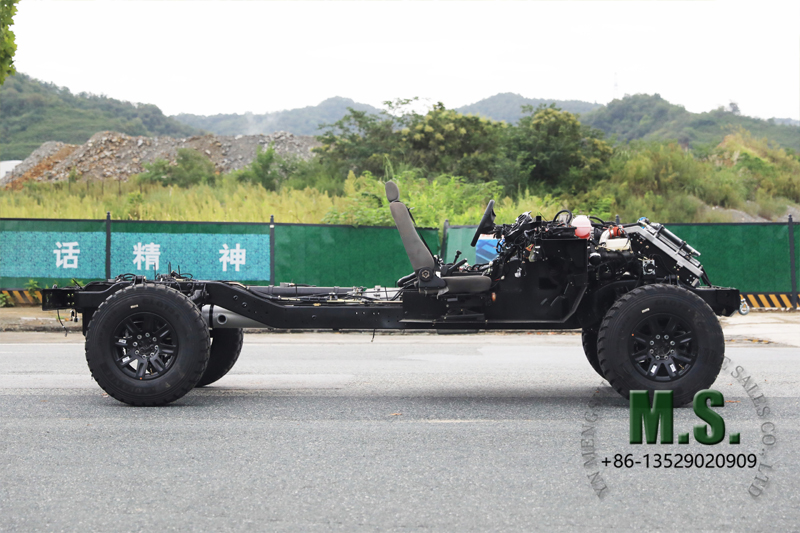

| Engine | Cummins ISDe200 41 |
| Horsepower | 200Hp |
| Rated Power | 147kw |
| Displacement | 4.5L |
| Emission Standard | Euro-4 |
| Gearbox | Allison automatic transmission |
| Transfer Box | Full-time |
| Wheelbase | 3800mm |
| Track Width | 1840mm |
| Overall Dimension | 5290×2250×1710mm |
| Approach/Dparture Angle | 48°/46° |
| Gradeability | 60% |
| Minimum Ground Clearance | 410mm |
| Obstacle Crossing Height | 480mm |
| Wading Depth | 590mm |
| Operating Environment Temperature | -41℃ to +46℃ |
| Turning Diameter | 15m |

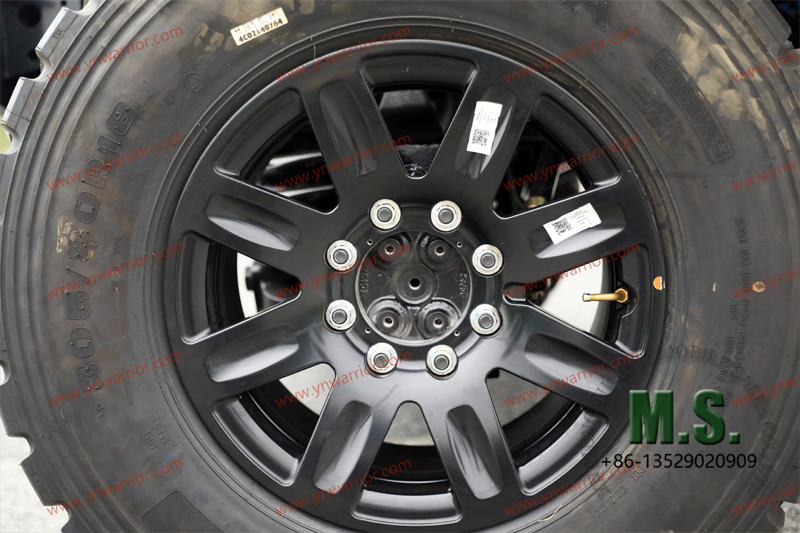

| Tyre | 305/80R18(4+1) With Run-flat, CTIS |

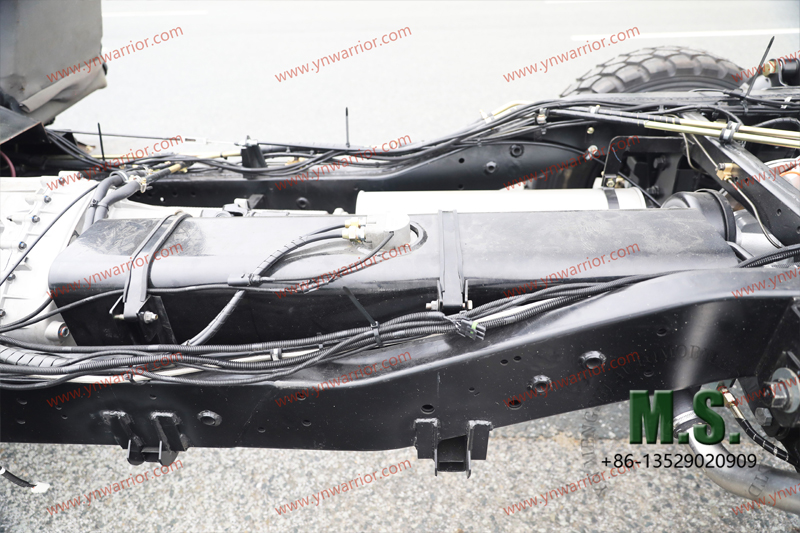

| Fuel Tank | 76+39L |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
Rolling chassis of military standard classic high - mobility off - road all - terrain vehicle but civil version. It can be equipped with any high - end or military - grade features such as a central tire inflation system or bullet - proof tires
LHD/RHD, Euro 6 optional.
Basic configuration | |
|---|---|
| Engine | Cummins ISDe200 41 |
| Horsepower | 200Hp |
| Rated Power | 147kw |
| Displacement | 4.5L |
| Emission Standard | Euro-4 |
| Gearbox | Allison automatic transmission |
| Transfer Box | Full-time |
| Wheelbase | 3800mm |
| Track Width | 1840mm |
| Overall Dimension | 5290×2250×1710mm |
| Approach/Dparture Angle | 48°/46° |
| Gradeability | 60% |
| Minimum Ground Clearance | 410mm |
| Obstacle Crossing Height | 480mm |
| Wading Depth | 590mm |
| Operating Environment Temperature | -41℃ to +46℃ |
| Turning Diameter | 15m |
| Tyre | 305/80R18(4+1) With Run-flat, CTIS |
| Fuel Tank | 76+39L |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
