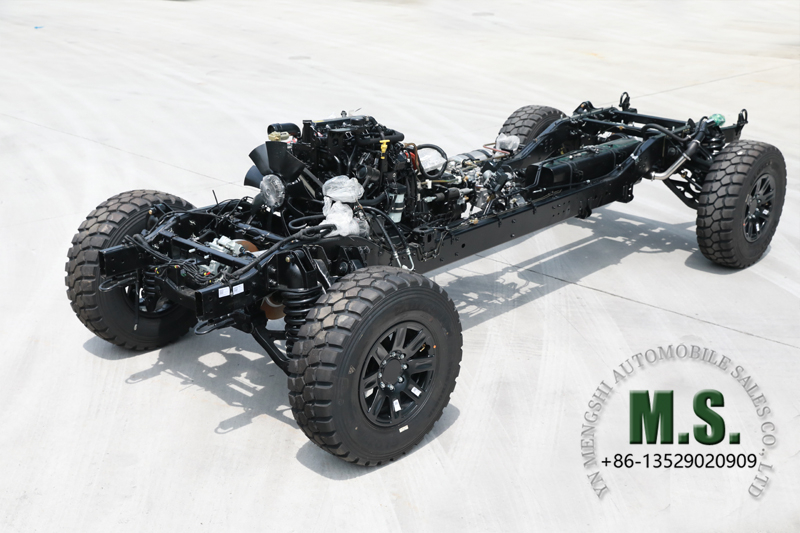

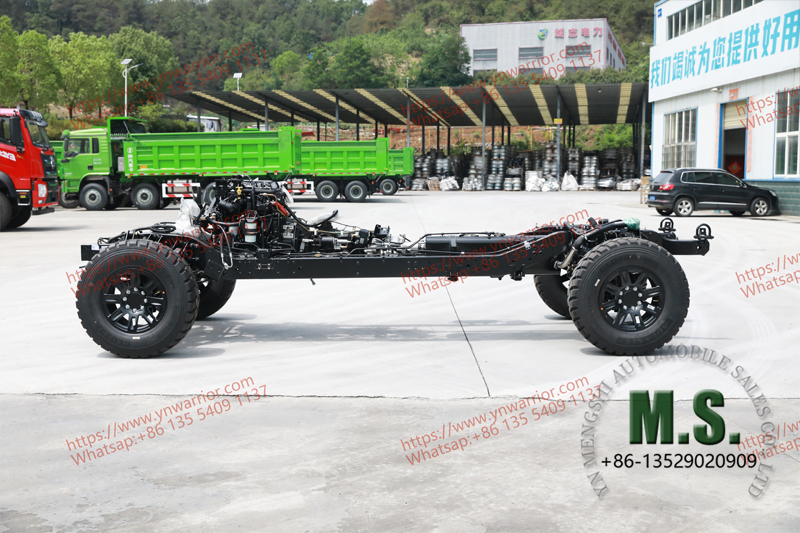

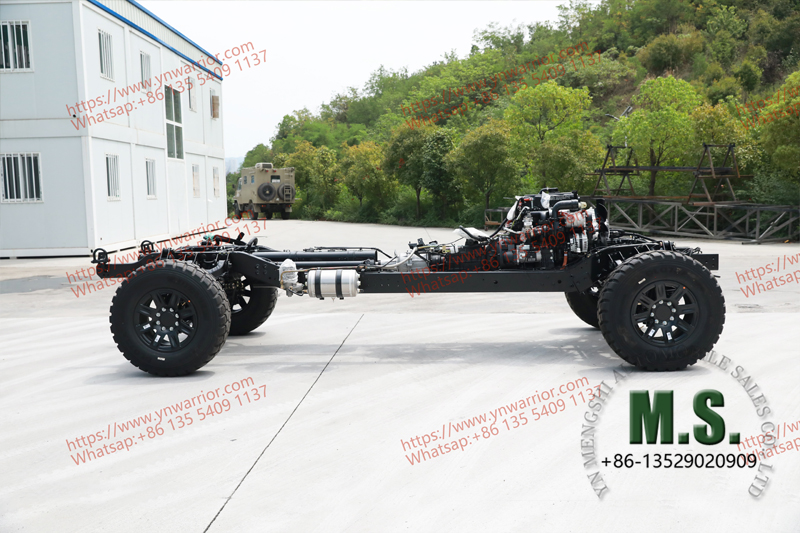

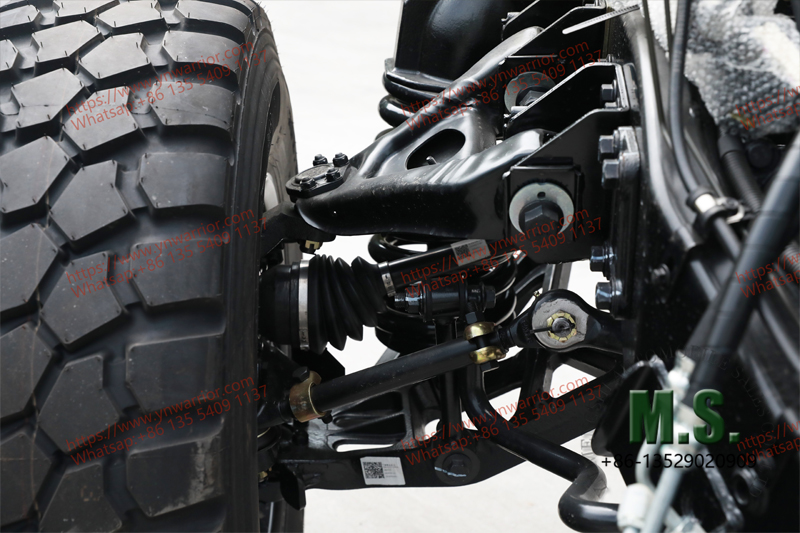

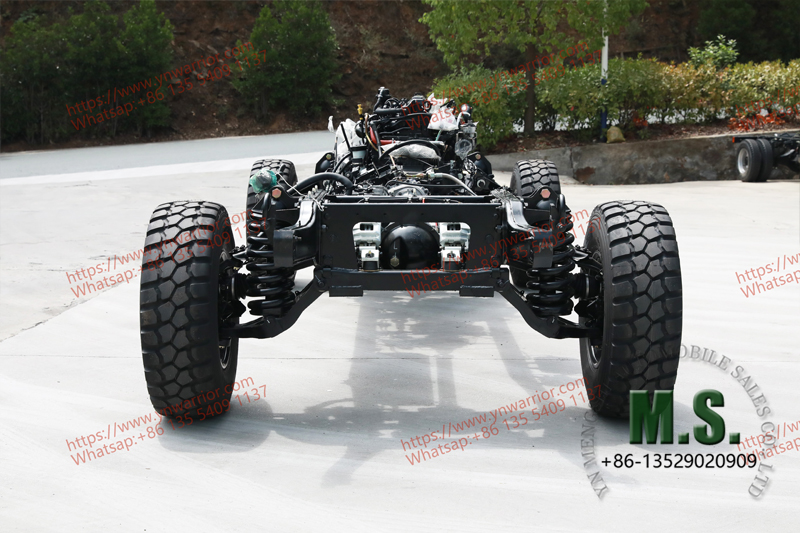

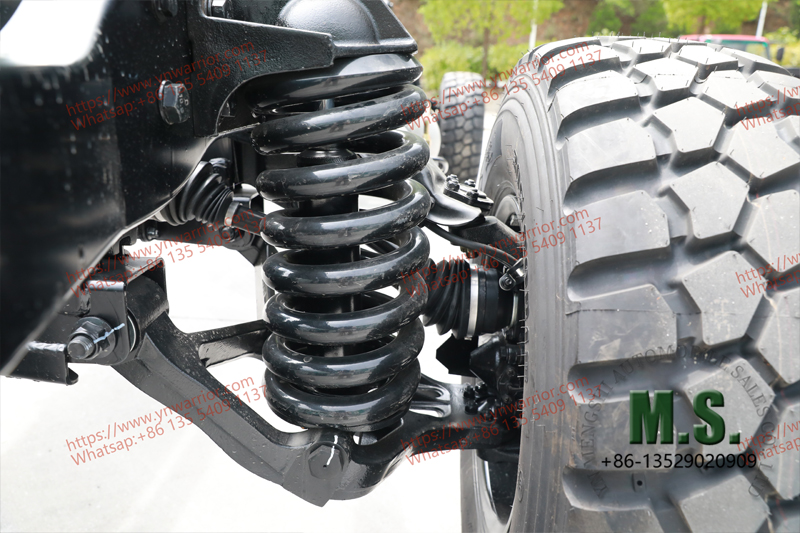

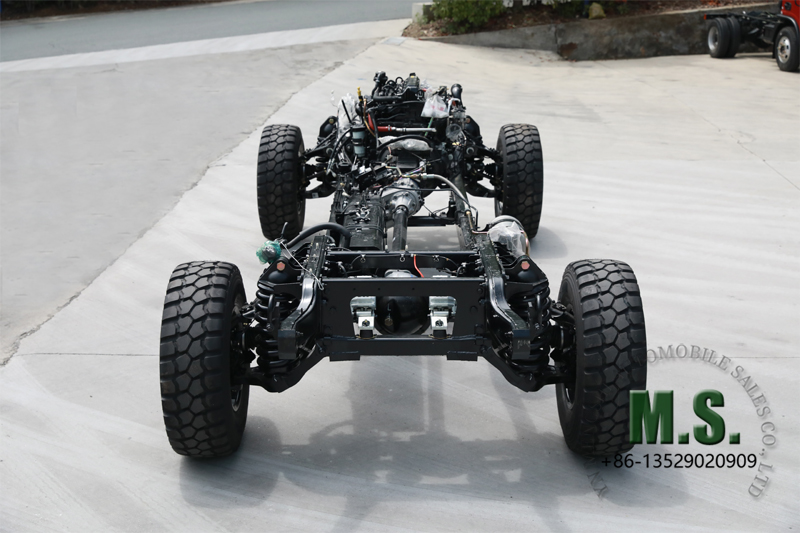

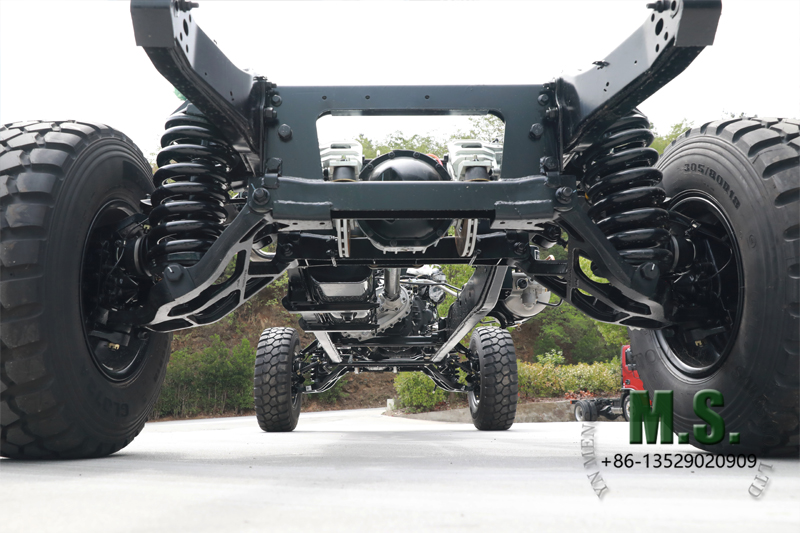

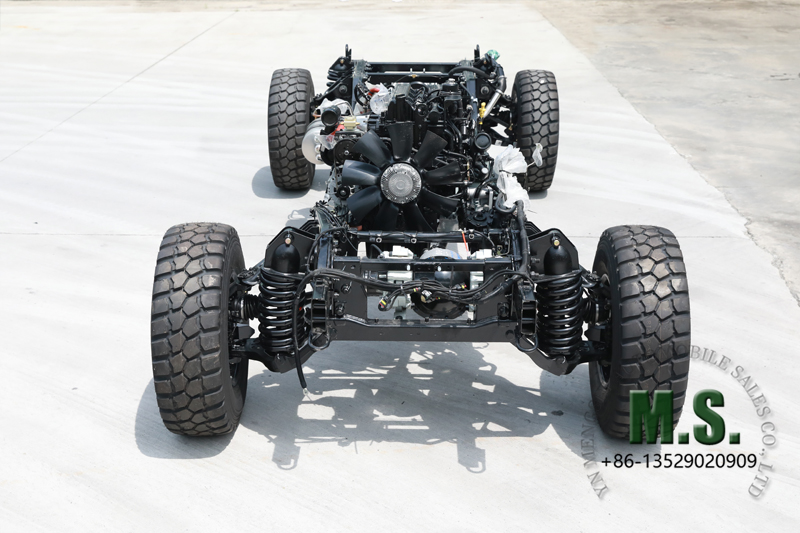

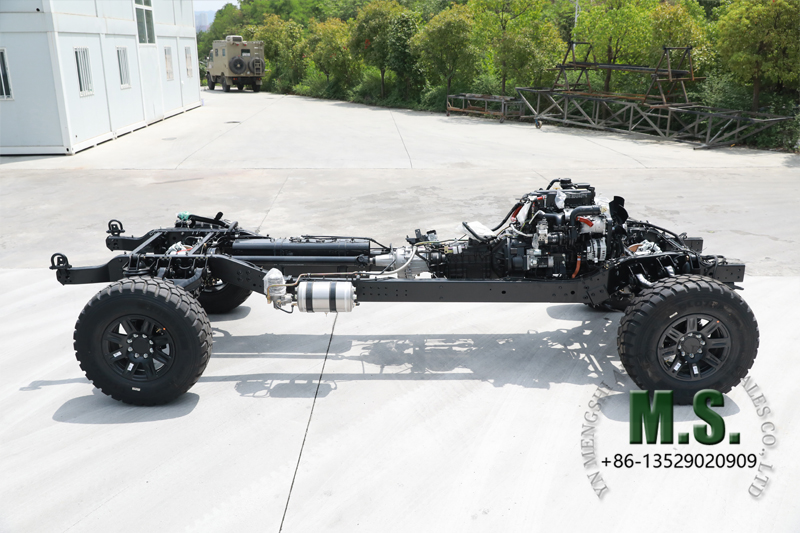

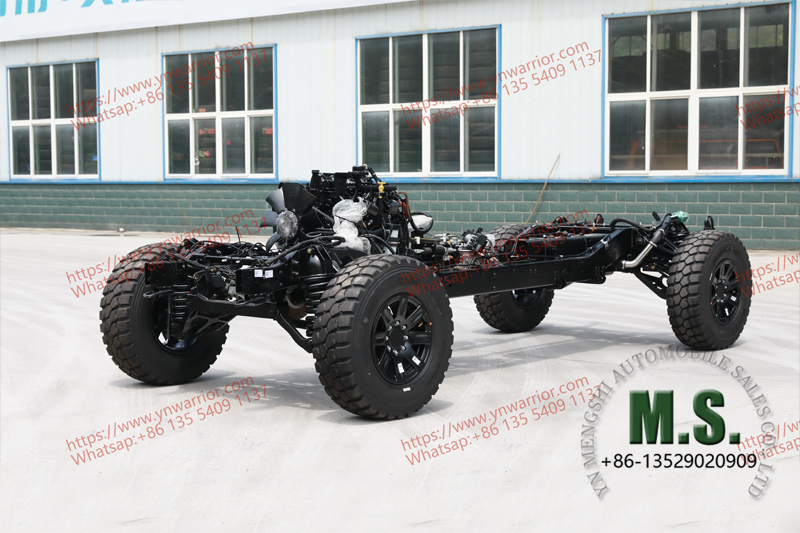

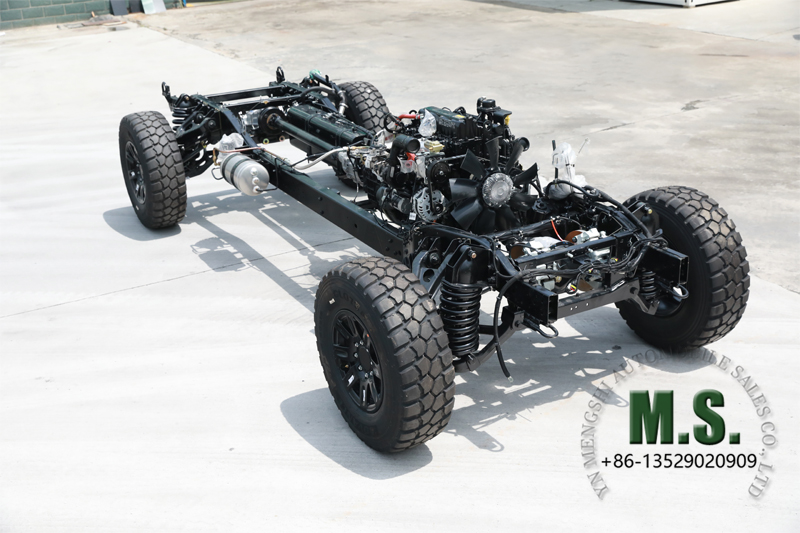

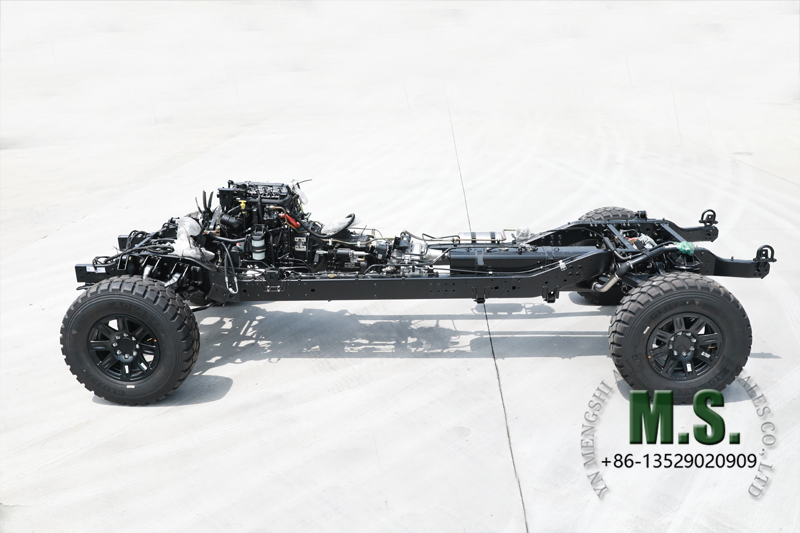

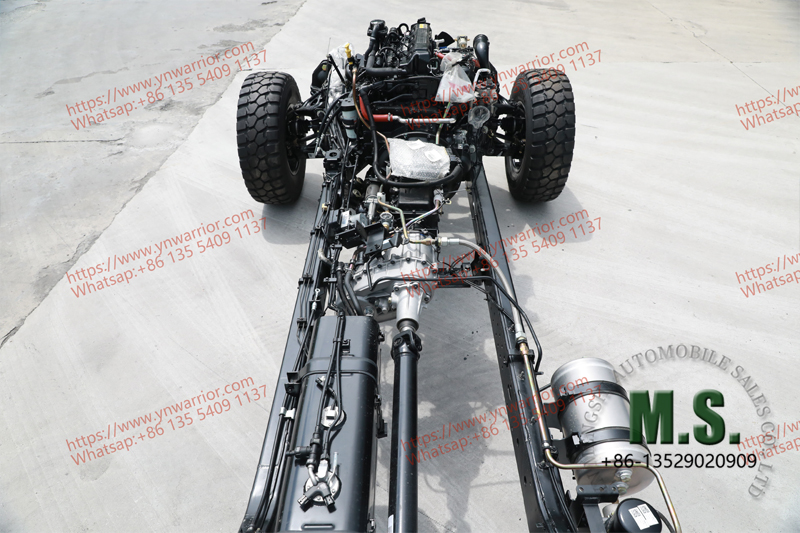

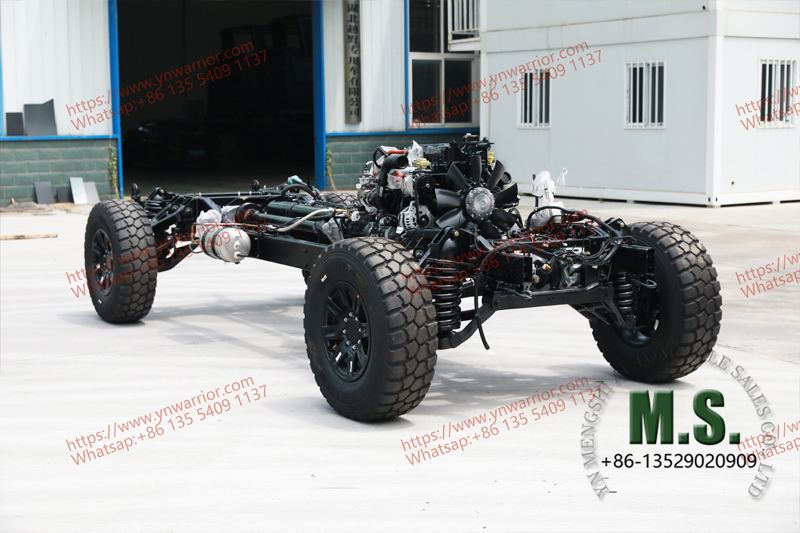

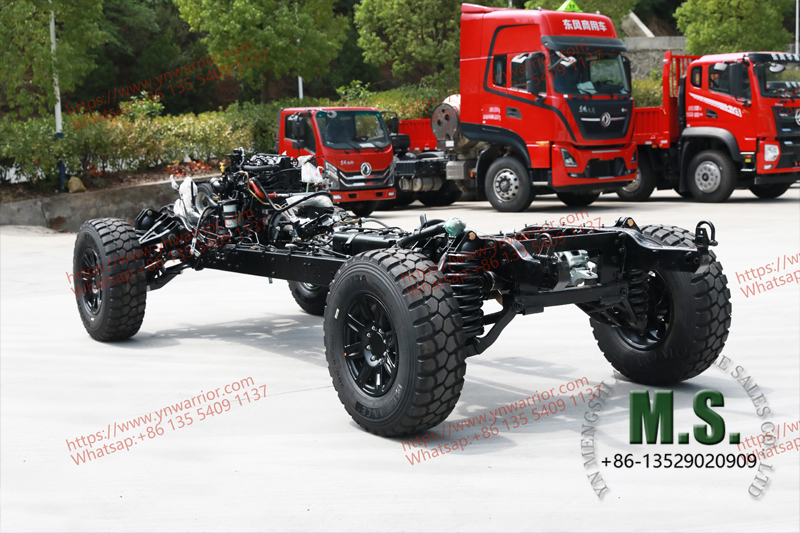

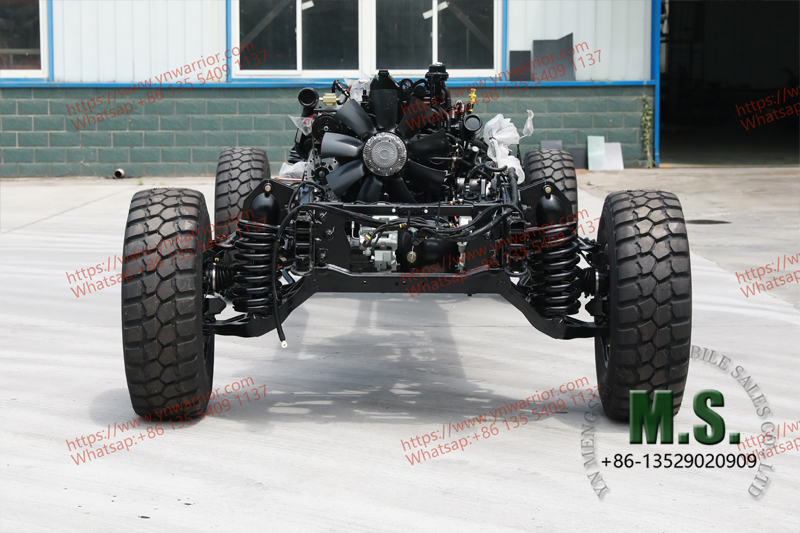

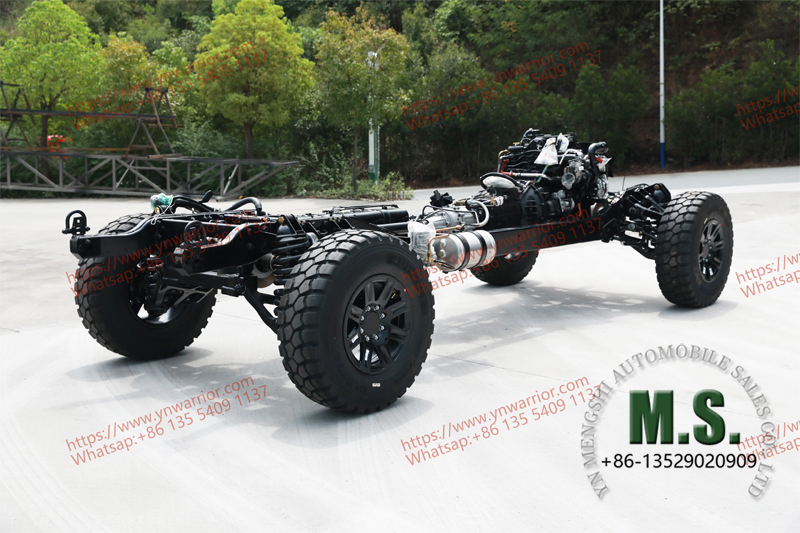

This rolling chassis has a gross weight of 6 tons and top-level off-road capabilities. It is equipped with double wishbone independent suspensions at both the front and rear. Meeting military quality and standards, it is powered by a 220-horsepower Cummins engine and matched with a domestic automatic transmission. The low-emission version serves as the chassis for vehicles used by the Chinese military. With the strongest off-road performance, it is not afraid of any terrain, environment, or altitude, and is equivalent to China's Humvee. As a rolling chassis, it can be modified into any vehicle model for harsh terrains, such as emergency rescue vehicles, emergency medical vehicles, patrol vehicles, fire trucks, police cars, etc. Can be assembled, automatic central inflation and deflation system of tires, electric winch, Cold start fuel heating system in cold areas
Basic configuration | |
|---|---|

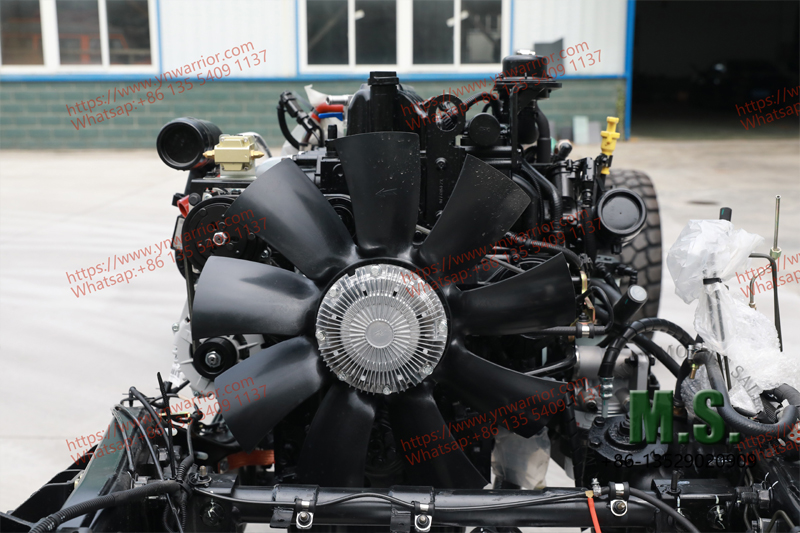

| Engine | Cummins D4.5NS6B220 |
| Horsepower | 220Hp |
| Rated Power | 162kW |
| Max Torque | 820N.M |
| Displacement | 4.5L |
| Emission Standard | Euro-6 |
| Gearbox | Automatic Transmission |
| Transfer Box | Full-time 4WD, 2 Speed |
| Wheelbase | 3800mm |
| Overall Dimension | 5320×2310×1610mm |
| Approach/Dparture Angle | 45°/35°(Full Loaded) |
| Gradeability | 60% |
| Minimum Ground Clearance | 380mm |
| Vertical Obstacle Crossing Height | 450mm |
Trench Crossing Width | 700mm |
| Wading Depth | 750mm (can be increased to 1200mm) |
| Operating Environment Temperature | -35℃ to +41℃ |
| Turning Diameter | 17m |
| Tyre | 305/80R18 |
| Fuel Tank | 70+55L |
| Fuel Consumption | 13.5L/100km |
| Max Speed | 120km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
