330-horsepower 18-ton Gross Weight 4x4 Off-road Rolling Chassis for Armored Vehicle_Allison Automatic Transmission, Military Cummins Engine, Electric Winch, Differential Lock_Manufacturer Direct

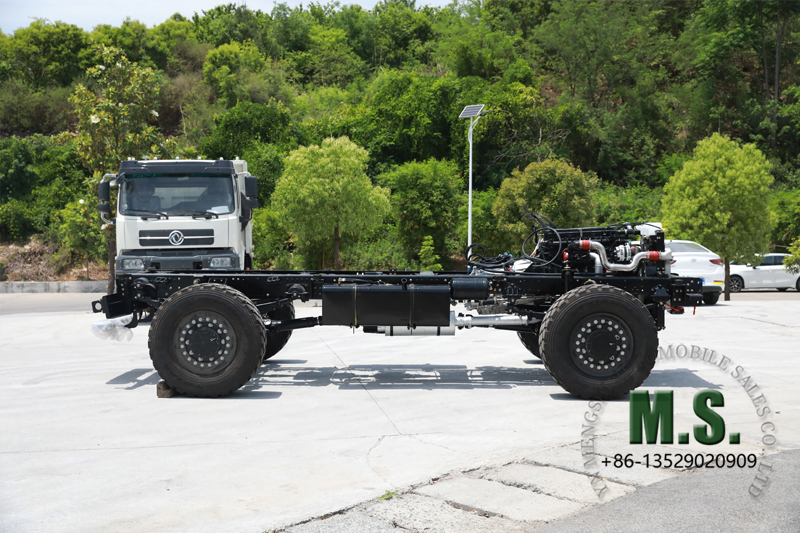

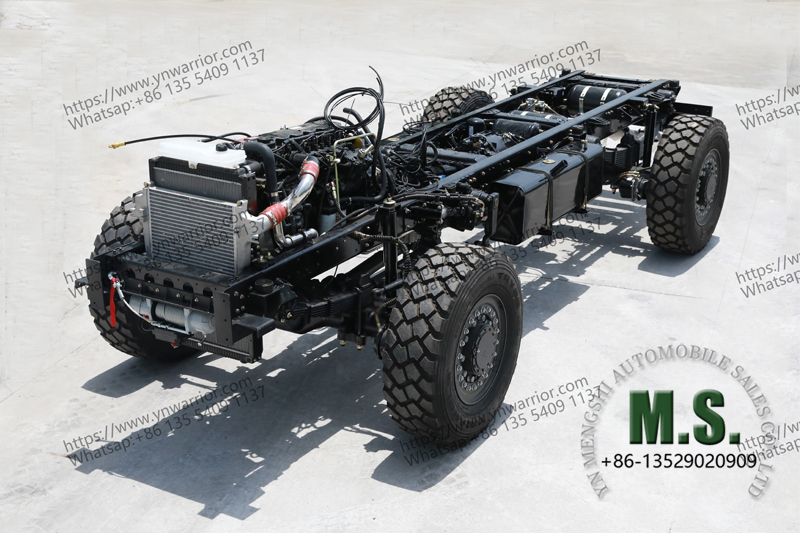

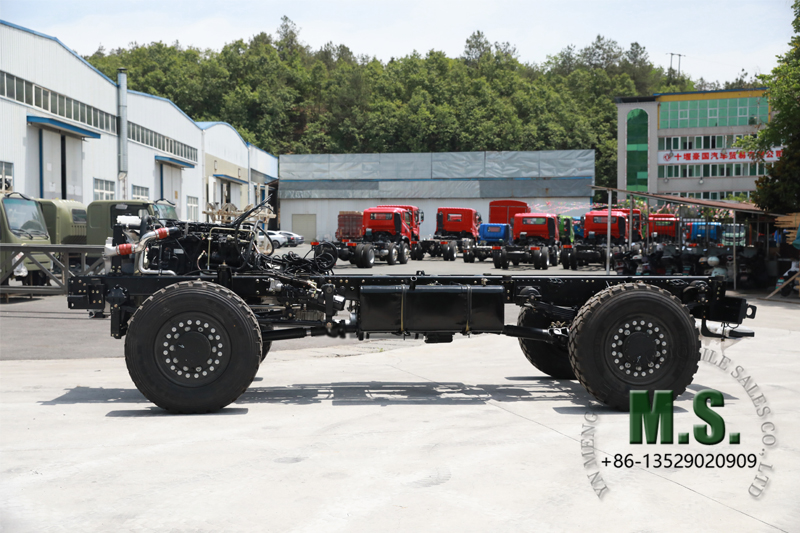

The rolling chassis, completely designed and produced by us, it used to manufacture heavy armored pickup trucks.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

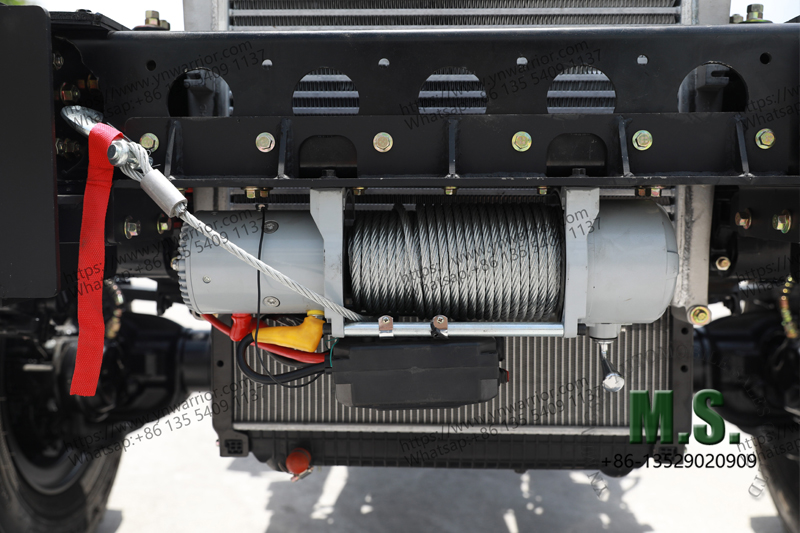

All-new rolling chassis, entirely designed and manufactured in-house, integrates a military-grade 330HP engine and an imported Allison automatic transmission. Capable of handling a gross vehicle weight of 18 tons, it supports the installation of NATO STANAG 4-level armor, features differential locks and an electric winch, and is engineered for extreme durability in harsh environments. Ideal for armored transport vehicles requiring uncompromising reliability.


Basic configuration

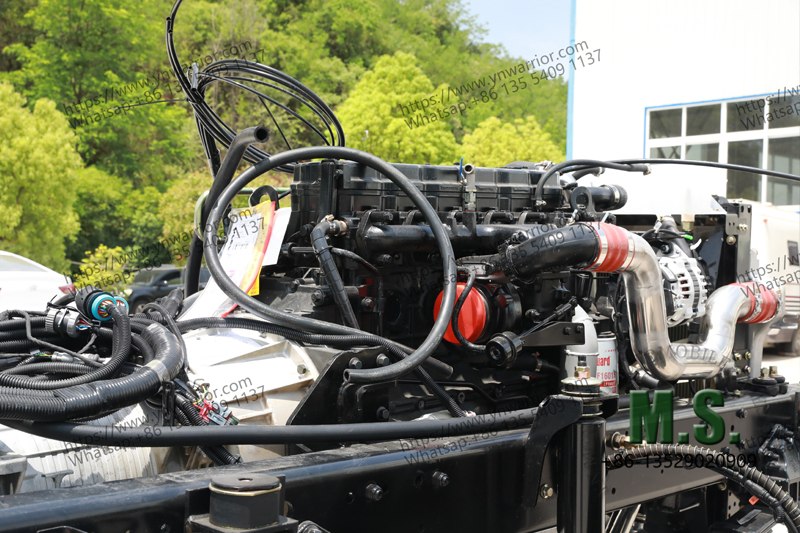

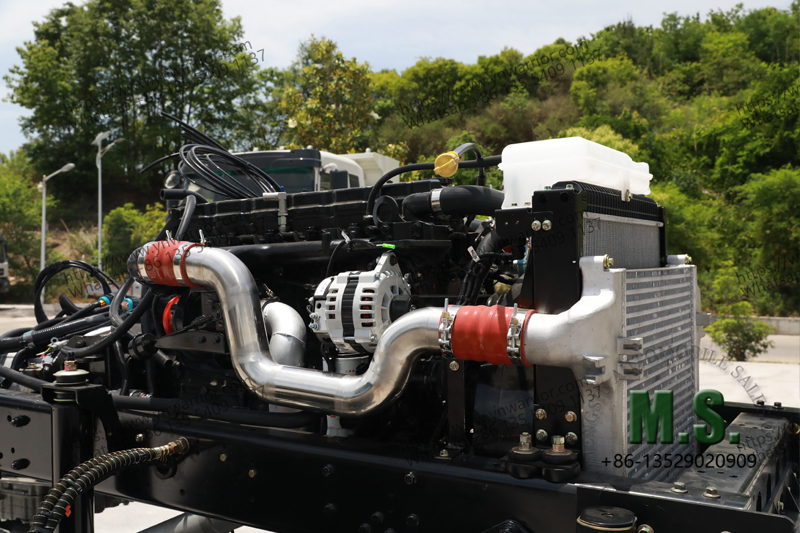

 Engine Cummins ISDe6.7-330
Horsepower330Hp
Rated Power243kw
Max Torque1100N.m
Displacement6.7L
Emission StandardEuro-2

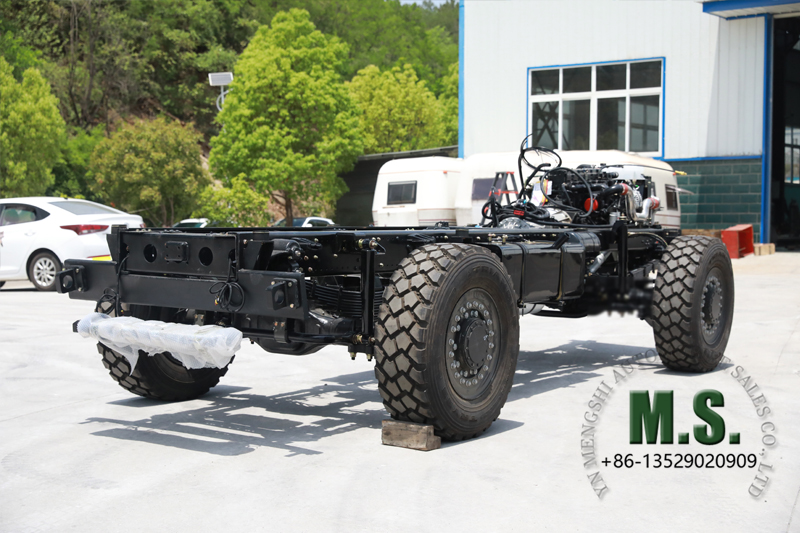

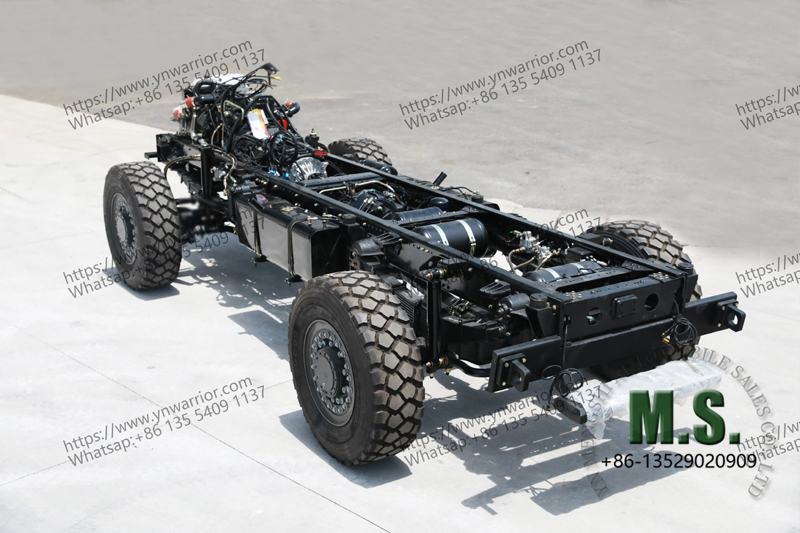

 Gearbox Allison Automatic Transmission
 Transfer Box High and low, two speed
Wheelbase4700mm
Track Width2110/2125mm
Overall Dimension
5840*2460*1650mm
Cargo Box Inisde Dimension1680*1850*645mm
Axle7/10T
G.V.W18000kg
Curb Weight4752
Approach/Dparture Angle36°/39°
Gradeability60%
Minimum Ground Clearance350mm
Vertical Obstacle Crossing Height460mm
Wading Depth1120mm

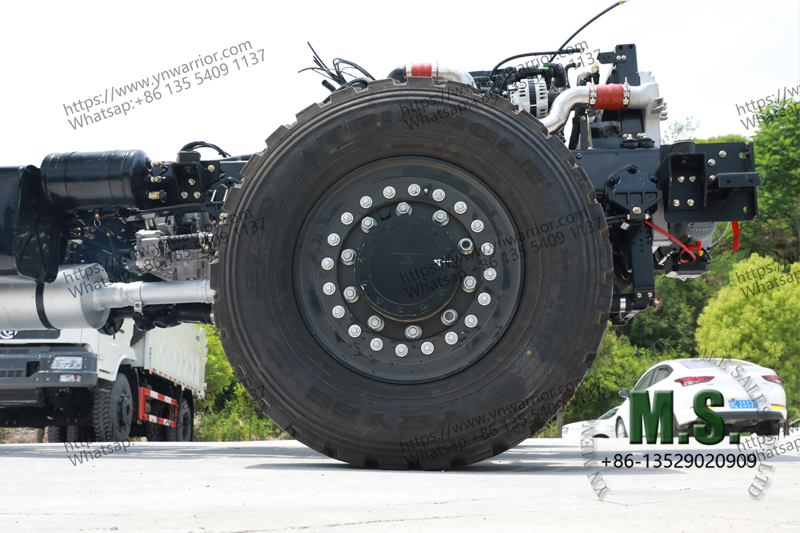

Tyre365/80R20(4+1条)

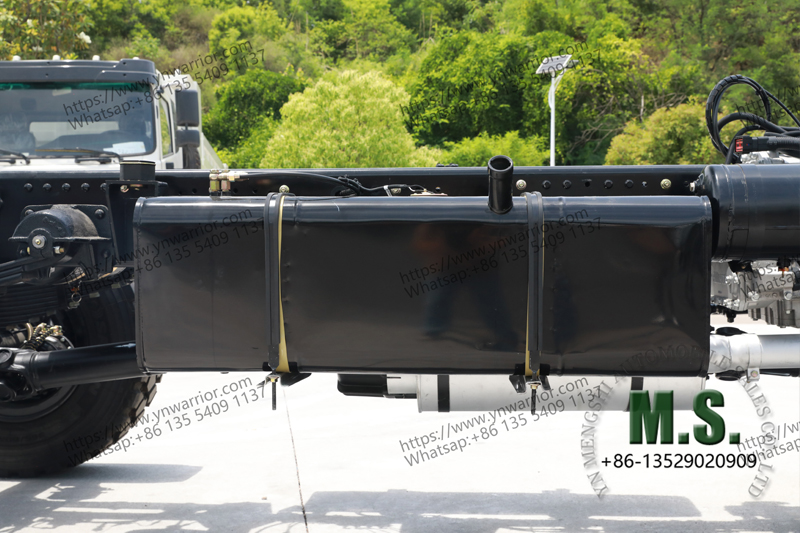

Fuel Tank100+100L
Fuel Consumption19L/100km
Seats4
Max Speed86km/h


Note: This specification is for reference only,  please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
