330-horsepower 13-ton Gross Weight Independent Suspension Rolling Chassis_Military Standard, Cummins Engine, Allison Automatic Transmission, Right Hand Drive, with Whole Set of Parts

Military Standard and Quality Front/Rear Independent Suspension Rolling Chassis
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

China's military uses a classic high - mobility off - road all - terrain vehicle. It can be equipped with any high - end or military - grade features such as a central tire inflation system or bullet - proof tires.  It can also be used as an ordinary civilian off - road vehicle. Its off-road performance is extremely strong, among the world's top. Even at altitudes over 4500 meters or in extreme environments such as deserts and rainforests, it can operate well. The axle comes with a water-cooling system and can run continuously for more than 300 hours.


Basic configuration

 Engine Cummins ISDe6.7-330
Horsepower330Hp
Rated Power243kw
Displacement6.7L
Emission StandardEuro-2
 Gearbox Allison Automatic Transmission
 Transfer Box 2 Speed
Wheelbase3800mm
Track Width1950mm
Overall Dimension
6030×2400×2400mm(With seats)
Approach/Dparture Angle50°/38°
Gradeability60%
Minimum Ground Clearance440mm
Obstacle Crossing Height580mm
Wading Depth660mm
Tyre335/80R20 (CTIS, Run-flat available)
Fuel Tank180L
Gross Weight13000kg
Curb Weight5270kg
Seats2
Max Speed110km/h


Note: This specification is for reference only,  please refer to the actual vehicles. The factory reserves the final right to interpret the specification.

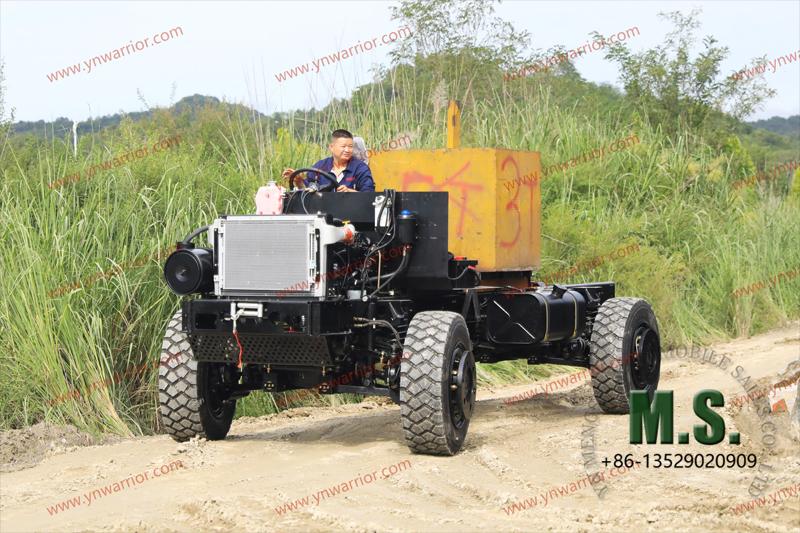

The temporary yellow box is due to the chassis being designed for heavy loads; operating it empty can easily damage its system.

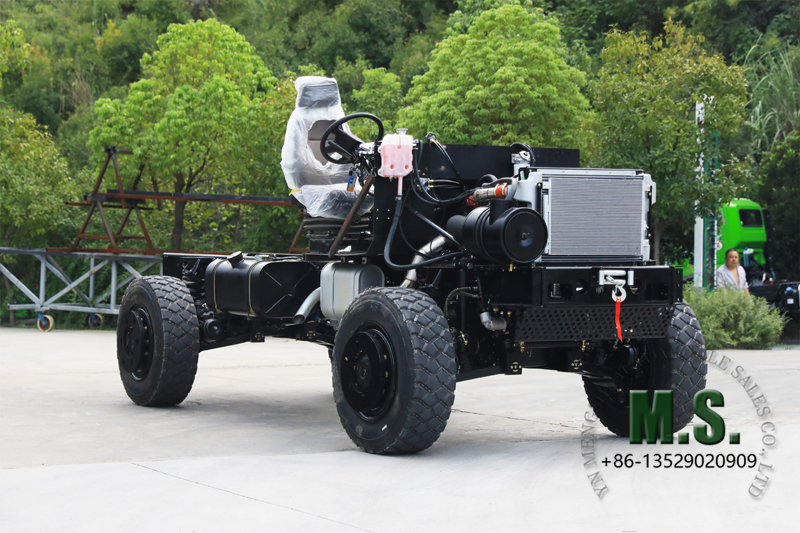

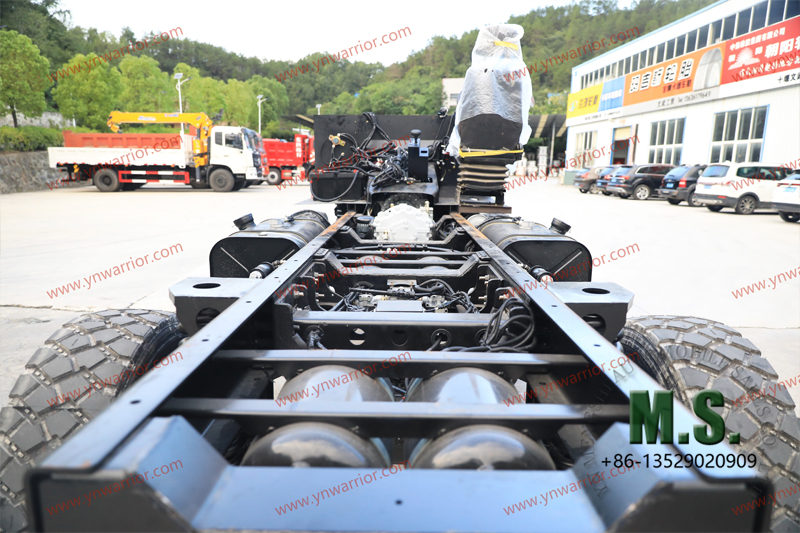

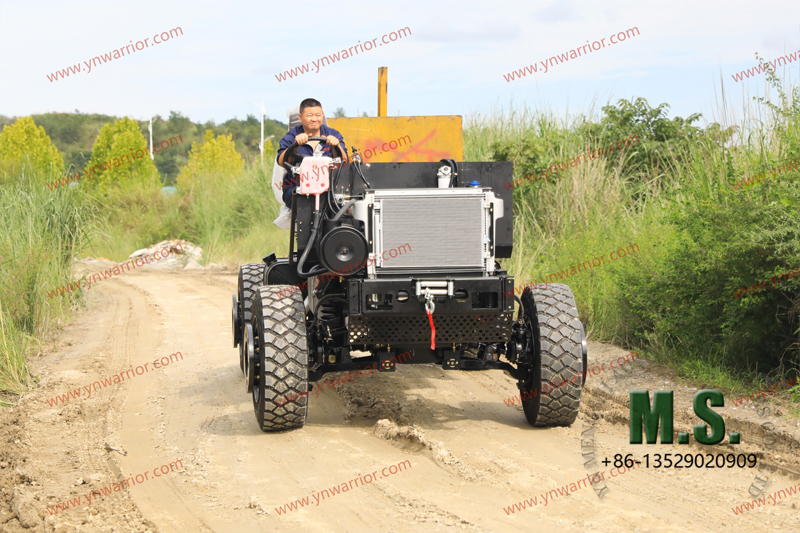

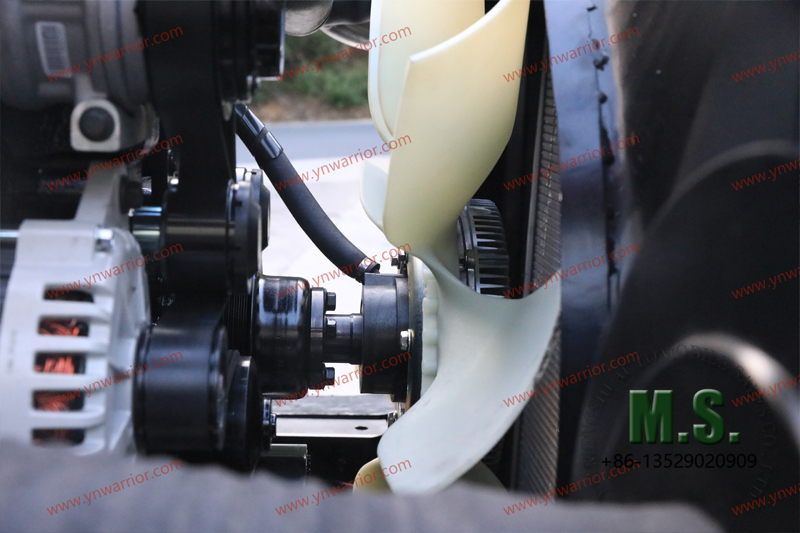

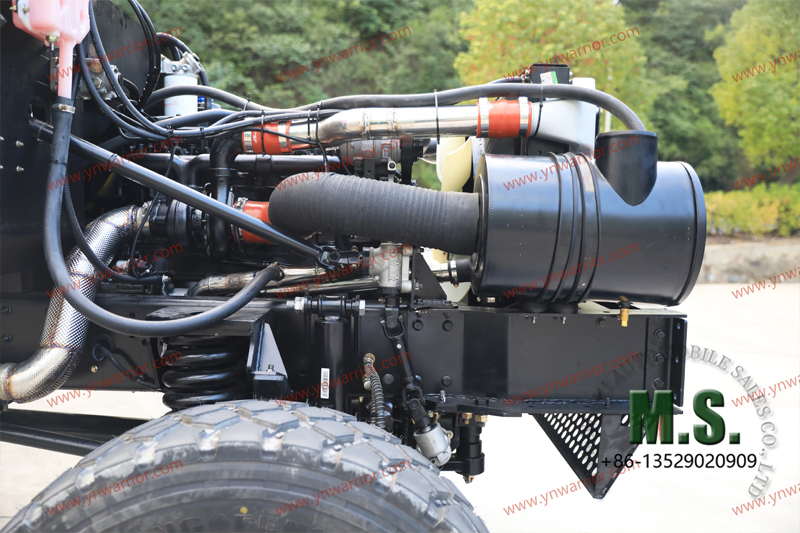

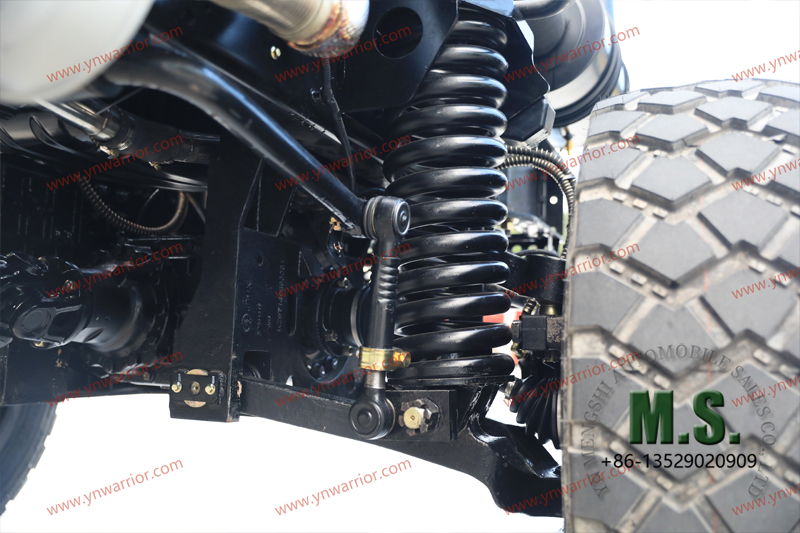

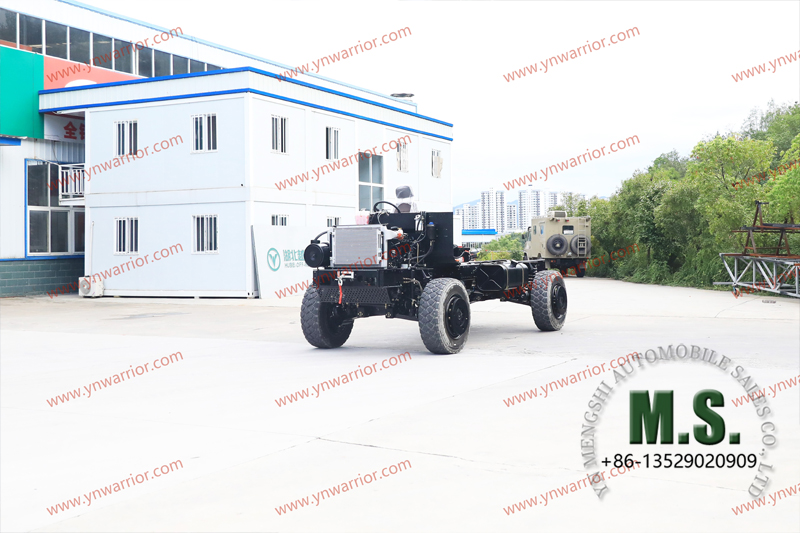

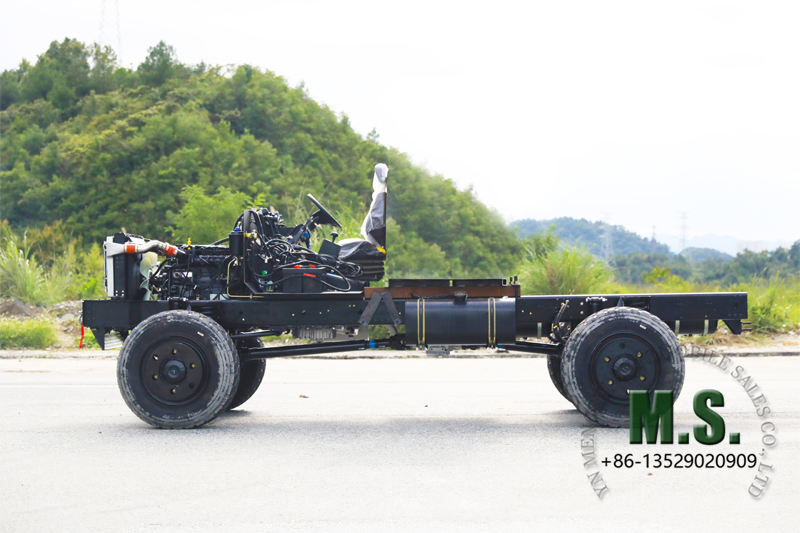

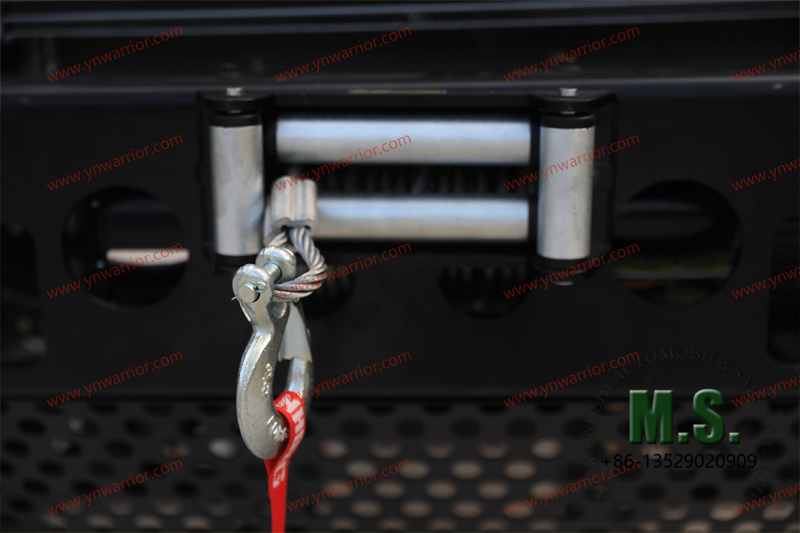

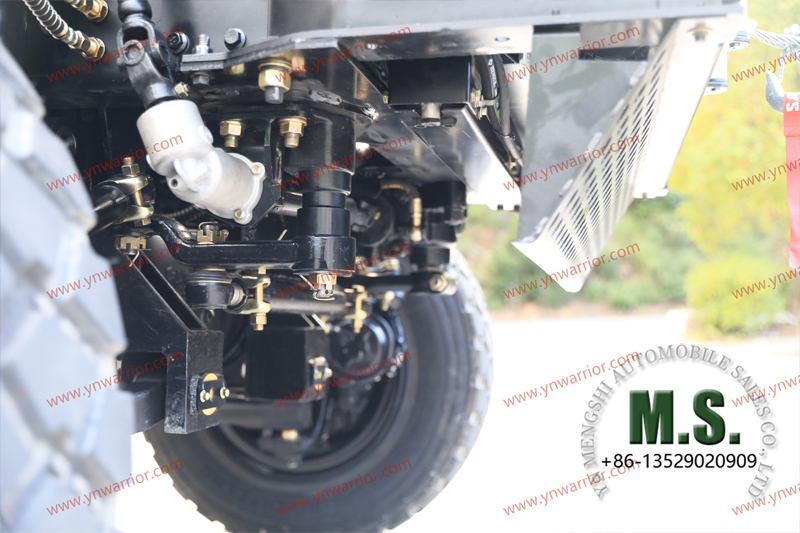

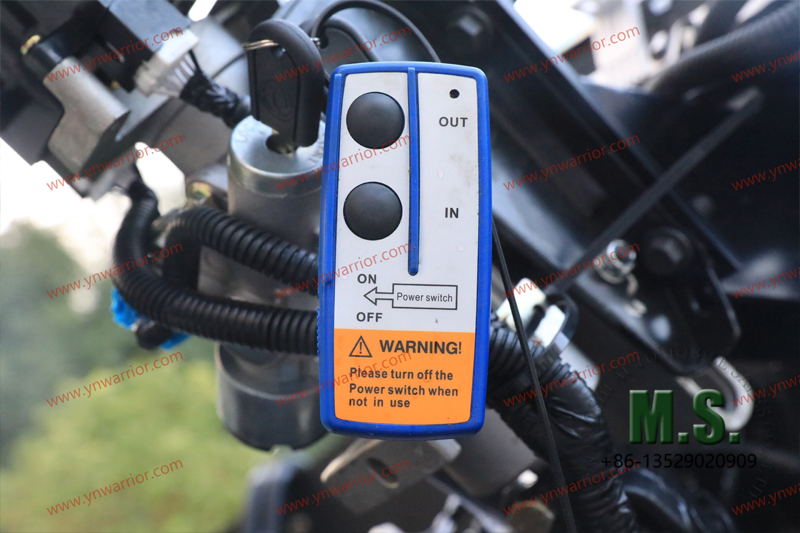

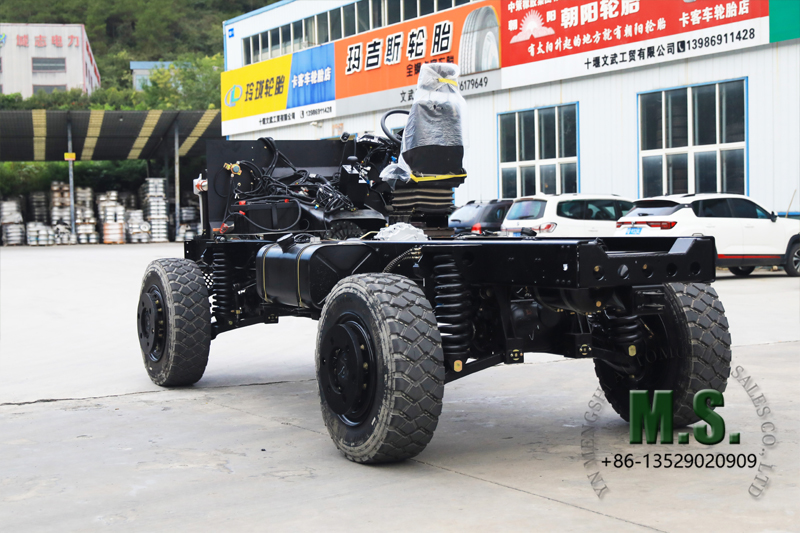

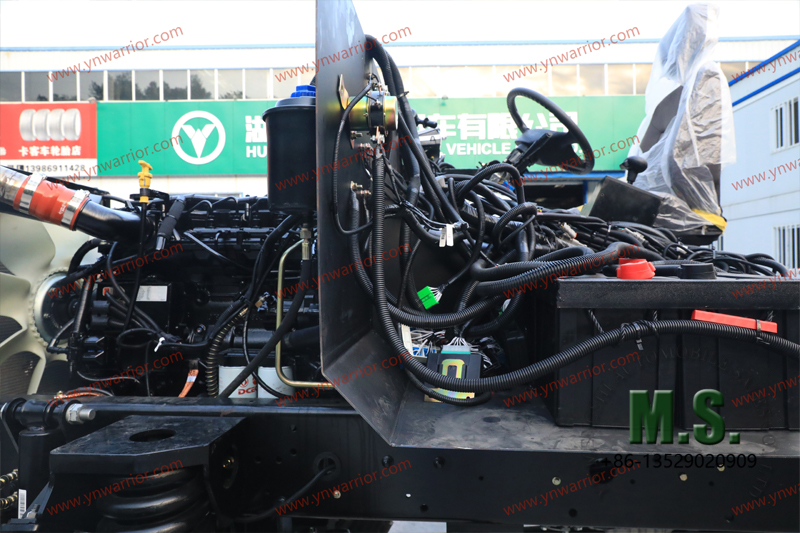

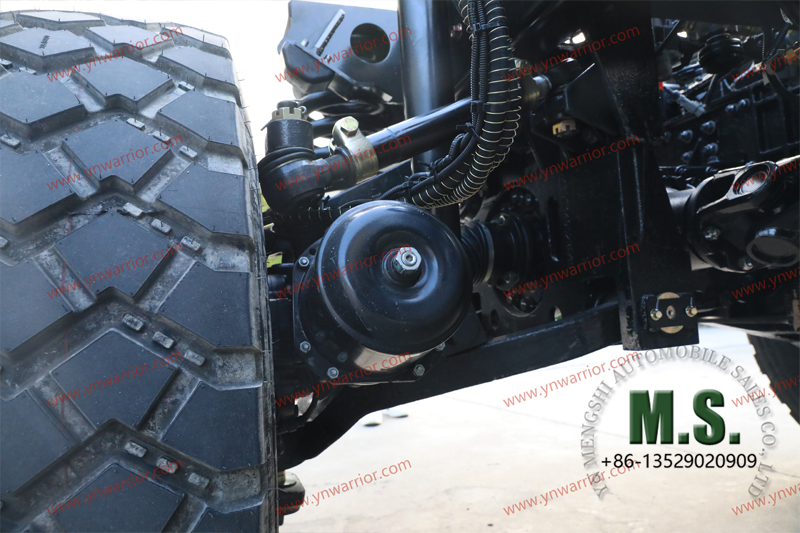

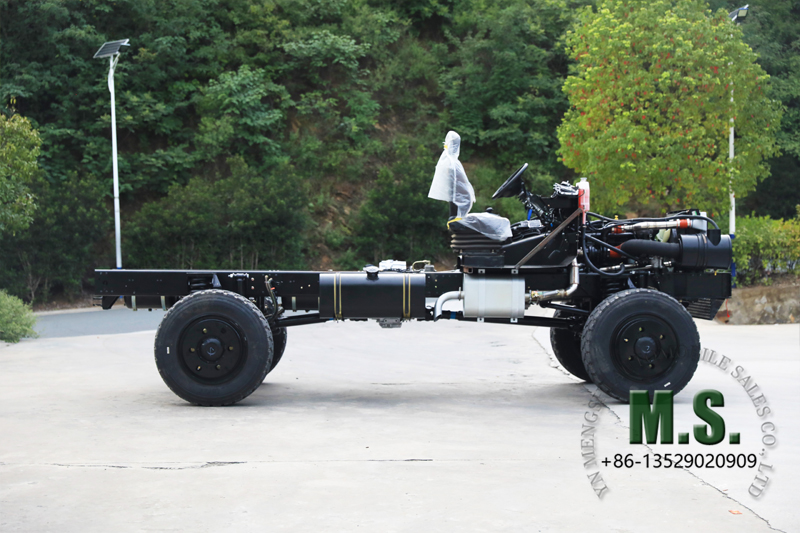

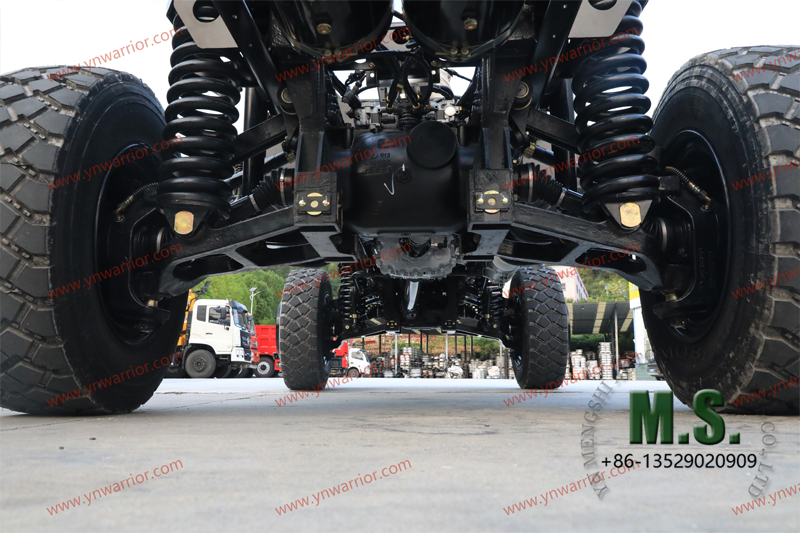

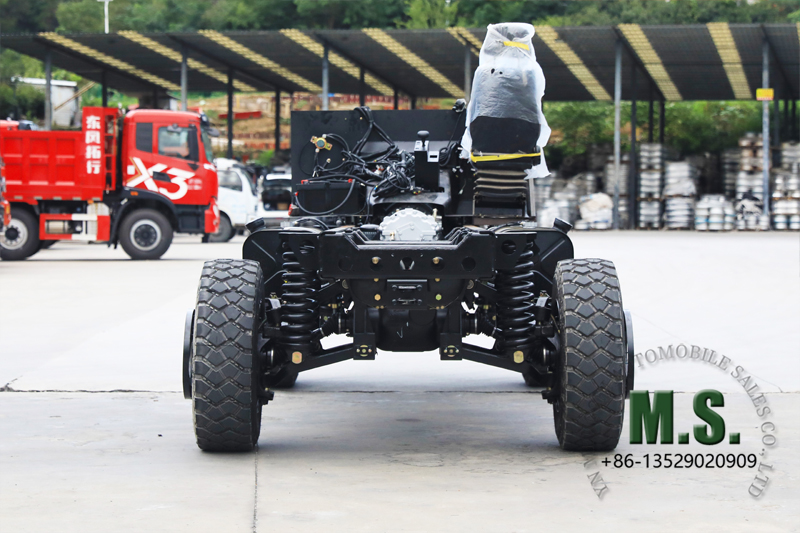

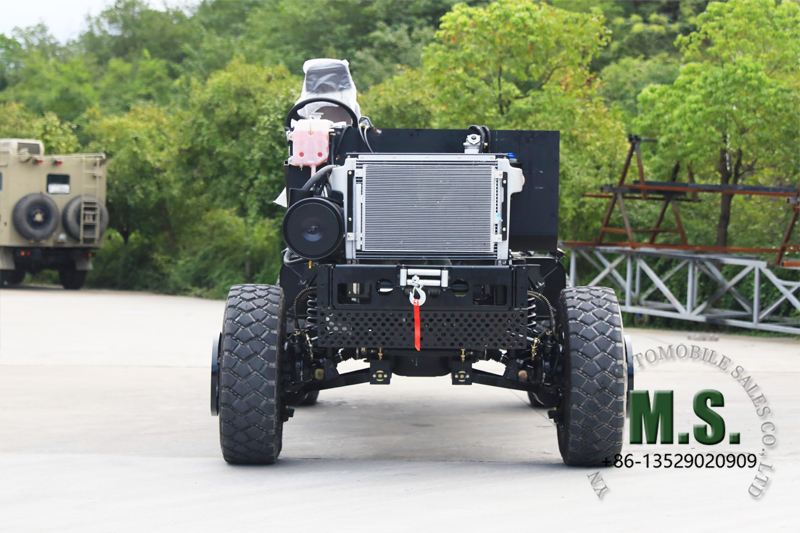

large duty 13000kg 4x4 off-road rolling chassisserved military rolling chassis with Allison automatic transmission4x4 full-time drive rolling chassis330-horsepower military cummins engine rolling chassisdouble wishbone indepedent suspension rolling chassis Chineseradiator of 330-horsepower military cummins engineoverview from the back of chinese made double wishbone independent suspension rolling chassisdurable chassis details for 4x4 double wishbone independent suspension rolling chassis8-ton electric winch of double wishbone independent suspension rolling chassisair filter of double wishbone independent suspension rolling chassiscomplete wiring circuit on double wishbone independent suspension rolling chassiscontrol panel of electric winchdetails for rod and shocker absorber sping for double wishbone independent suspension rolling chassisdetails for the system on double wishbone independent suspension rolling chassisdetails perspective of stabilize bar on double wishbone independent suspension rolling chassis

未标题-1

transportation

        For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.

       For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

payment

       On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

custom

       Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.
