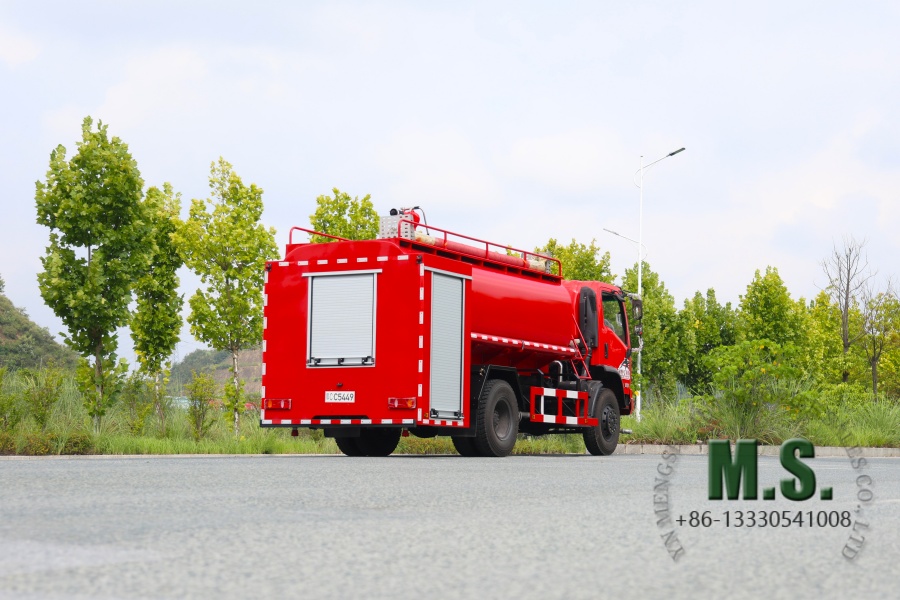

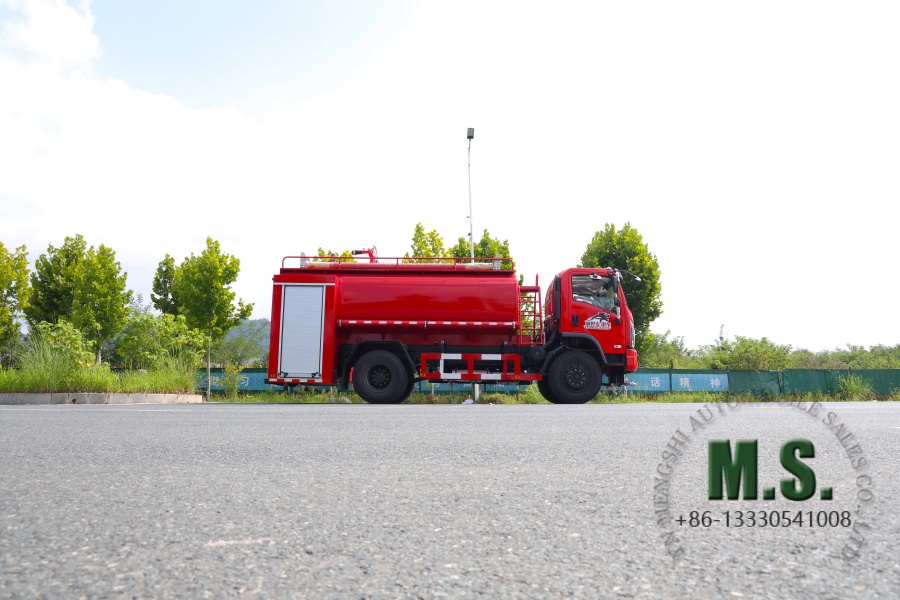

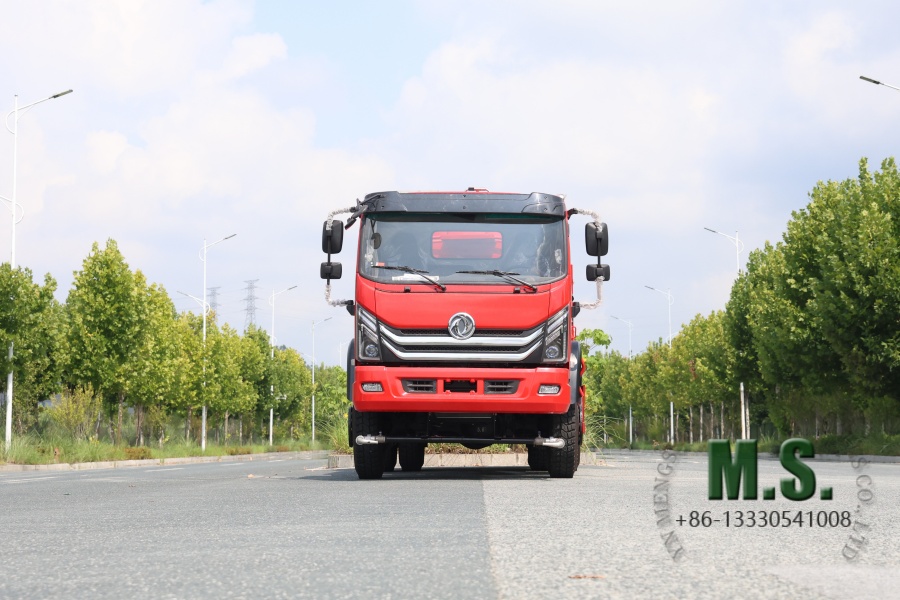

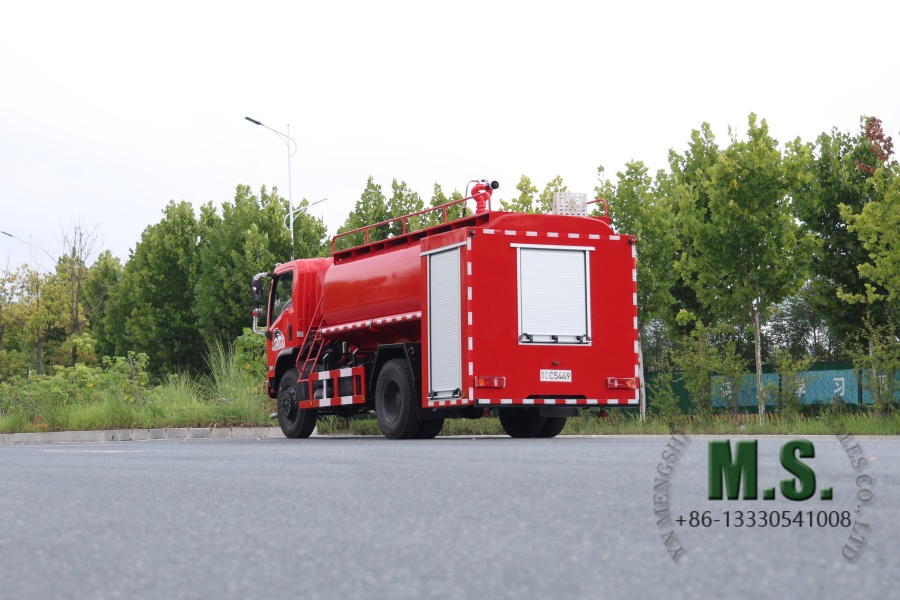

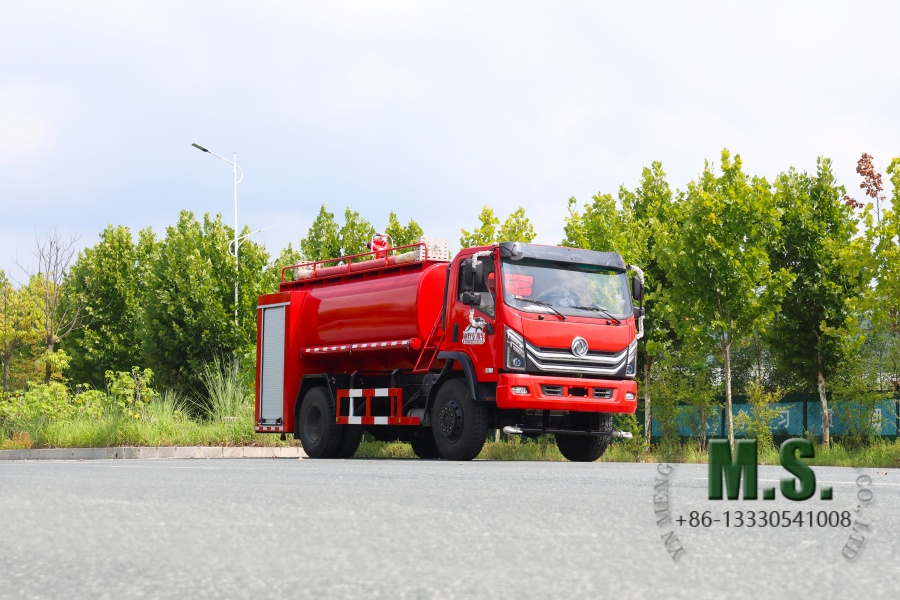

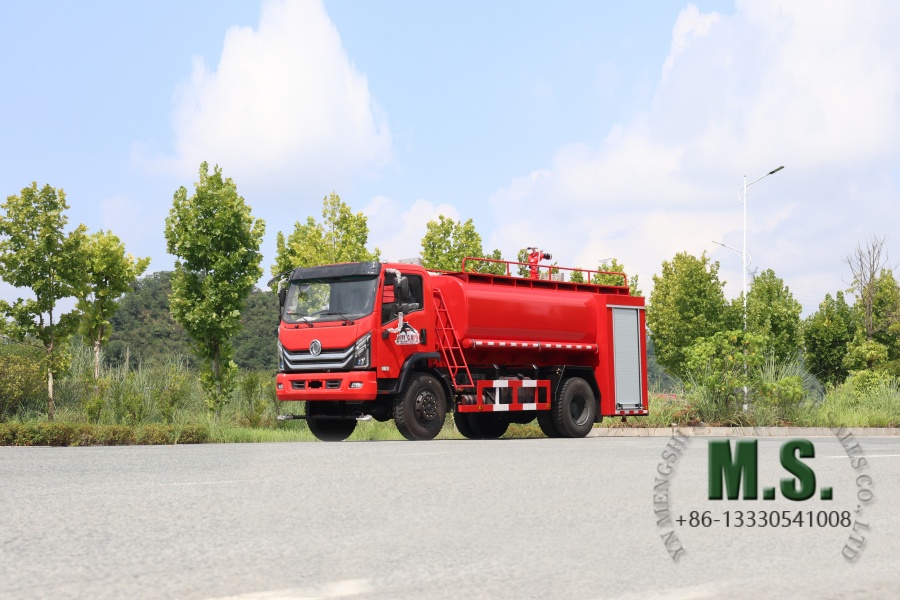

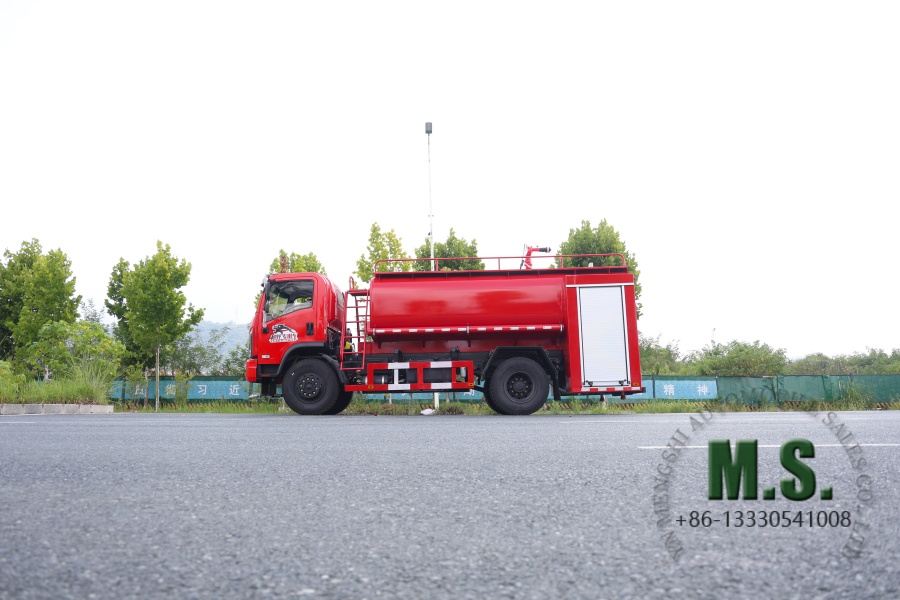

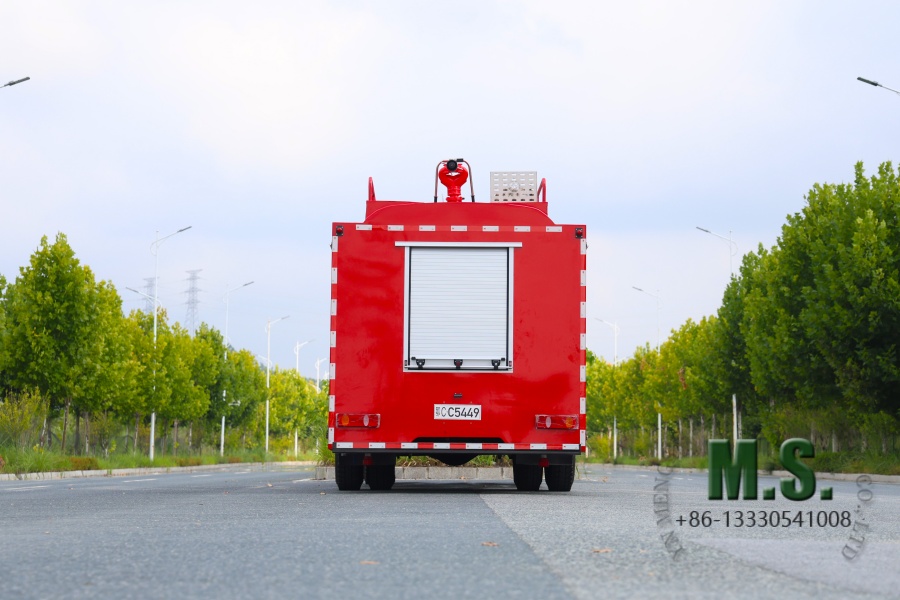

This 4x2 10m³ fire truck combines powerful performance with rugged durability, making it the ideal choice for firefighting and emergency response operations. Powered by a Weichai 260HP engine delivering 191kW output and 8.3L displacement, it delivers exceptional torque and rapid acceleration to reach emergency scenes fast. The 10m³ carbon steel tank with anti-corrosion treatment ensures large water storage capacity and long service life, while the front spray and rear sprinkler functions add versatility for road cleaning and dust suppression. With a 600mm fording depth, 500mm obstacle clearance, and 28° approach angle, this truck conquers rough terrain and challenging road conditions with ease. The manual 10-speed transmission provides precise gear control, and the heavy-duty leaf spring suspension ensures stability even on uneven surfaces. Equipped with 11.00R20 tires and a robust 5T/13T axle configuration, this fire truck is built to perform reliably in the most demanding firefighting and emergency operations.
Basic configuration | |
|---|---|
Specification | Details |
Engine | Weichai 260HP |

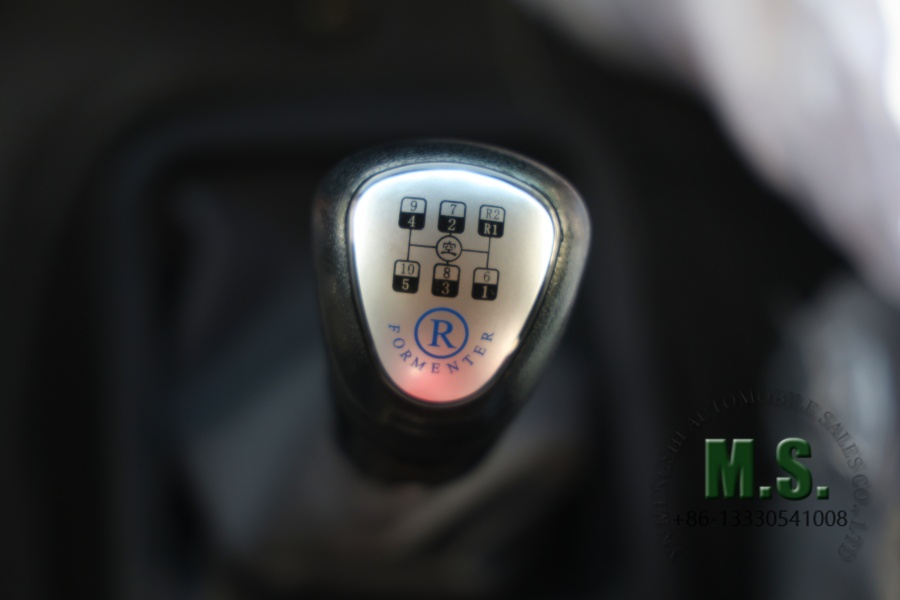

Transmission | Manual 10-speed |
Cab | One and a half row cab |
Transfer Case | None |
Frame | 780×245mm |
Suspension | Leaf spring 12/13+6 |
Axle | 5T/13T |
Tyres | 11.00R20 (6+1) |
Vehicle Dimensions | 8000×2400×3760mm |
Tank Capacity | 10m³ |
Chassis Dimensions | 7850×2400×2920mm |
Conversion Dimensions | >5300mm |
Displacement | 8.3L |
Power | 191kW |
Wheelbase | 3950mm |
Track Width | 1980/1810mm |
GVW | 18000kg |
Curb Weight | 9080kg (complete) / 6090kg (chassis) |
Approach Angle | 28° |
Departure Angle | 16° |
Min. Ground Clearance | 300mm |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
