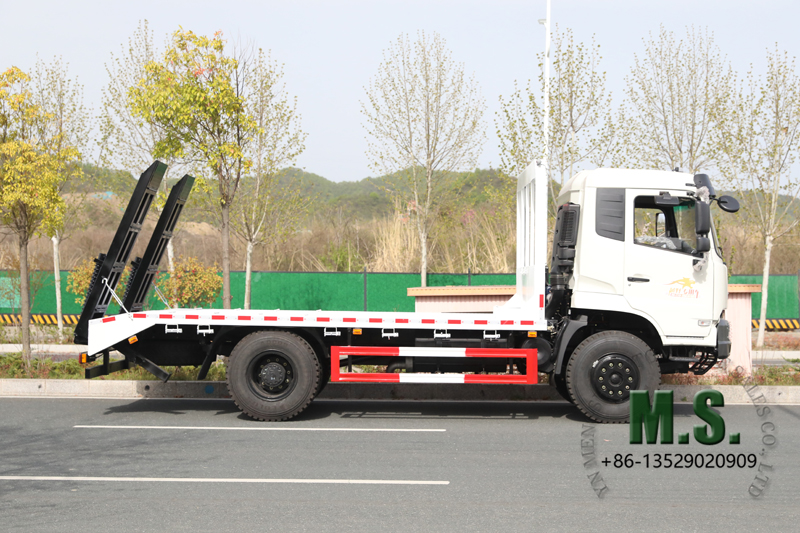

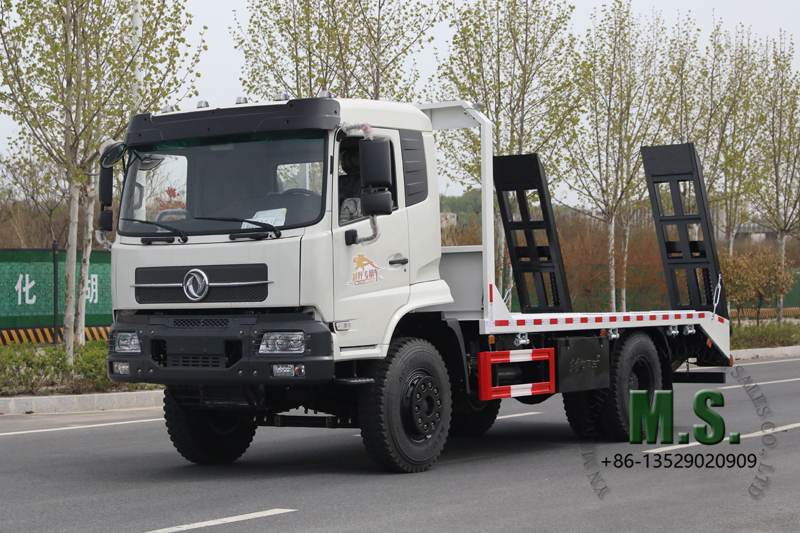

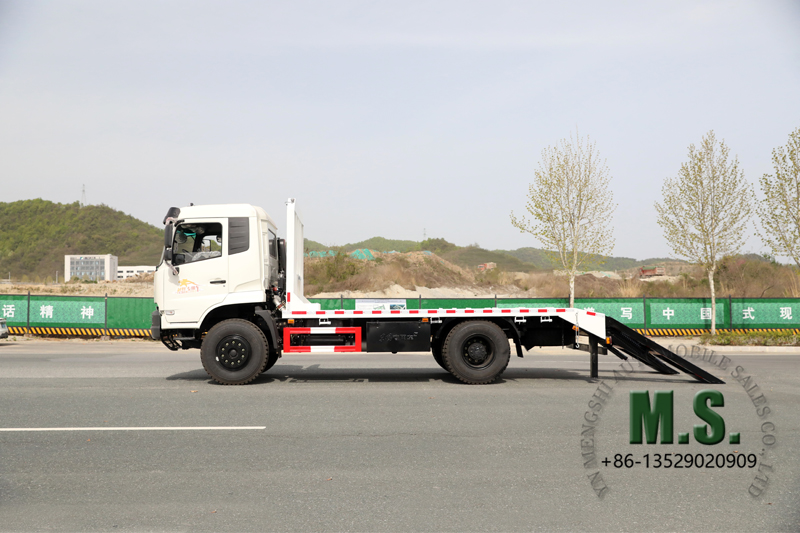

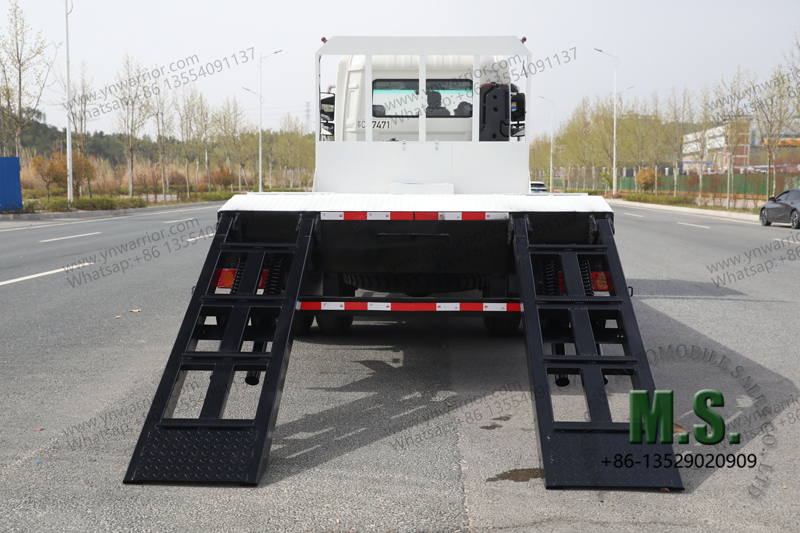

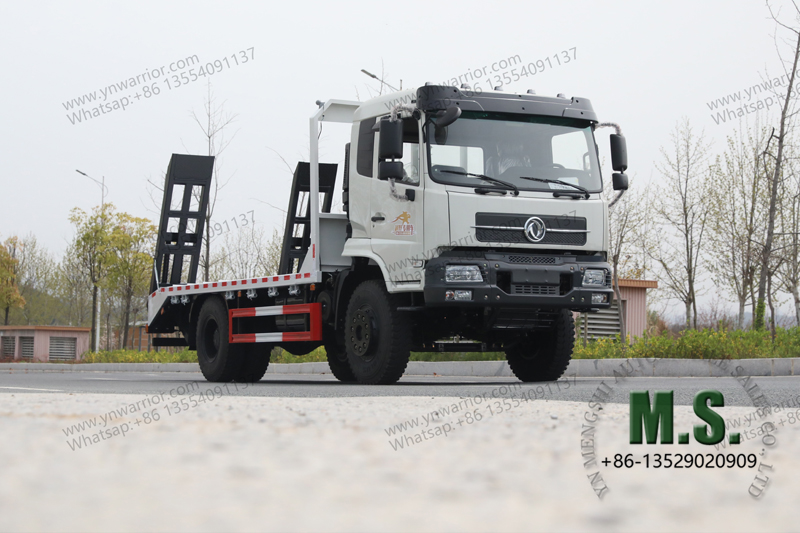

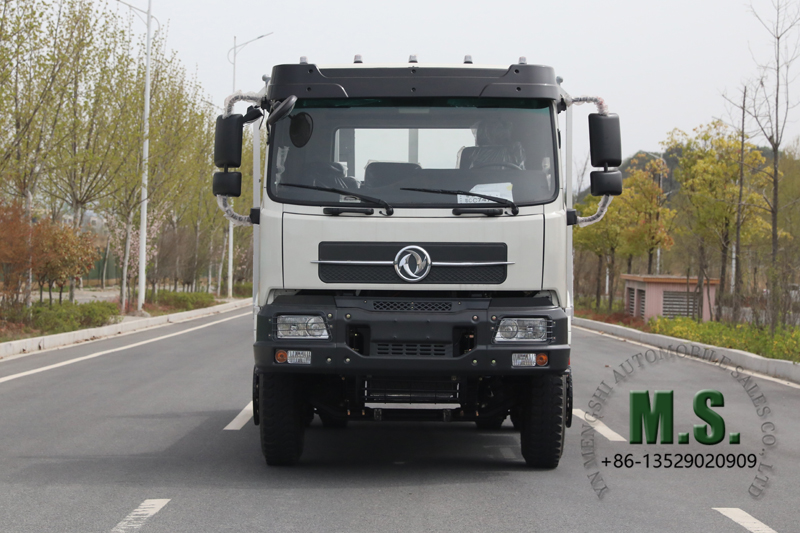

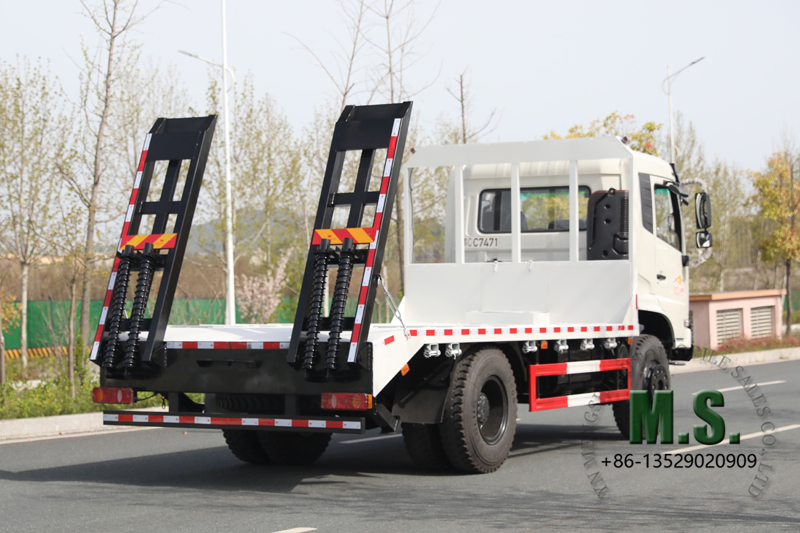

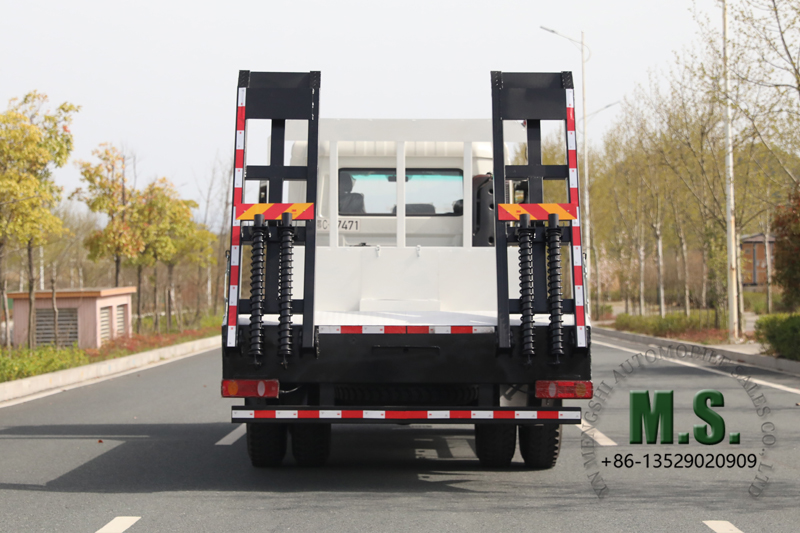

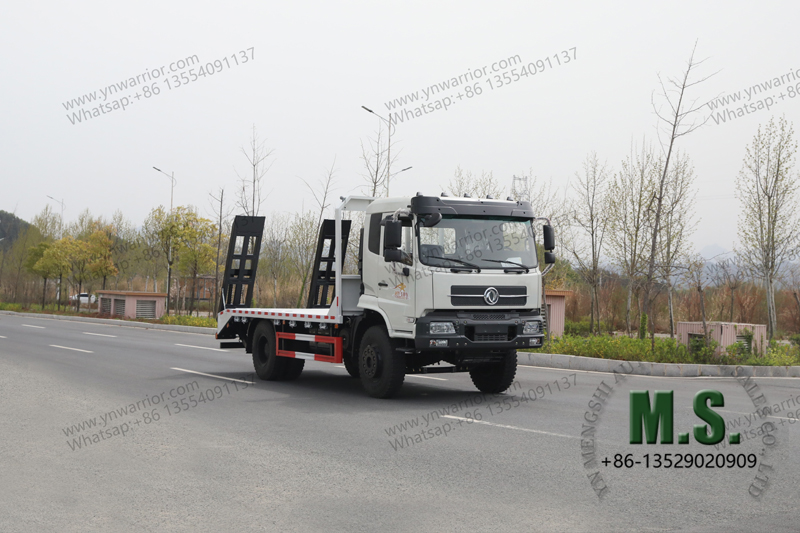

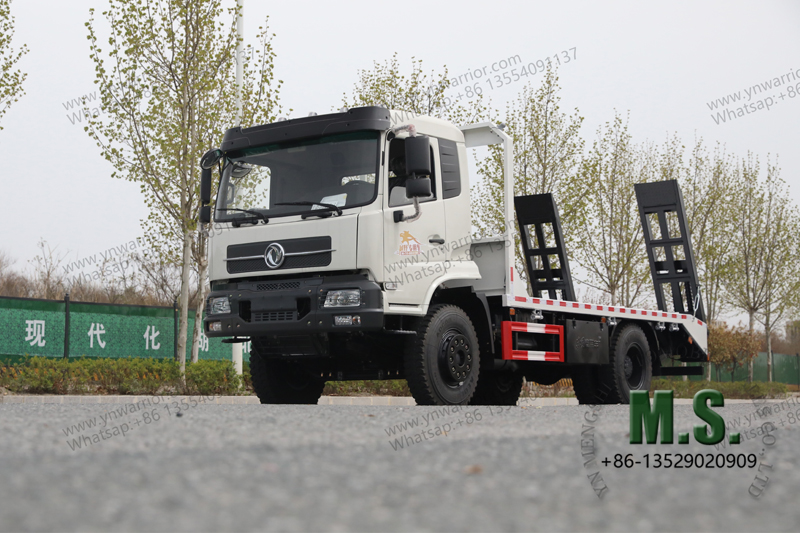

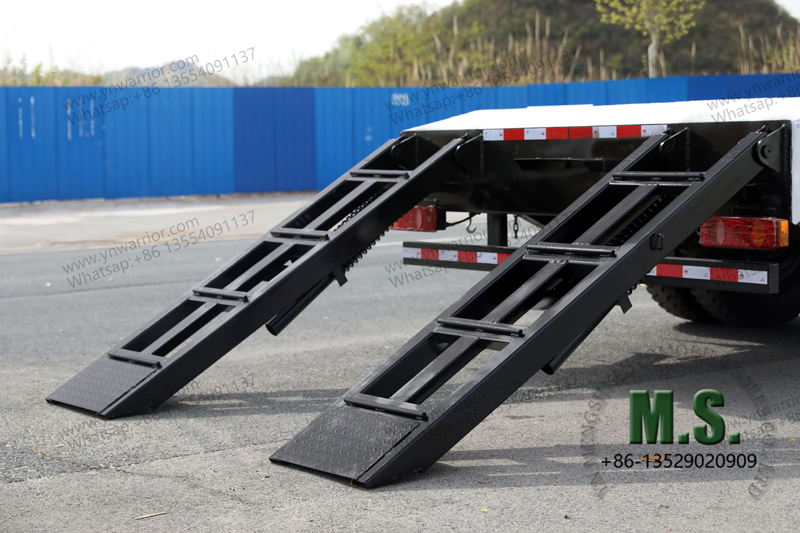

This 4x2 flatbed rescue truck features a military-grade chassis for extreme durability, offered via factory-direct sales. It supports heavy-duty tasks and can be customized as a transport vehicle for excavators, equipped with a hydraulic ladder system for safe loading. Ideal for rescue and industrial use, it combines reliability with adaptability as a flatbed trailer.
Basic configuration | |
---|---|
Engine | WD615.62 |
Horsepower | 266Hp |
Rated Power | 196kw |
Max Torque | 1100N.m |
Displacement | 9.726L |
Emission Standard | Euro-2 |
Gearbox | Manual Ten-speed |
Axle | 5T/10T |
G.V.W | 18000kg |
Curb Weight | 7800kg |
Wheelbase | 3950mm |
Track Width | 2180/1900mm |
Overall Dimension | 7640*2550*3080mm |
Flatbed Dimension | 5000*2550mm |
Front/Rear Overhang | 1400/2290mm |
Approach/Dparture Angle | 21°/12° |
Suspension | Leaf spring 12/12 |
Minimum Ground Clearance | 340mm |

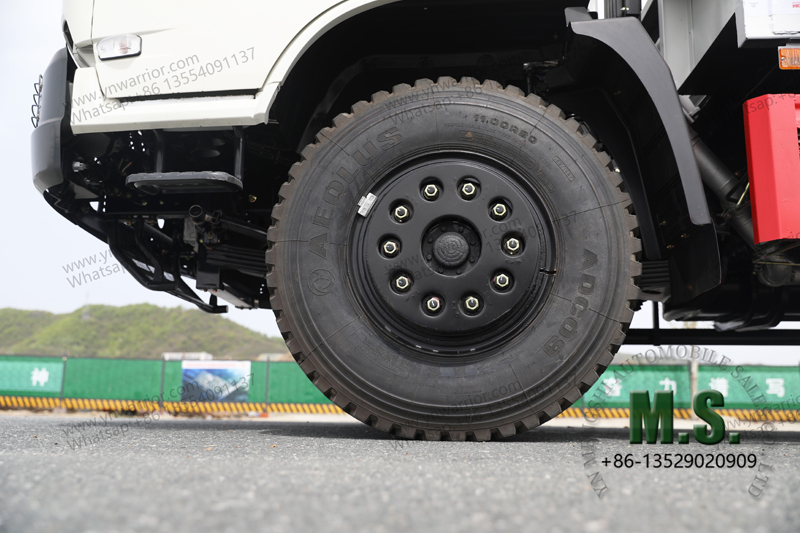

Tyre | 11.00R20(6+1) |
Fuel Tank | 300L |
Max Speed | 90km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
