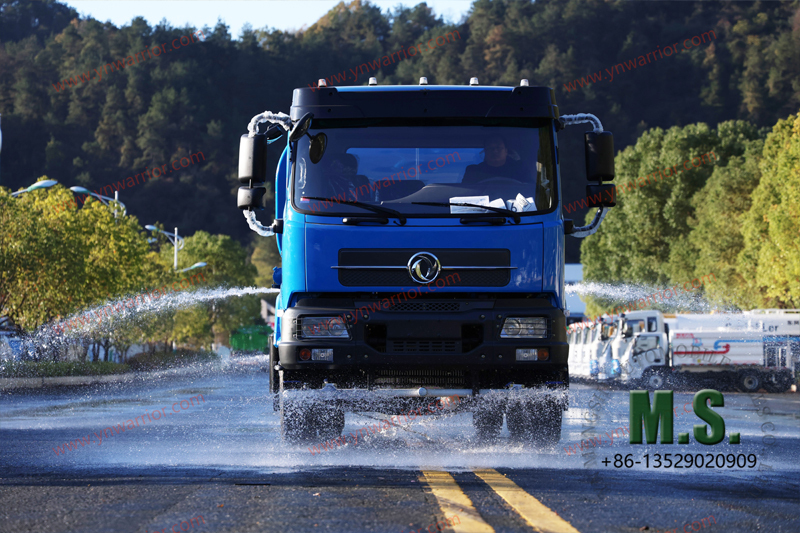

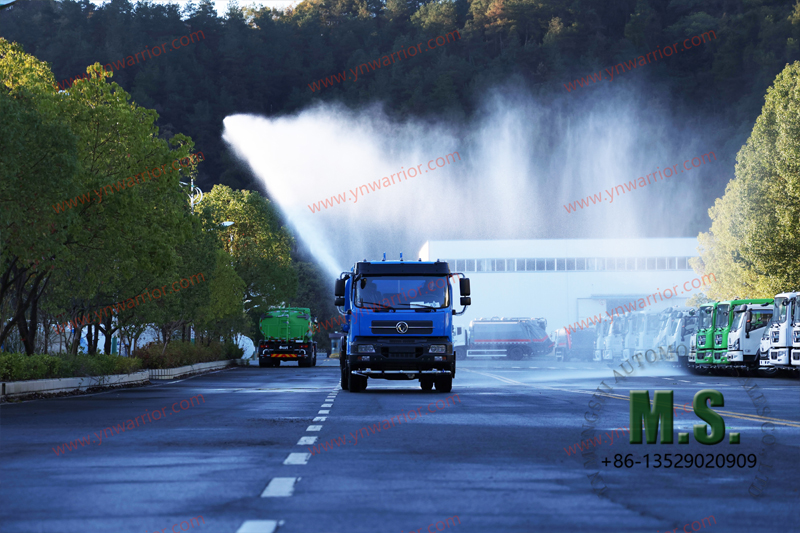

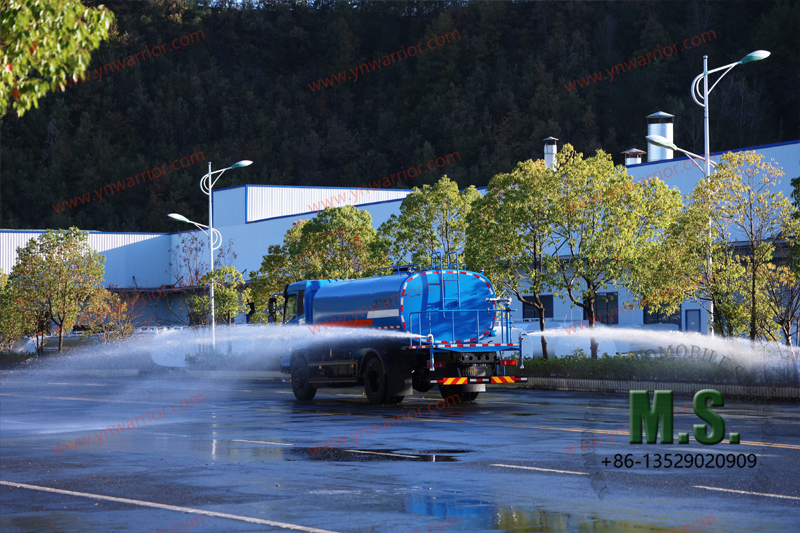

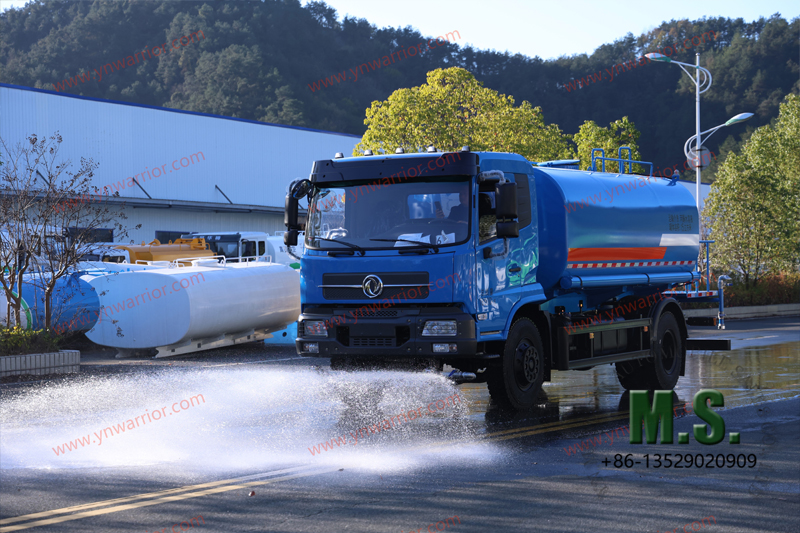

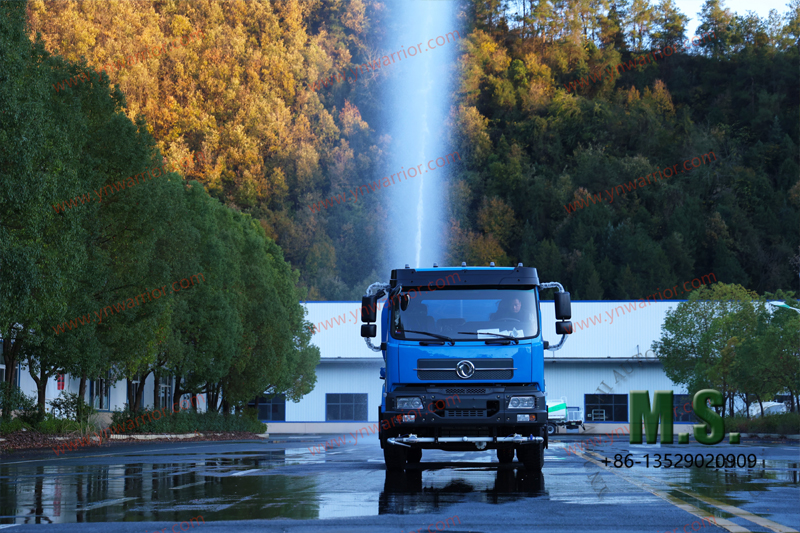

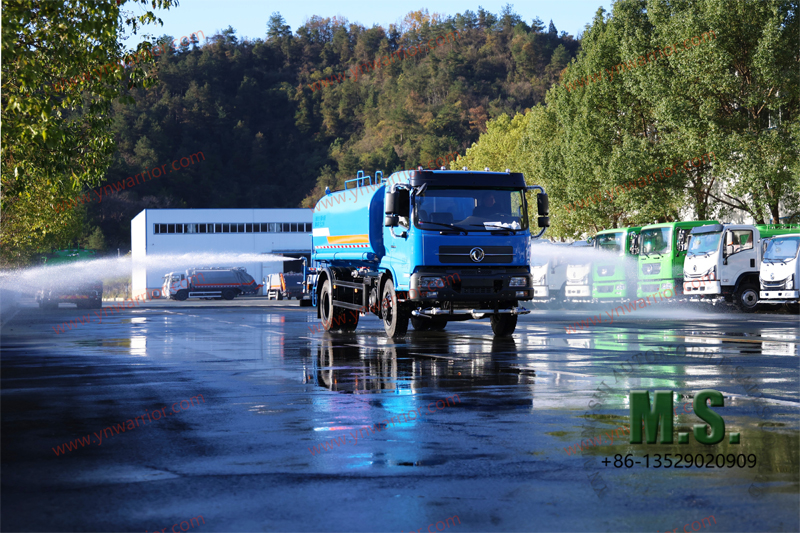

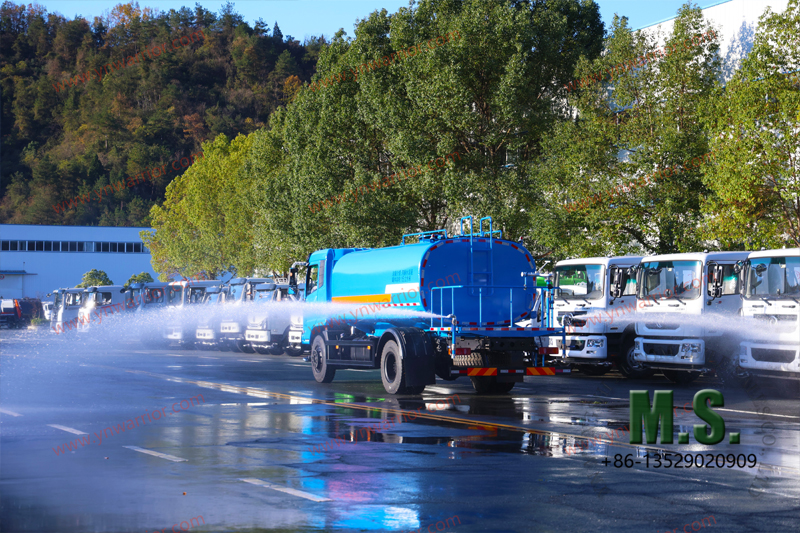

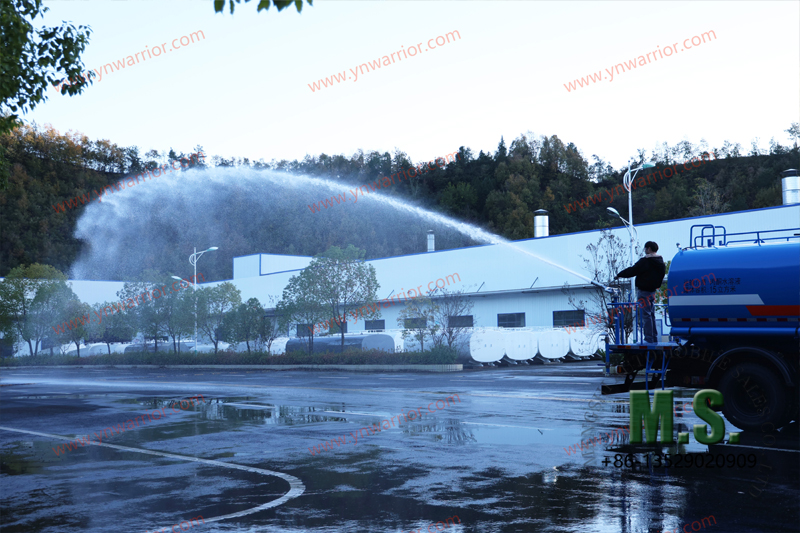

The vehicle features forward spray, rear spray, side spray, and high-pressure washing functions. Watering modes include stationary and moving states, requiring corresponding activation of the stationary PTO and moving PTO switches inside the cab. Manual ball valves control water spraying and suction throughout the vehicle. The tank body has a thickness of 4mm and is internally treated for corrosion resistance.
Basic configuration | |
|---|---|
| Engine | YC6JA200-50 |
| Horsepower | 200Hp |
| Rated Power | 147kw |
| Max Torque | 800N.m |
| Displacement | 6.87L |
| Emission Standard | Euro-5 |
| Gearbox | Manual Eight-speed |
| Transfer Box | 2 Speed |
| Wheelbase | 4200mm |
| Track Width | 1975/1865mm |
| Overall Dimension | 8455×2540×3360mm |
| Chassis Dimension | 8240×2500×2890mm |
| Approach/Dparture Angle | 21°/17° |
| Minimum Ground Clearance | 250mm |
| Wading Depth | 430mm |
| Tank Capacity | 15m³ |
| Tyre | 10.00R20（6+1） |
| Fuel Tank | 300L |
| Max Speed | 85km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
