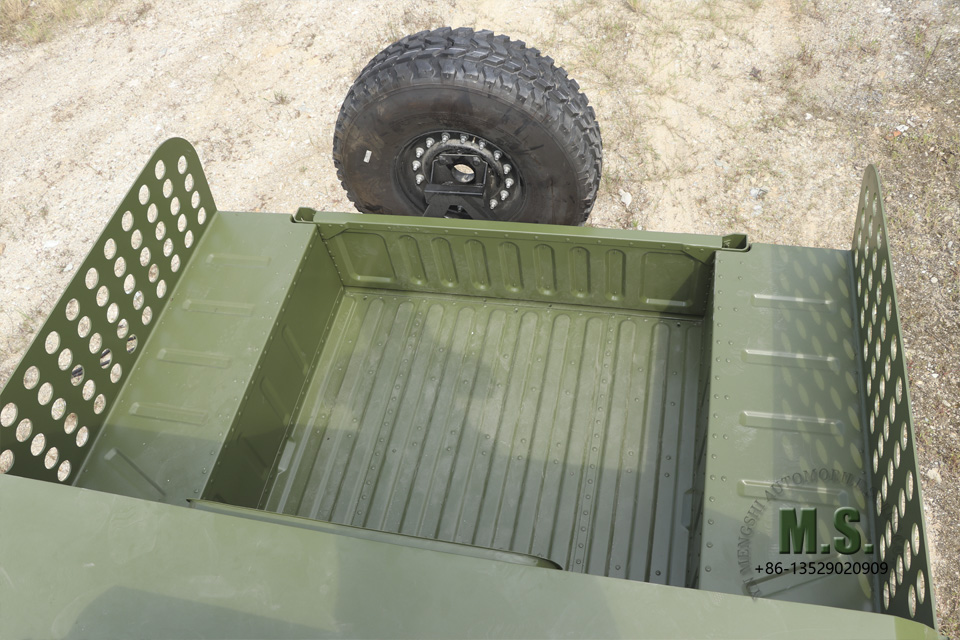

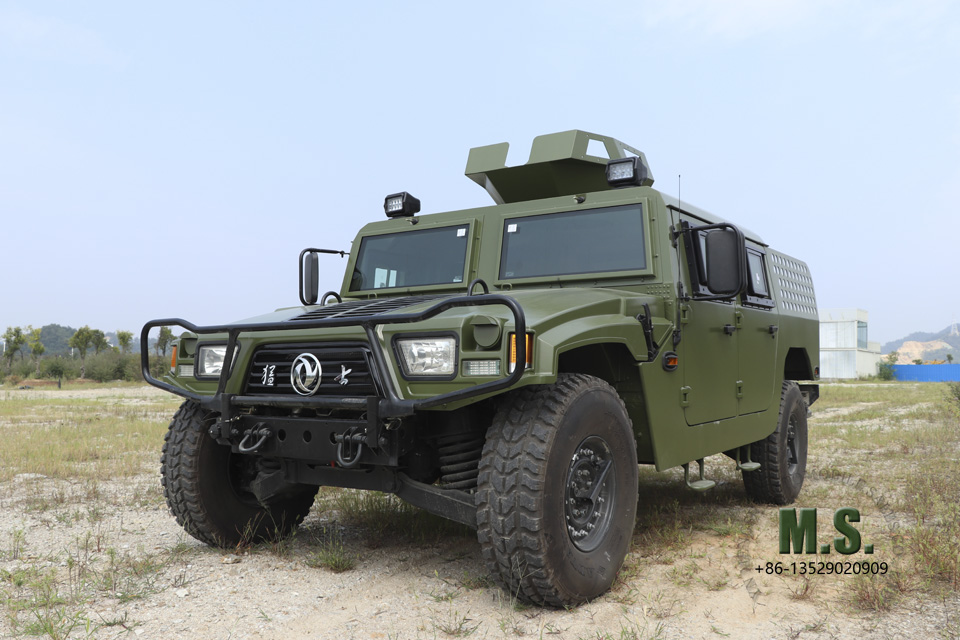

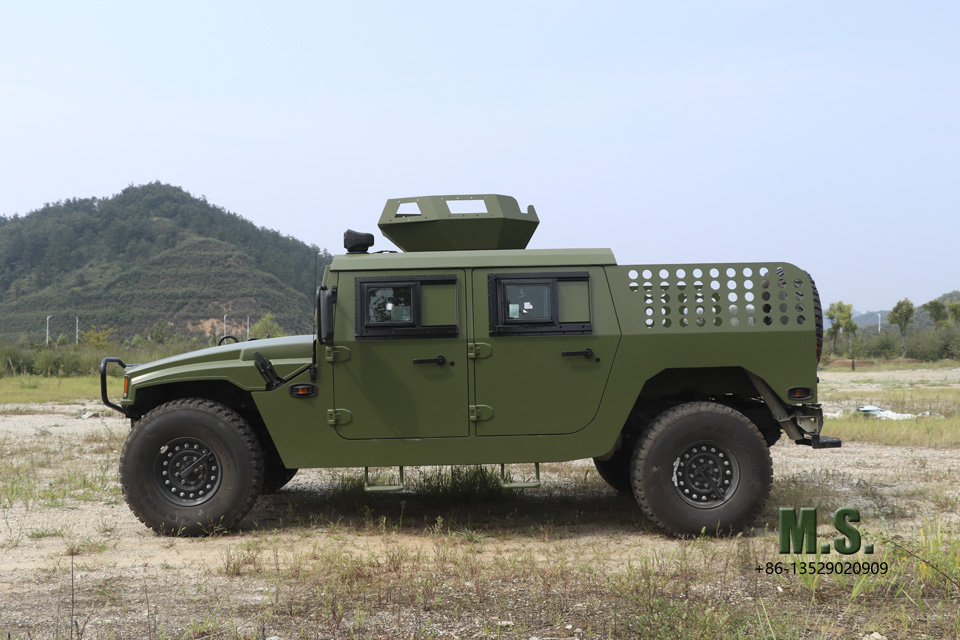

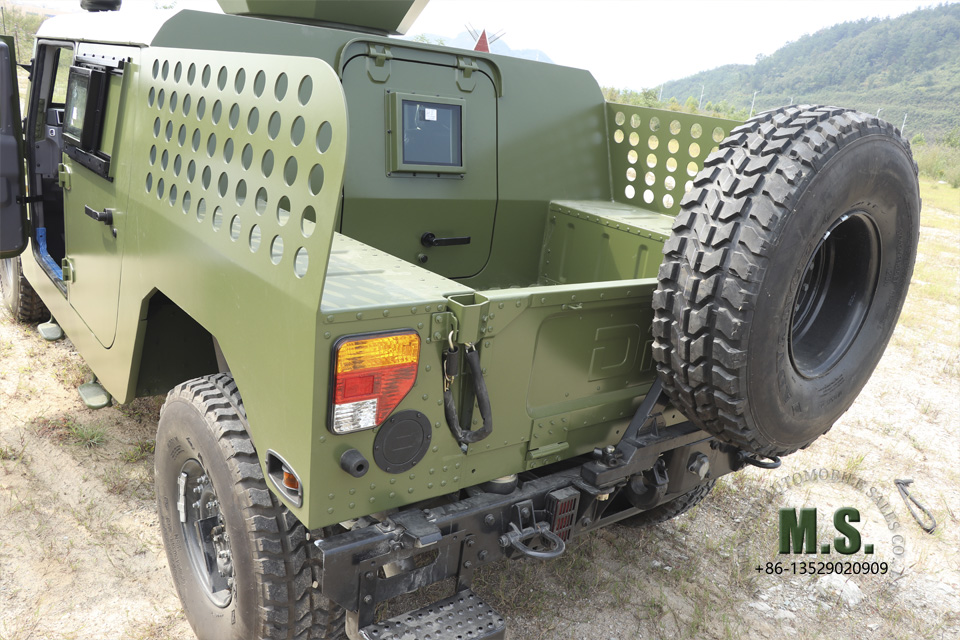

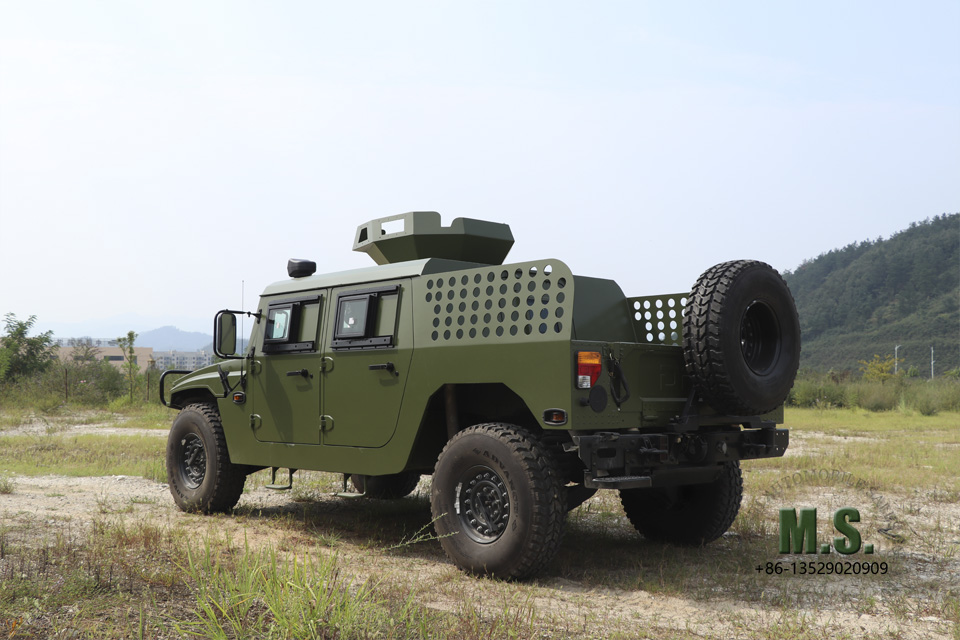

The four-wheel-drive Dongfeng Light Command Patrol vehicle is independently improved by our company on the basis of the mature model Dongfeng EQ2050. It retains the original shape of Dongfeng, strengthens the body material, and improves the anti-impact ability of the vehicle. The rear cargo area can seat 4~6 people, and the cargo area is connected with the driving area.
It can meet the requirements of high-mobility off-road vehicles, suitable for driving on graded roads, rural dirt roads, urgent military roads and roadless areas (referring to a certain degree of ups and downs, mud, sandy jungle, etc.), and suitable for field combat training, international peacekeeping anti-terrorism, border command and patrol.
Basic Configuration | |
|---|---|
| Engin | Dongfeng Cummins ISDe200 41 |
| Gearbox | Mechanical manual fifth gear |
| Transferbox | Four-wheel time-sharing drive, high and low speed |
| Axle | Front axle 3.1 tons/rear axle 3.2 tons, with wheel edge reduction |
| Tyre | 37×12.5R16.5LT Off-road tyre |
| Circuit | 24V |
| Protect | Cab area bulletproof, bulletproof meet the European standard EN1522 FB4+ class, national standard GA164-2005 C class The side window and front windshield are made of 32mm thick bulletproof glass |
Detailed Configuration | |
|---|---|
| Overall Dimension (length×width×height) (mm) | 5200×2137×1920mm（capstan inclouded） |
| Front hanging/rear hanging | 650/850mm |
| Wheelbase | 3300mm |
| Wheel span | 1750/1750mm |
| GVW(kg) | 6300kg |
| Curb Weight(kg) | 3900kg |
| Load mass(kg) | 2400.kg |
| Passengers(persons) | 4 |
| Fuel Tank Capacity (L) | 90+40L |
| Max speed | 120km/h |
| Maximum driving range | ≥600km |
| Maximum climbing grade | 60% |
| Maximum running side slope | 40% |
| Breaking capacity | 40% |
| Minimum turning diameter | 16m |
| Minimum ground clearance | 400mm |
| Obstacle height | 450mm |
| Horizontal trench width | 700mm |
| Wading depth | 750mm（Can be equipped with wading elevation device1200mm） |
| Approach /Departure Angle(°) | 65°/45° |
