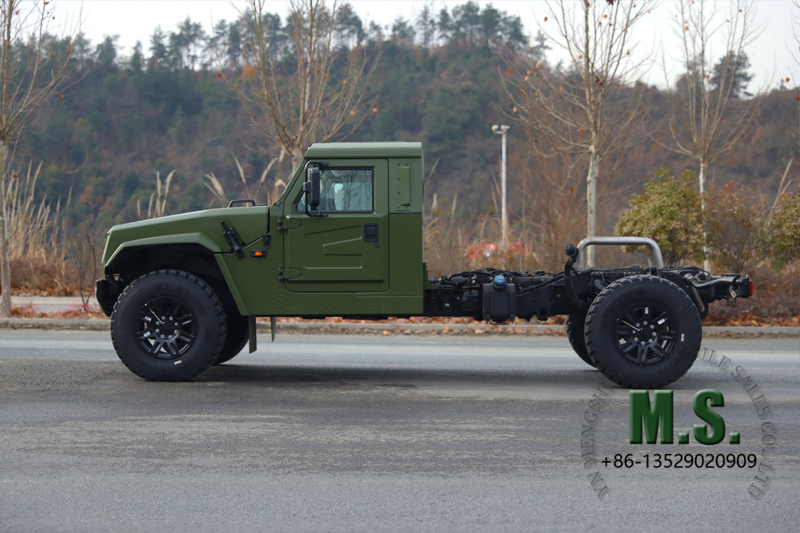

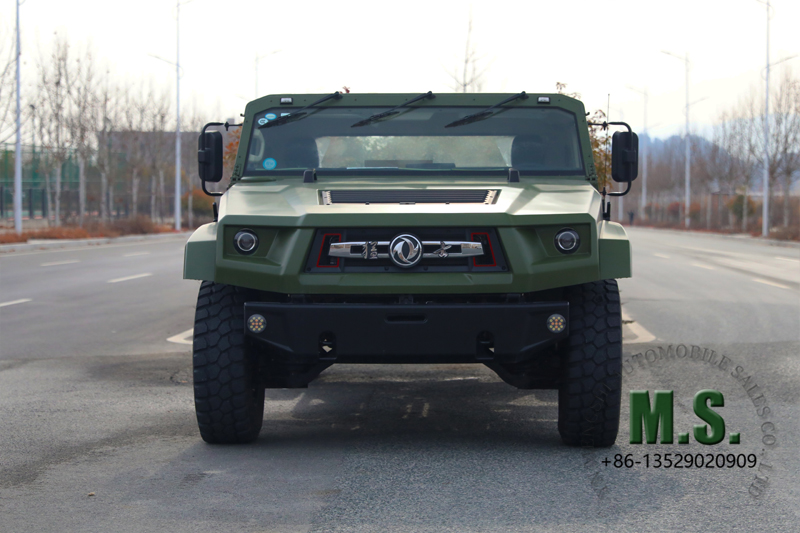

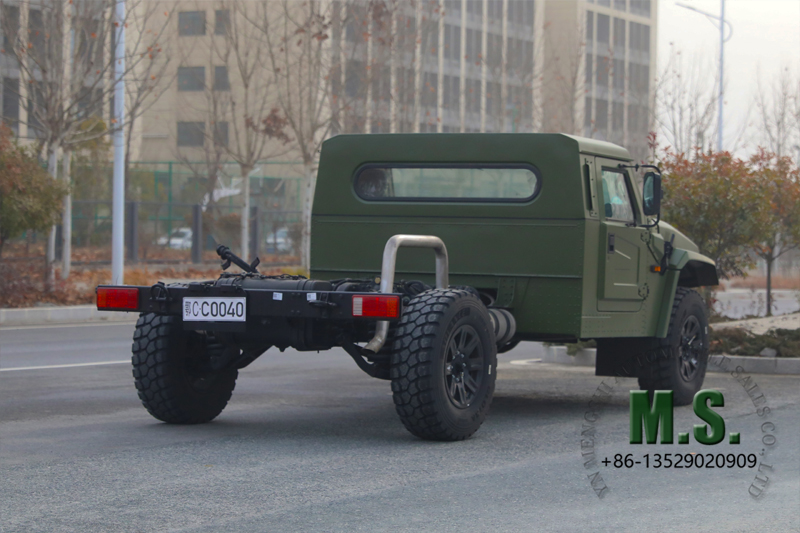

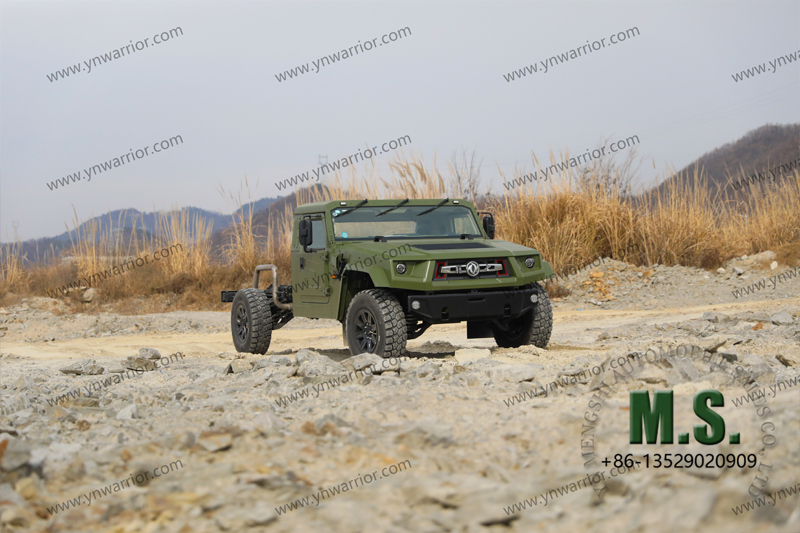

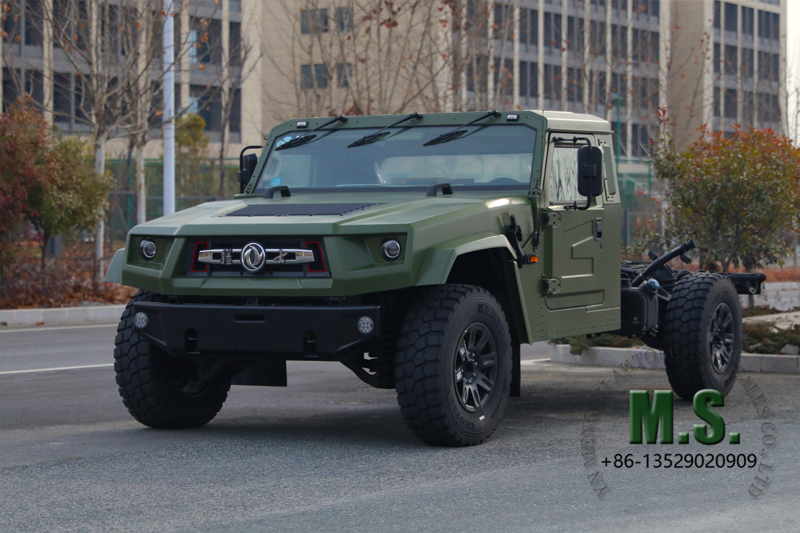

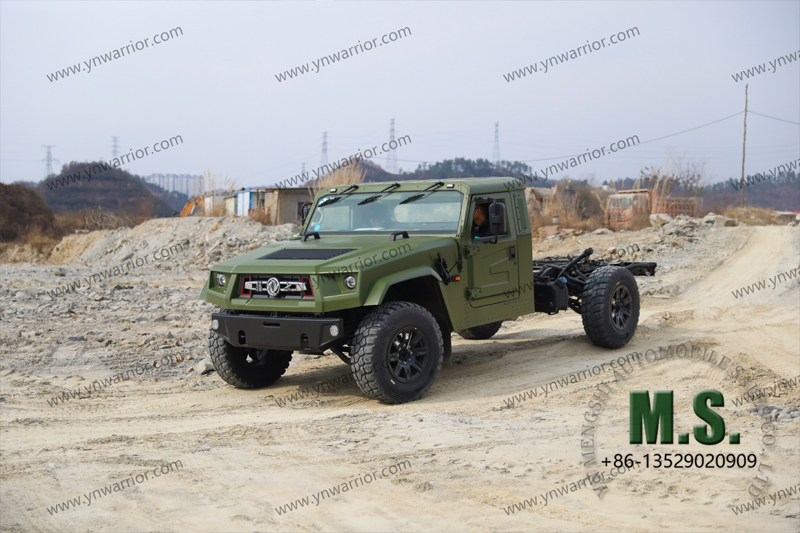

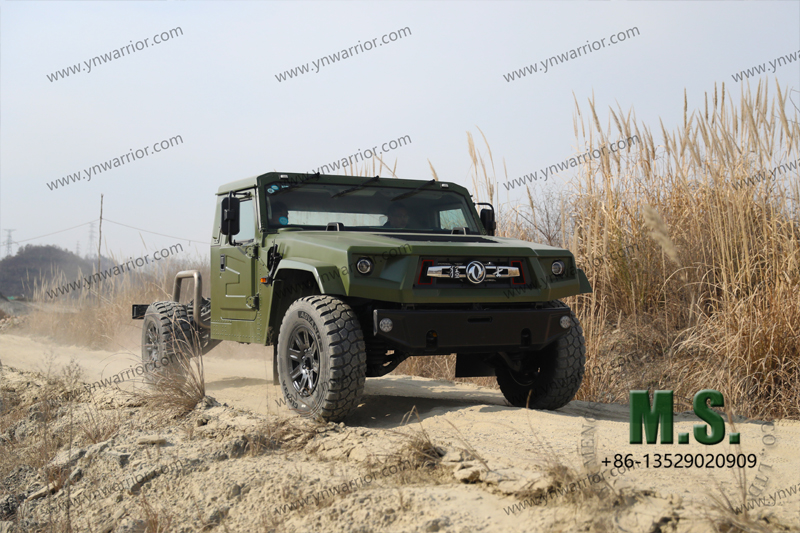

Dongfeng Mengshi M50, Best high-end off-road vehicle in China. Military quality, best proposal for your expedition truck.
Basic configuration | |
|---|---|

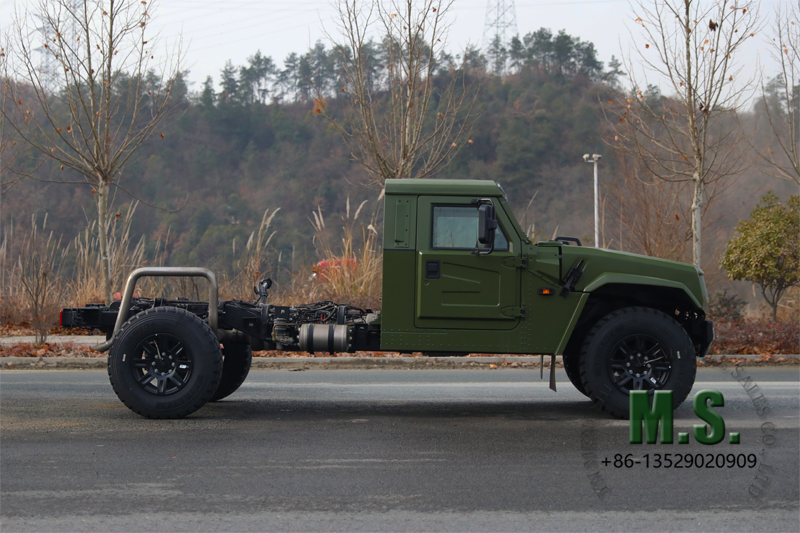

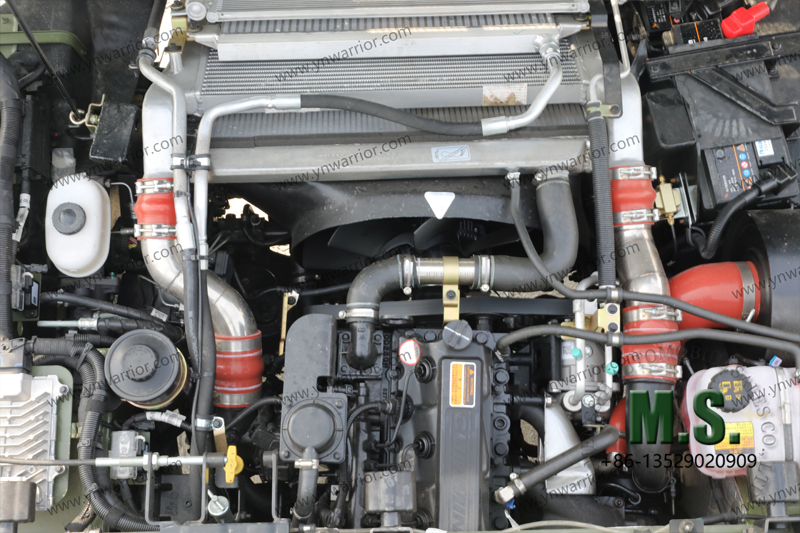

| Engine | Cummins D4.0NS6B195(195 horsepower) |
| Gearbox | Mechanical Manual Five-speed Gearbox |
| Transfer Box | With High and Low Gears |
| Curb Weight | 4050 kg (complete vehicle) / 3800 kg (chassis) |

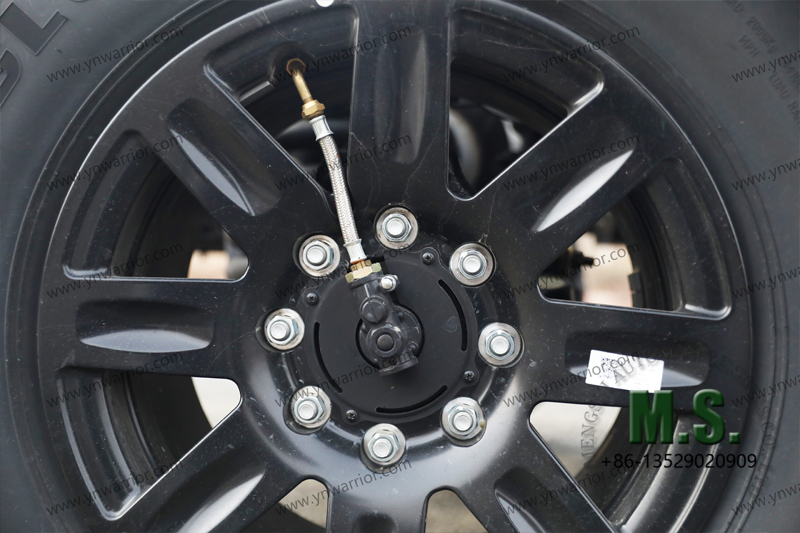

| Tyre | 305/80R18（4+1） |
| Electric Circuit | 24V Circuit System |

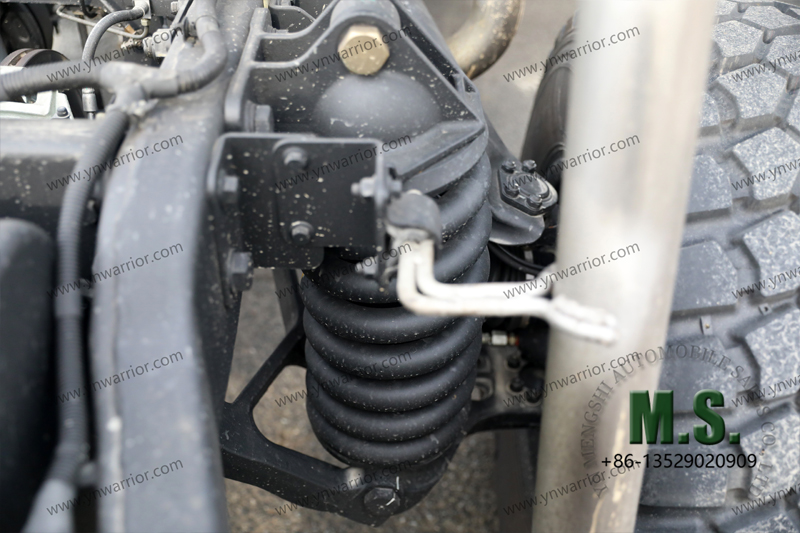

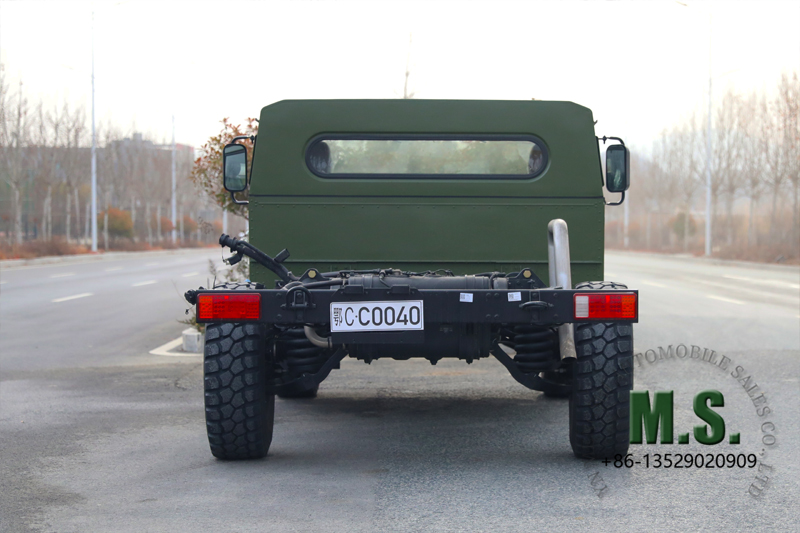

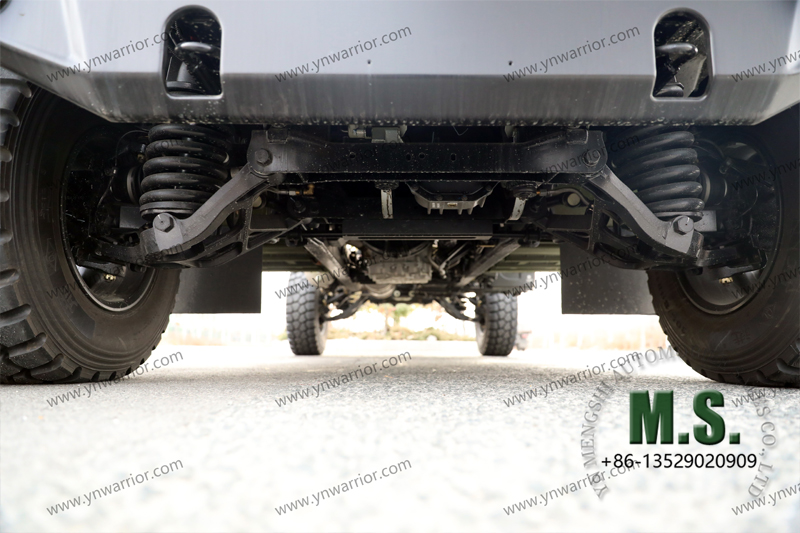

| Suspension | Independent Suspension |
| Others | The vehicle comes with a reflective vest, crowbar, wrench, screwdriver, slip - joint pliers, jack, warning sign, and wheel chock. |
Support Any Kind of Customization.
Detailed parameter | |
|---|---|
| Overall Dimension | 5320*2310*1950mm(The length is 5720mm after installing the front protective fence, spare - tire carrier and step) |
| Cargobox inside Dimension | 1410*2200*380mm |
| Wheelbase | 3800mm |
| Tread | 1880/1850 |
| GVW | 6000kg |
| Loading Weight | 2000kg |
| Turning diameter | 17m |
| Rated Power | 143kw/2400rpm |
| Maximum Torque | 730N.m/1300~1600rpm |
| Displacement | 4.0L |
| Maximum Speed | ≥120km/h |
| Wading depth | 750mm |
| Trench crossing width | 700mm |
| Maximum Climbing Grade | 60% |
| Vertical obstacle crossing height | 380mm |
| Minimum Ground Clearance | 380mm |
| Approach Angle/departure Angle | 45°/35° |

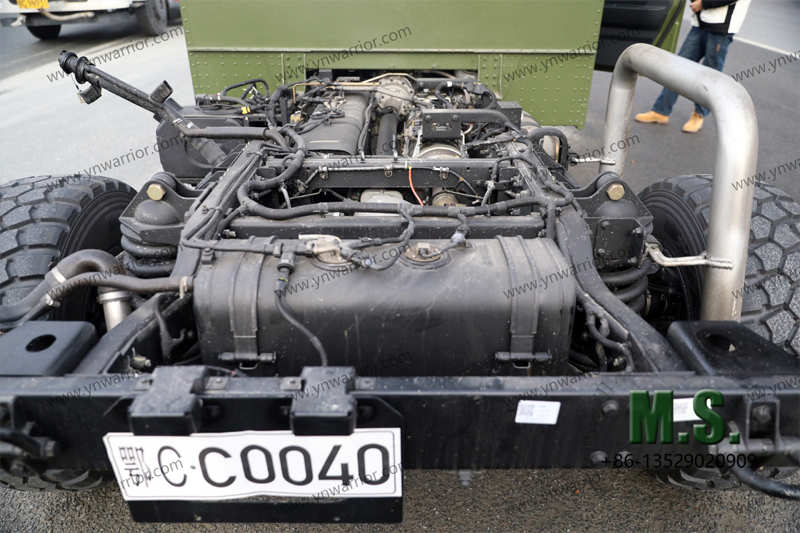

| Tank Volume (Double Tank) | 70+57L |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
