Could add Brake Cooling System plus Water Tank, Hydraulic Spare Tyre Rack or any thing or equipment you want.
Basic configuration | |
|---|---|
| Engine | 4102QBZL |
| Horsepower | 116Hp |
| Rated Power | 85kw |
| Max Torque | 290N.m |
| Displacement | 3.76L |
| Emission Standard | Euro-2 |
| Gearbox | Manual Five-speed |
| Transfer Box | 2 Speed |
| Axle | 3T/6T |
| Chassis Frame | 860×232mm(8+4mm Thickness) |
| Suspension | Leaf spring 9/9+7 |
| Curb Weight | 5680kg |
| Gross Weight | 9000kg |
| Wheelbase | 3700mm |
| Track Width | 1799/1805mm |
| Overall Dimension | 6630×2430×2780mm |

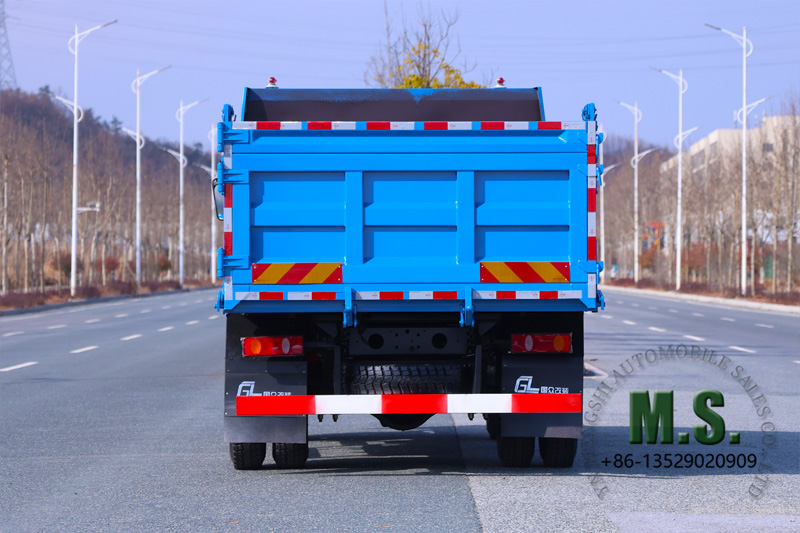

| Cargo Box Inisde Dimension | 3600×2200×800+200mm Thickness 4mm+5mm |
| Approach/Dparture Angle | 36°/17° |
| Minimum Ground Clearance | 260mm |
| Obstacle Crossing Height | 365mm |
| Wading Depth | 380mm |
| Tyre | 8.25R20(6+1) |
| Fuel Tank | 160L |
| Max Speed | 85km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
Could add Brake Cooling System plus Water Tank, Hydraulic Spare Tyre Rack or any thing or equipment you want.
Basic configuration | |
|---|---|
| Engine | 4102QBZL |
| Horsepower | 116Hp |
| Rated Power | 85kw |
| Max Torque | 290N.m |
| Displacement | 3.76L |
| Emission Standard | Euro-2 |
| Gearbox | Manual Five-speed |
| Transfer Box | 2 Speed |
| Axle | 3T/6T |
| Chassis Frame | 860×232mm(8+4mm Thickness) |
| Suspension | Leaf spring 9/9+7 |
| Curb Weight | 5680kg |
| Gross Weight | 9000kg |
| Wheelbase | 3700mm |
| Track Width | 1799/1805mm |
| Overall Dimension | 6630×2430×2780mm |
| Cargo Box Inisde Dimension | 3600×2200×800+200mm Thickness 4mm+5mm |
| Approach/Dparture Angle | 36°/17° |
| Minimum Ground Clearance | 260mm |
| Obstacle Crossing Height | 365mm |
| Wading Depth | 380mm |
| Tyre | 8.25R20(6+1) |
| Fuel Tank | 160L |
| Max Speed | 85km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.














For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.


For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.
