340-horsepower 30-ton Gross Weight Dongfeng 6x4 Dump Truck_Solid Axle, Wechai Engine, Heavy Duty, Thickened Steel Cargo Box, with A Bed_Manufacturer Direct

Solid axle 6x4 Dump truck, sound material body and cargo box for heavy duty.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Dongfeng 6x4 Dump Truck But Installed Weichai Engine as Customer Requirements. Solid axle 6x4 Dump truck, sound material body and cargo box for heavy duty.


Basic configuration

 Engine Weichai WD615.69
Horsepower340Hp
Rated Power247kw
Max Torque1350N.m
Displacement9.762L
Emission StandardEuro-2
 Gearbox Manual 10-speed
Wheelbase3890+1400mm
Track Width2040/1828/1828mm
Overall Dimension
8650*2610*3310mm
Cargo Box Dimension5800*2350*(800+700)mm
Approach/Dparture Angle27°/18°
Minimum Ground Clearance345mm
Wading Depth730mm
Axle 7t/13t/13t
Gross Weight30000kg
Curb Weight13910kg
Chassis Frame860*280mm Double layer(8+6mm)
Tyre12.00R20(10+1)
Trench Crossing580mm
Max Speed85km/h


Note: This specification is for reference only,  please refer to the actual vehicles. The factory reserves the final right to interpret the specification.

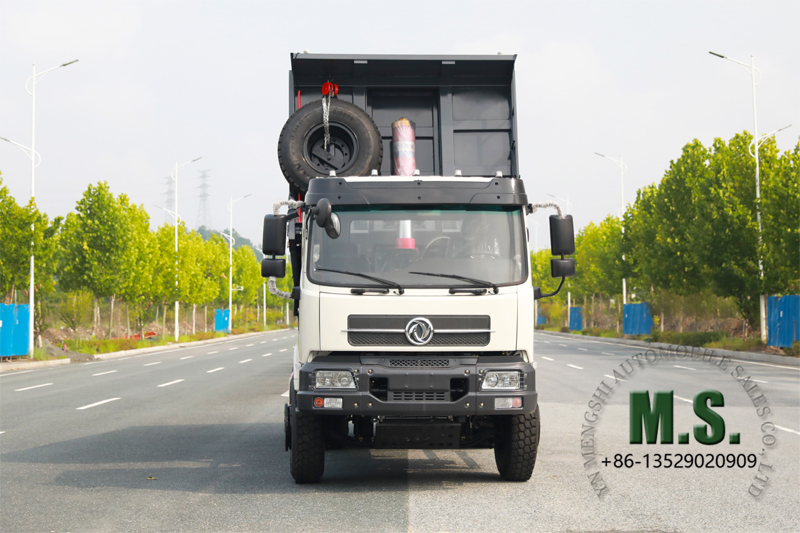

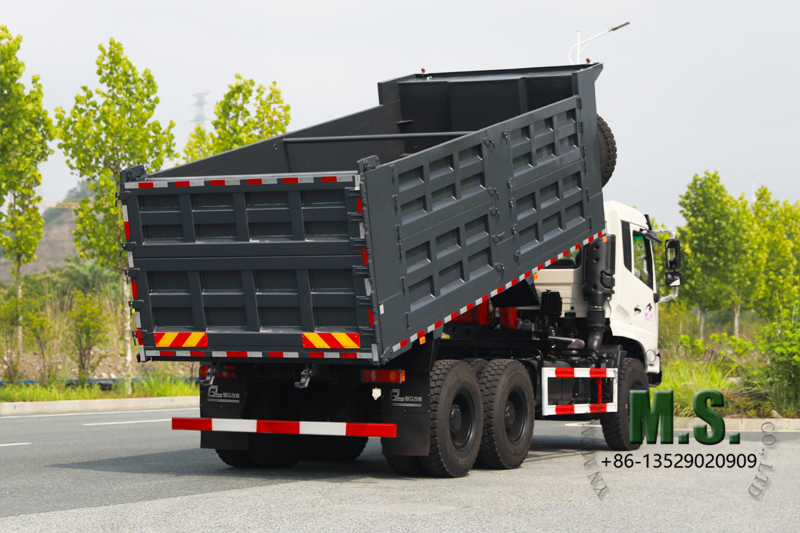

Dongfeng 6x4 dump truckDongfeng 340-horsepower dump truck6x4 Chinese dump truck30-ton gross weight China dump truckair brak cylinder and hydraulic pump of Dongfeng dump truckChinese truck cabin, button control axleDongfeng Dana solid axlegeneral power switch of Chinese dump truckheavy duty dump truck with thickened steelWechai engine dump truck rear perspectivehydraulic cabin fliping devicemud fender under chassis dump truckmultiple leaf spirng of chinese dump truckstandard cabin of Dongfeng truck

未标题-1

transportation

        For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.

       For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

payment

       On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

custom

       Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.
