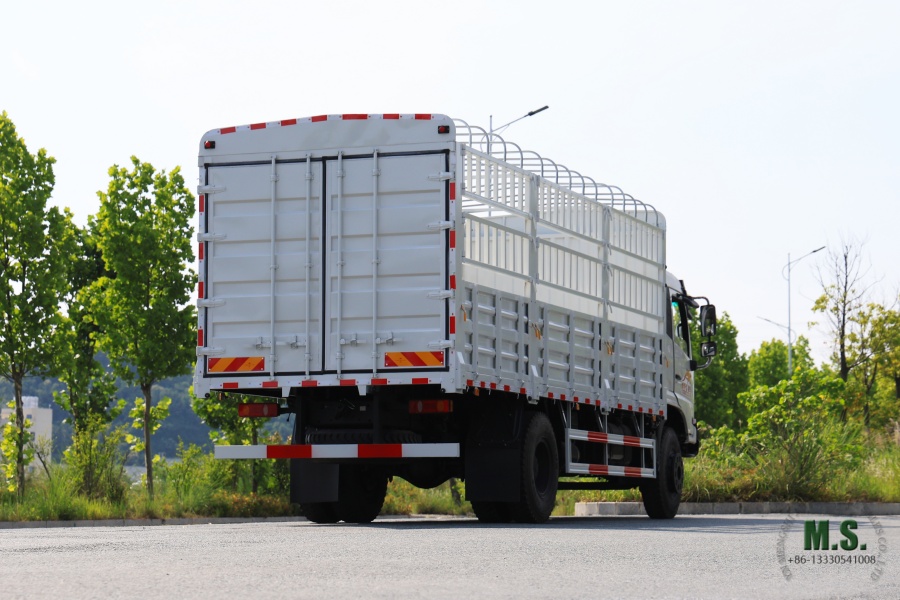

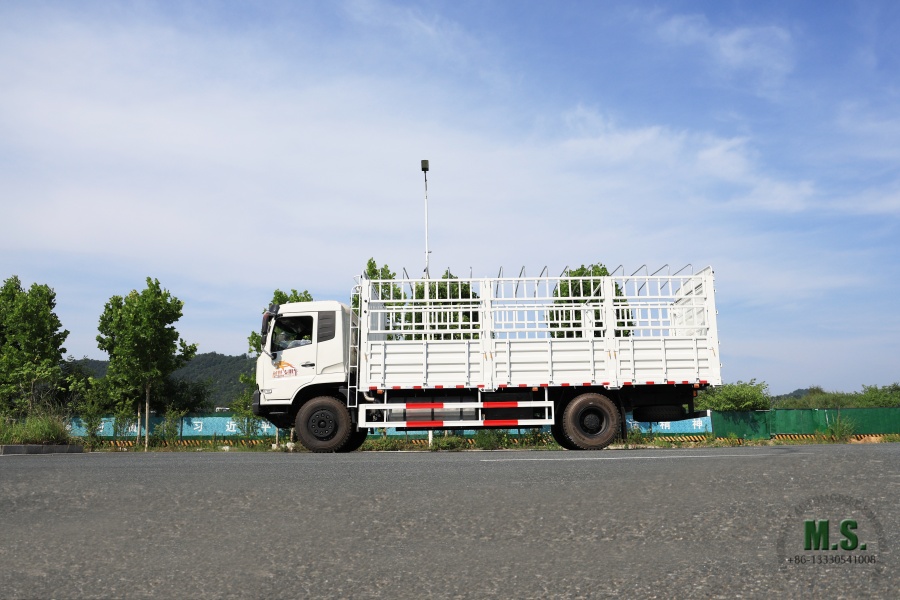

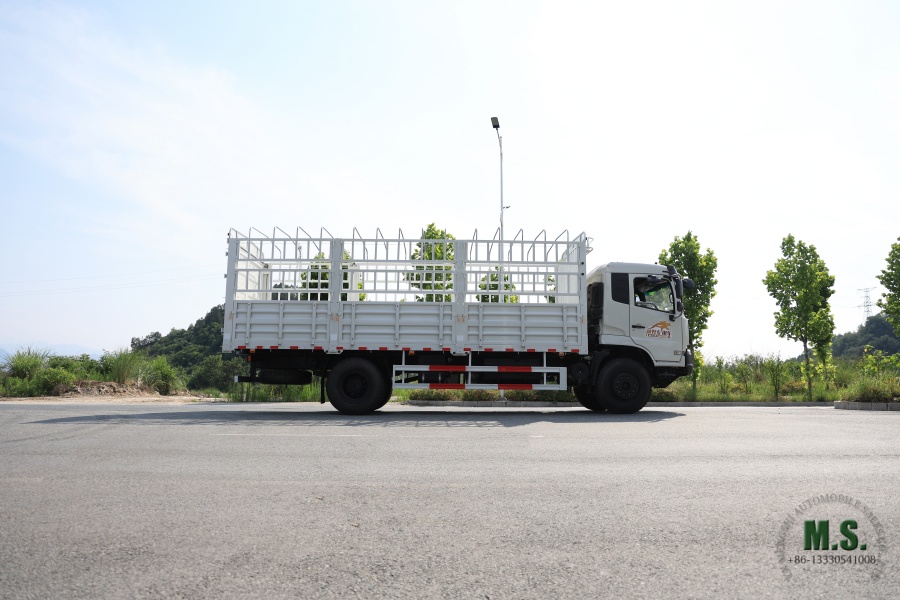

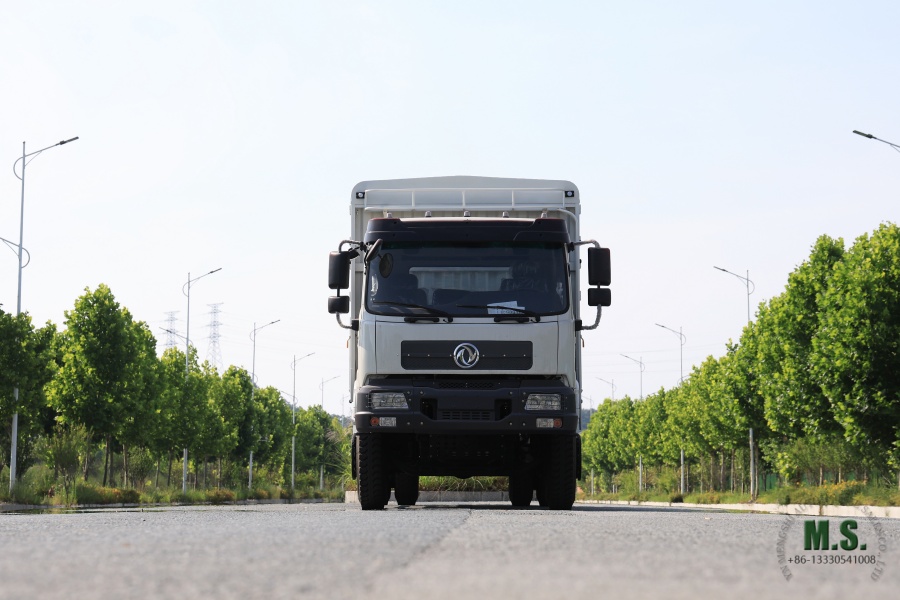

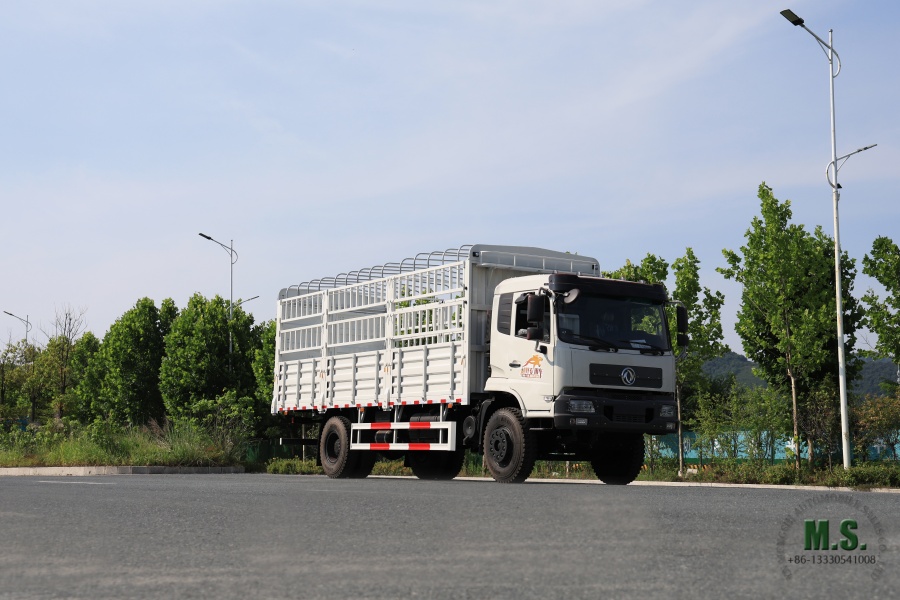

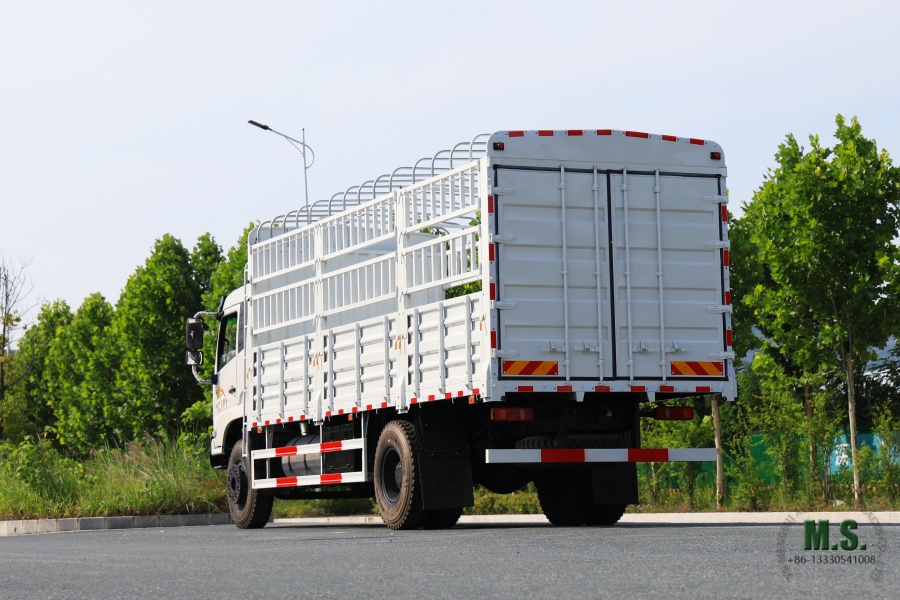

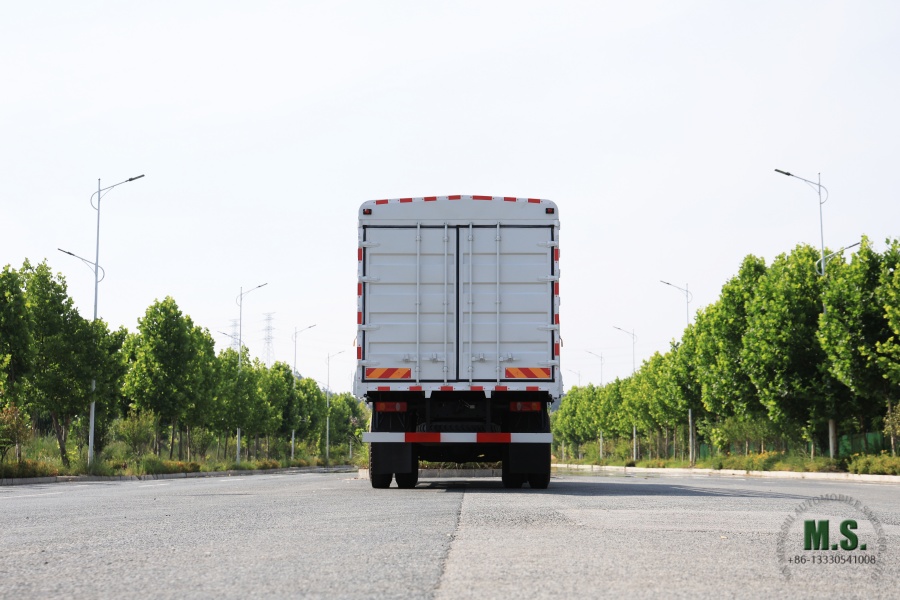

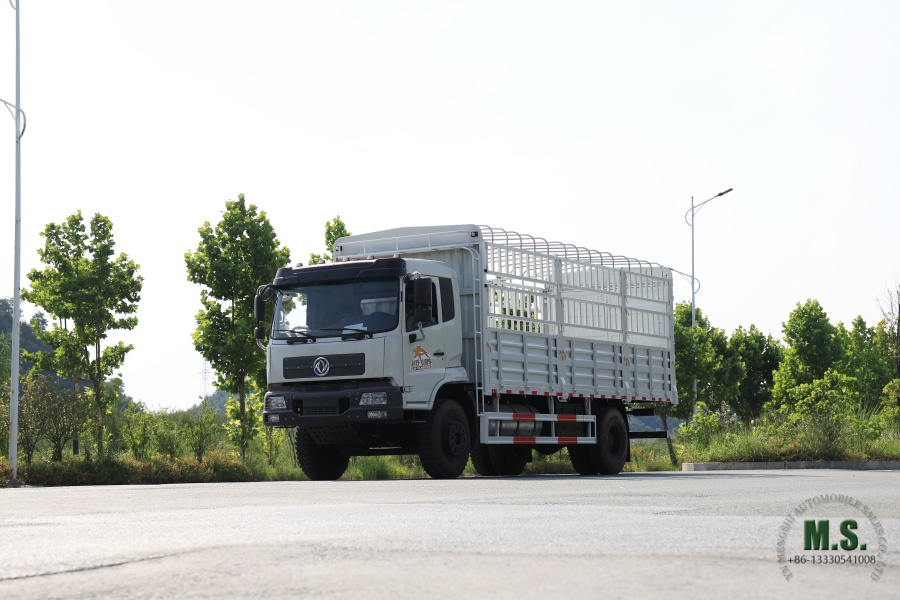

This sturdy Dongfeng 4×2 box-type transport truck is an all-purpose heavy-duty freight vehicle. Fitted with the WP6.210E32Z diesel engine and 10-speed manual transmission, it outputs 155kW power and 750N·m torque for stable heavy-load transport. Equipped with a 6.7m cage cargo box and rated at 21-ton GVW, it adopts durable leaf spring suspension and solid axles. Good ground clearance enables reliable travel on ordinary and rough roads, perfectly suited for logistics, engineering and agricultural transportation.
Basic configuration | |
|---|---|
Engine | WP6.210E32Z |
Transmission | 10 gears manual |

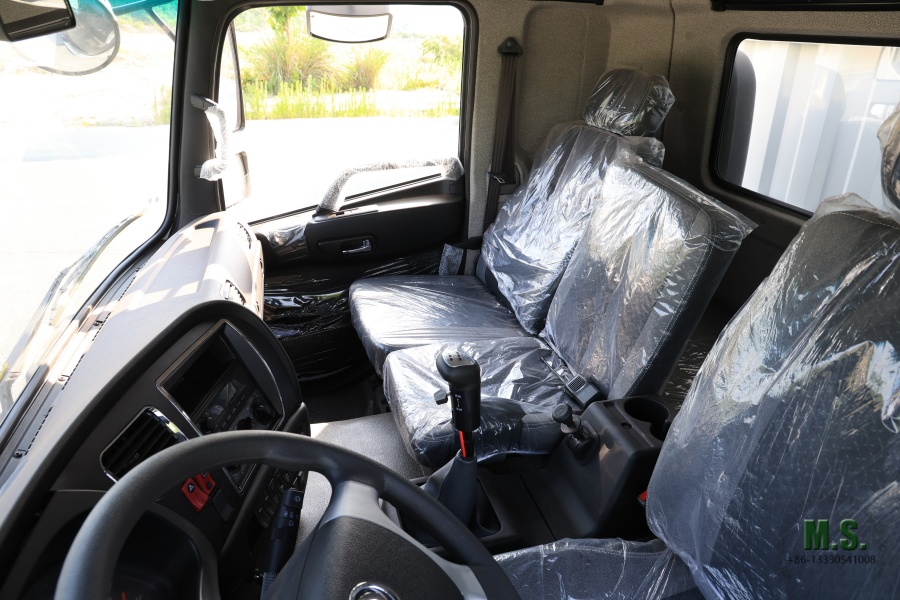

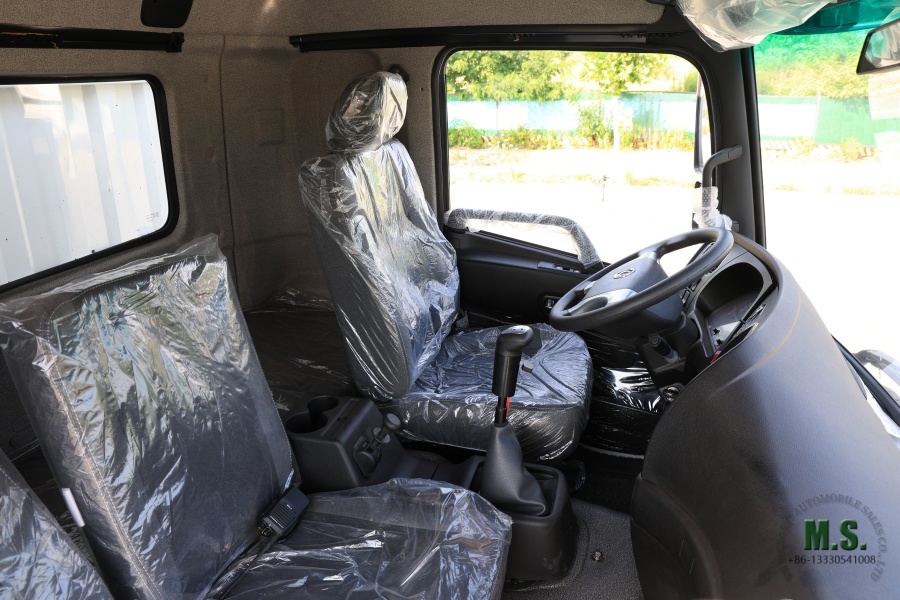

Cab | Flat Semi Cab |
Transfer Case | None |
Frame | 860×250 (8+8) |

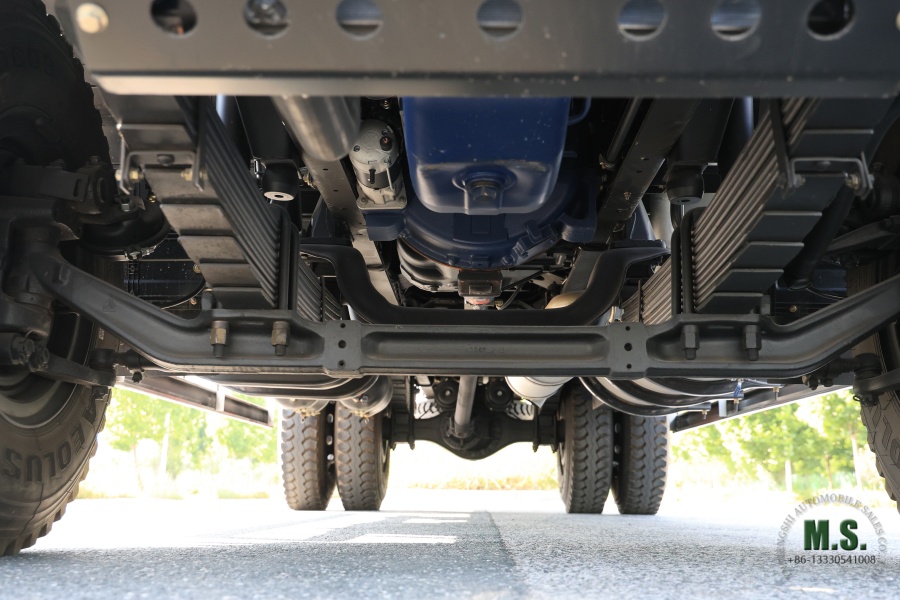

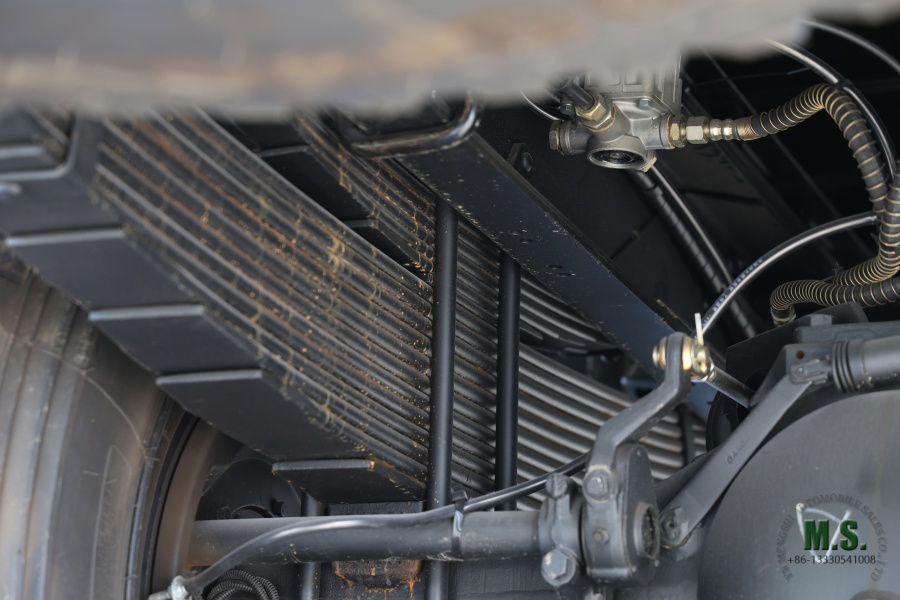

Suspension | Leaf spring 12/10+8 |
Axle | 5T/16T |
Tyres | 11.00R20 (6+1) |
Overall Dimensions | 9260×2750×3700mm |

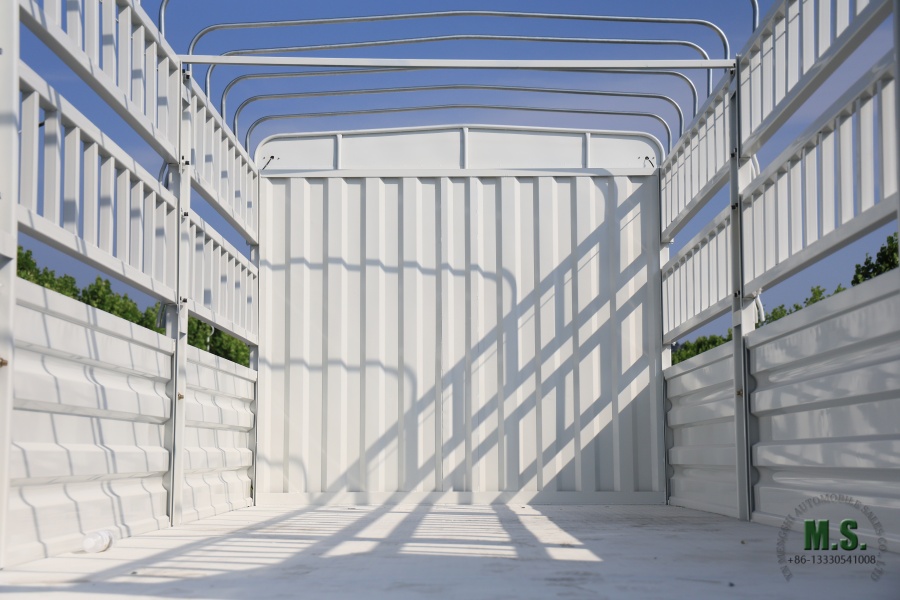

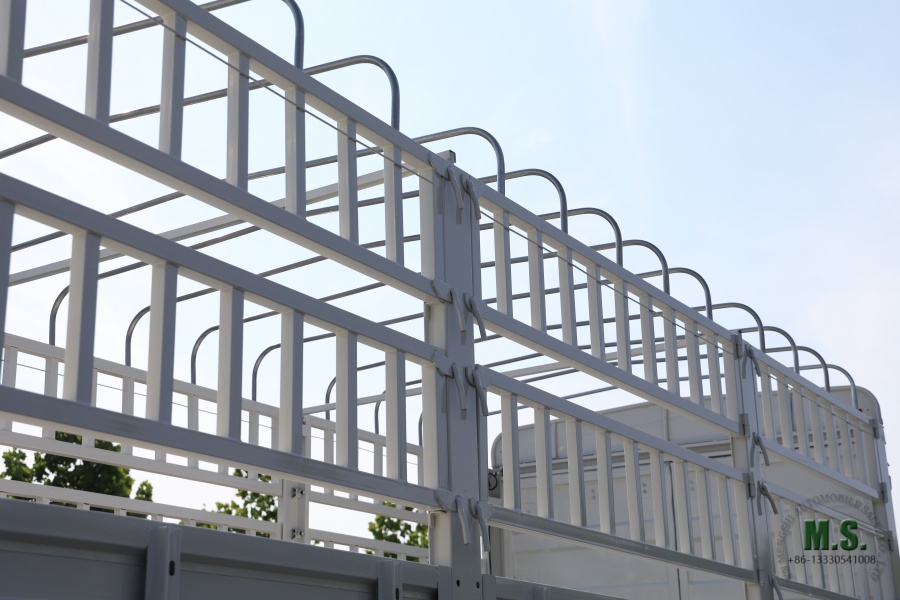

Cargo Box Dimensions | 6700×2380×2300mm |
Displacement | 6230ml |
Power | 155kW |
Wheelbase | 5100mm |
Track Width | 2020/1850mm |
GVW | 21000kg |
Curb Weight | 8750kg |
Approach Angle | 13° |
Departure Angle | 16° |
Torque | 750N·m |
Fuel Tank Capacity | 300L |
Fording Depth | 480mm |
Obstacle Height | 330mm |
Rear Frame Ground Clearance | 1170mm |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
