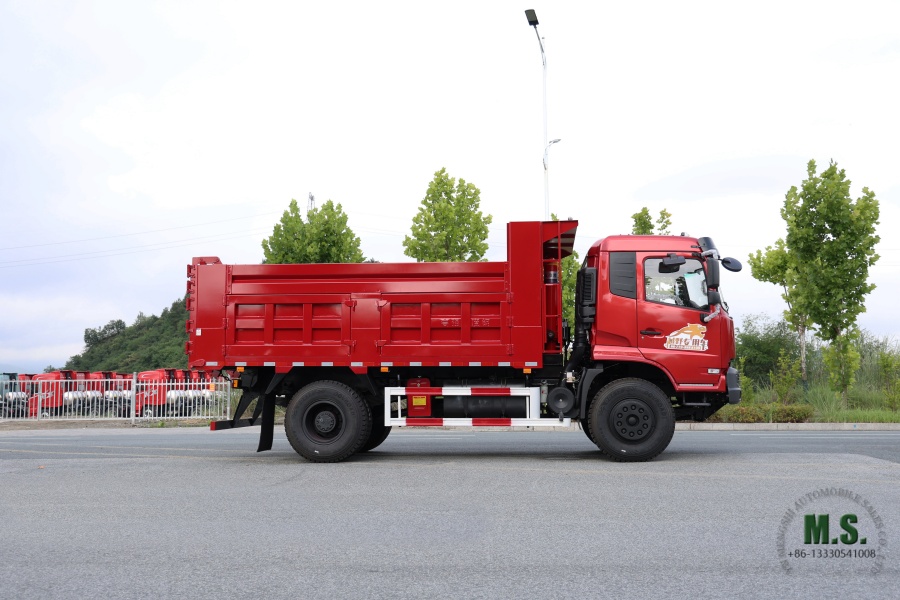

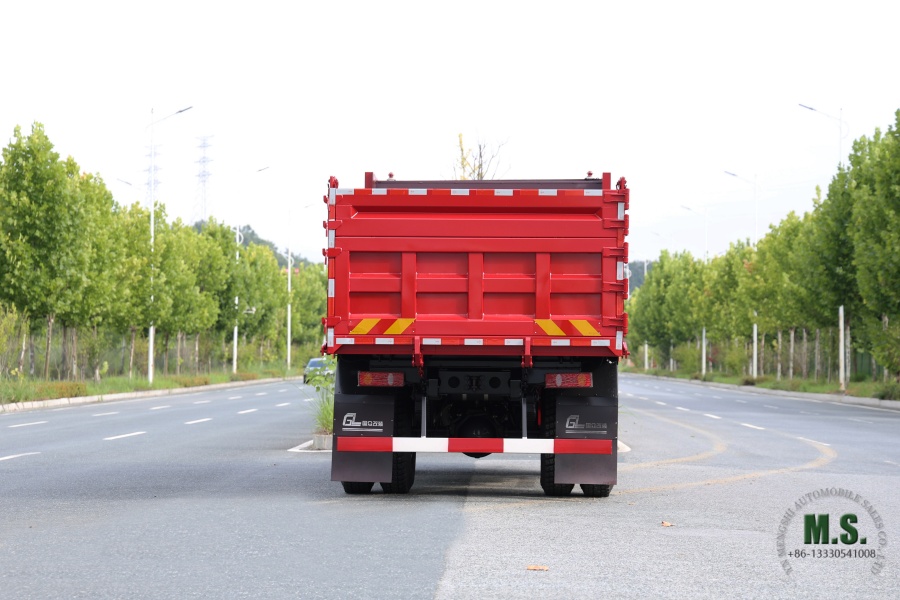

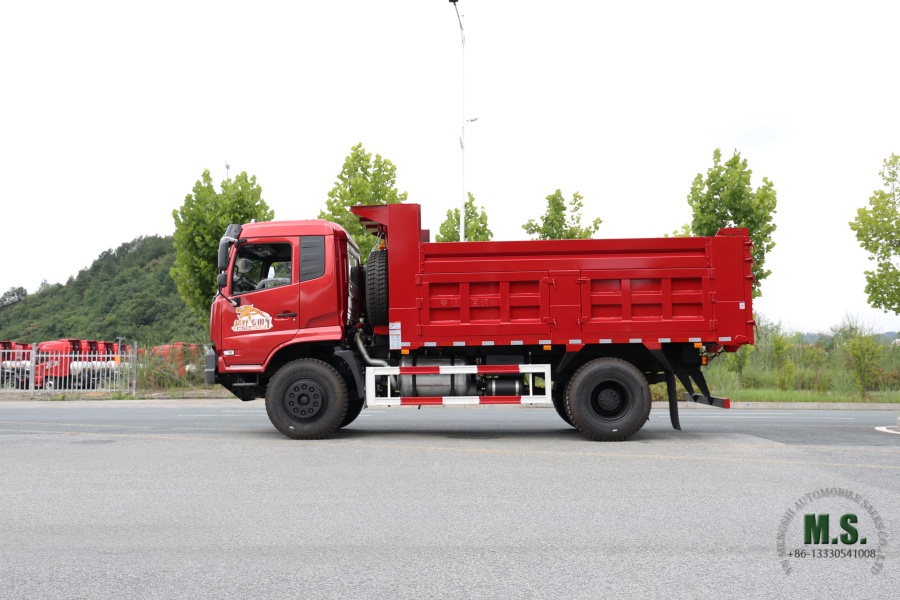

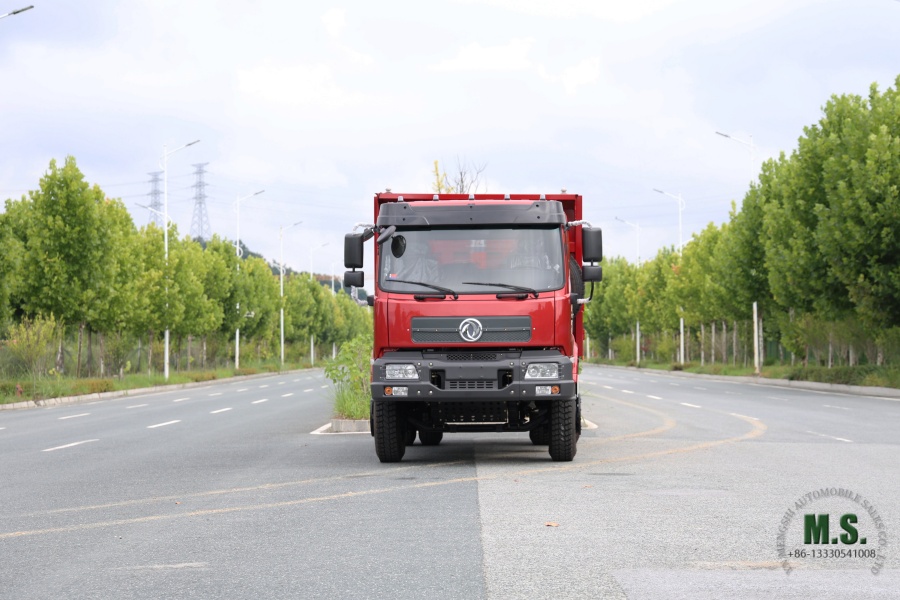

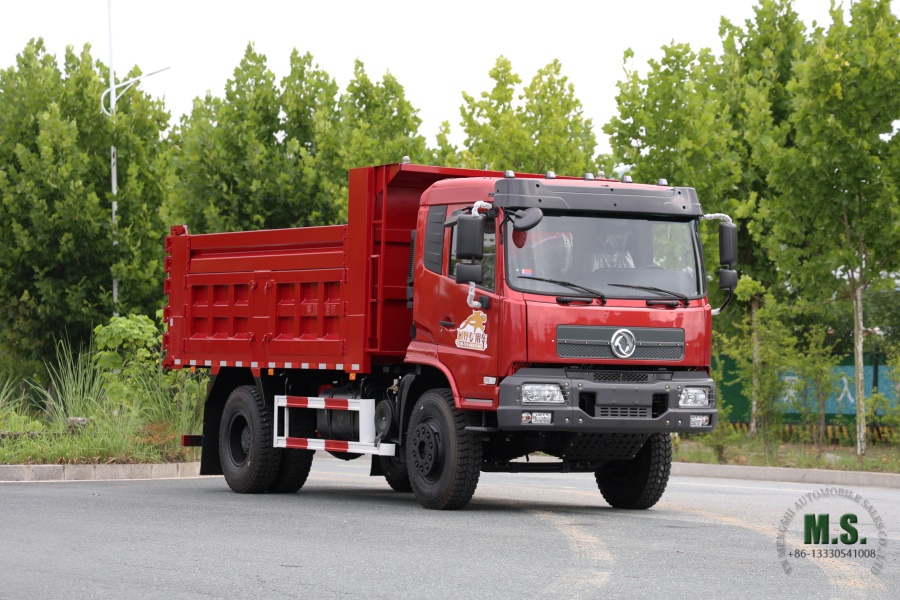

This 4WD flathead truck chassis serves as an excellent special vehicle conversion platform. Equipped with reliable Cummins B170 33 engine, 5-speed gearbox and high-low speed transfer case, it provides stable power and great traction. Adopting heavy-duty double-layer frame and sturdy axles, it boasts remarkable off-road, wading and obstacle-crossing performance. With ample space for upper-body customization, it suits rescue, engineering and transport vehicles for harsh terrains.
Basic configuration | |
|---|---|
Parameter | Specification |

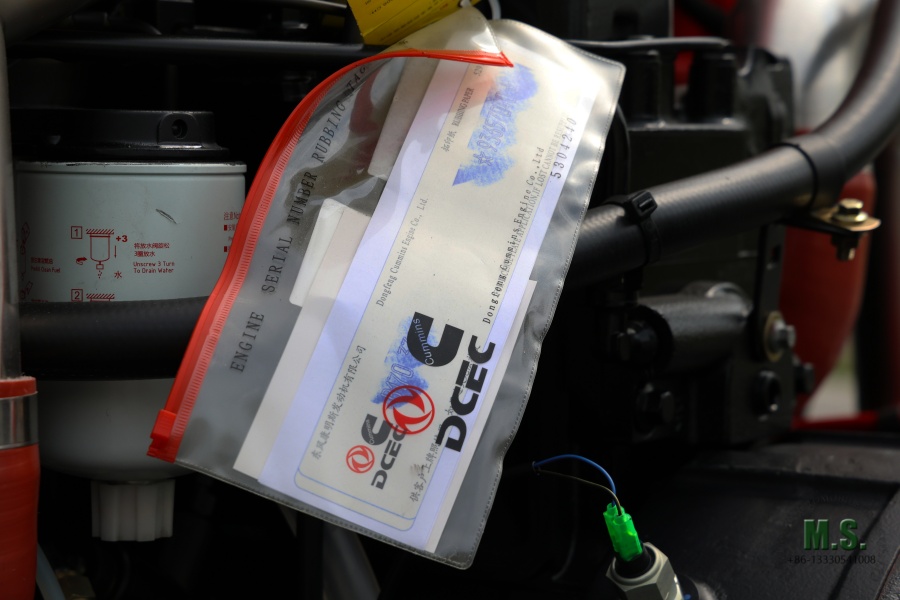

Engine | Cummins B170 33 |

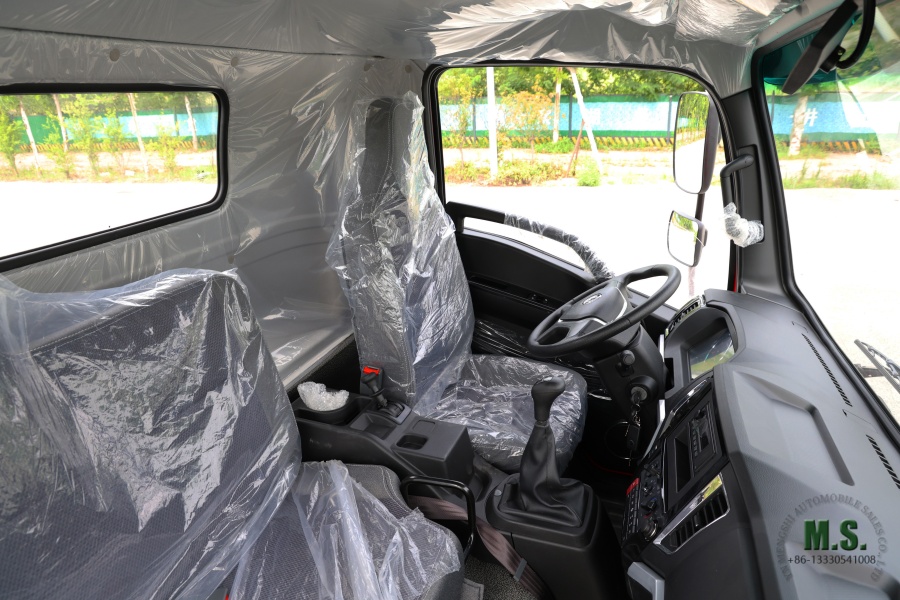

Cab | Flathead single row |

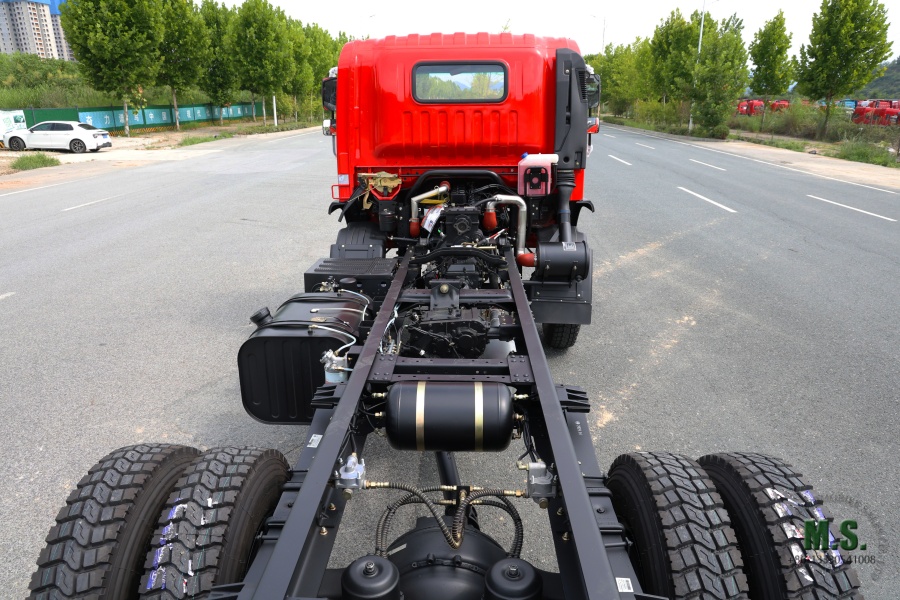

Frame | 800×250, double layer |

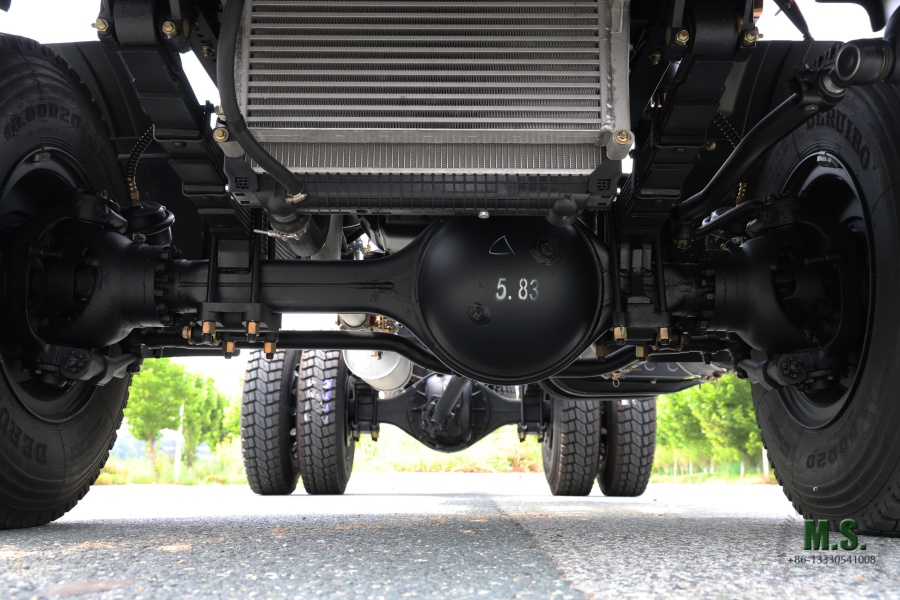

Axle | 5T / 10T |
Transmission | Five gears |
Transfer case | High and low speed |

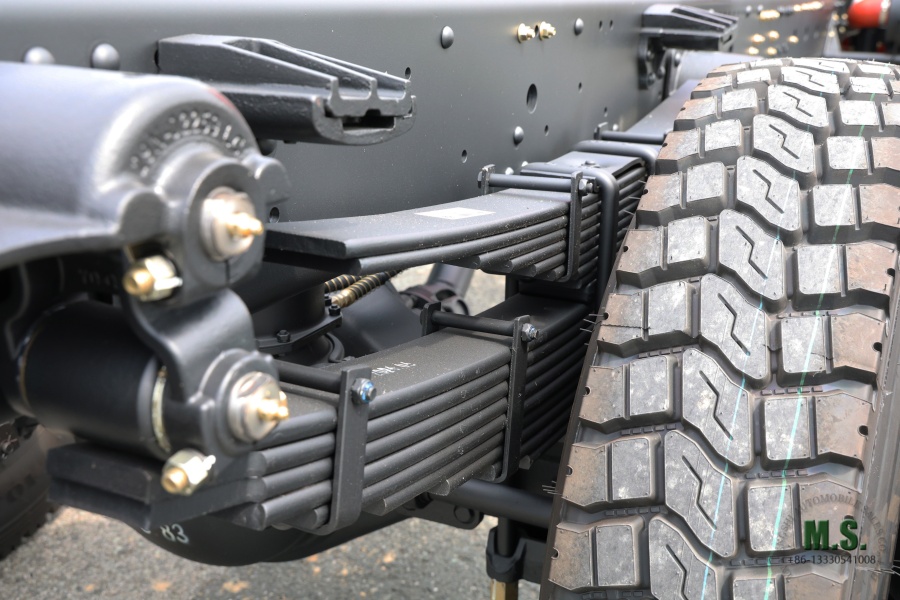

Suspension | Leaf spring 9/8+10 |
Tires | 10.00R20 (6+1) |
Overall Dimensions | 7240×2500×2720 mm |
Wheelbase | 3800 mm |
GVW | 15000 kg |
Approach Angle | 24° |

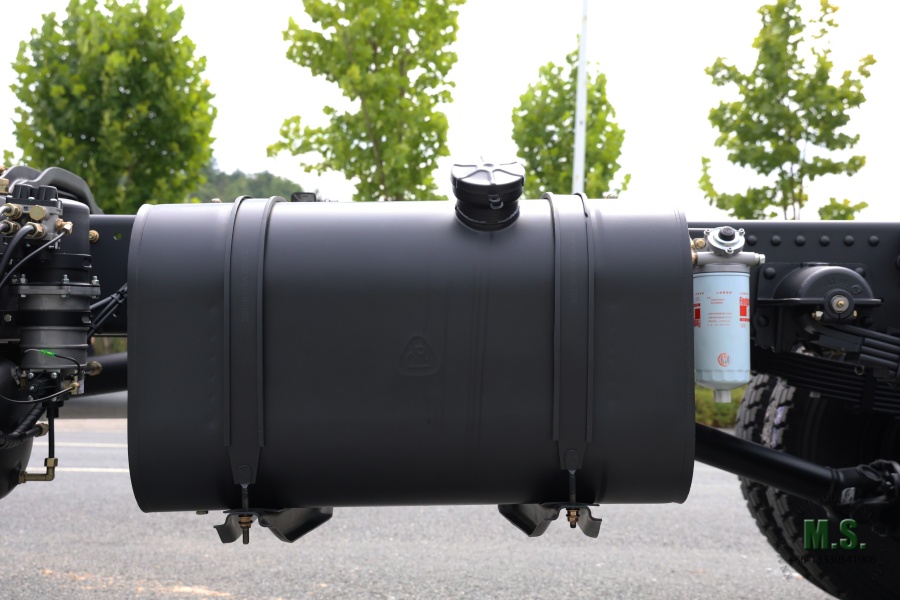

Fuel Tank Capacity | 260 L |
Fording Depth | 560 mm |
Max. Speed | 85 km/h |
Superstructure Length | ≤4570 mm |
Track Width | 1850 / 1780 mm |
Chassis Curb Weight | 5230 kg |
Departure Angle | 22° |
Distance from Ground to Top | 1160 mm |
Obstacle Height | 470 mm |
Minimum Ground Clearance | 260 mm |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
