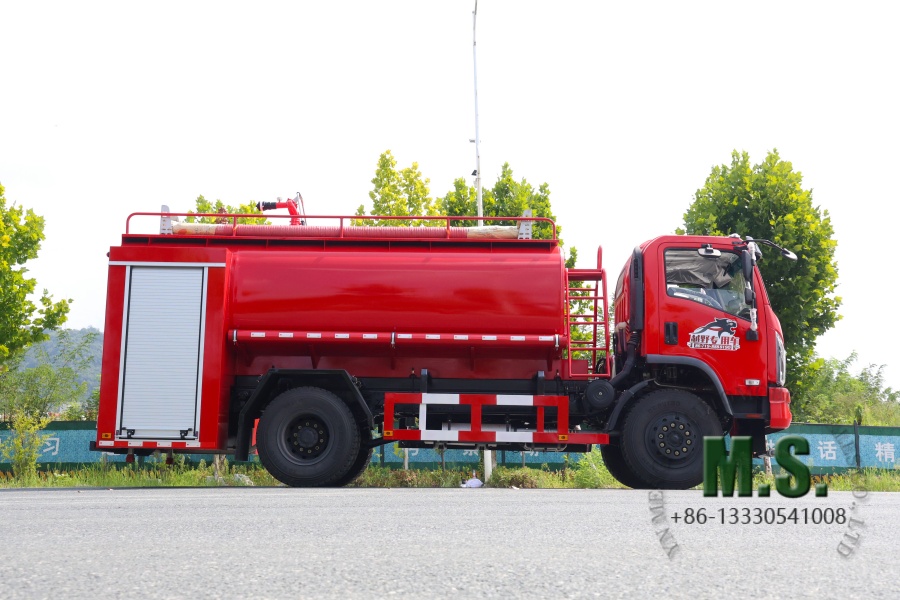

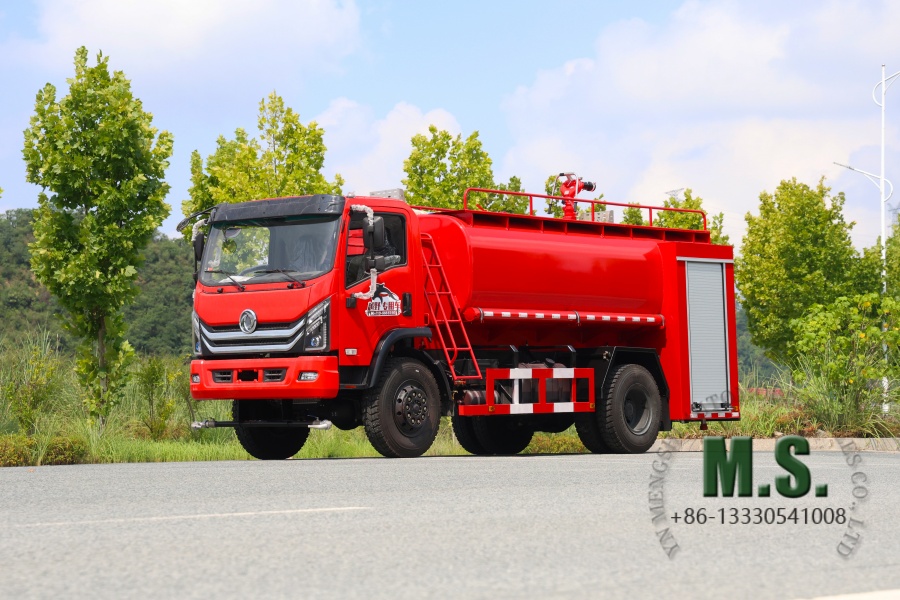

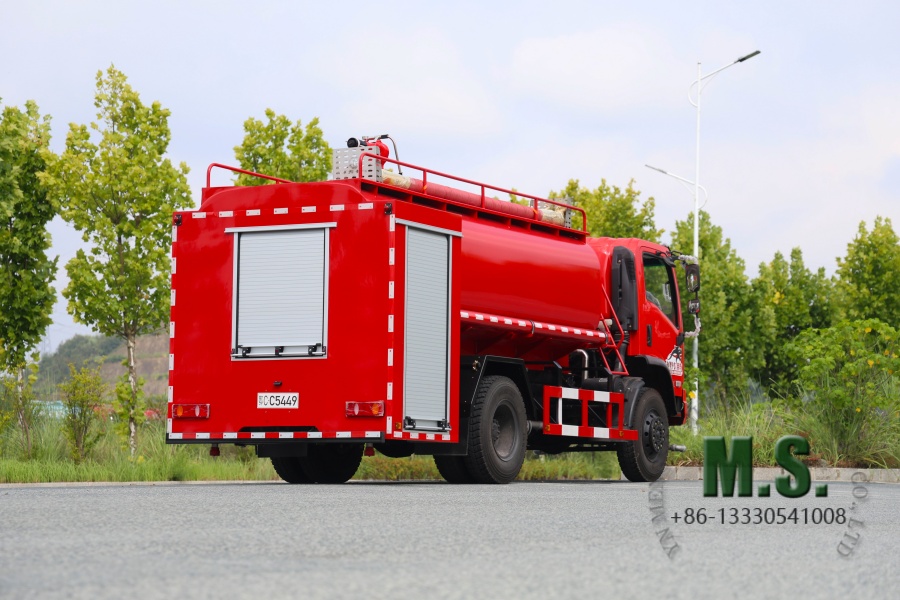

4×4 7m³ Fire Truck

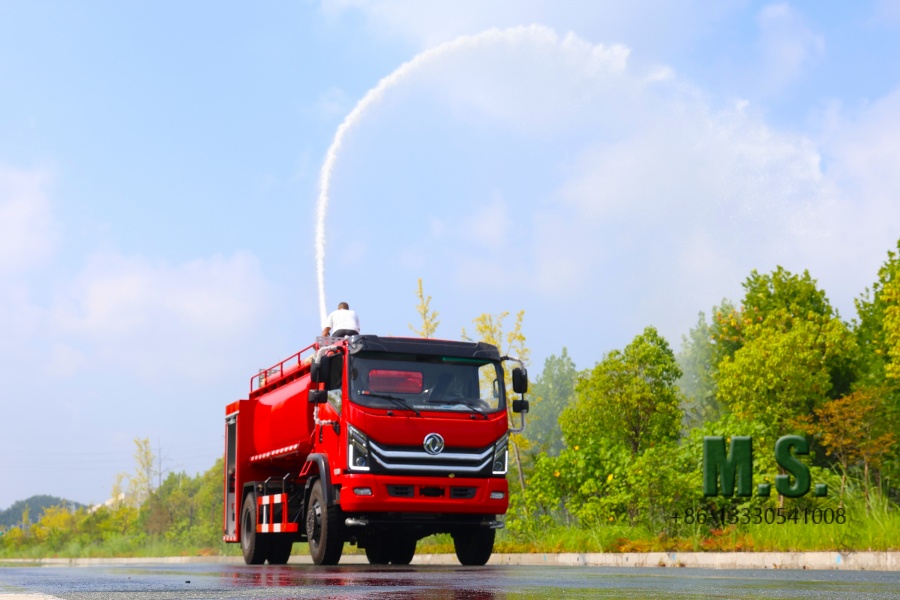

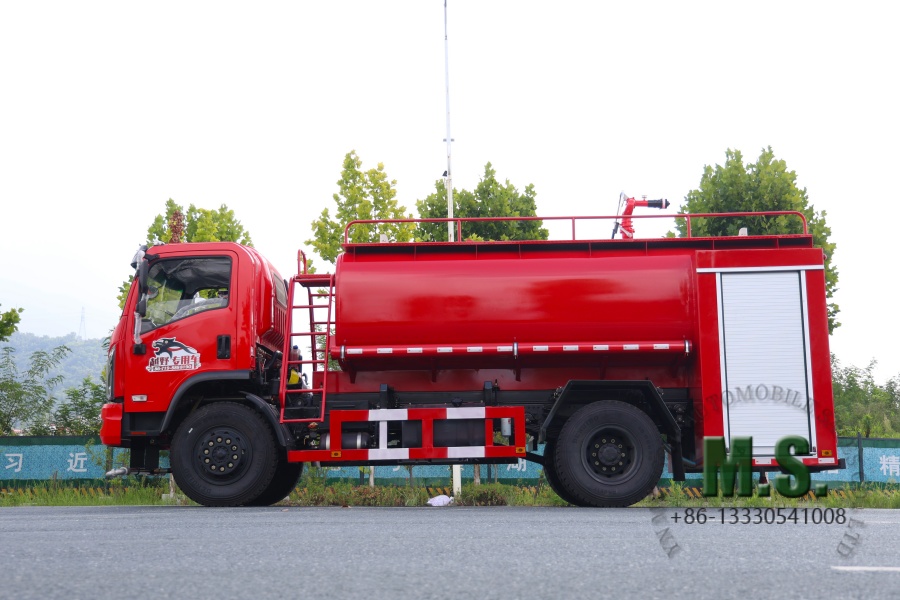

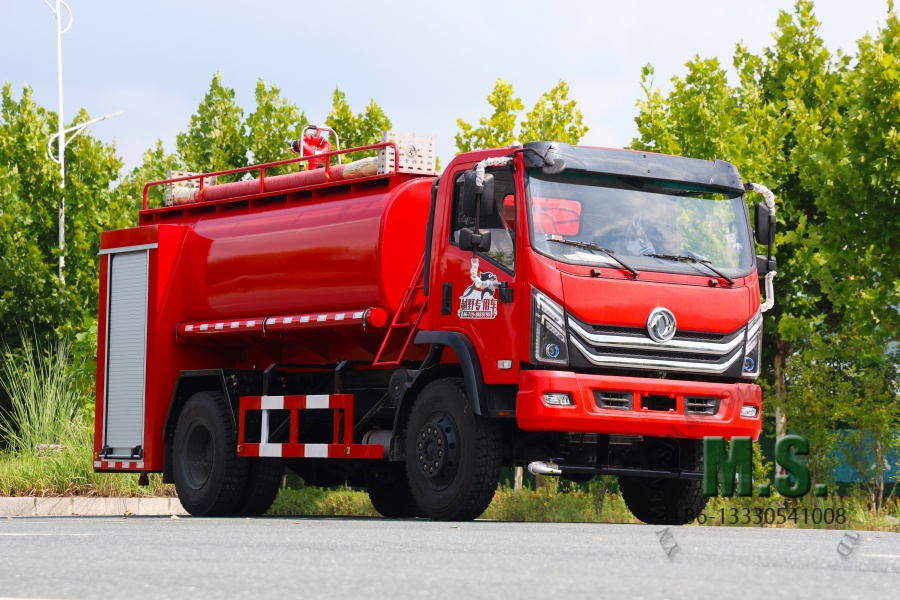

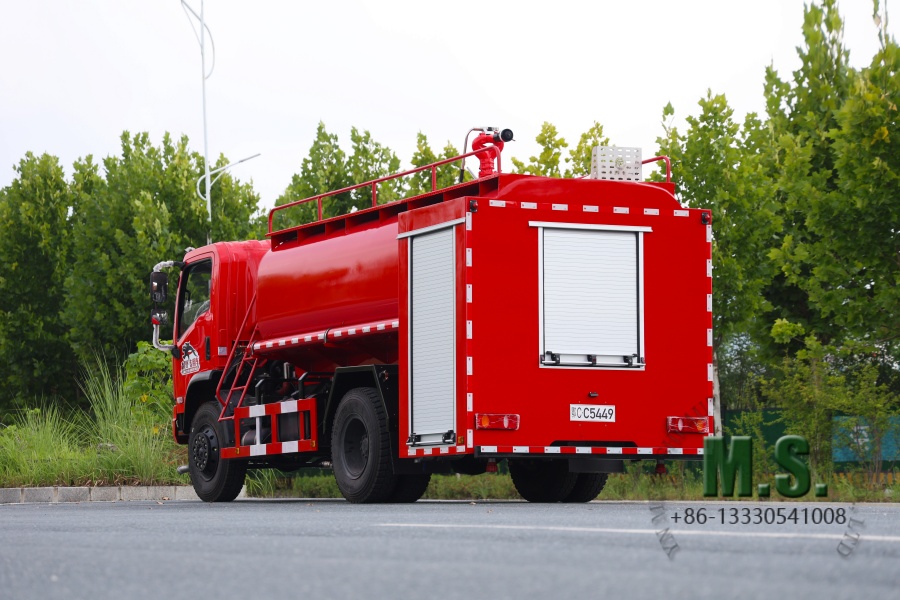

This 4×4 7m³ fire truck adopts Cummins B170 33 engine with 125kW power, matched with manual five-speed transmission and high-low speed transfer case. It is built with heavy-duty frame, 5T/10T axles and leaf spring suspension. The 7-cubic-meter water tank ensures sufficient water storage. With reliable off-road capability, it can handle fire rescue and water spraying missions in remote and complex terrains.

Quantity:
Availability:





Inquire Add to Basket

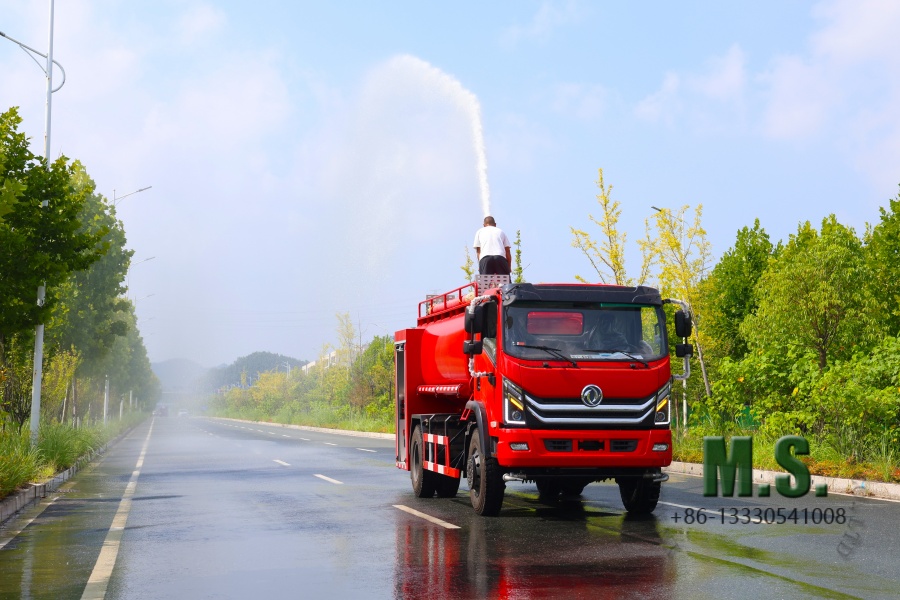

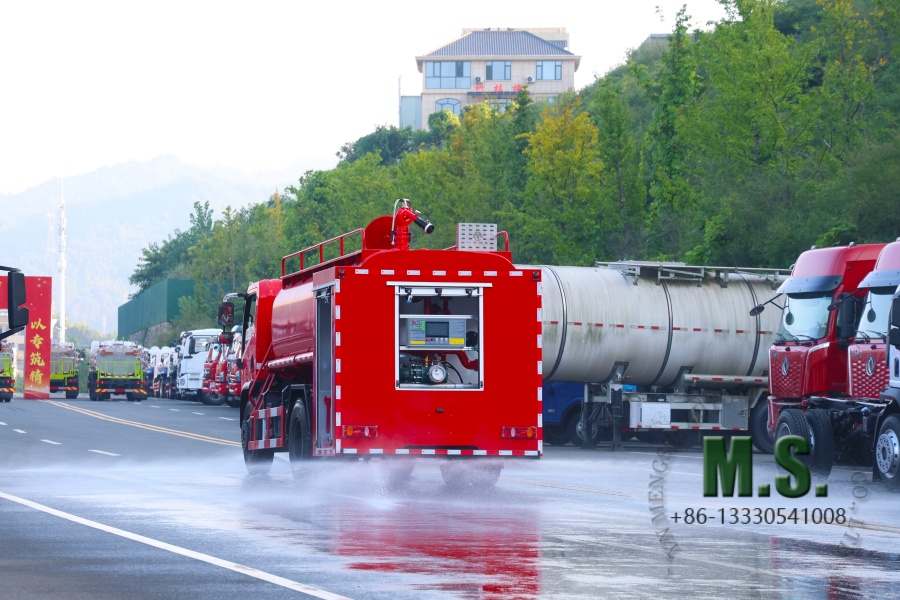

This 4×4 7m³ fire truck features robust Cummins B170 33 power and high-low speed transfer case for reliable off-road performance. Equipped with a large 7m³ water tank, it delivers adequate water supply for firefighting rescue. Heavy-duty frame and solid axles guarantee stable operation. With 550mm fording depth and 400mm obstacle-crossing height, it can rapidly reach fire sites in mountainous and hard-to-access regions for emergency firefighting work.

Basic configuration
Specification	Details
Engine	Cummins B170 33

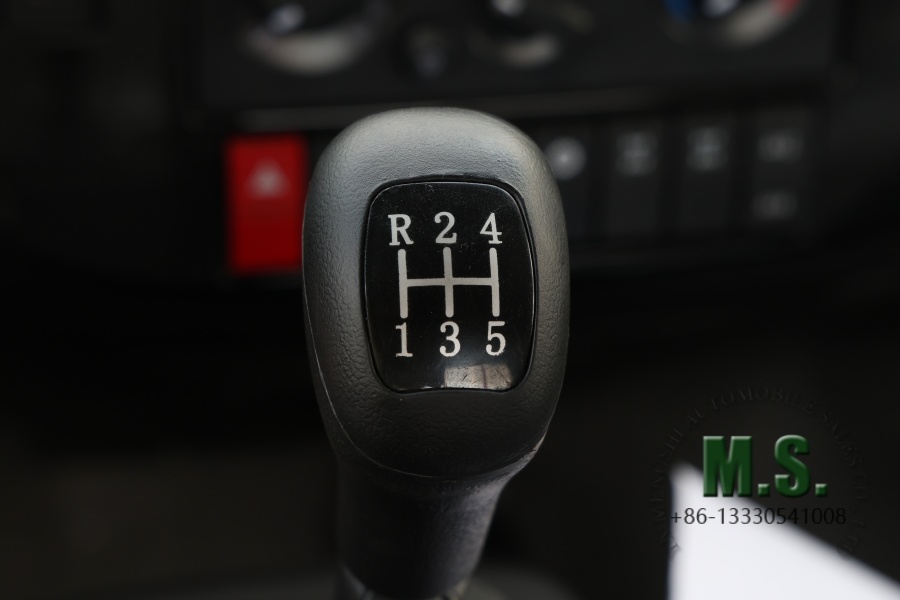

Transmission	Manual five speed

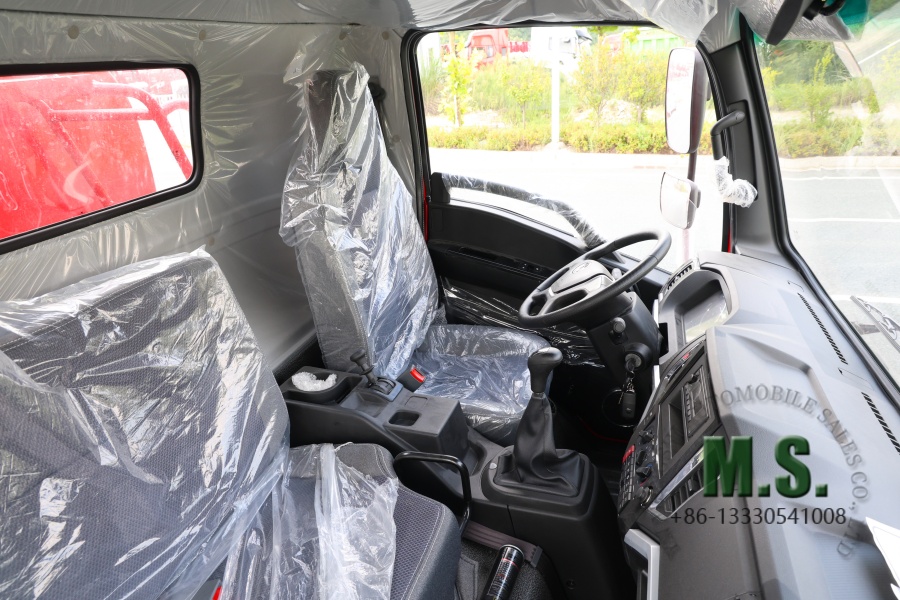

Cab	Flathead single cab
Transfer Case	High and low speed
Frame	860×250 (8+4)
Suspension	Leaf spring 9/10+8

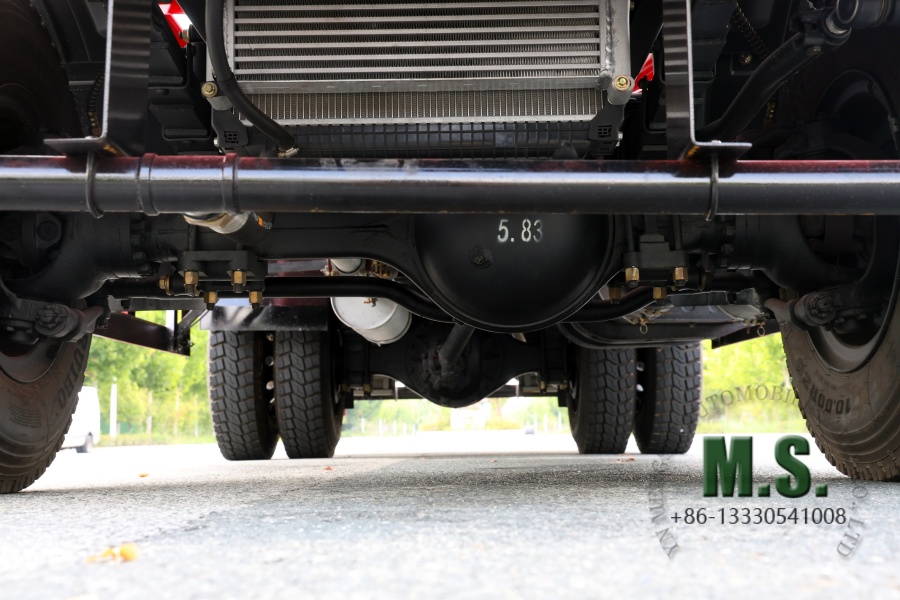

Axle	5T/10T
Tyres	10.00R20 (6+1)

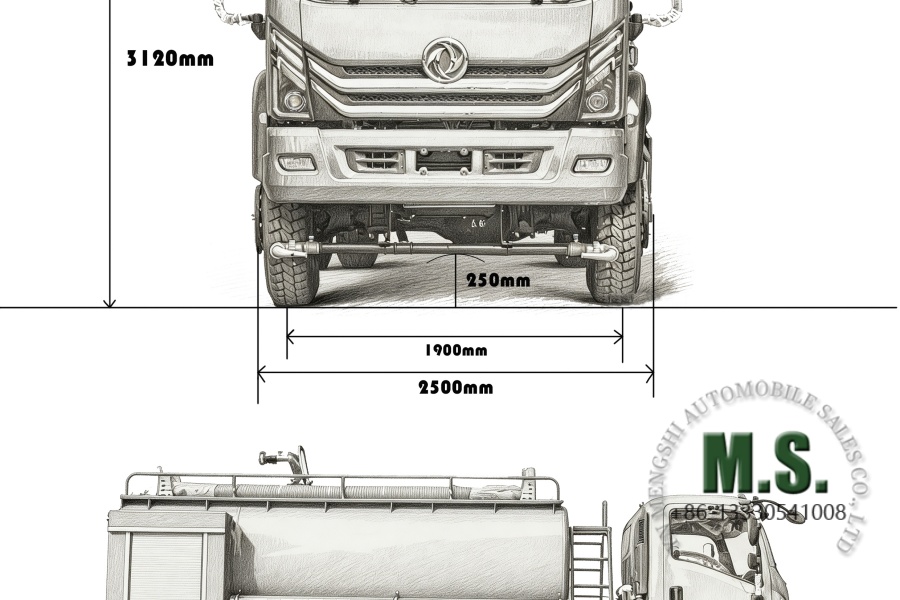

Vehicle Dimensions	7300×2500×3120mm
Tank Capacity	7m³
Displacement	5.9L
Power	125kW
Chassis Dimensions	7160×2480×2720mm
Conversion Dimensions	＞4570mm
Wheelbase	3800mm
Track Width	1850/1780mm
GVW	15000kg
Curb Weight	7990kg (complete) / 5230kg (chassis)
Approach Angle	24°
Departure Angle	22°
Minimum Ground Clearance	250mm

Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
