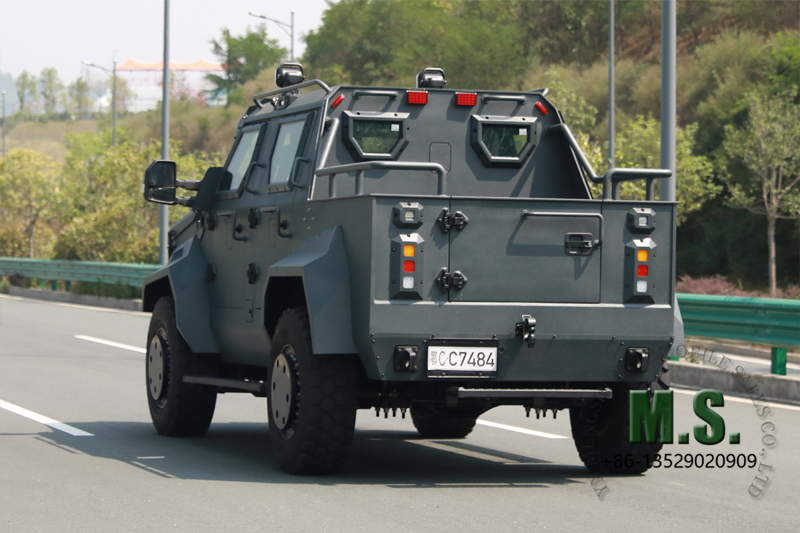

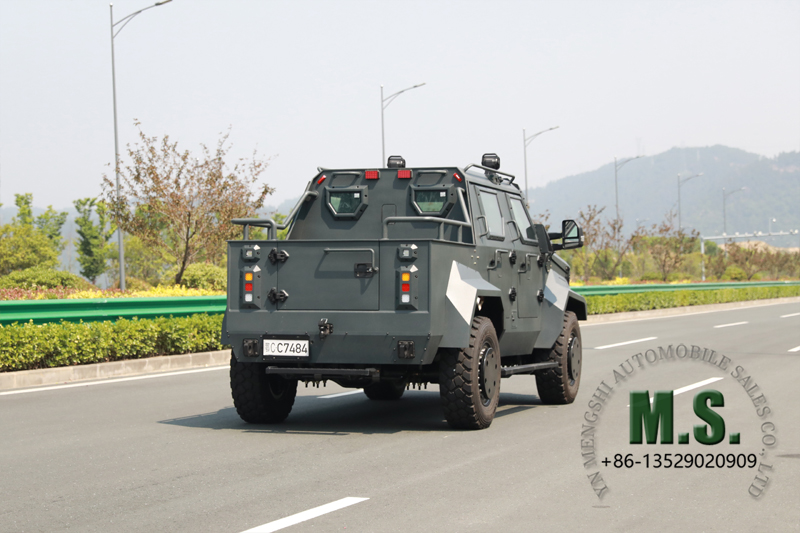

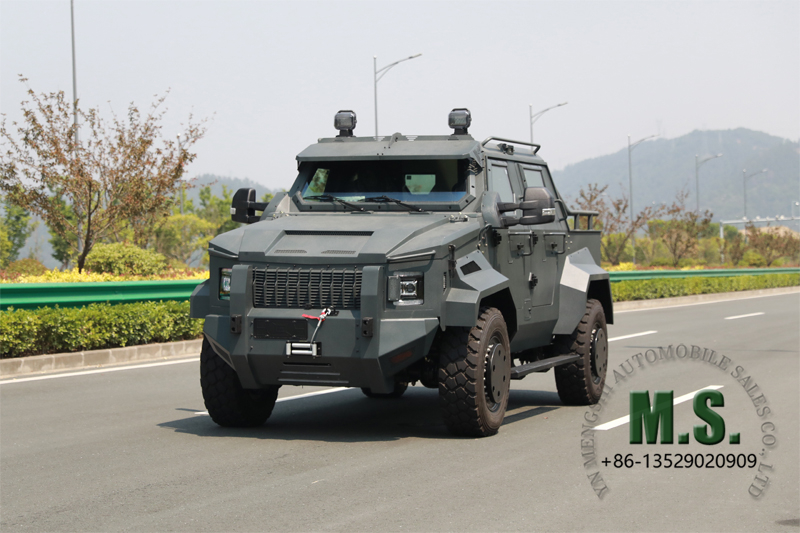

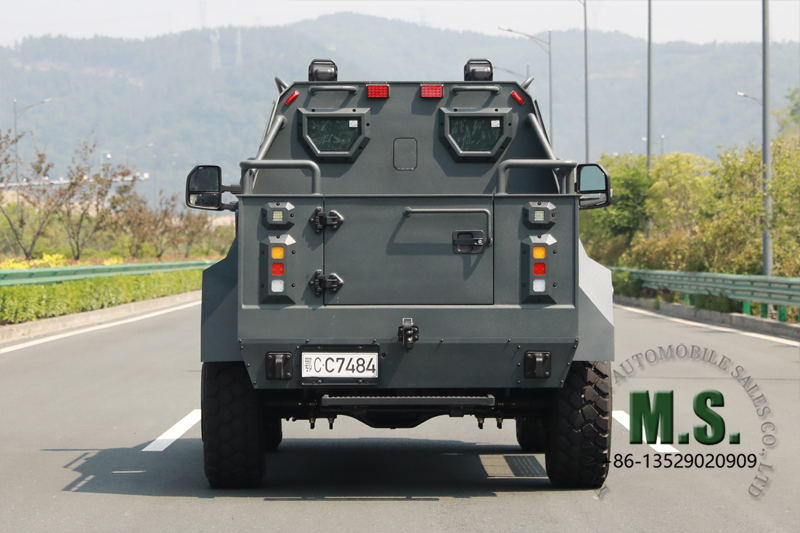

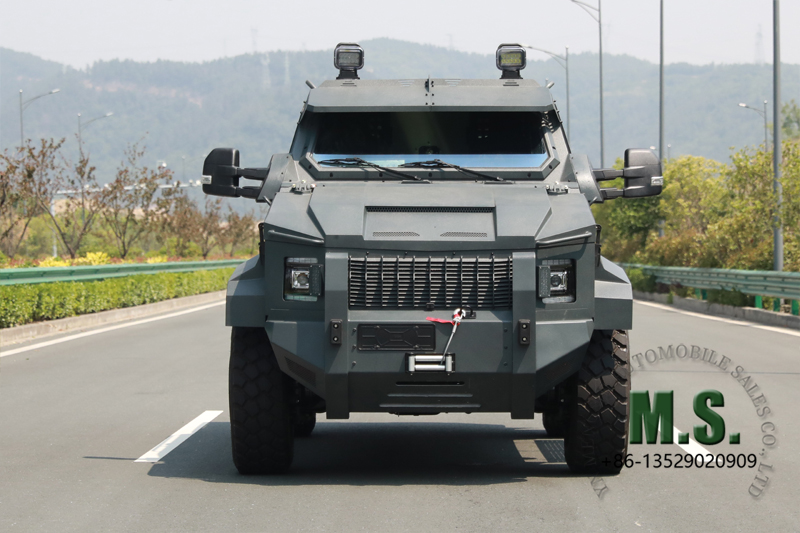

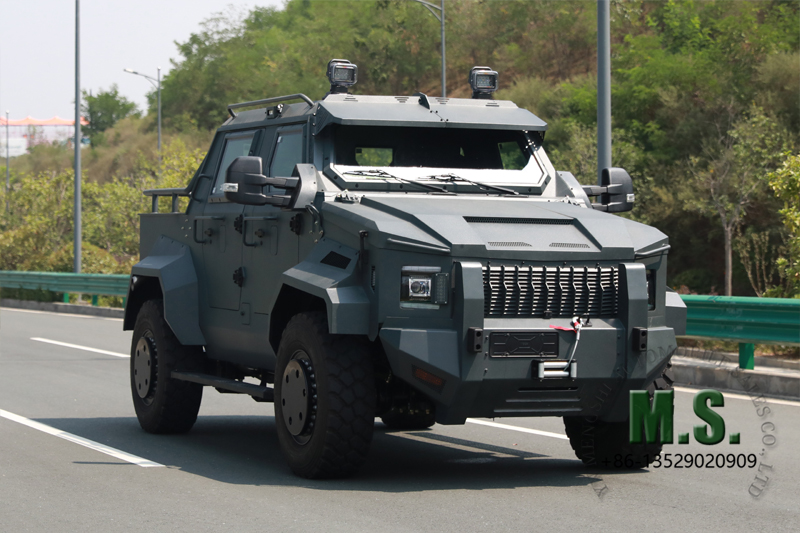

Built entirely in-house using Chinese military-grade vehicle components for the chassis, our product is unrestricted by export controls and offers customizable NATO STANAG 4-level armor protection. Equipped with a winch, power take-off (PTO), trailer hitch, Allison automatic transmission, and a 330HP MILITARY Cummins engine, it delivers uncompromising performance for demanding applications.
Basic configuration | |
---|---|
Engine | Cummins ISDe6.7-330 |
Horsepower | 330Hp |
Rated Power | 243kw |
Max Torque | 1100N.m |
Displacement | 6.7L |
Emission Standard | Euro-2 |
Gearbox | Allison Automatic Transmission |
Transfer Box | High and low, two speed |
Wheelbase | 4700mm |
Track Width | 2110/2125mm |
Overall Dimension | 5996*2460*2580mm |
Cargo Box Inisde Dimension | 1680*1850*645mm |
Axle | 7/10T |
G.V.W | 18000kg |
Curb Weight | 5460 |
Approach/Dparture Angle | 36°/39° |
Gradeability | 60% |
Minimum Ground Clearance | 350mm |
Vertical Obstacle Crossing Height | 460mm |
Wading Depth | 1120mm |
Tyre | 365/80R20(4+1条) |
Fuel Tank | 100+100L |
Fuel Consumption | 19L/100km |
Seats | 4 |
Max Speed | 86km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
Built entirely in-house using Chinese military-grade vehicle components for the chassis, our product is unrestricted by export controls and offers customizable NATO STANAG 4-level armor protection. Equipped with a winch, power take-off (PTO), trailer hitch, Allison automatic transmission, and a 330HP MILITARY Cummins engine, it delivers uncompromising performance for demanding applications.
Basic configuration | |
---|---|
Engine | Cummins ISDe6.7-330 |
Horsepower | 330Hp |
Rated Power | 243kw |
Max Torque | 1100N.m |
Displacement | 6.7L |
Emission Standard | Euro-2 |
Gearbox | Allison Automatic Transmission |
Transfer Box | High and low, two speed |
Wheelbase | 4700mm |
Track Width | 2110/2125mm |
Overall Dimension | 5996*2460*2580mm |
Cargo Box Inisde Dimension | 1680*1850*645mm |
Axle | 7/10T |
G.V.W | 18000kg |
Curb Weight | 5460 |
Approach/Dparture Angle | 36°/39° |
Gradeability | 60% |
Minimum Ground Clearance | 350mm |
Vertical Obstacle Crossing Height | 460mm |
Wading Depth | 1120mm |
Tyre | 365/80R20(4+1条) |
Fuel Tank | 100+100L |
Fuel Consumption | 19L/100km |
Seats | 4 |
Max Speed | 86km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.
For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.
For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.
Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.
