330-horsepower 18-ton Gross Weight 4x4 Off-road Armored Pick-up_Allison Transmission, Cummins Engine, STANAG 2 Protective Leve, Run-flat- CTIS_manufacturer Direct

The armored pickup truck completely designed by ourselves can be manufactured to meet STANAG 2~4 armor standards.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Built entirely in-house using Chinese military-grade vehicle components for the chassis, our product is unrestricted by export controls and offers customizable NATO STANAG 4-level armor protection. Equipped with a winch, power take-off (PTO), trailer hitch, Allison automatic transmission, and a 330HP MILITARY Cummins engine, it delivers uncompromising performance for demanding applications.


Basic configuration

 Engine Cummins ISDe6.7-330
Horsepower330Hp
Rated Power243kw
Max Torque1100N.m
Displacement6.7L
Emission StandardEuro-2
 Gearbox Allison Automatic Transmission
 Transfer Box High and low, two speed
Wheelbase4700mm
Track Width2110/2125mm
Overall Dimension
5996*2460*2580mm
Cargo Box Inisde Dimension1680*1850*645mm
Axle7/10T
G.V.W18000kg
Curb Weight5460
Approach/Dparture Angle36°/39°
Gradeability60%
Minimum Ground Clearance350mm
Vertical Obstacle Crossing Height460mm
Wading Depth1120mm
Tyre365/80R20(4+1条)
Fuel Tank100+100L
Fuel Consumption19L/100km
Seats4
Max Speed86km/h


Note: This specification is for reference only,  please refer to the actual vehicles. The factory reserves the final right to interpret the specification.

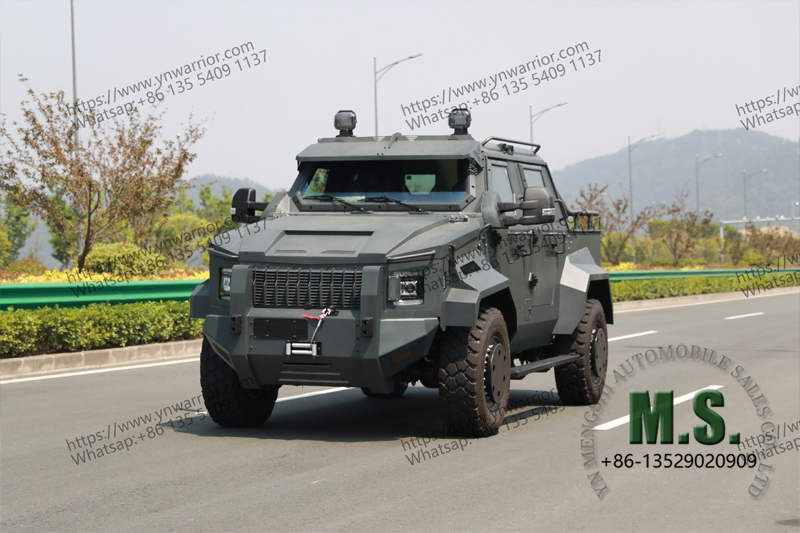

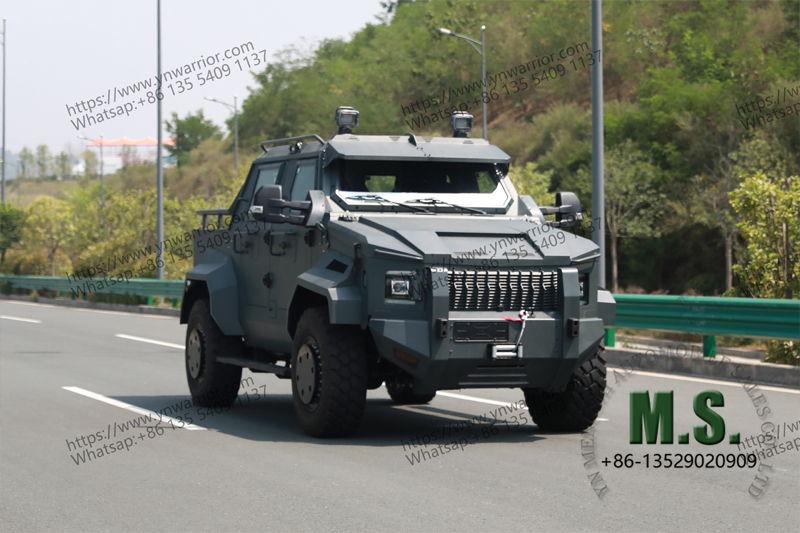

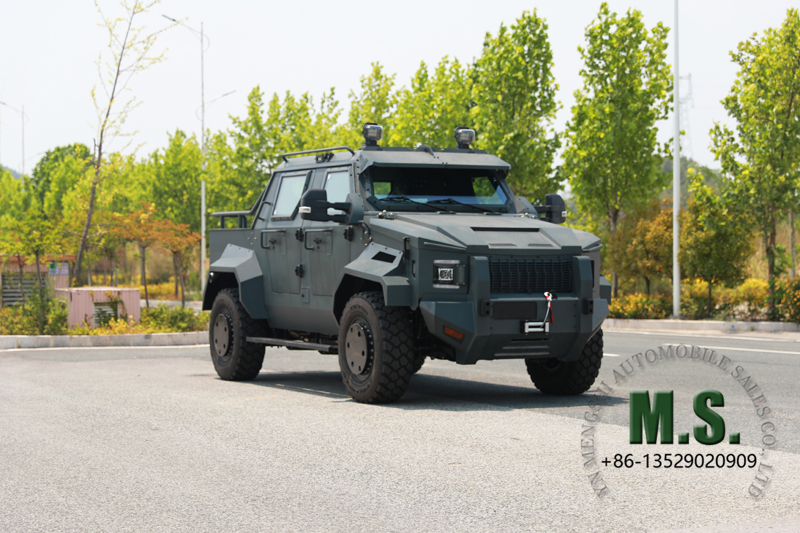

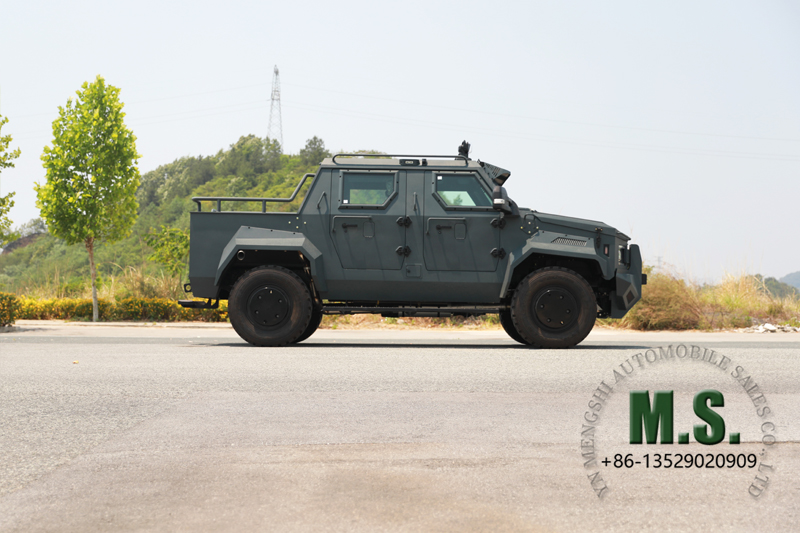

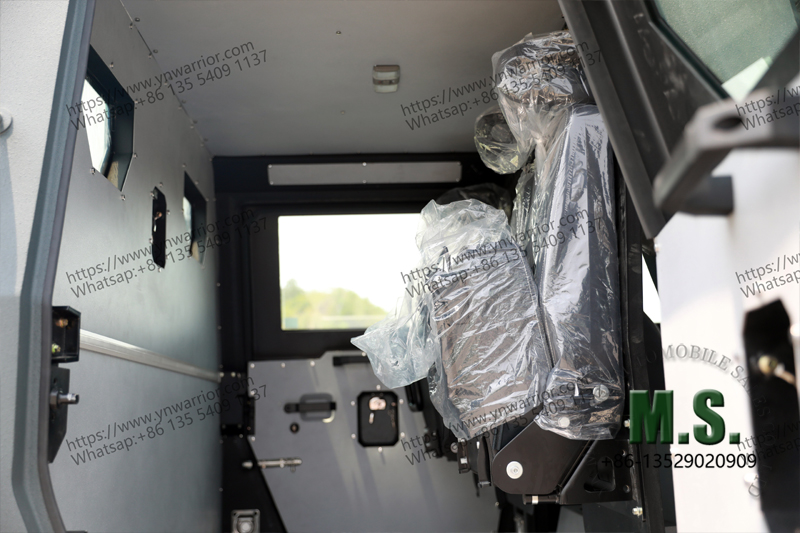

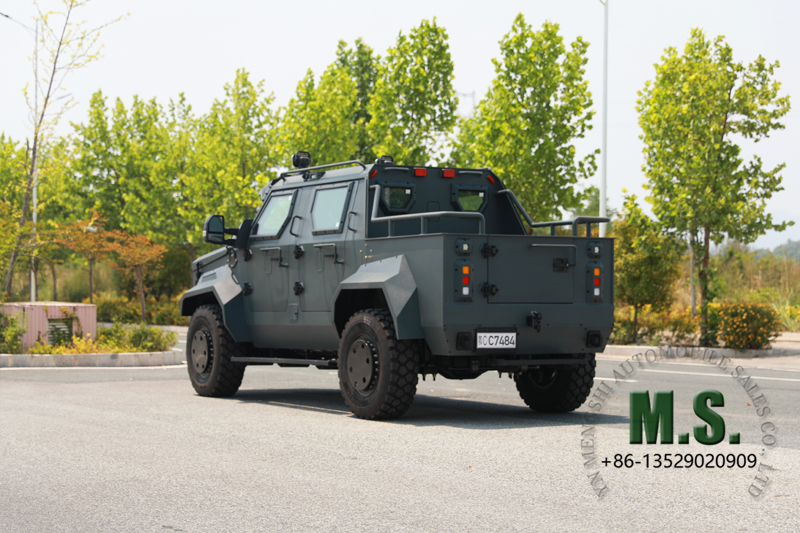

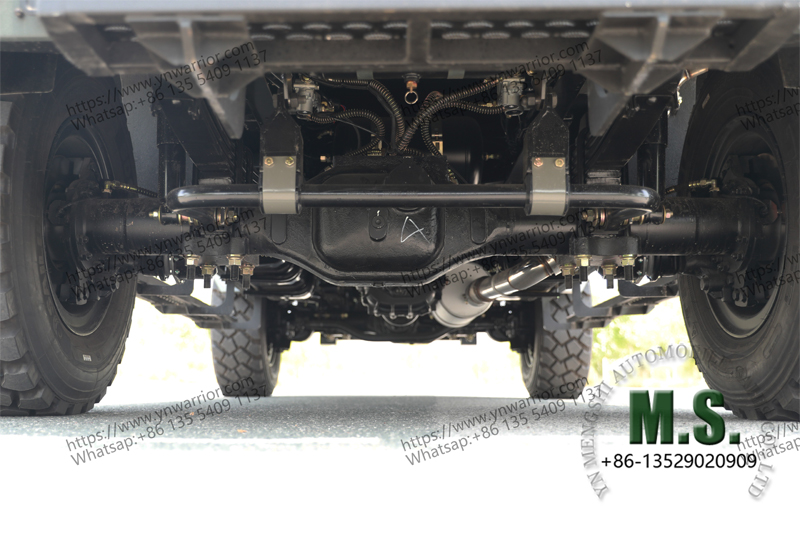

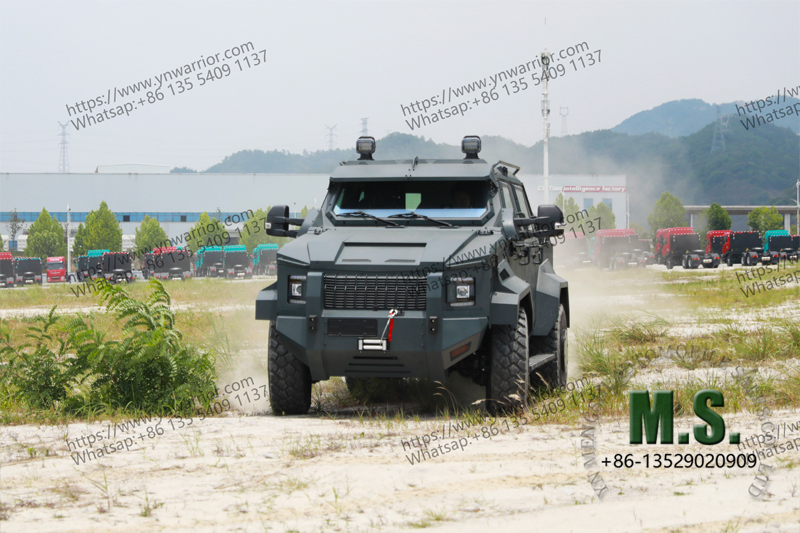

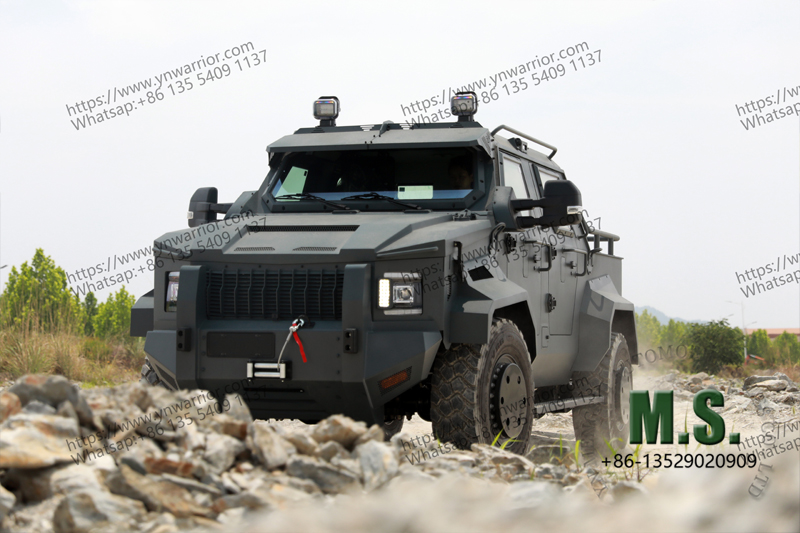

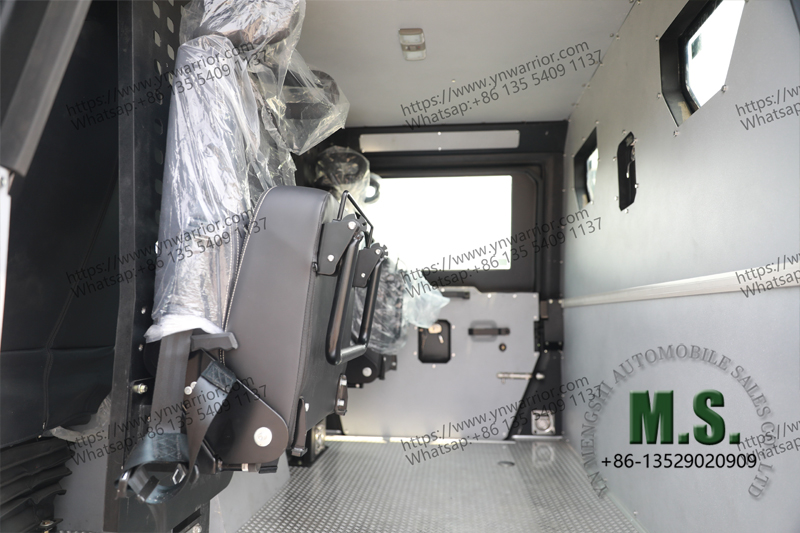

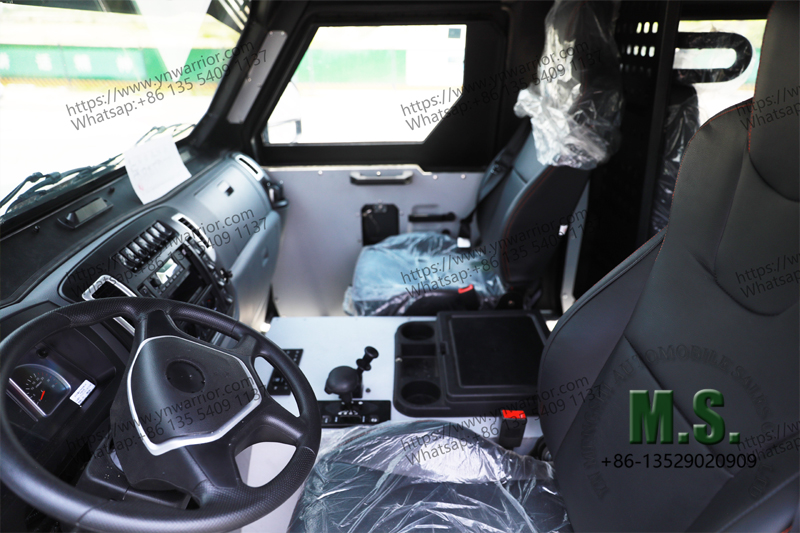

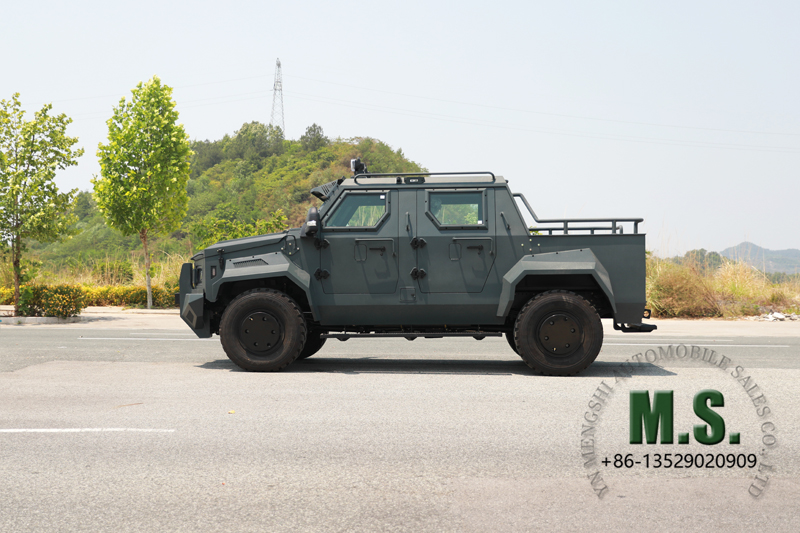

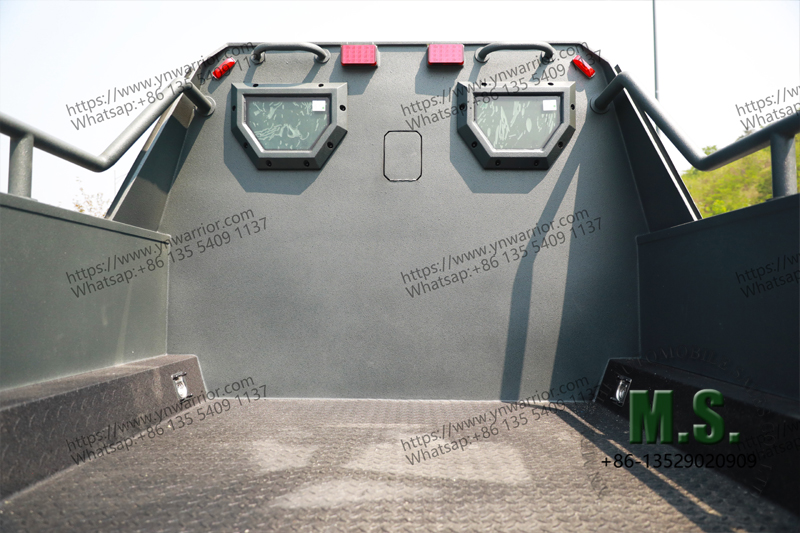

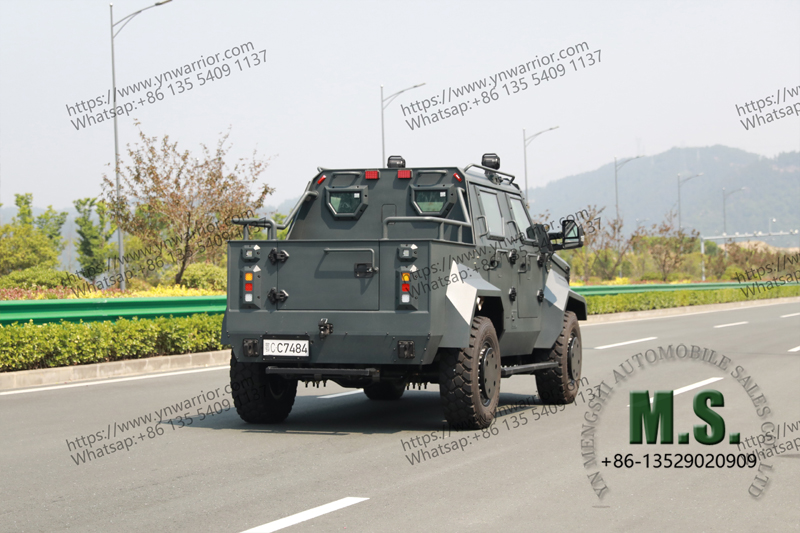

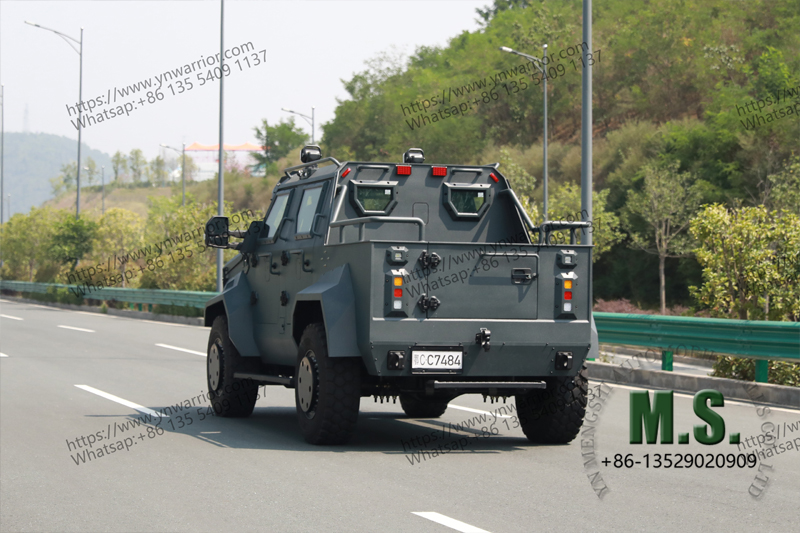

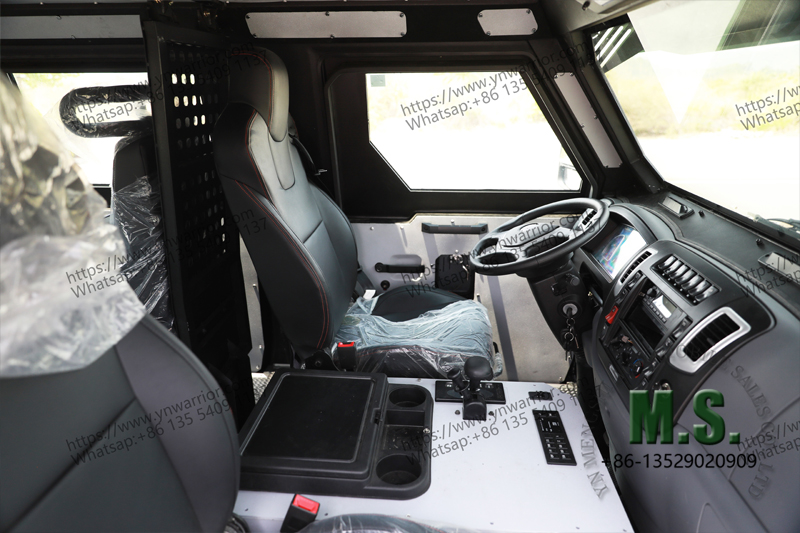

4x4 off-road armored pick-up4x4 off-road armored pick-up real-life footage16-ton gross weight 4x4 off-road armored pick-up4x4 off-road armored pick-up stanage 2 protective4x4 off-road armored pick-up real shot on moving4x4 off-road armored pick-up real performance on road4x4 off-road armored pick-up 360 degree camera system4x4 off-road armored pick-up allison transmission lever4x4 off-road armored pick-up an-ti shock seat4x4 off-road armored pick-up fence cargo box4x4 off-road armored pick-up shock-absorb seat4x4 off-road armored pick-up strong chassis

未标题-1

transportation

        For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.

       For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

payment

       On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

custom

       Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.
