170-horsepower 7-ton Gross Weight Dongfeng 4x4 Off-road Truck Chassis with Cab_Cummins Mechanical Fuel Injection Engine, 40 Years+ Former Military Model, Simple And Durable_Manufacturer Direct

Chassis of former military truck model, with more than 40 years history, very reliable.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

China's military applied old-fashioned military truck model, this is the chassis keep the classic design but applied modern advanced engine, transmission and transfer case. Also the engine is menchanical fuel injection type. All the proposal of this model in order to make a very reliable, durable truck, support customization. Fit for Afrcia market as well.


Basic configuration

 Engine Cummins B190 30
Horsepower190Hp
Rated Power140kw
Max Torque640N.m
Displacement5.9L
Emission StandardEuro-2
 Gearbox Manual Six-speed
 Transfer Box 2 Speed
Wheelbase3600mm
Axle3.5T/3.5T
Gross weight7910Kg
Track Width1876/1860mm
Overall Dimension
6790×2280×2400mm
Approach/Dparture Angle35°/26°
Gradeability60%
Minimum Ground Clearance305mm
Obstacle Crossing Height450mm
Wading Depth520mm
Tyre12.5R20(4+1)
Fuel Tank210L
Max Speed87km/h


Note: This specification is for reference only,  please refer to the actual vehicles. The factory reserves the final right to interpret the specification.

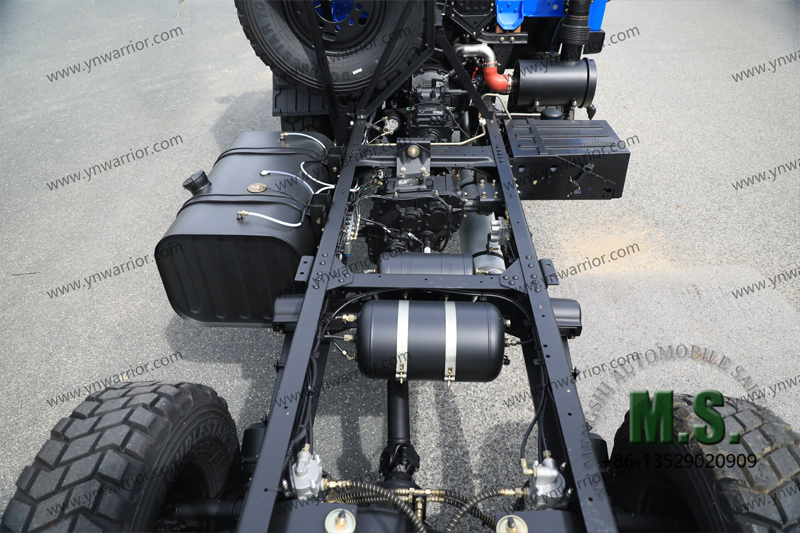

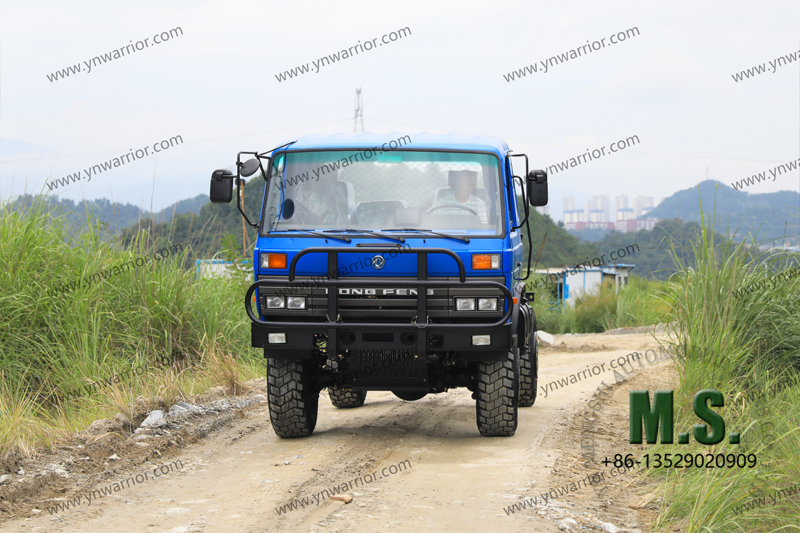

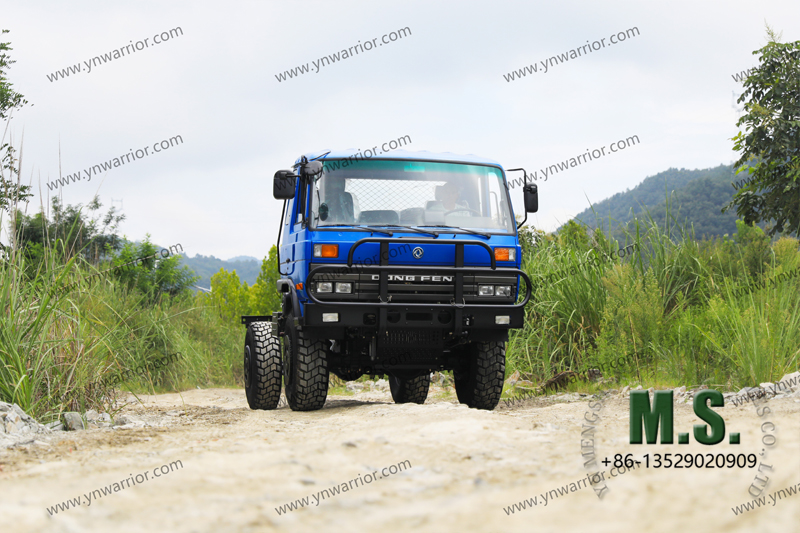

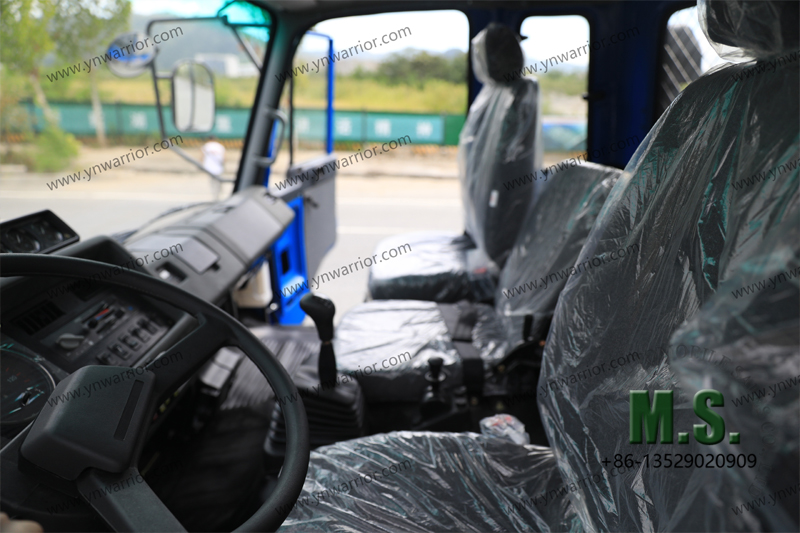

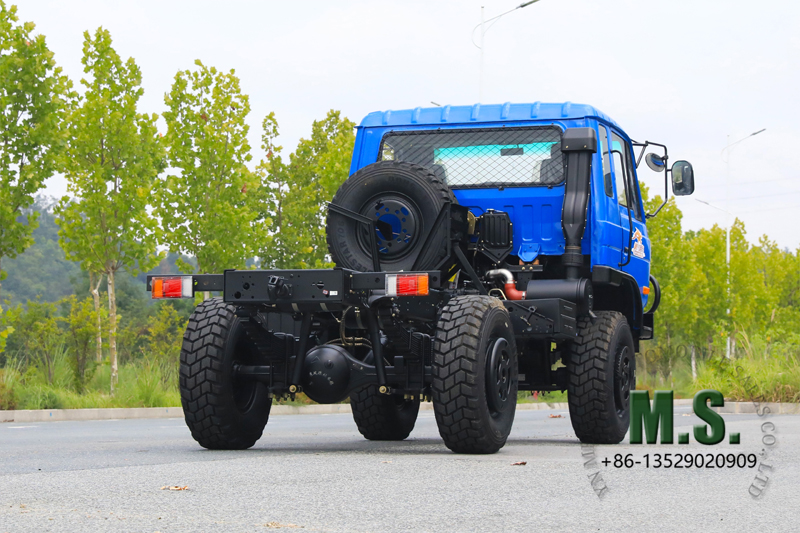

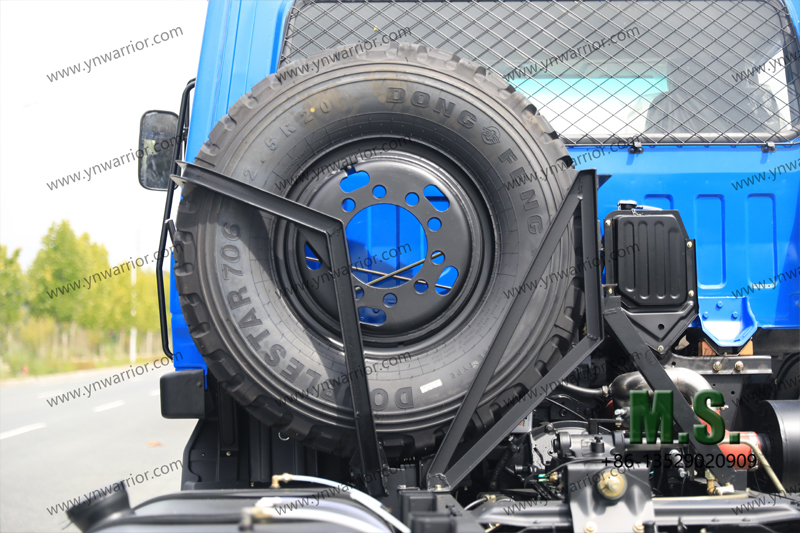

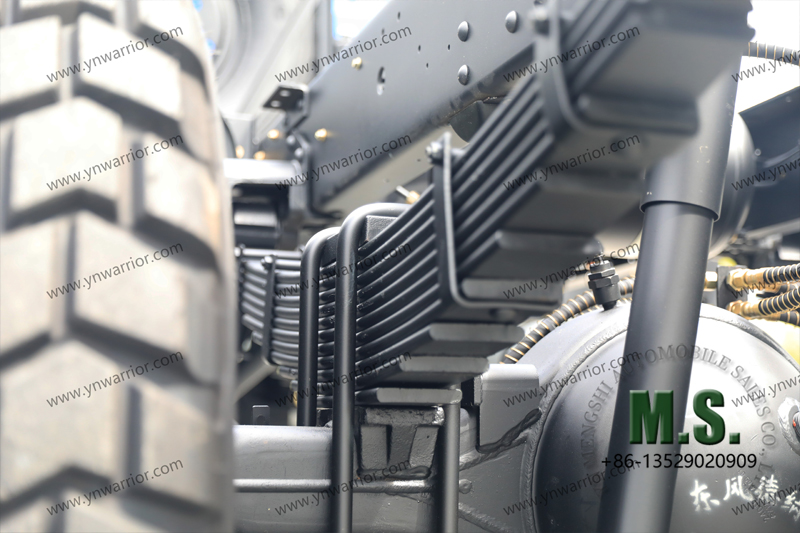

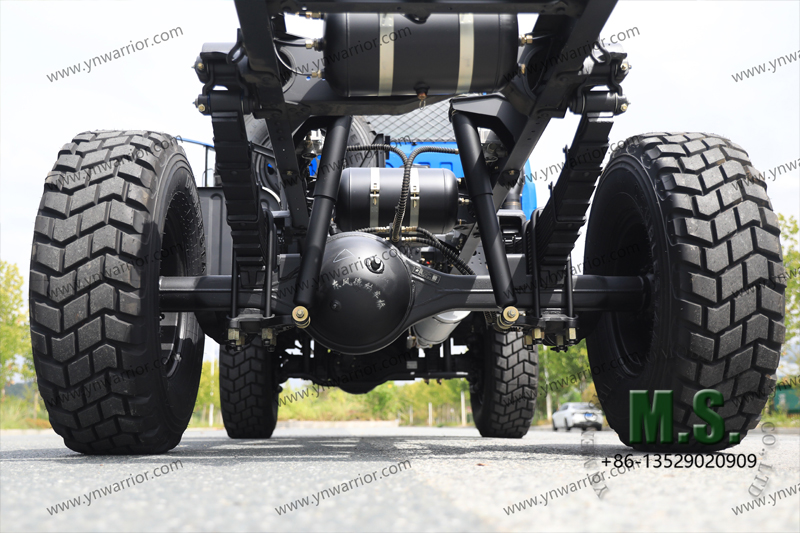

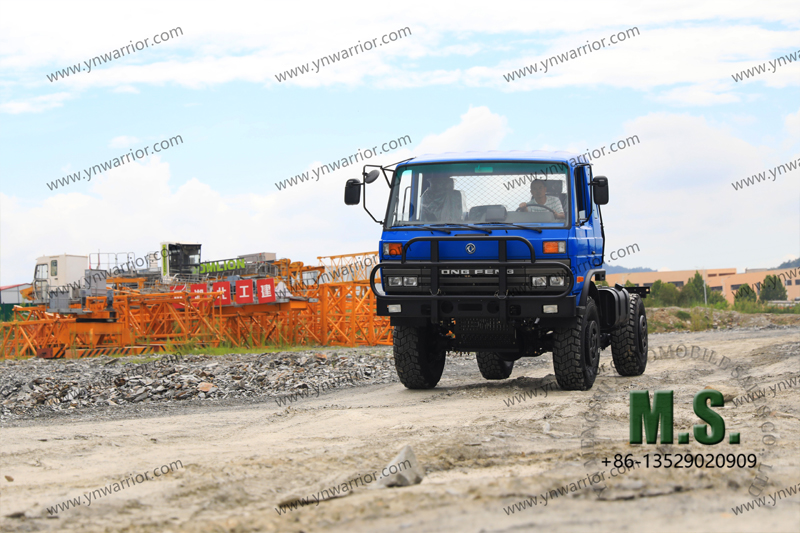

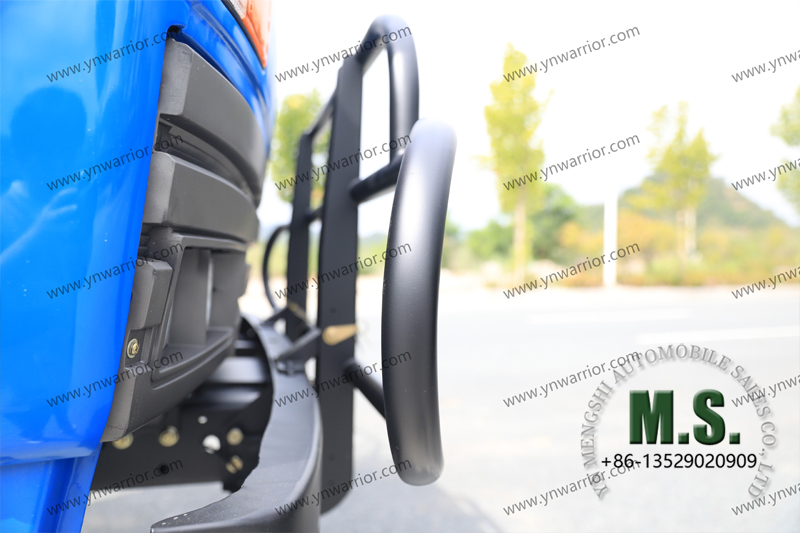

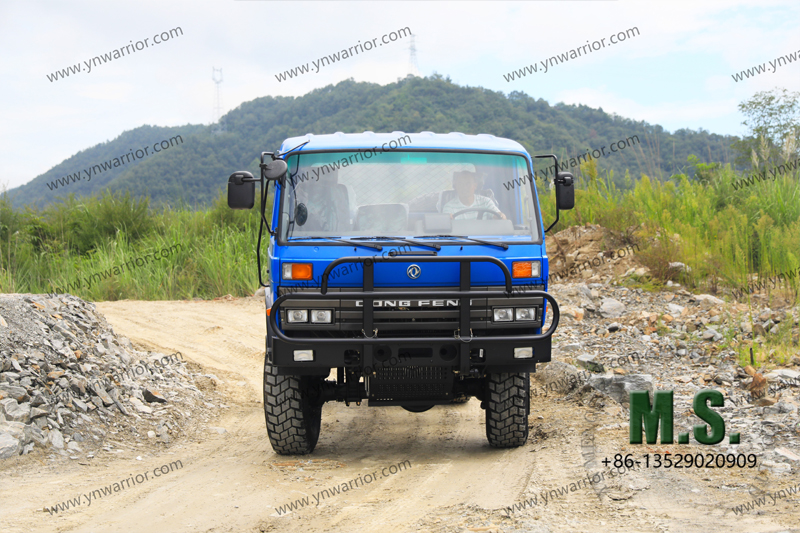

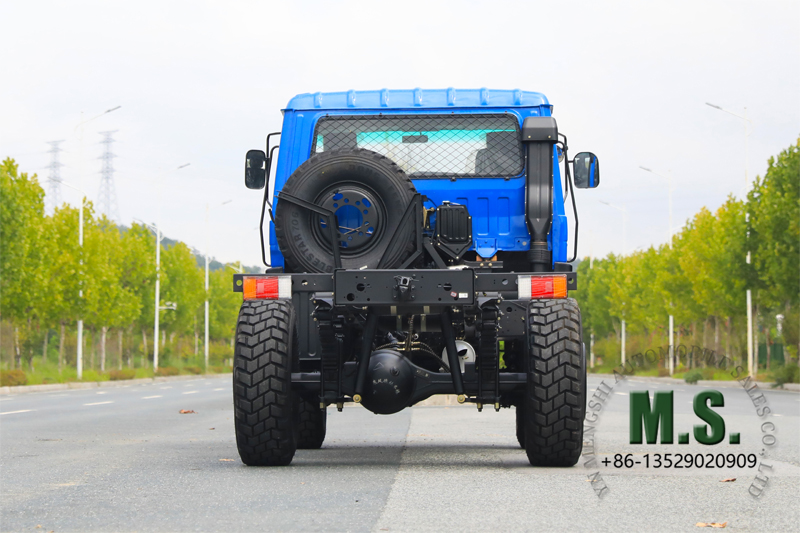

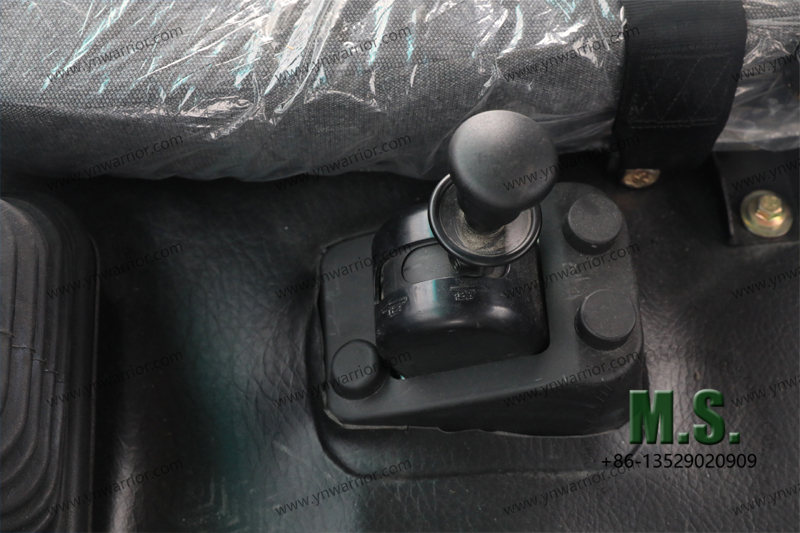

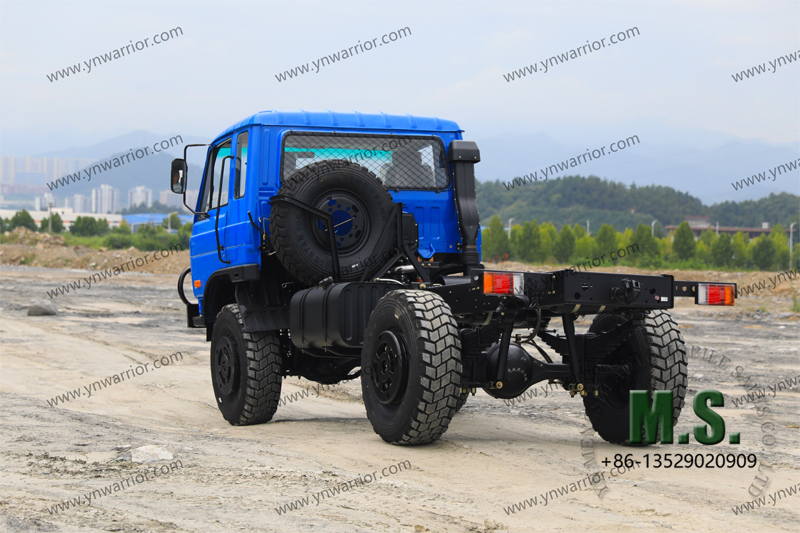

Dongfeng classic military truck modelDongfeng chassis of troops carrierDongfeng 4x4 off-road truck chassisDongfeng 4x4 off-road truck chassis testing on dirtbackward perspective Dongfeng 4x4 off-road truck chassisspare tyre behind the cab Chinese Dongfeng truckcab of Chinese Dongfeng 153 modeldetails of Chinese regular solid truck chassisfront bumper of Chinse truck Dongfeng 153hydraulic cab flip device on the 153 model cab Dongfeng Chinese truckleaf spring made in China Manufacturer directsolid double layer chassis of Dongfeng 4x4 off-road truck chassis

未标题-1

transportation

        For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.

       For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

payment

       On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

custom

       Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.
