| Quantity: | |
|---|---|

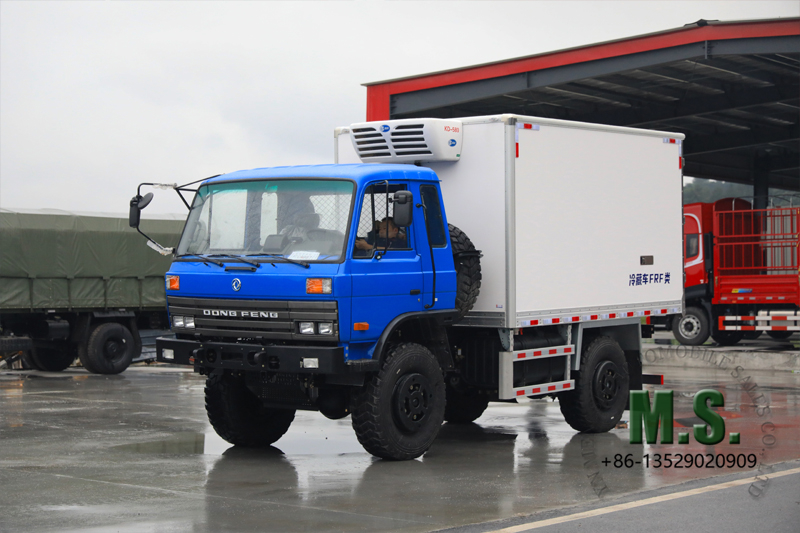

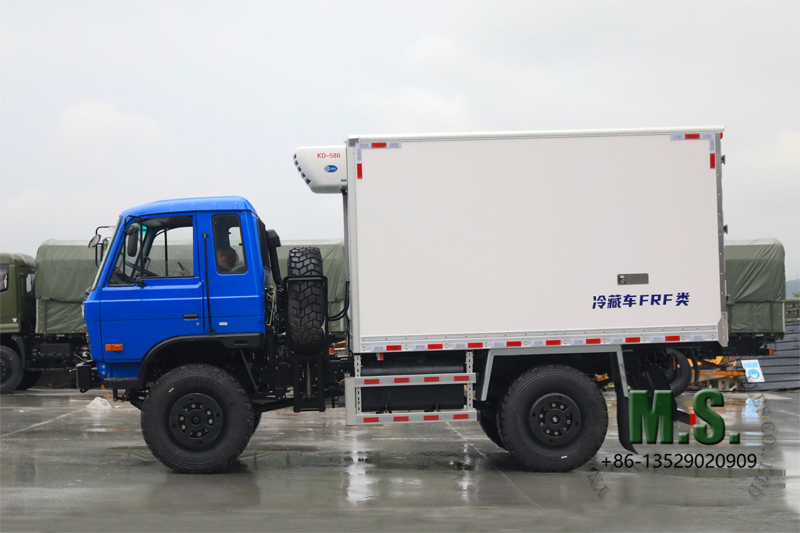

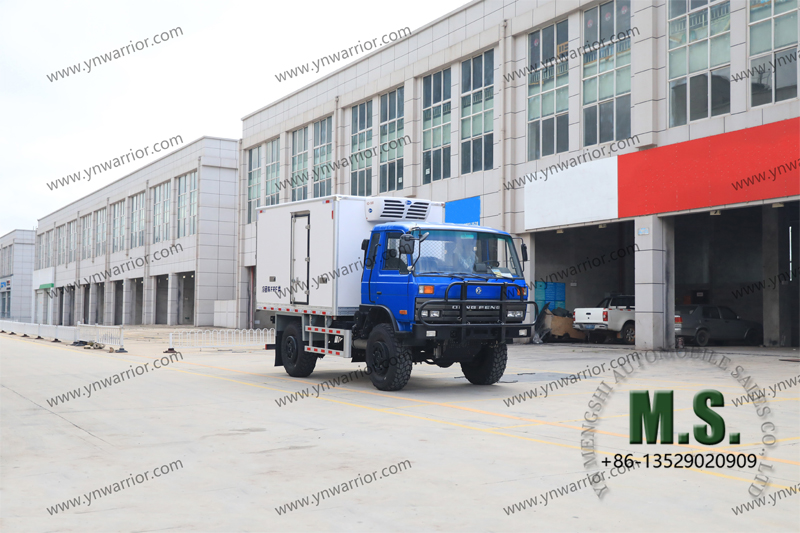

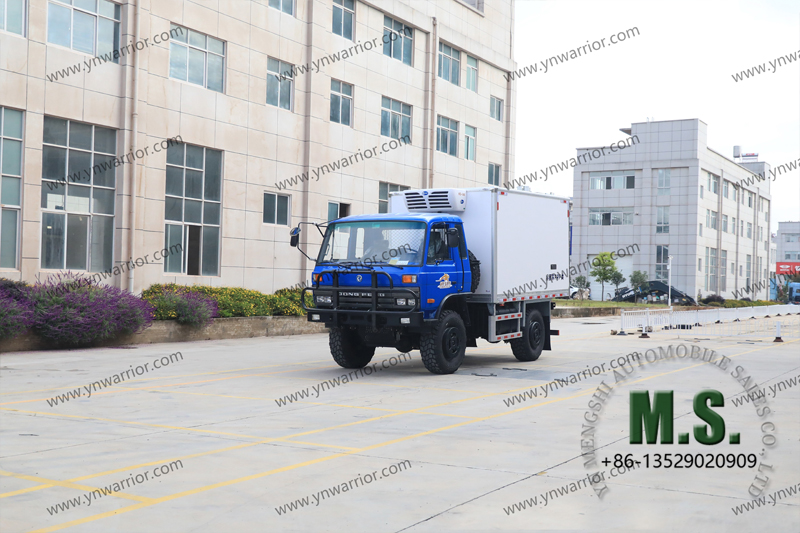

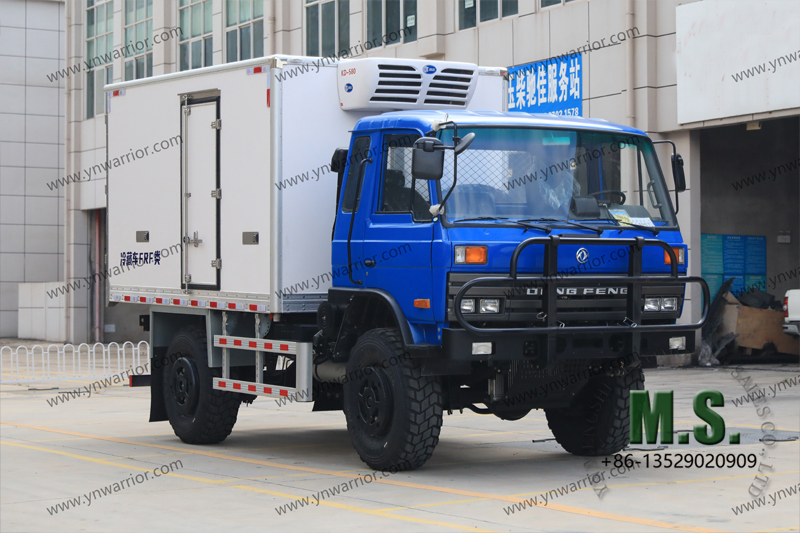

The chassis is manufactured based on a former military truck model. It is equipped with a Cummins mechanically injected engine, which is extremely durable yet cost-effective, making it suitable for operation on extremely poor roads or in roadless areas.

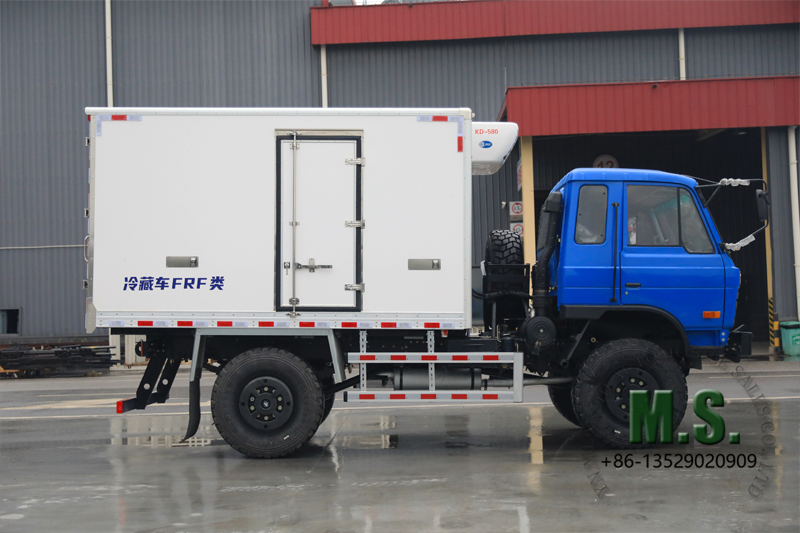

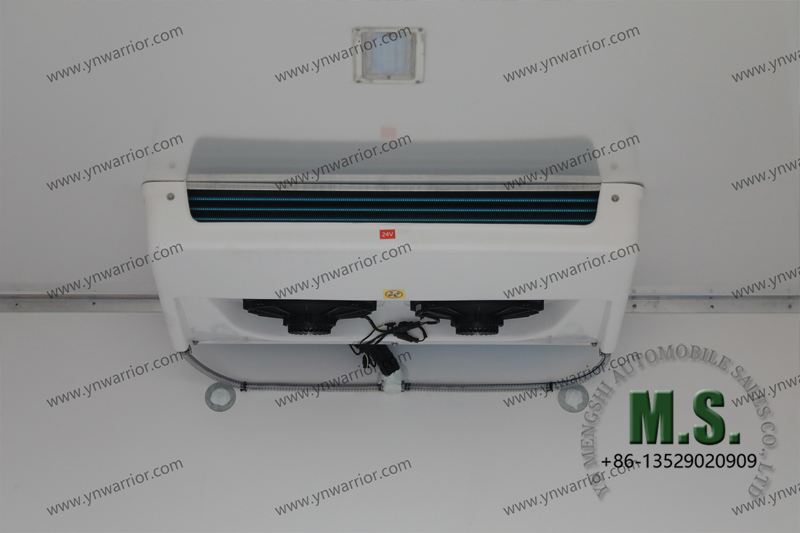

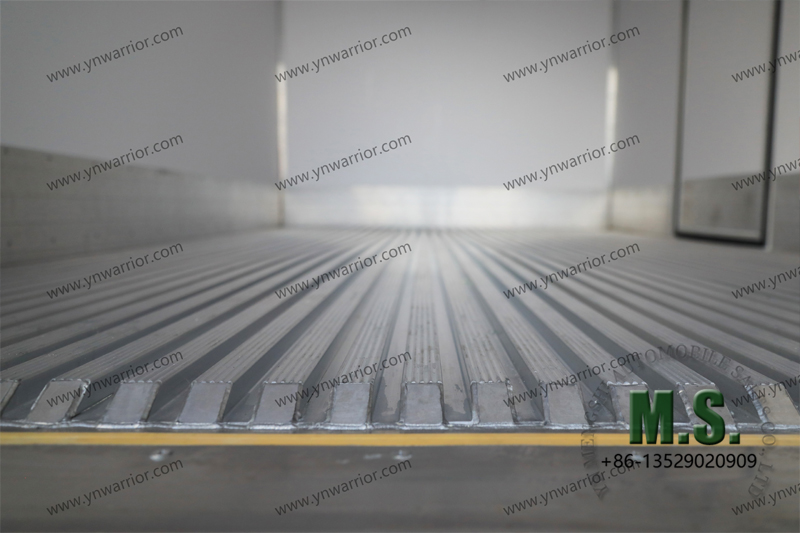

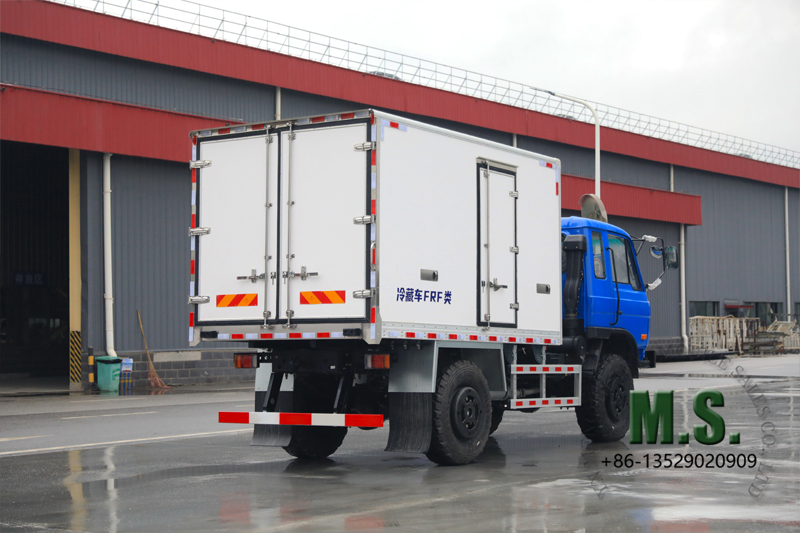

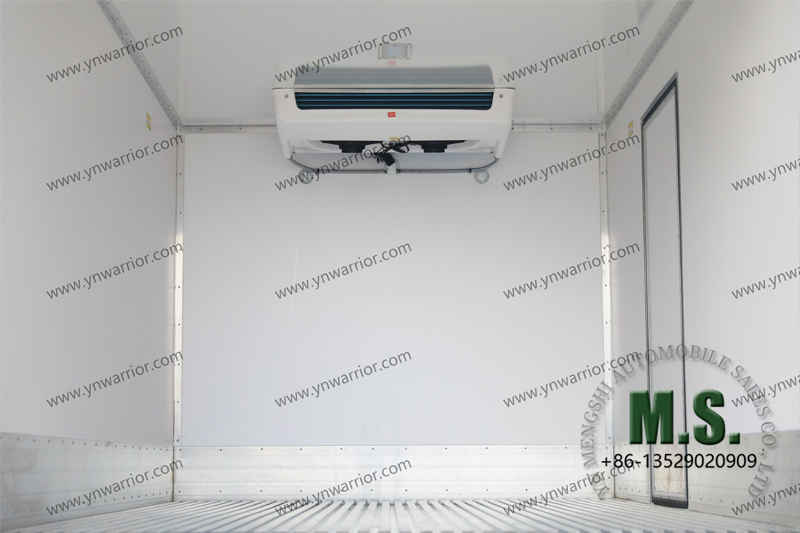

The inner and outer surfaces of the refrigerated cargo compartment are covered with VR food-grade fiberglass reinforced plastic (FRP) skins. The middle layer is made of high-density polyurethane foam board with a thickness of 8 cm.
The auxiliary beams are fabricated from G700 high-strength steel and treated with an electrophoretic painting process.
Basic configuration | |
|---|---|
| Engine | Cummins B190 33 |
| Horsepower | 190Hp |
| Rated Power | 140kw |
| Max Torque | 640N.m |
| Displacement | 5.9L |
| Emission Standard | Euro-2 |
| Gearbox | Manual 6-speed |
| Transfer Box | 2 Speed |
| Wheelbase | 3600mm |
| Track Width | 1876/1860mm |
| Overall Dimension | 6790×2440×3700mm |
| Cargo Box Inisde Dimension | 3600×2200×1900mm |
| Approach/Dparture Angle | 35°/26° |
| Minimum Ground Clearance | 305mm |
| Obstacle Crossing Height | 450mm |
| Wading Depth | 520mm |
| Operating Environment Temperature | -41℃ to +46℃ |
| Front/rear Overhang | 1360/1820 |
| Tyre | 12.5R20(4+1) |
| Fuel Tank | 210L |
| Axle | 3.5T/3.5T |
| G.V.W | 7910kg |
| Curb Weight | 305mm |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
