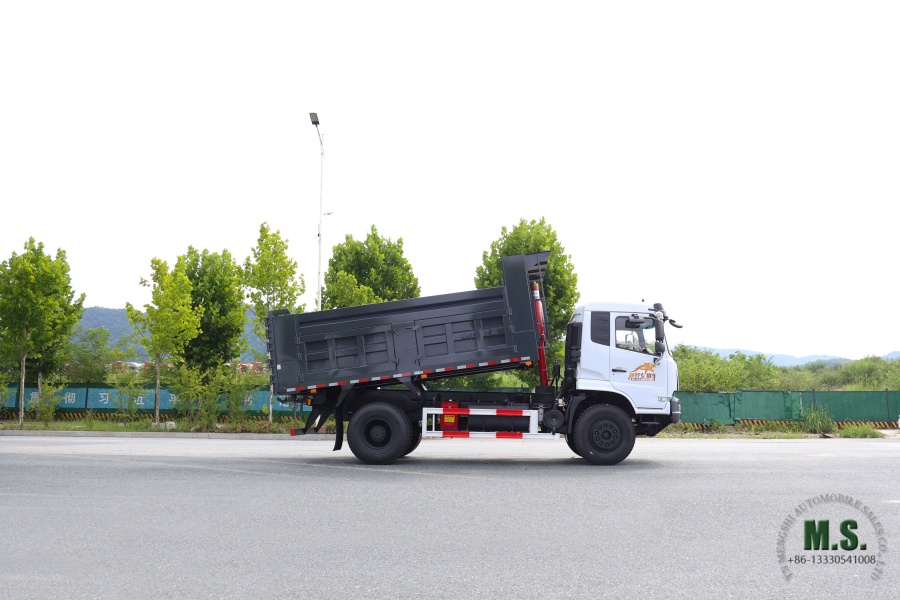

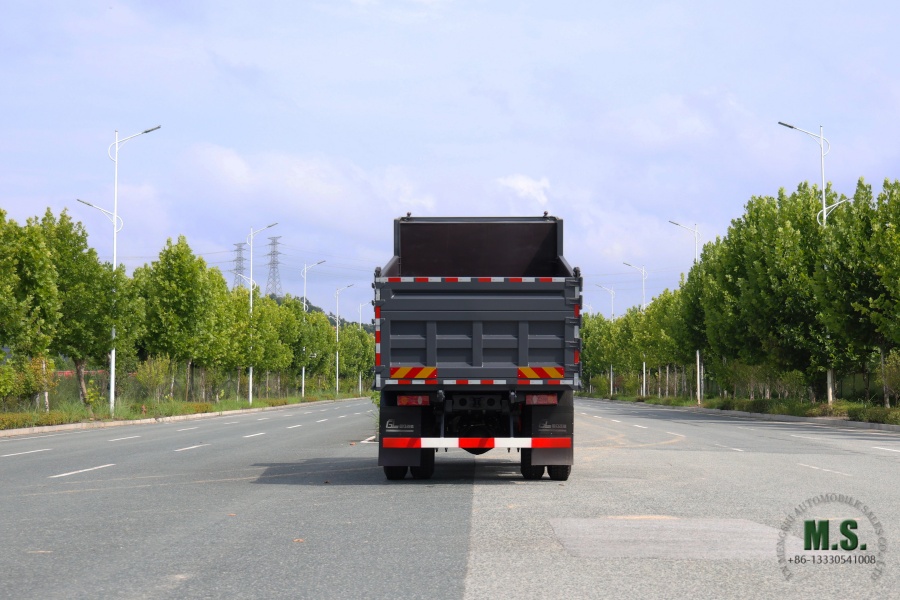

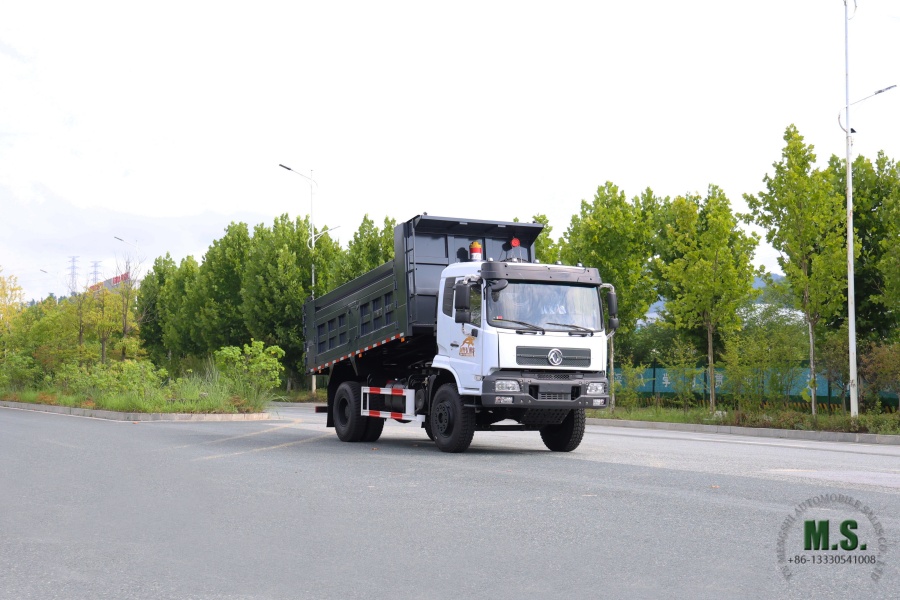

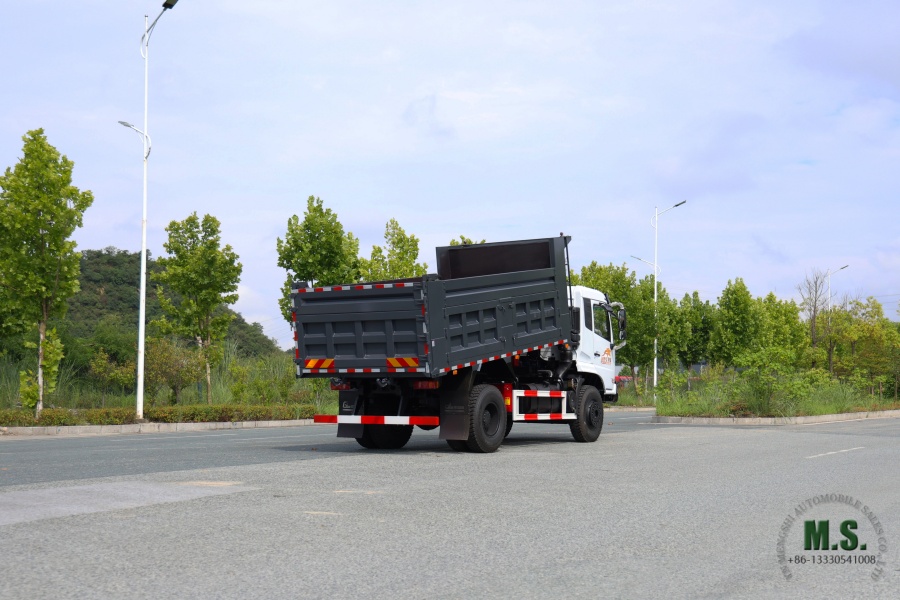

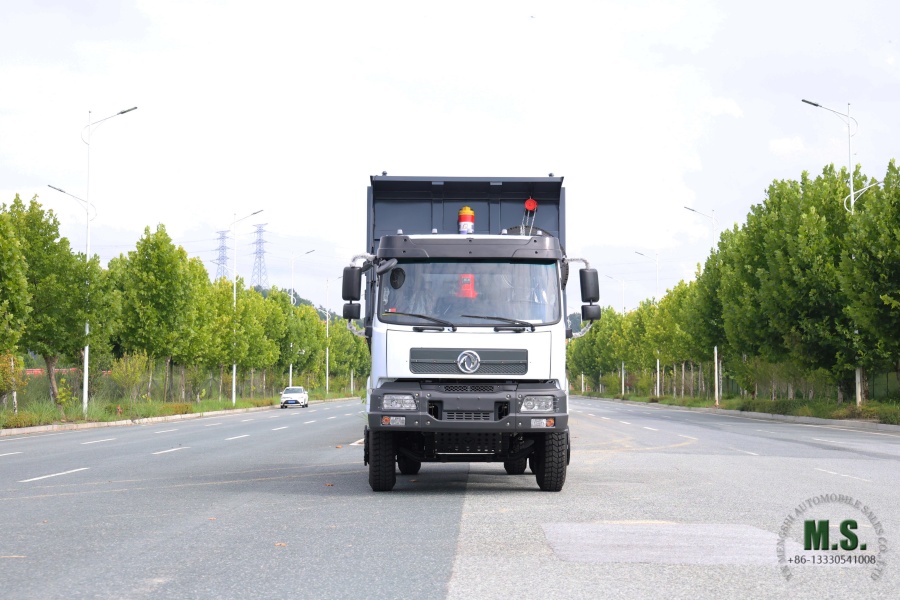

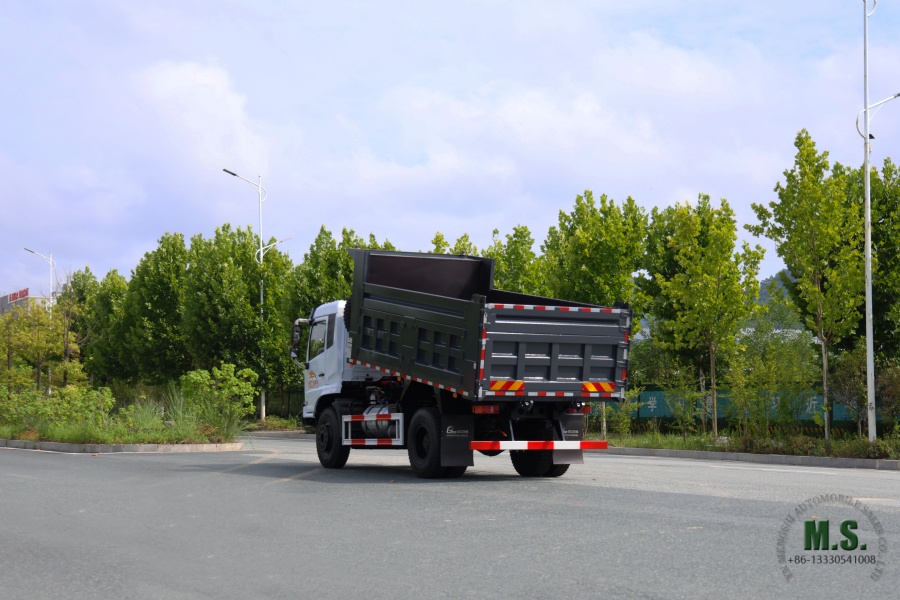

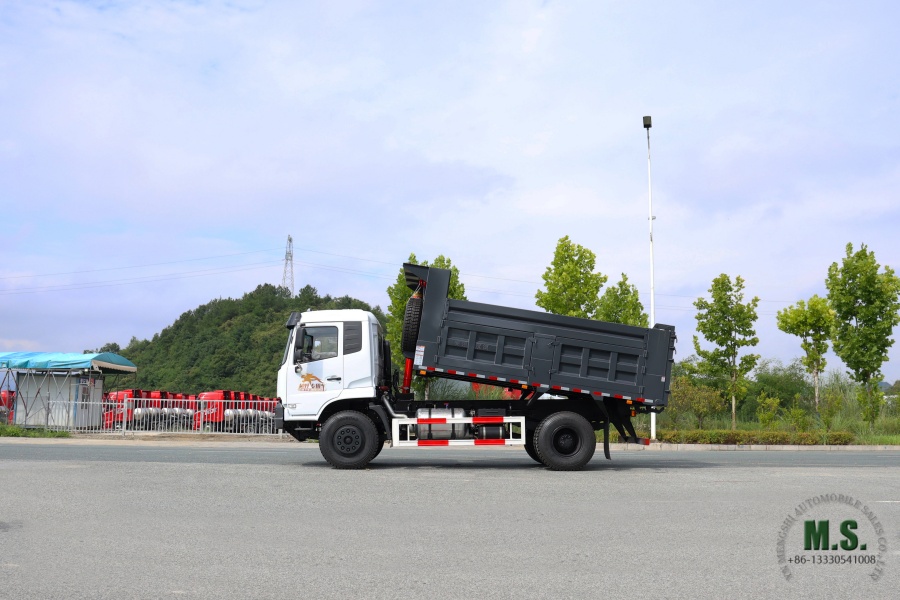

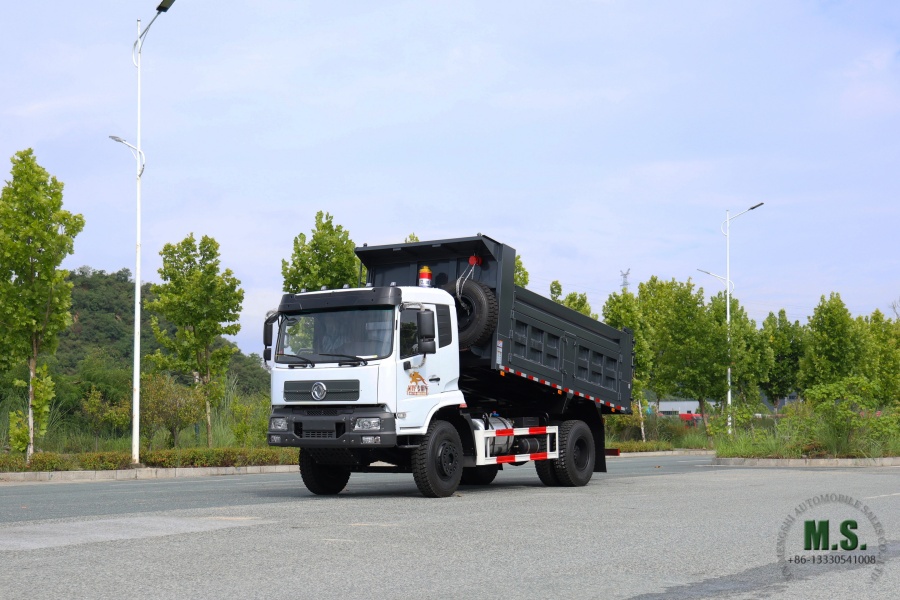

Engineered for relentless heavy-duty performance, this 4×2 Dump Truck pairs a potent Weichai 210HP powertrain with a rugged 13T rear axle and a detachable high-volume cargo bed—built to dominate construction, mining, and infrastructure job sites with unmatched reliability and hauling efficiency.
Basic configuration | |
|---|---|
Specification | Detail |
Engine | Weichai 210HP |
Displacement | 6230ml |
Power | 155kW |
Torque | 750N·m |
Transmission | Manual 10-speed |

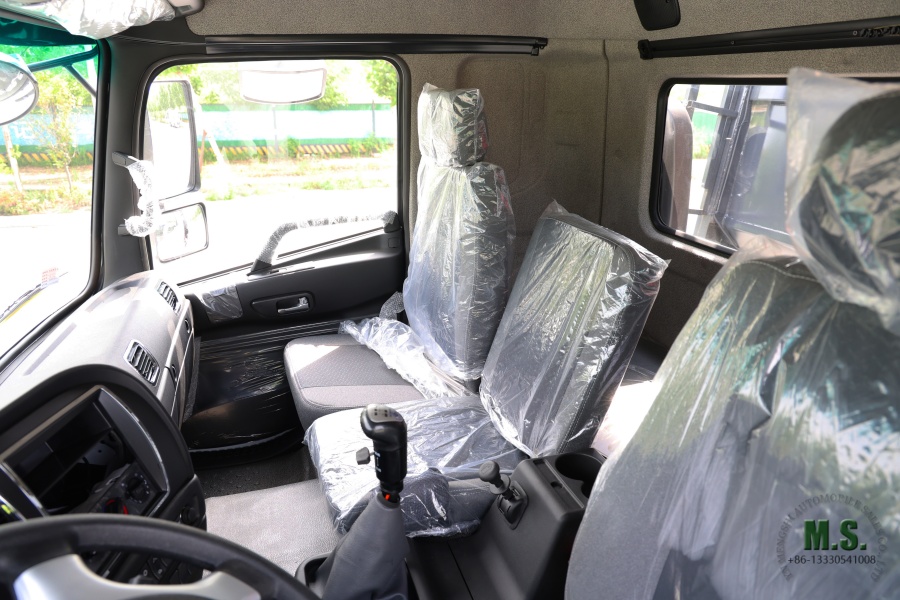

Cab | Flathead half-row |

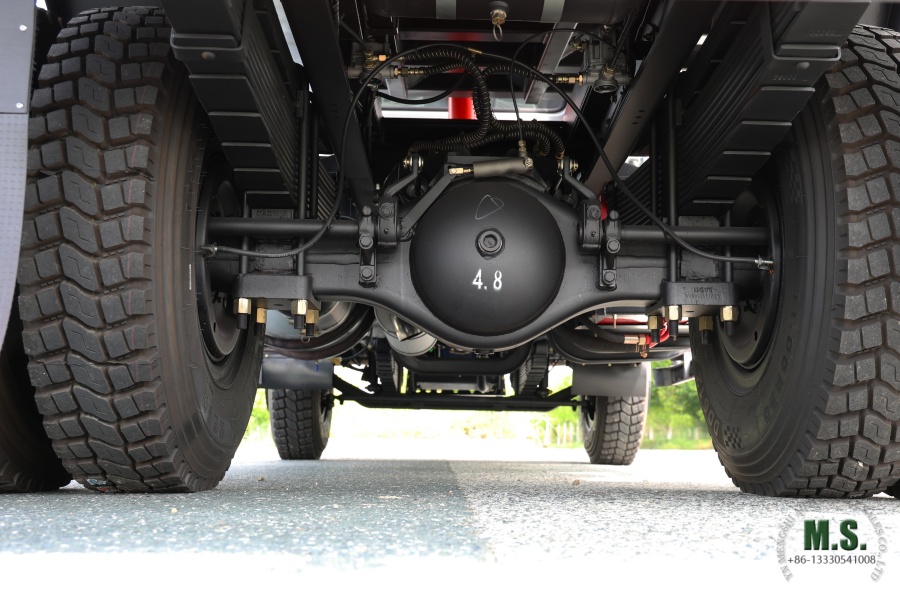

Axle | 5T / 13T |
Suspension | Steel plate springs 12/12+6 |
Tyres | 11.00R20 (6+1) |
Overall Dimensions | 7250×2580×3120mm |
Cargo Box Dimensions | 4400×2300×800+400mm (detachable) |
Wheelbase | 3950mm |
Wheel Track (Front/Rear) | 1955 / 1815mm |
Gross Vehicle Weight (GVW) | 18000kg |
Curb Weight | 9100kg |
Approach Angle | 24° |
Departure Angle | 17° |
Fuel Tank Capacity | 300L |
Fording Depth | 500mm |
Obstacle Clearance Height | 455mm |
Minimum Ground Clearance | 305mm |
Maximum Speed | 85km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
