Today, we would like to introduce our 4x2 Box Truck with Hydraulic Tailgate. Widely used in logistics, distribution, and freight sectors, our hydraulic tailgate trucks are designed to be user-friendly, time-saving, and labor-efficient. They effectively improve loading and unloading efficiency, making them the preferred choice for the transportation industry.
As a professional manufacturer of a full range of vehicles, we provide global customers with high-quality, reliable, and efficient logistics and transport solutions. We support customized options and adopt a direct factory supply model, ensuring stable product performance, competitive pricing, and comprehensive service.
The basic configuration of the truck is as follows:
Engine & Power: Powered by a Weichai WD5.62 engine with a displacement of 9726ml, output power of 196kW, and torque of 1100N·m.
Cab & Chassis: Equipped with a flat-head semi-sleeper cab. Axles are 6.5T (front) / 16T (rear, hub reduction gear).
Tires: 10.00R20 (6+1 spare).
Dimensions: Overall dimensions are 9420×2640×3940mm. The external cargo box dimensions are 6800×2640×800mm (excluding guardrails), and internal dimensions are 6650×2400×2640mm.
Performance: Wheelbase is 5100mm; wheel track is 2020/1890mm. Gross Vehicle Weight (GVW) is 18000kg, and curb weight is 8600kg.
Capabilities: Approach angle is 21°; departure angle is 11°. Suspension features 9/10+8 steel leaf springs.
Other Specs: Equipped with a 300L fuel tank. Obstacle crossing height is 420mm. Maximum speed is 88km/h, and minimum ground clearance is 300mm.

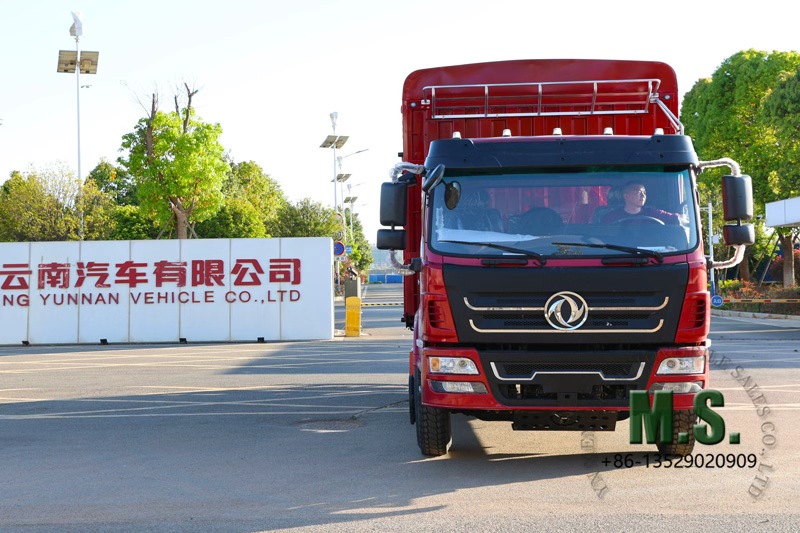

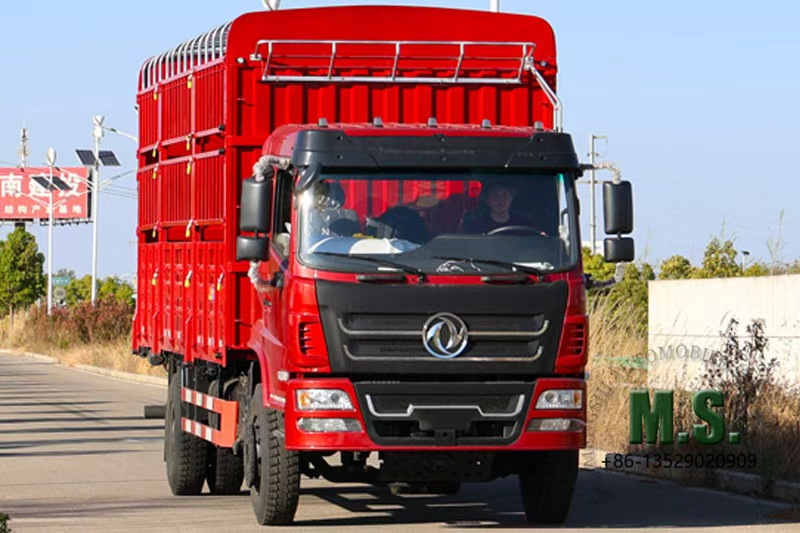

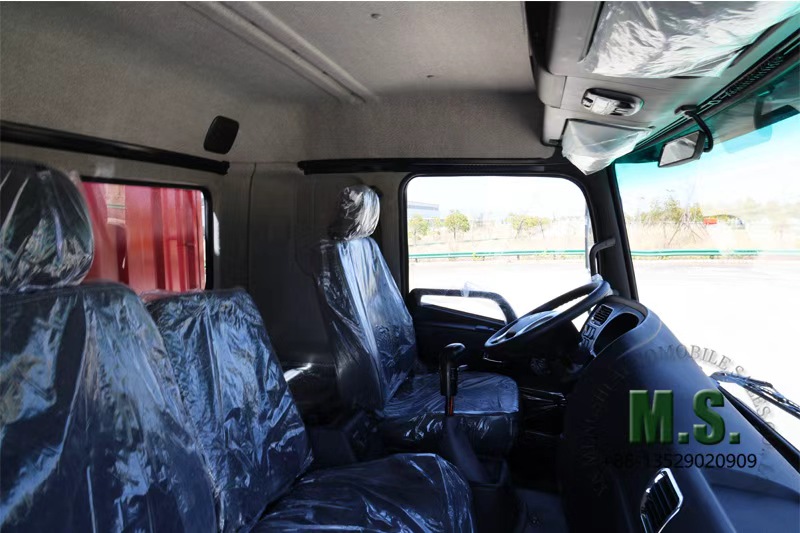

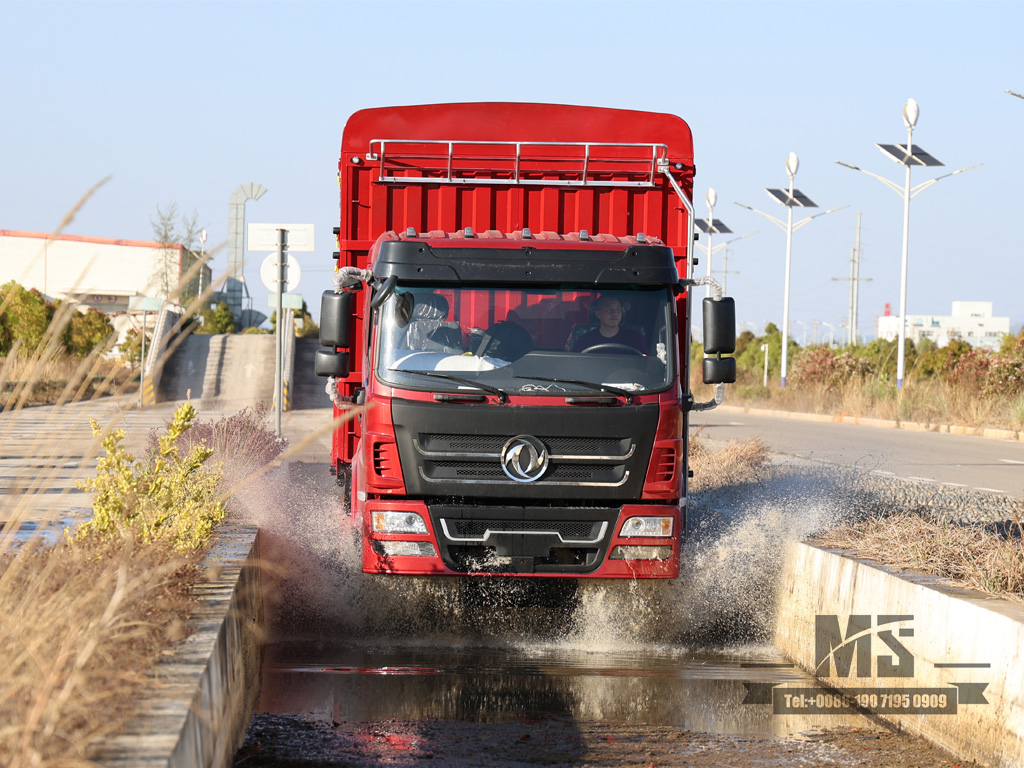

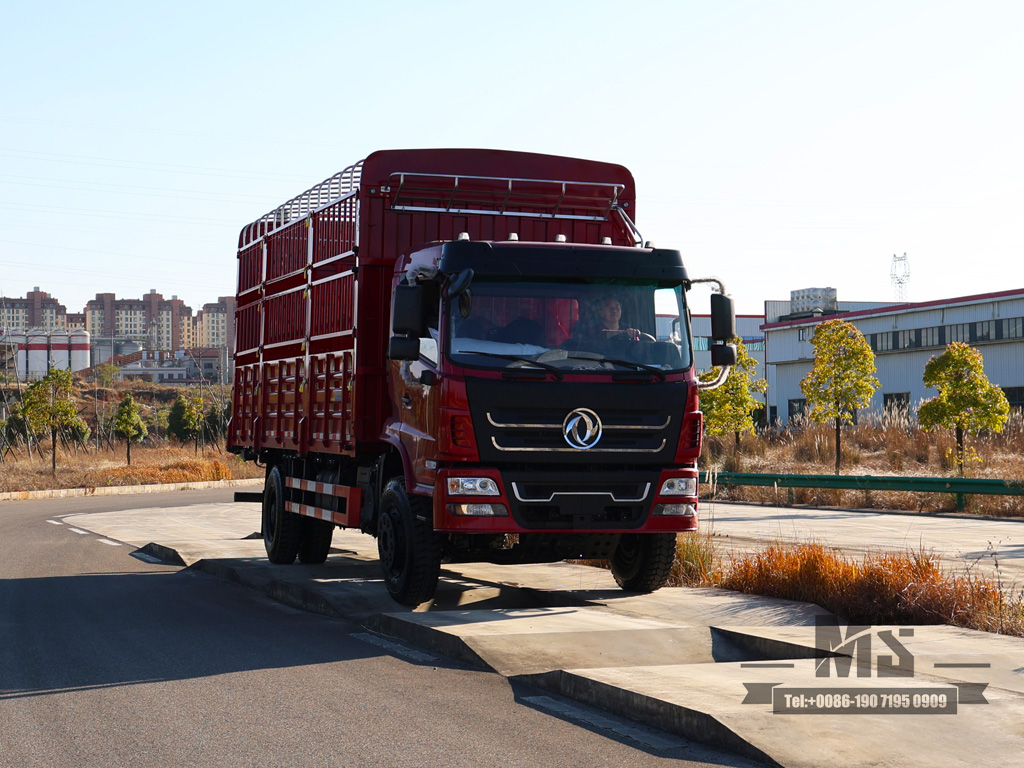

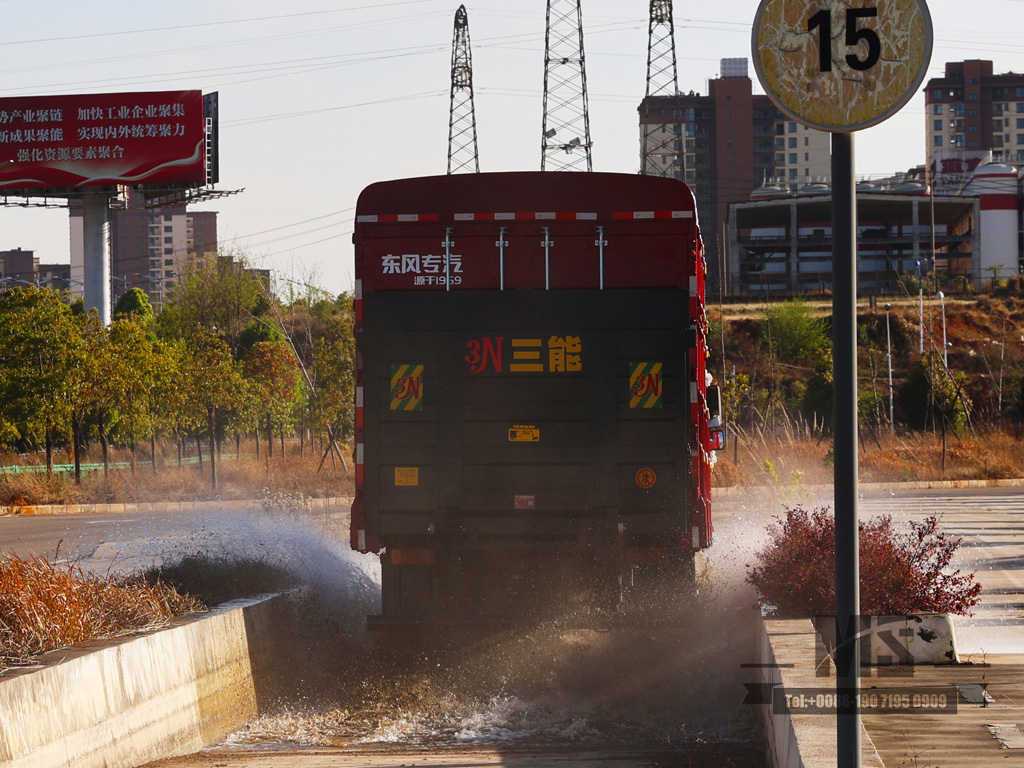

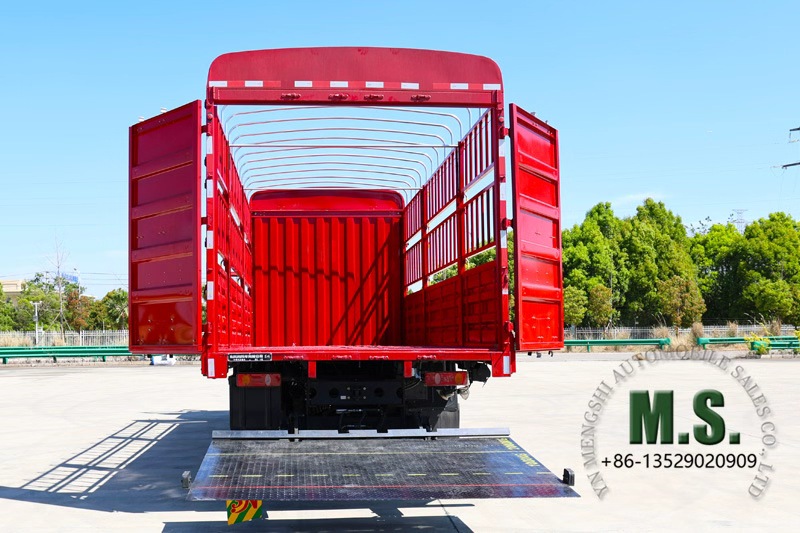

Relevant detailed pictures are shown below, all of which are taken on sit：
Our warehouse fence hydraulic tailgate vehicle can meet any requirements... For example, any requirements such as the central inflation and deflation system, anti-burst tires, bulletproof and explosion-proof features, radar, etc.! For more detailed product information, please contact us! Let's have an in-depth discussion. And we also welcome you to visit our company for a site inspection!
