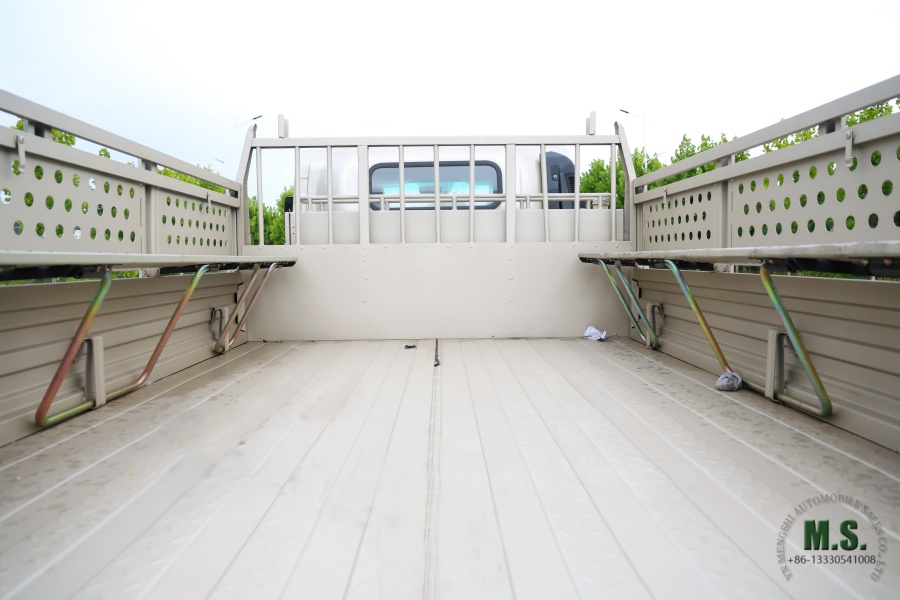

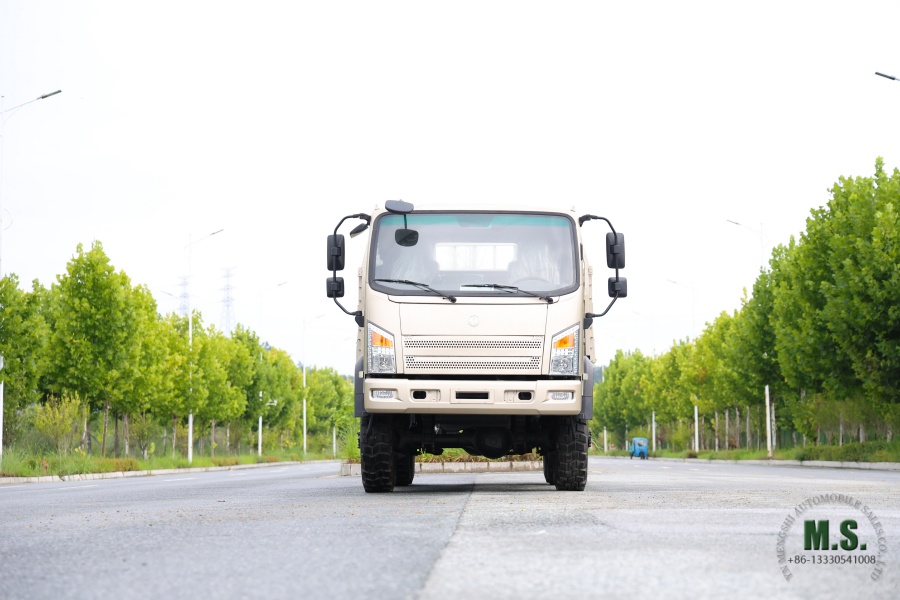

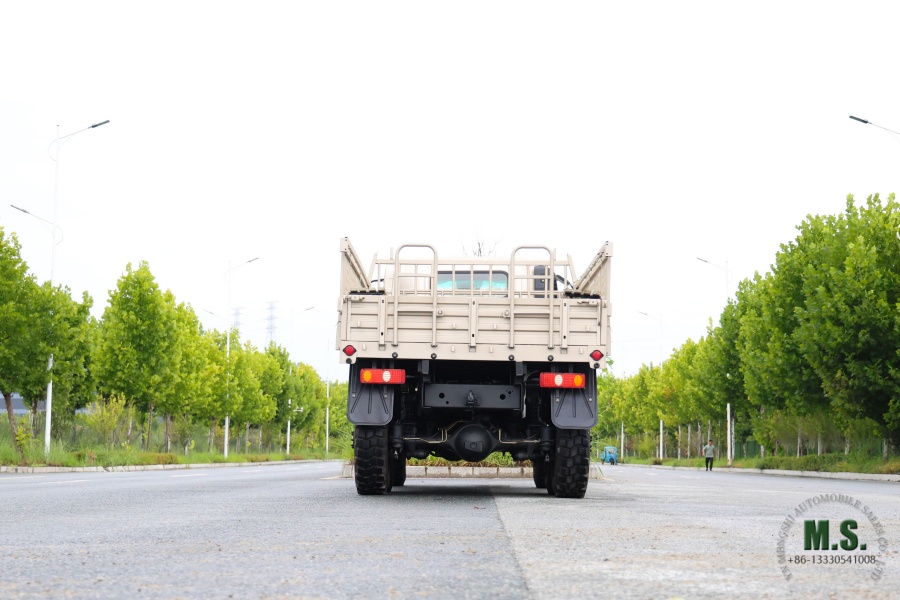

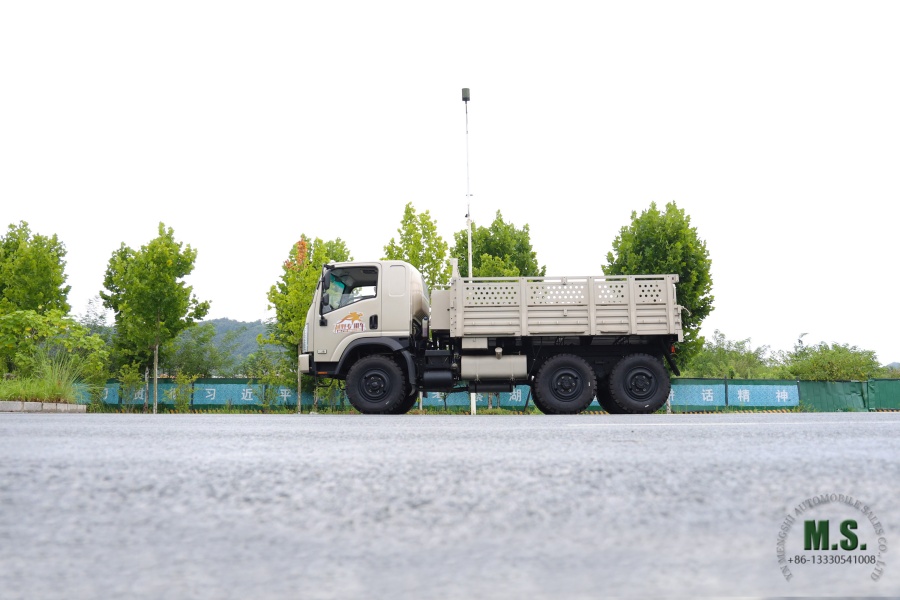

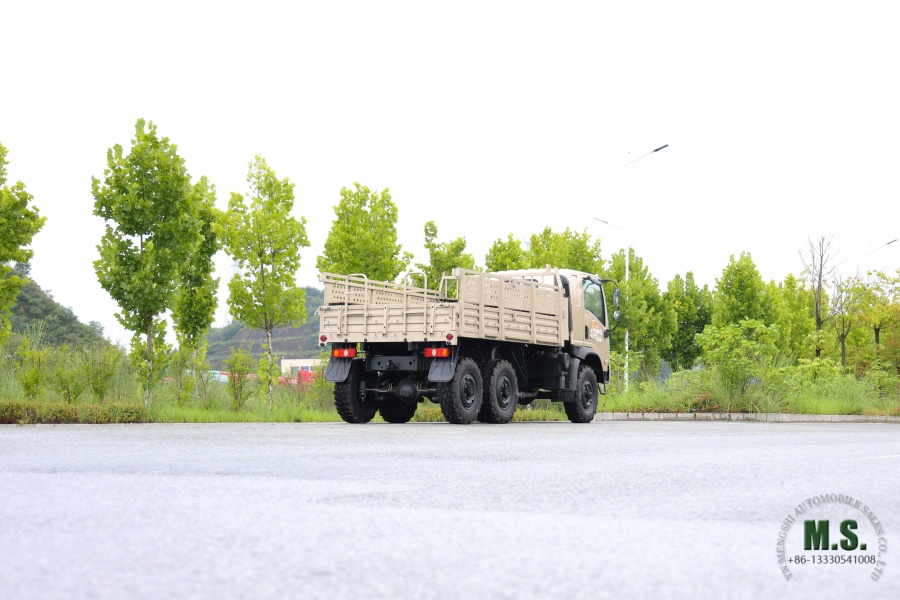

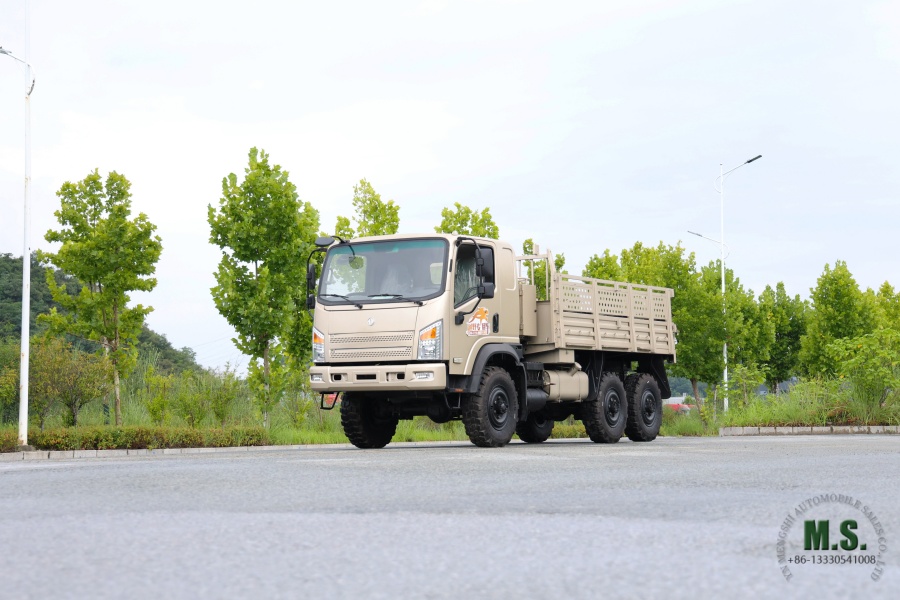

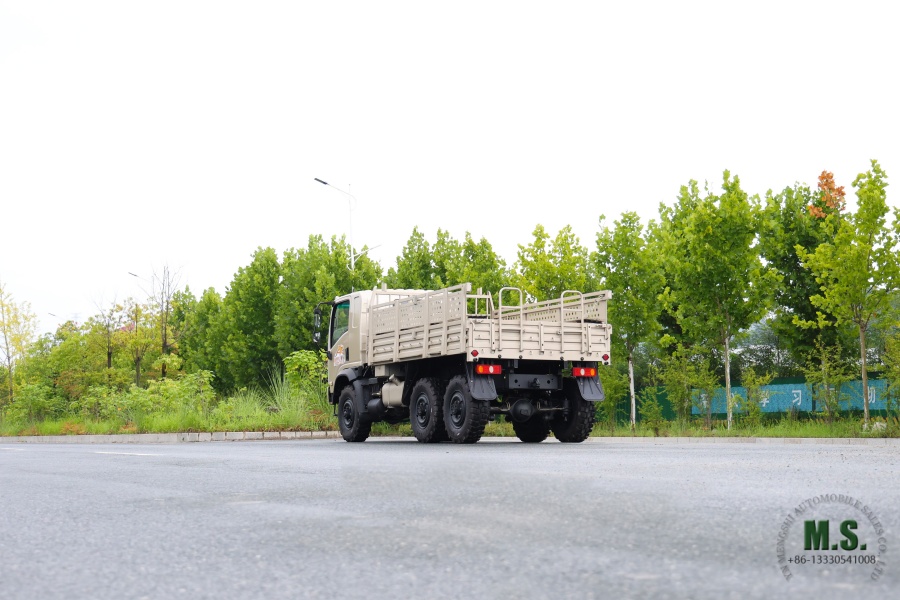

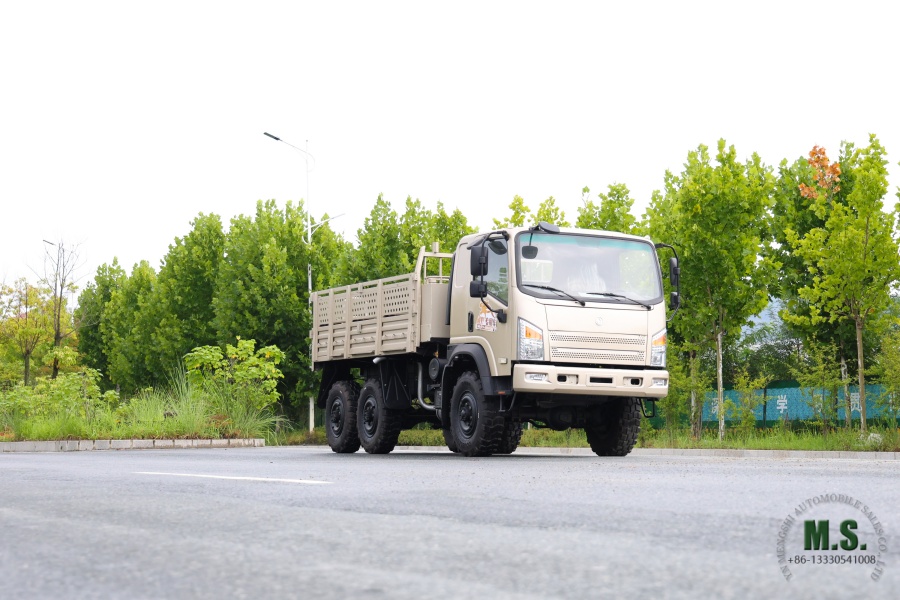

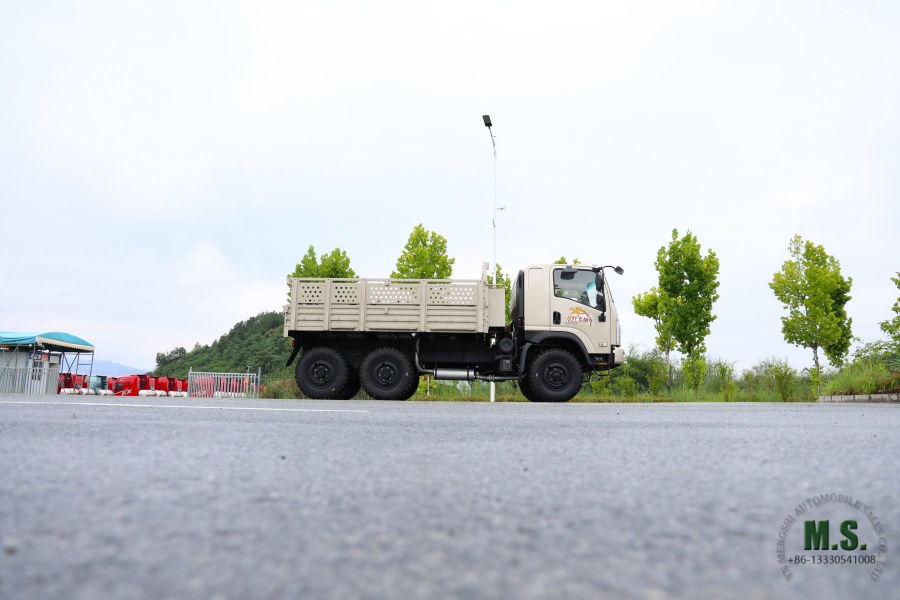

The EQ2082 is a heavy‑duty 6×6 six‑drive off‑road vehicle engineered for harsh and complicated terrain. Equipped with powerful engine, high‑low‑speed transfer case and durable steel‑plate‑spring suspension, it delivers exceptional all‑terrain mobility. This rugged vehicle performs excellently in cross‑country transportation under tough field conditions, and it is supplied with tarpaulin poles and winch for practical field use.
Basic configuration | |
|---|---|
Parameter | Value |
Engine | B170.33 |
Gearbox | Dongfeng five gears |
Cab | Single cab |
Transfer case | High and low speed |

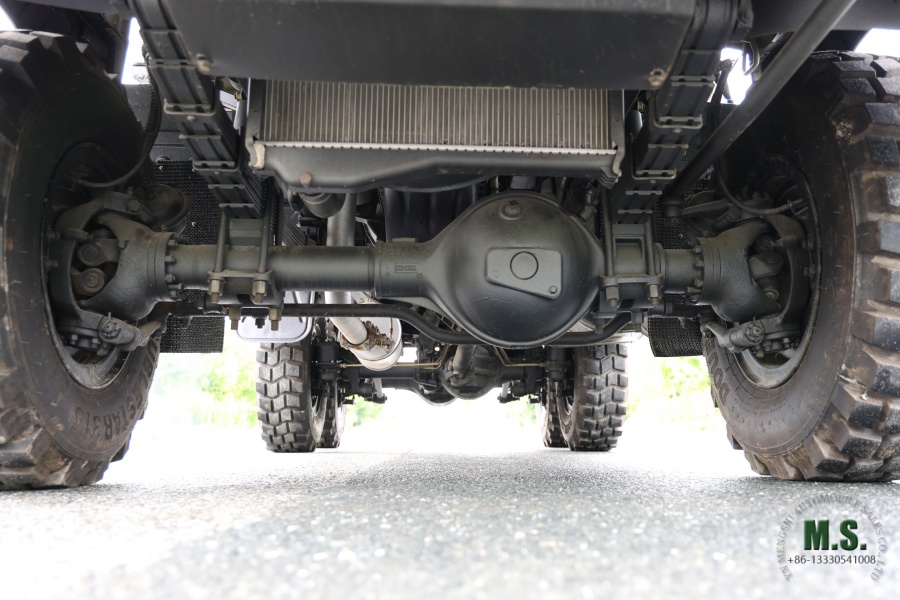

Axle | 2.5T/2.5T/2.5T |

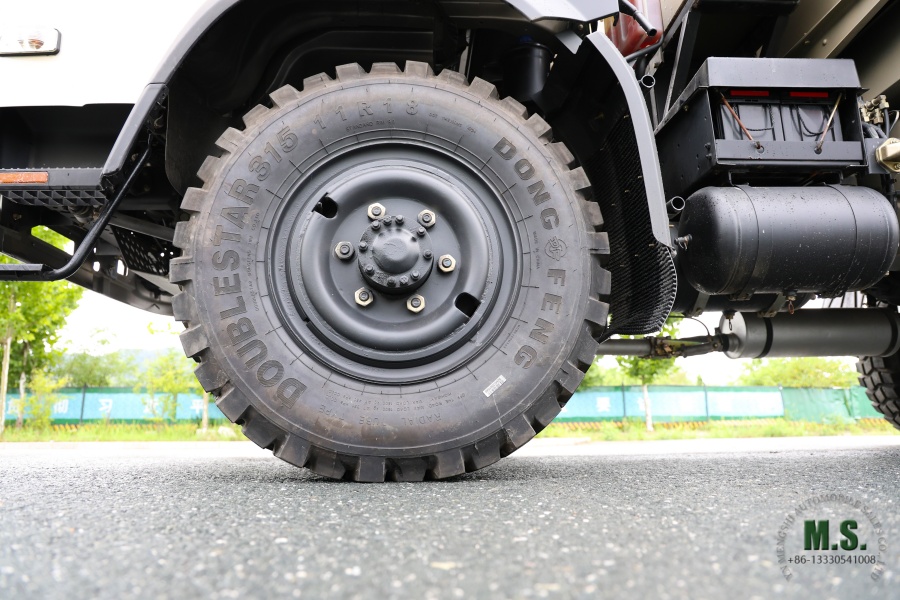

Tyres | 11R18 (6+1) |

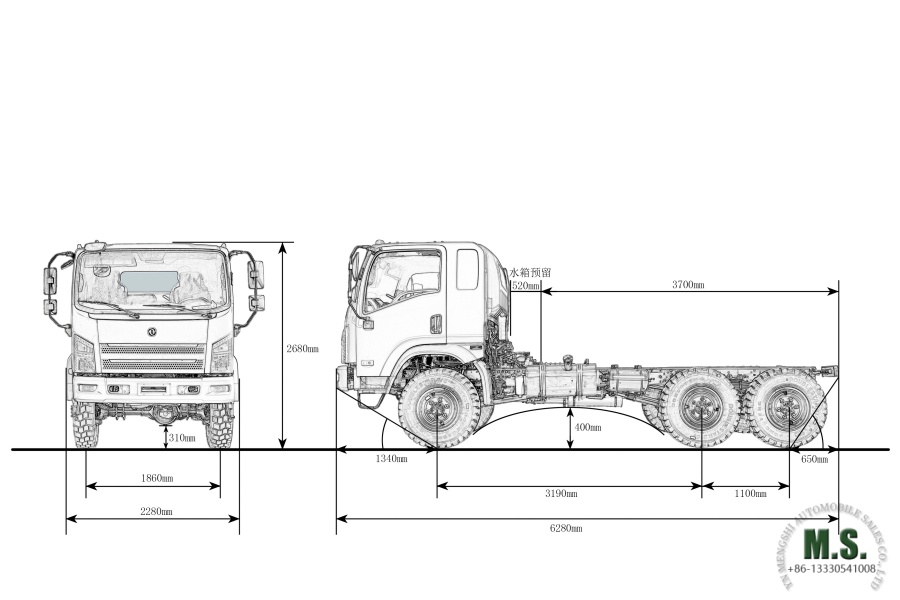

Overall Dimensions | 6620×2380×2580mm (height doesn't include tarpaulin) |
Power | 125kw |
Displacement | 5900ml |
Wheel span | 1774mm |
Wheelbase | 3190+1100mm |
Curb weight | 5090kg |
GVW | 7800kg |
Camf Angle | 46° |
Approach Angle | 37° |
Departure Angle | 39° |

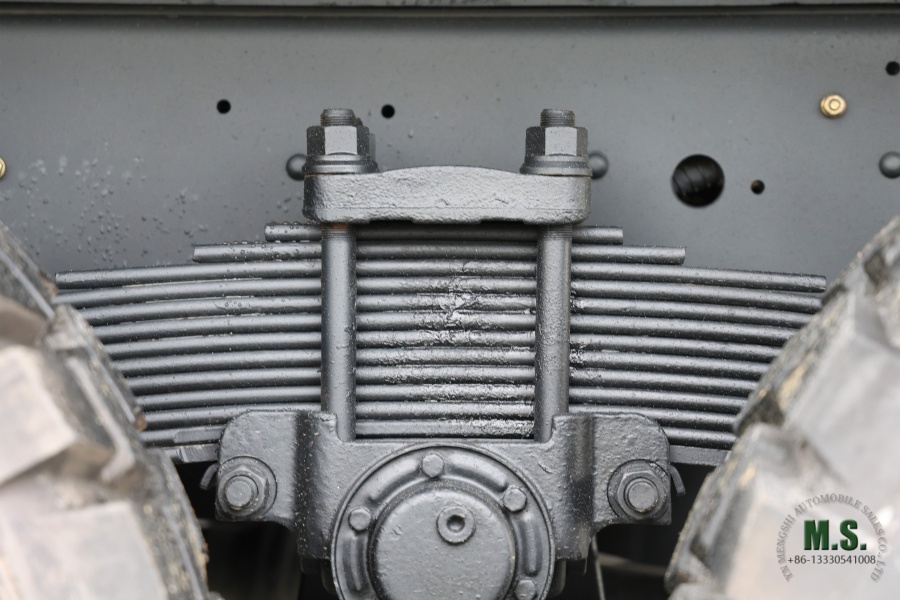

Suspension | Steel plate springs 9/13 |
Fuel Tank Capacity | 160L |
Fording depth | 1085mm |
Obstacle height | 410mm |
Maximum Speed | 85km/h |
Minimum ground | 285mm |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
