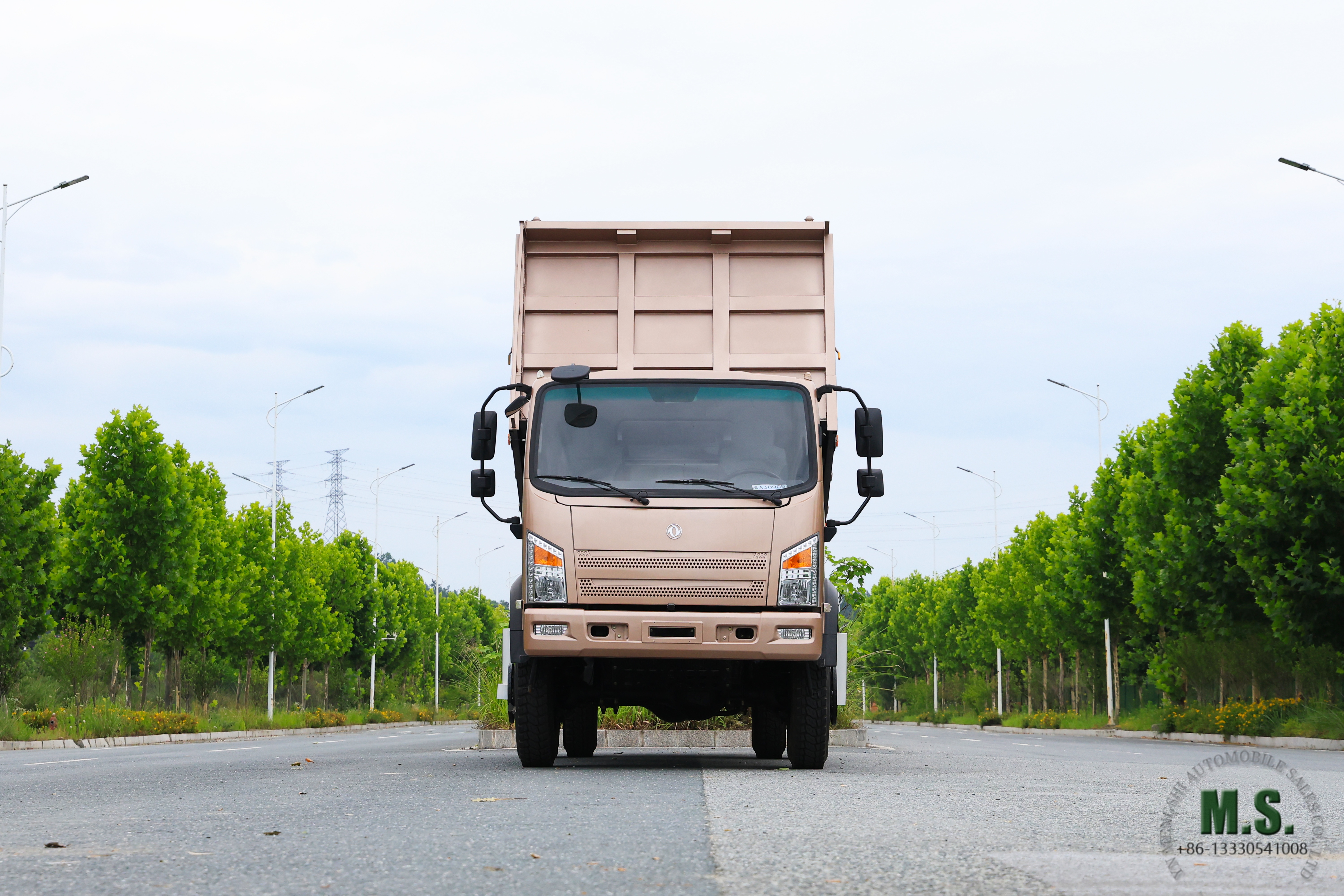

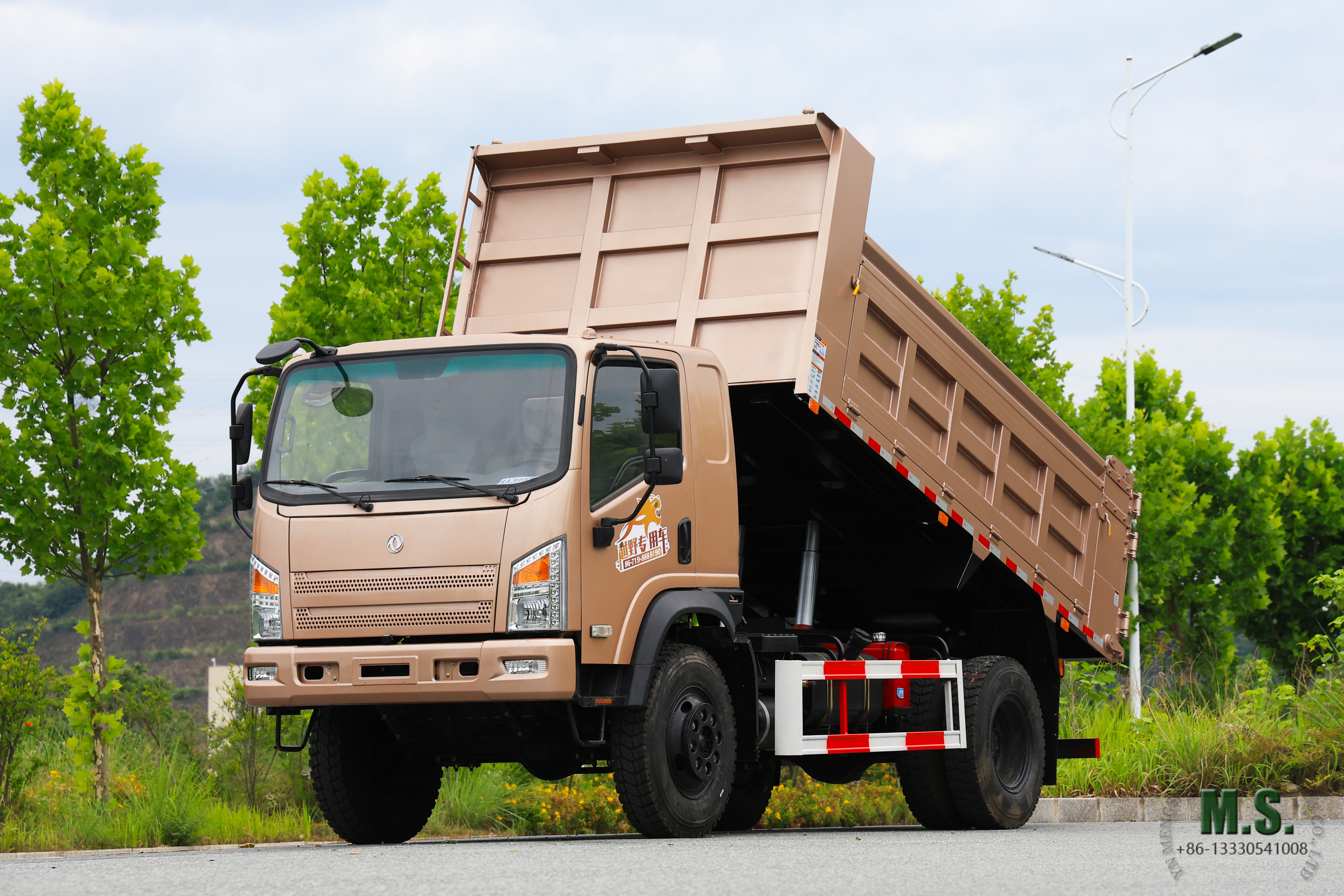

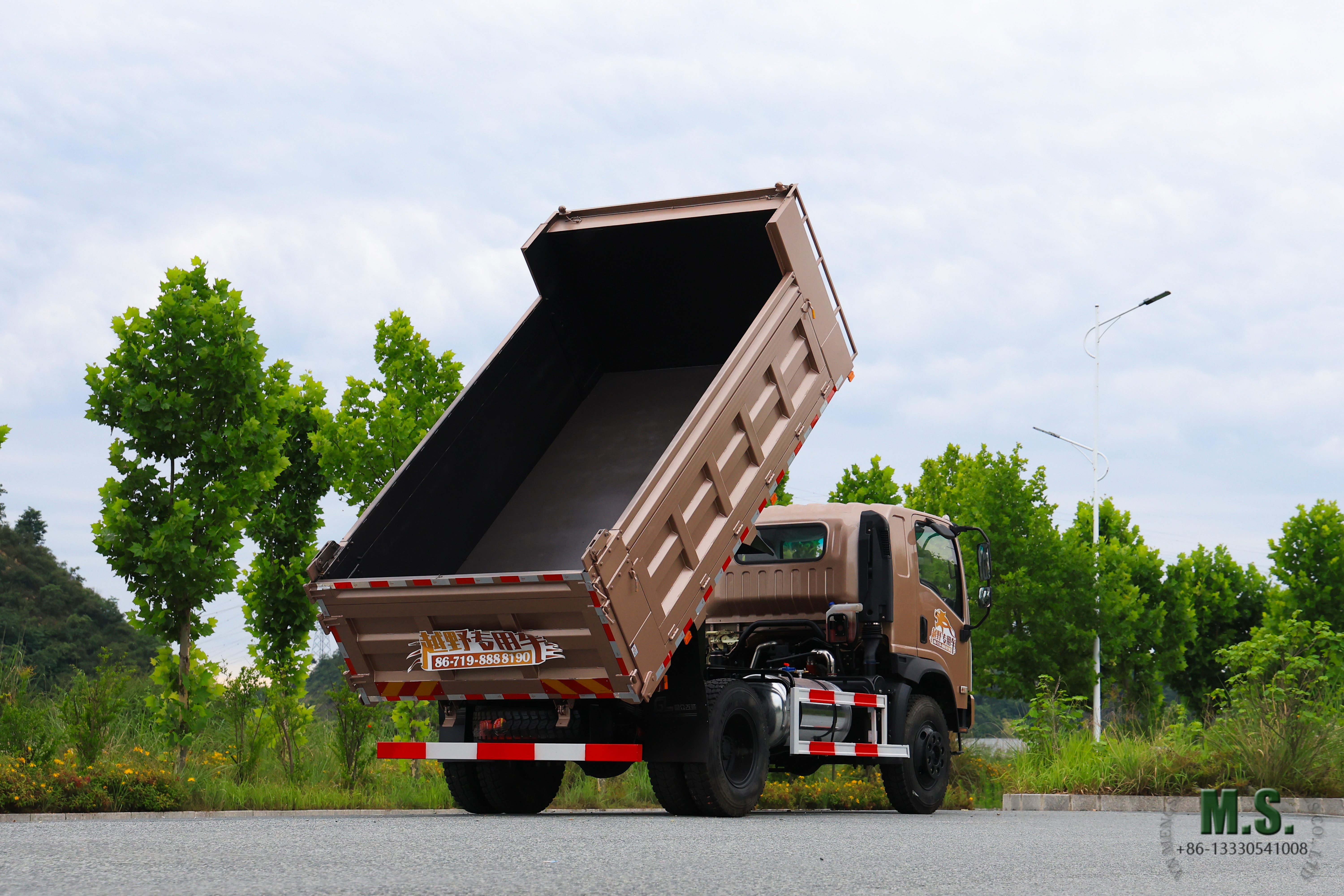

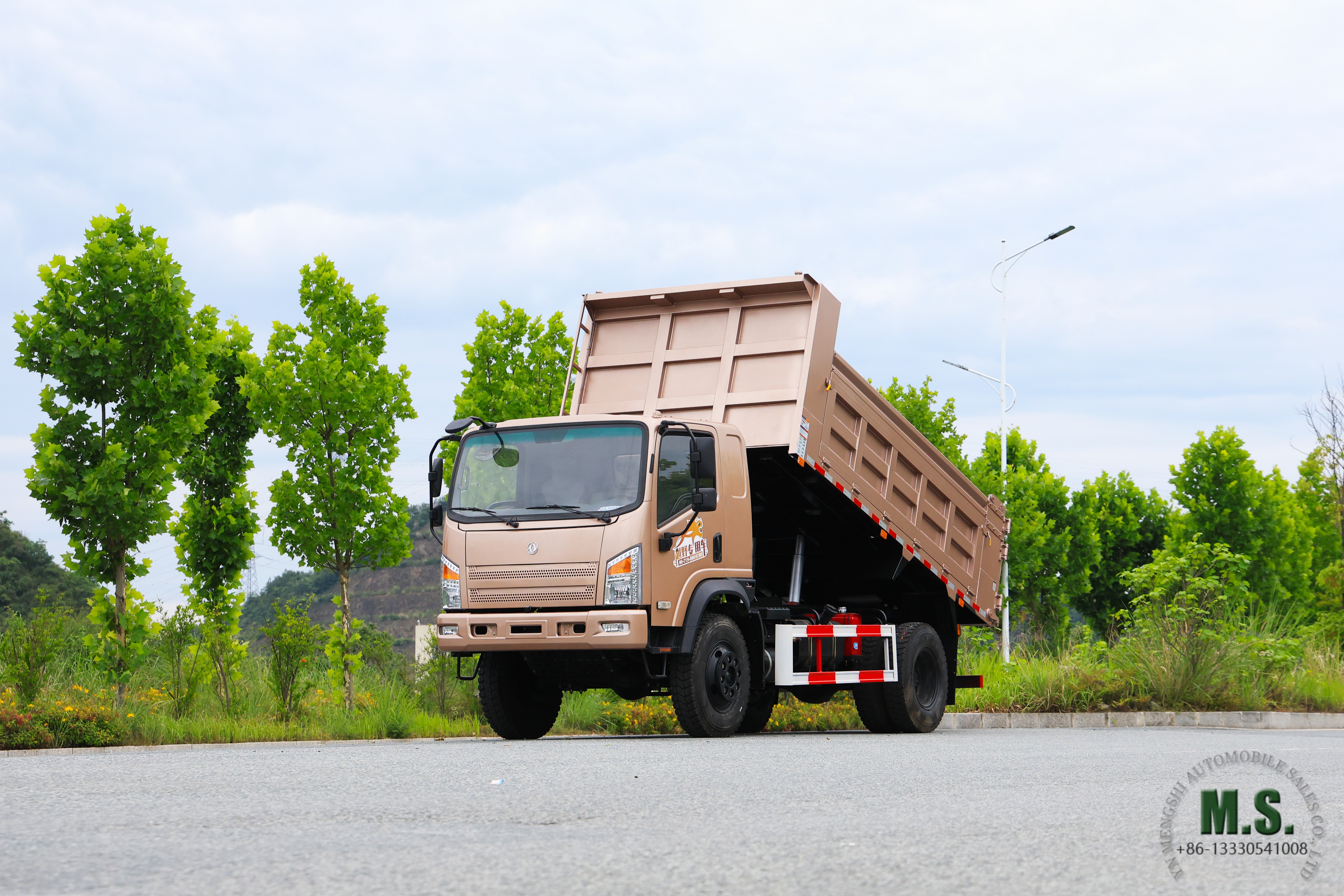

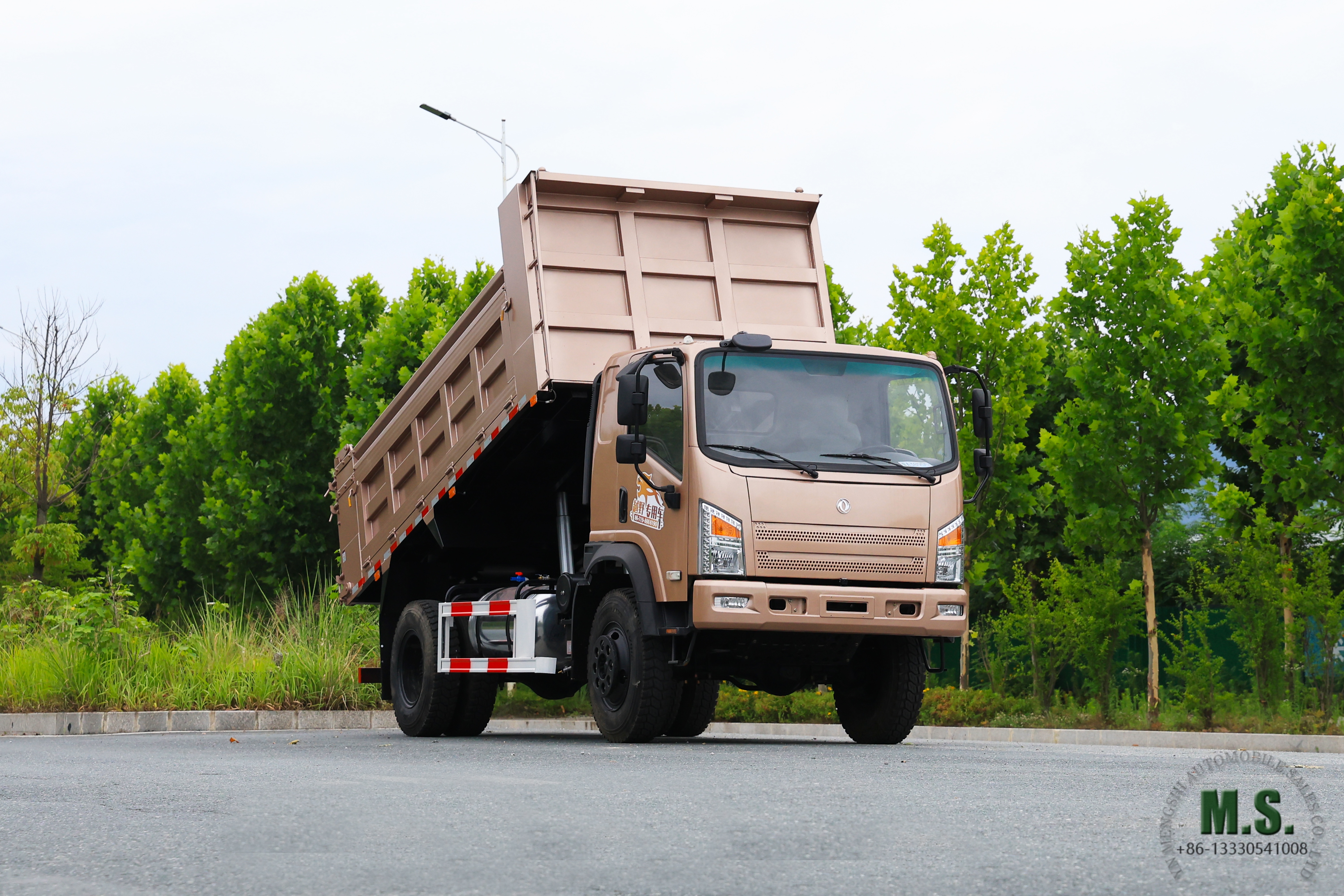

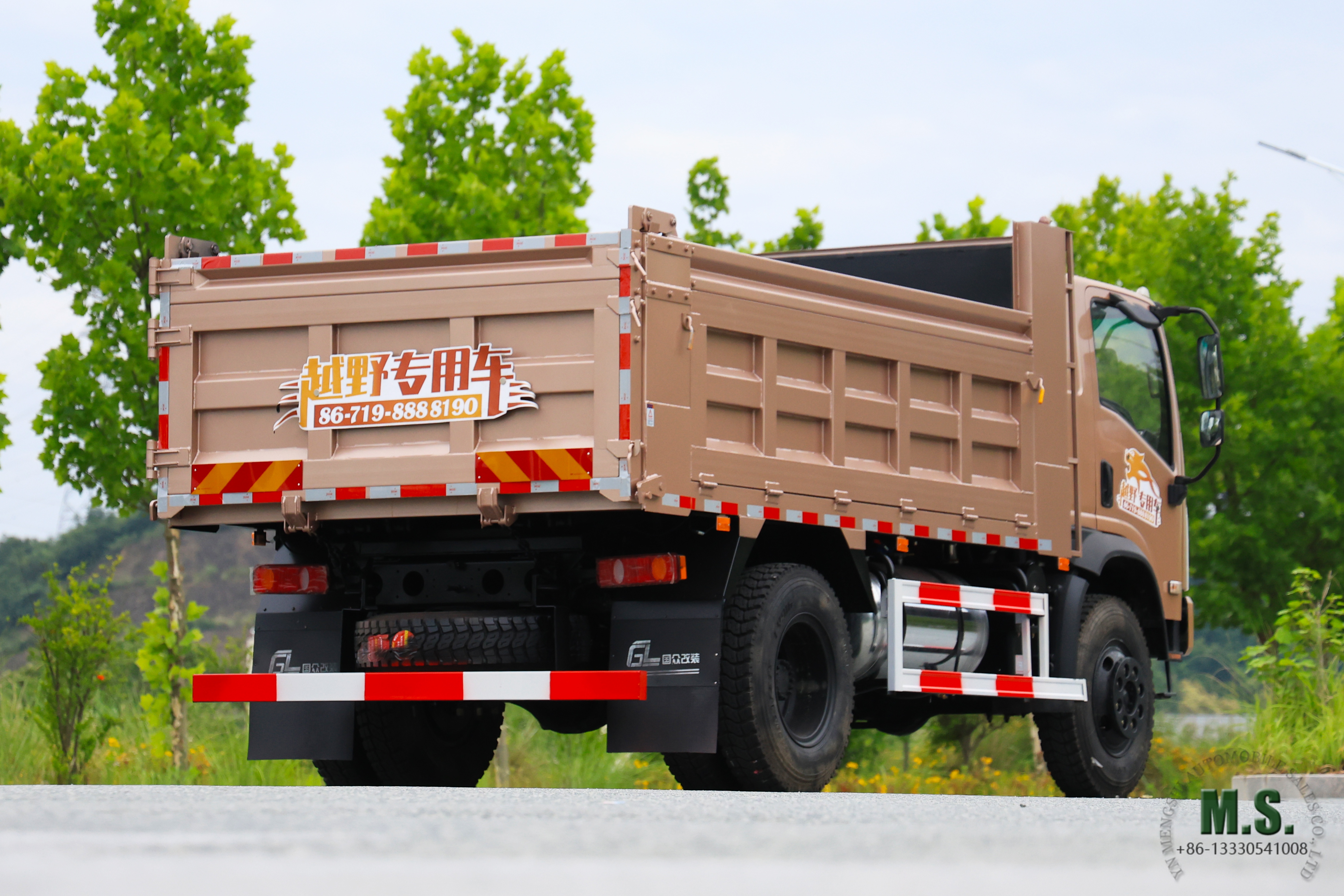

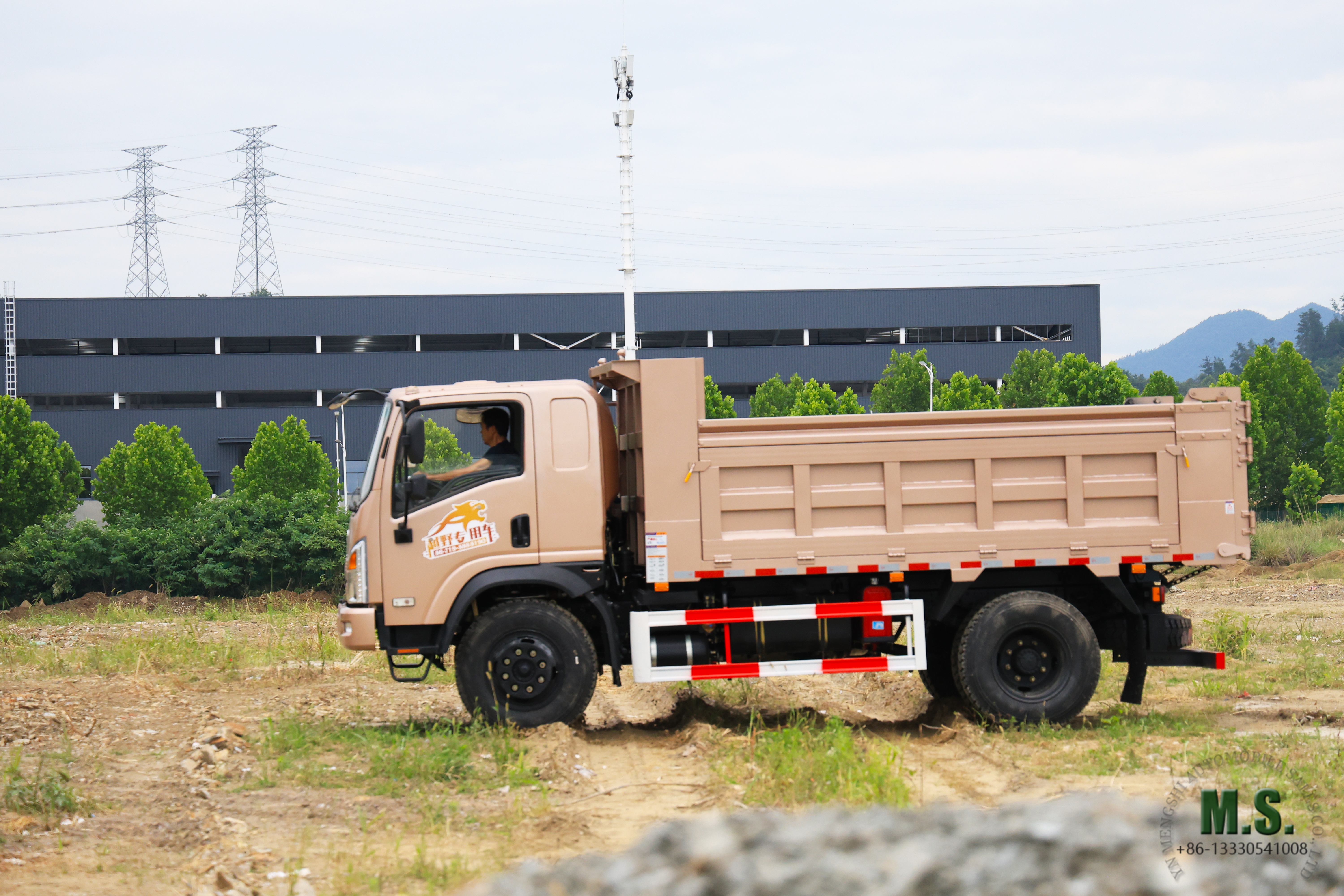

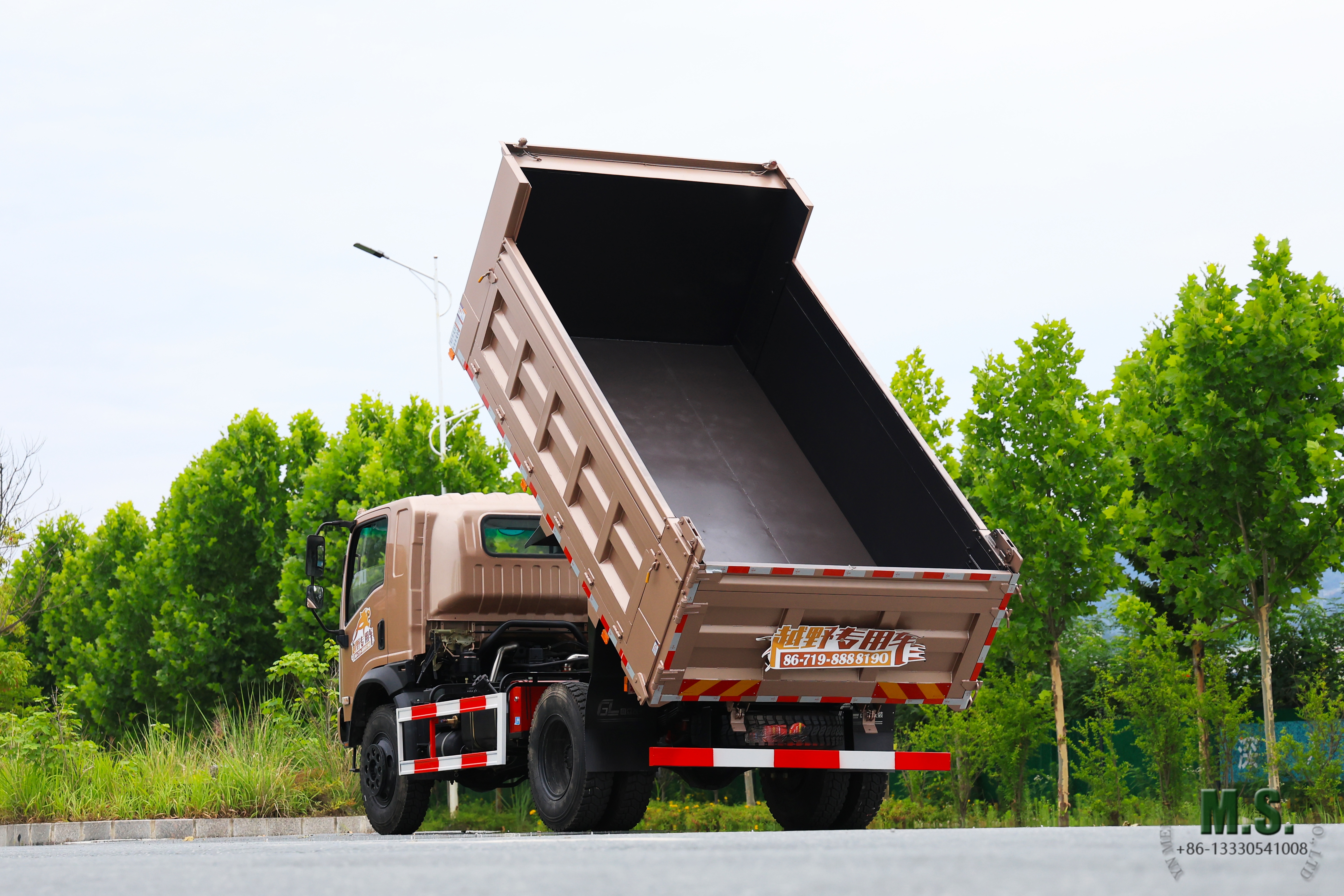

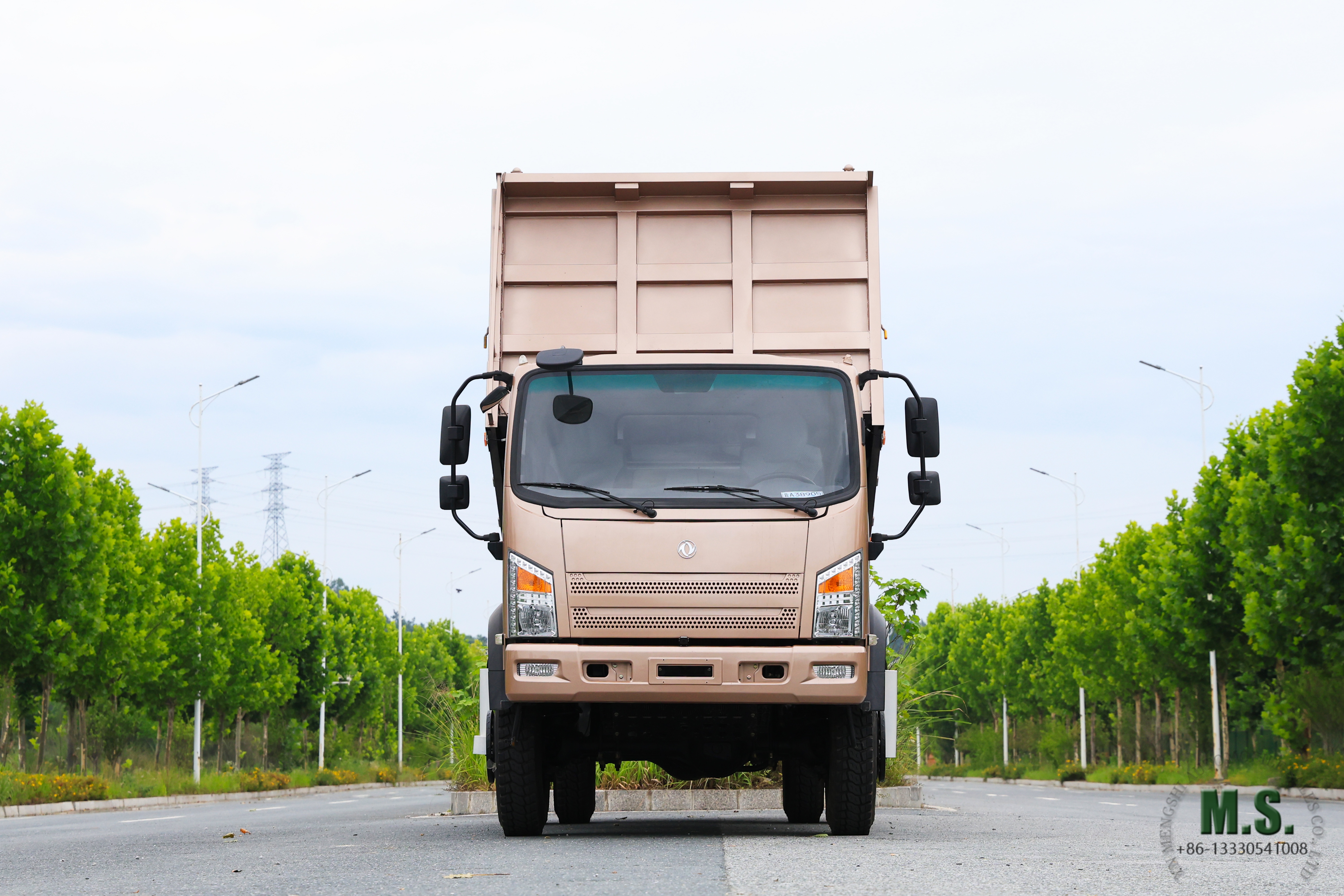

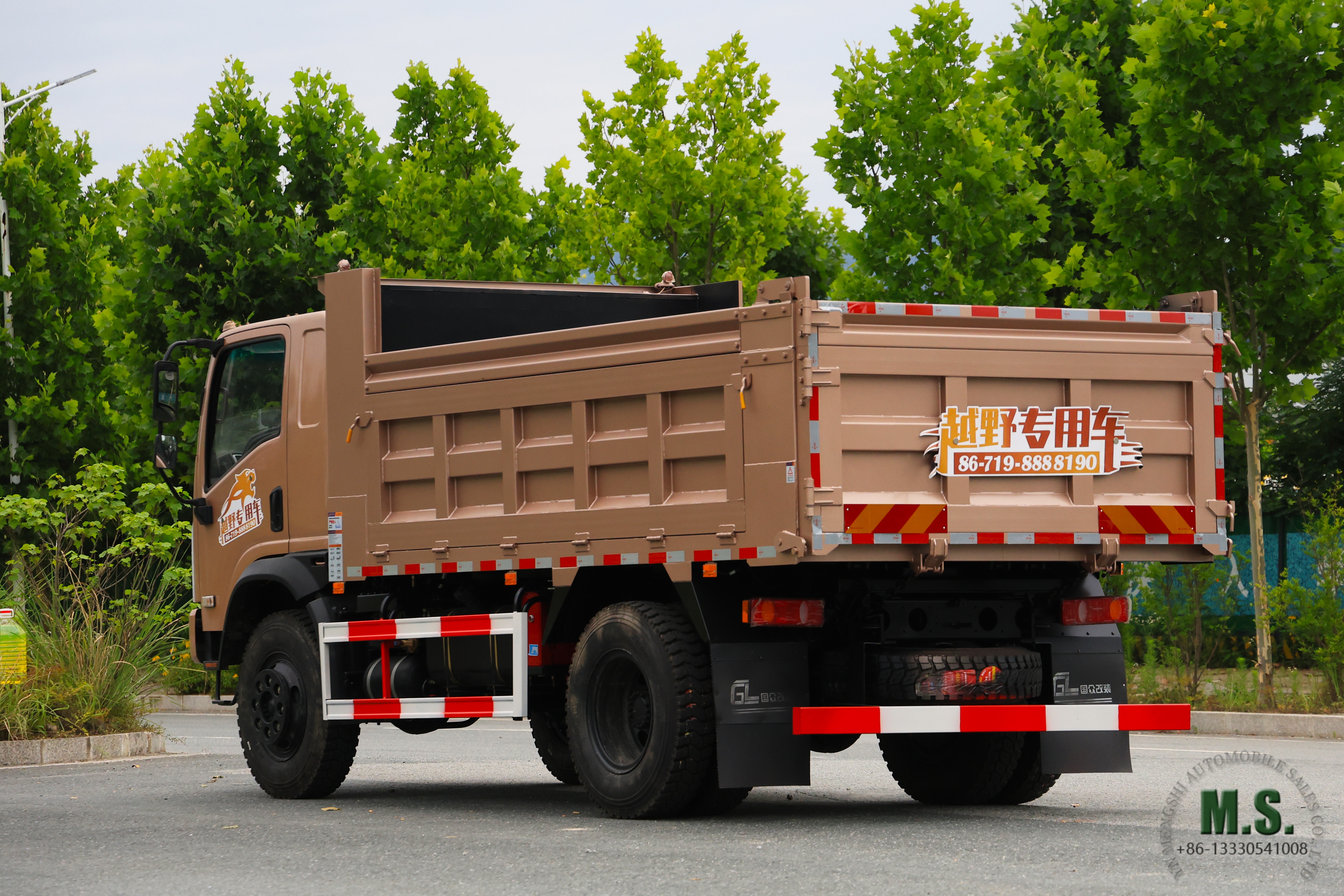

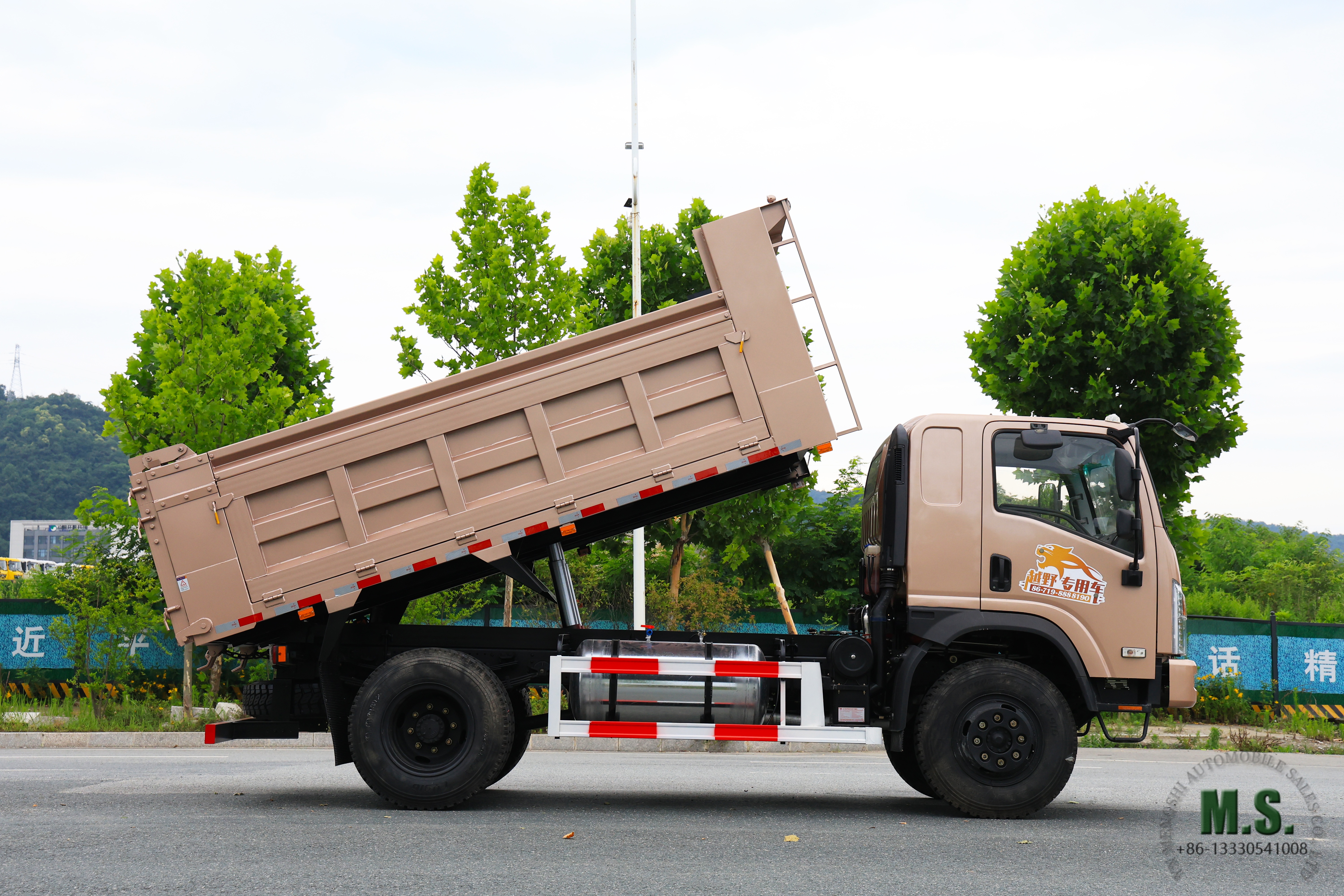

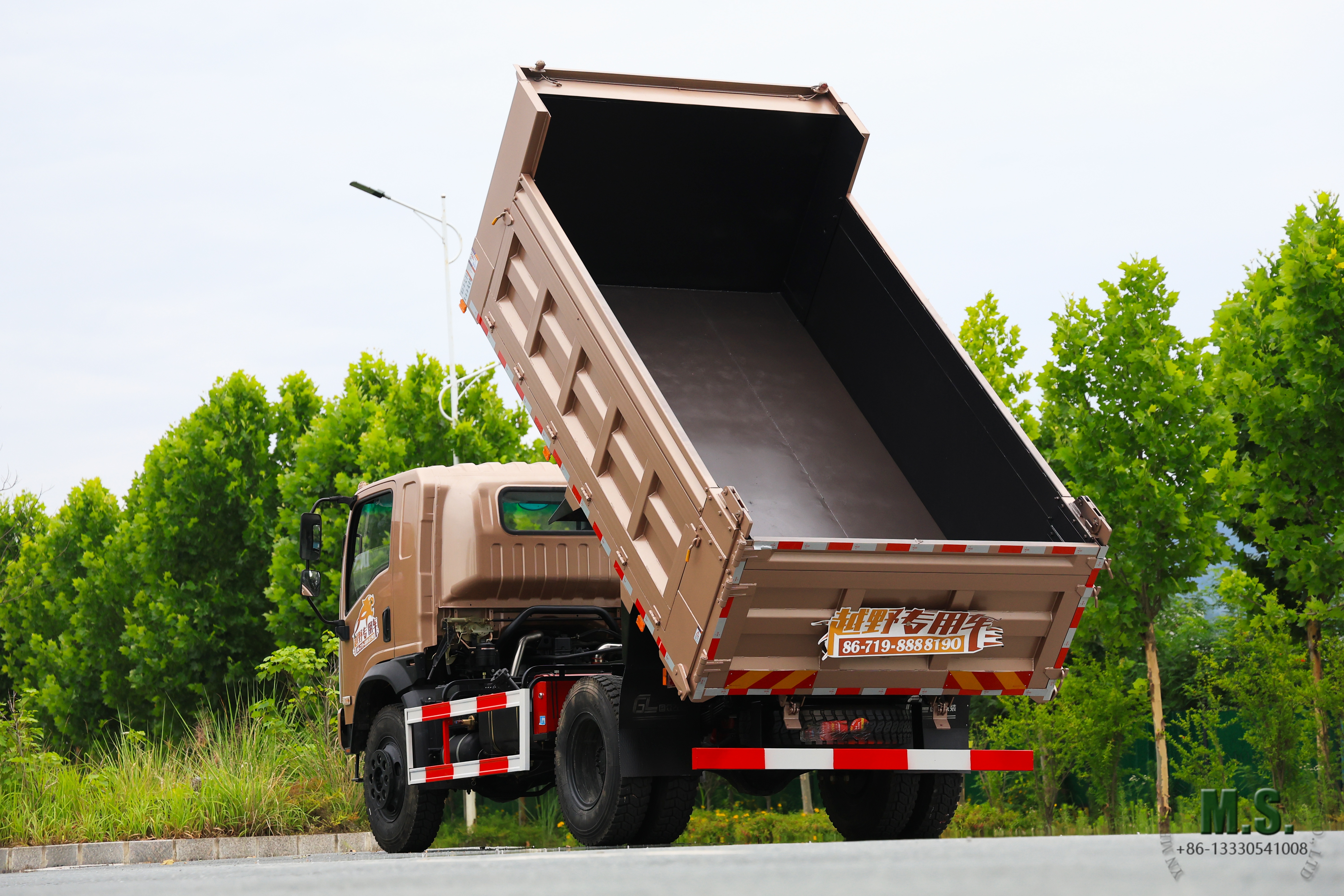

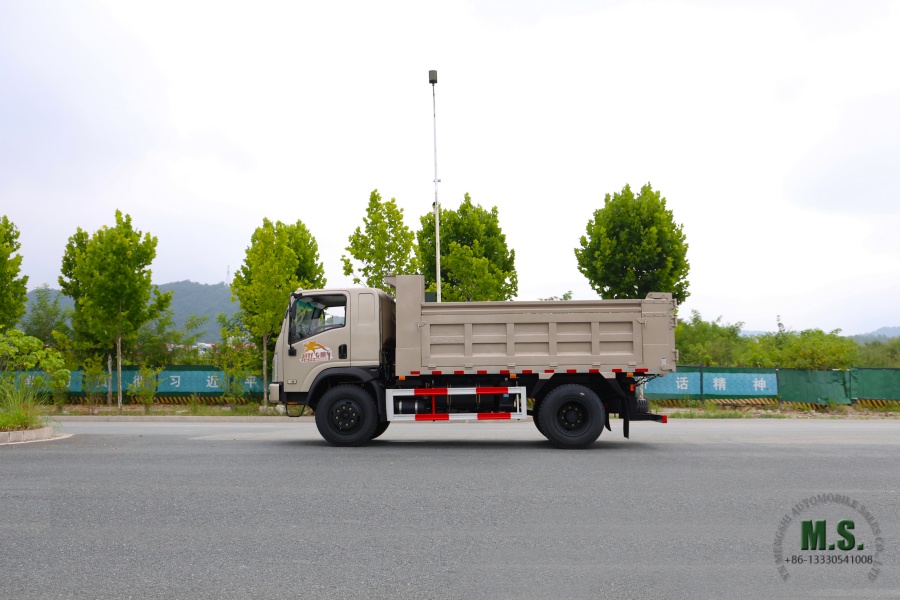

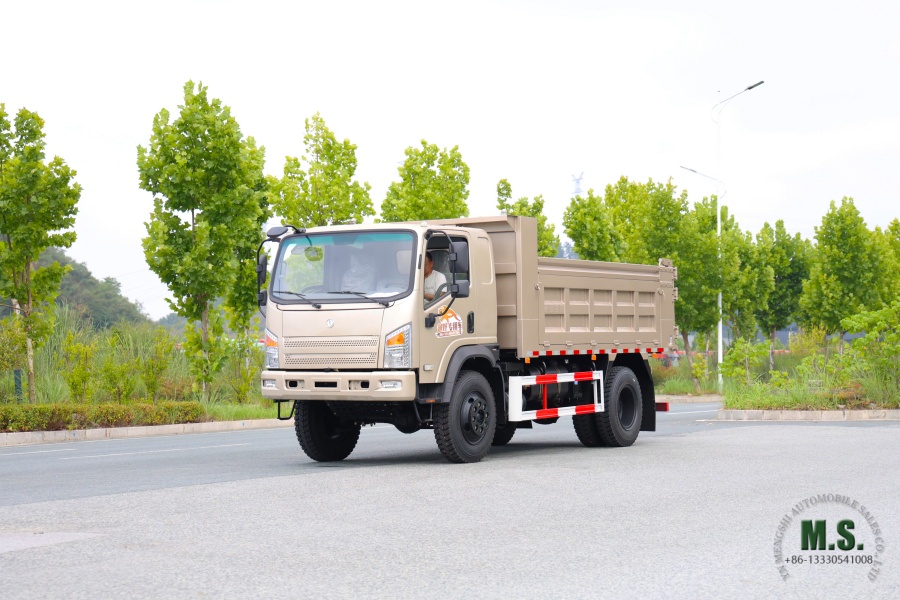

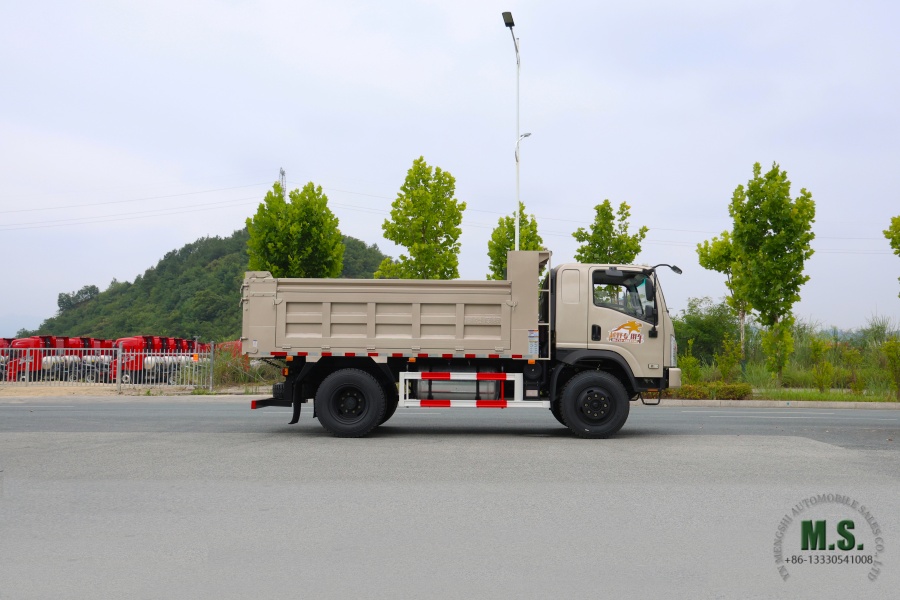

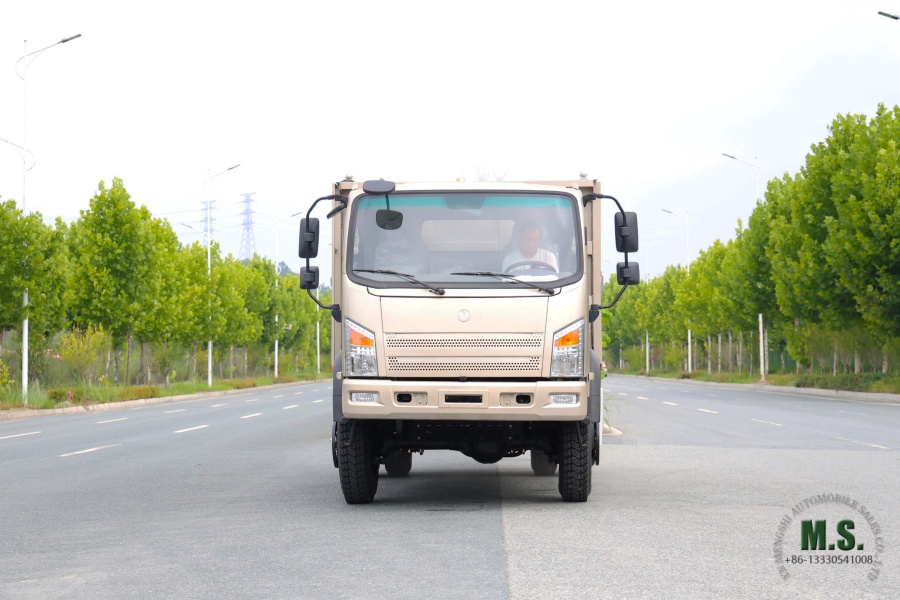

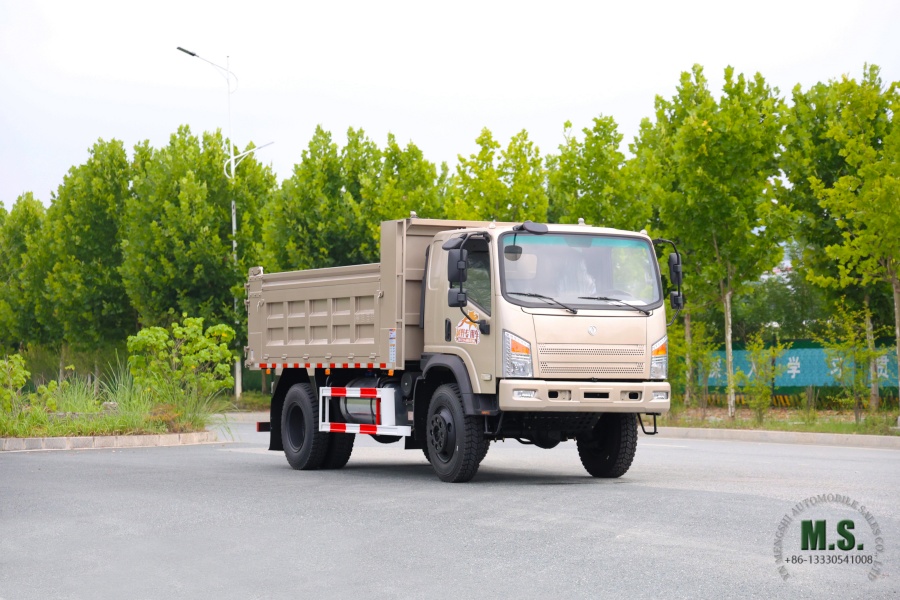

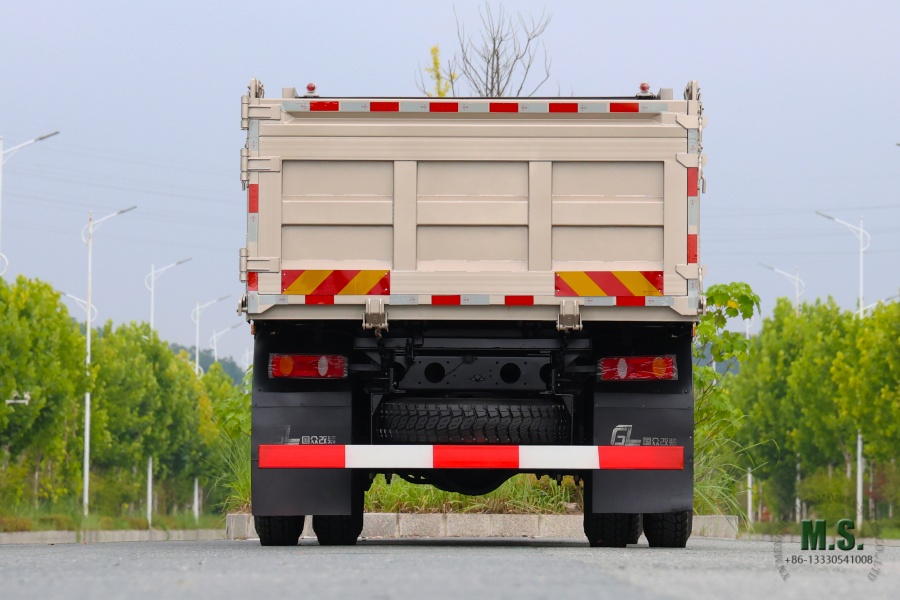

Dongfeng Mengshi Off-Road Dumper Truck - All-Wheel Drive 4WD Dumper Truck - Cab-Over 4WD Dumper Truck
Basic configuration | |
|---|---|
Engine | Cummins B17033 |
Horsepower | 170Hp |
Rated Power | 125kw |
Max Torque | 560N.m |
Displacement | 5.9L |
Transmission | Five gears |
Wheelbase | 3600mm |
Overall Dimension | 6740x2610x2880mm |

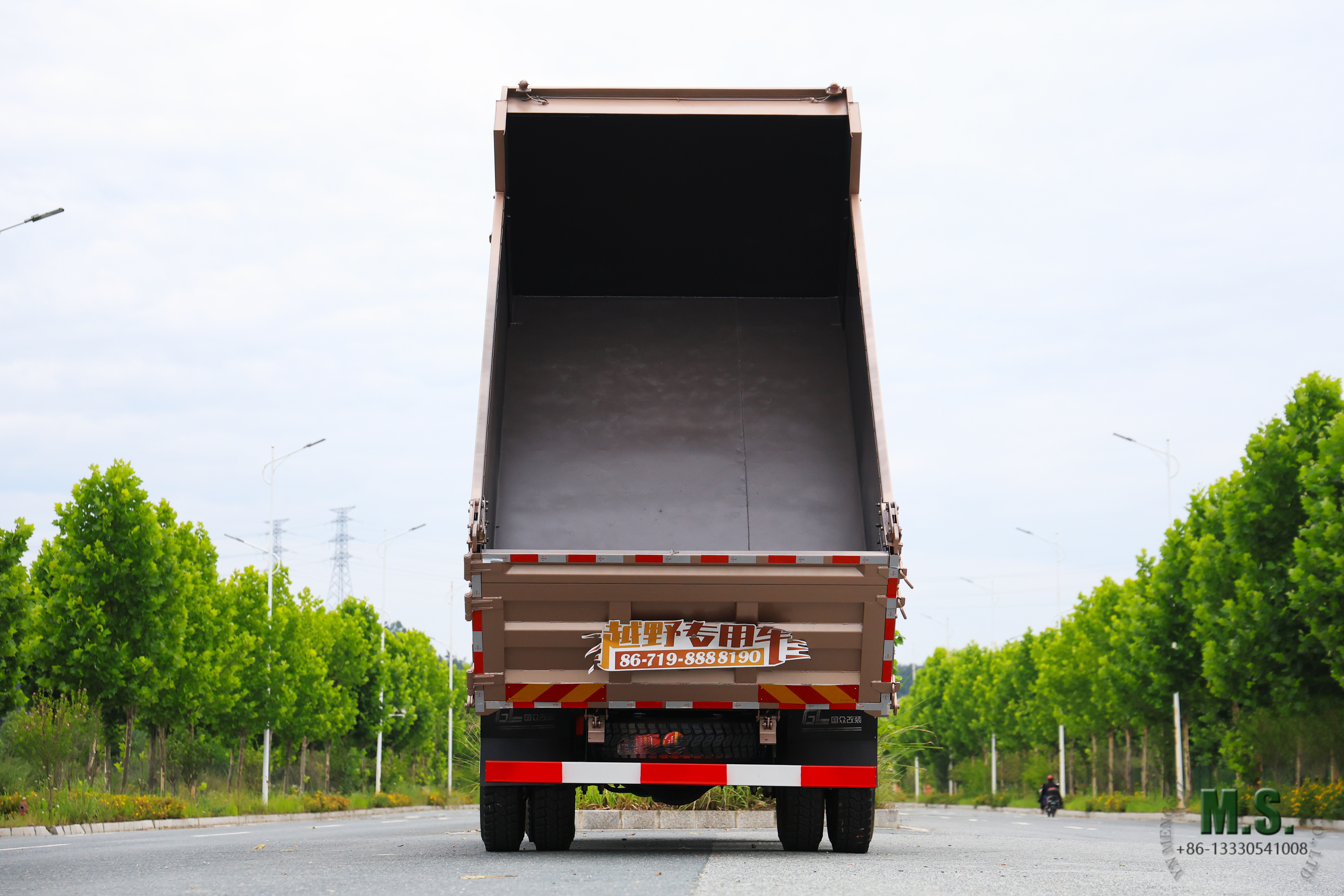

Container dimensions | 4200x2200x (800+200) mm |

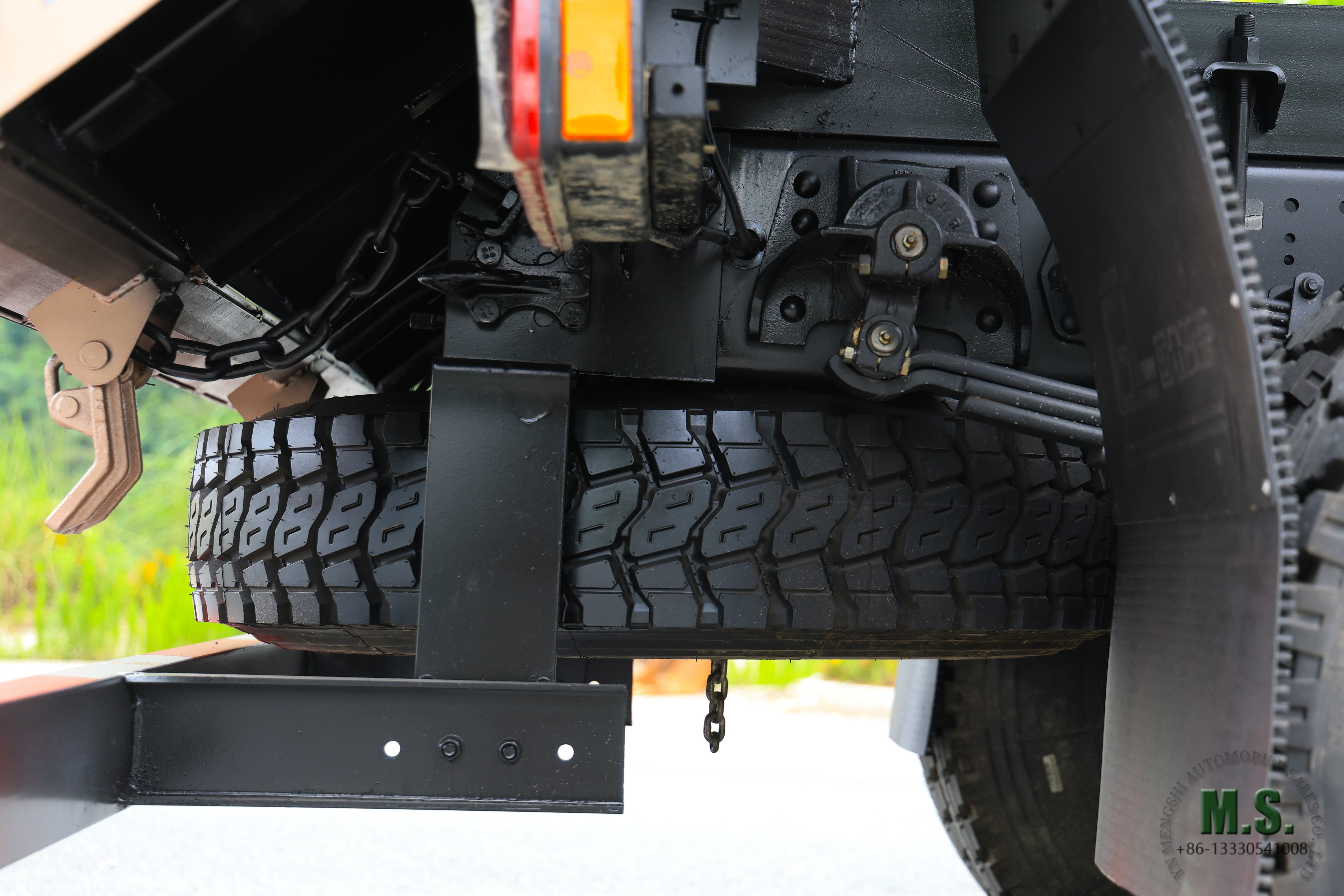

Tyres | 9.00R20 (6+1) |
Suspension | Leaf spring |
Wheelbase | 3600mm |
Axle | 2.7T/8T |
Wheel span | 1820/1840mm |
Curb weight | 6780kg |
Gross vehicle weight | 10700kg |
Approach Angle | 21° |
Departure Angle | 34° |

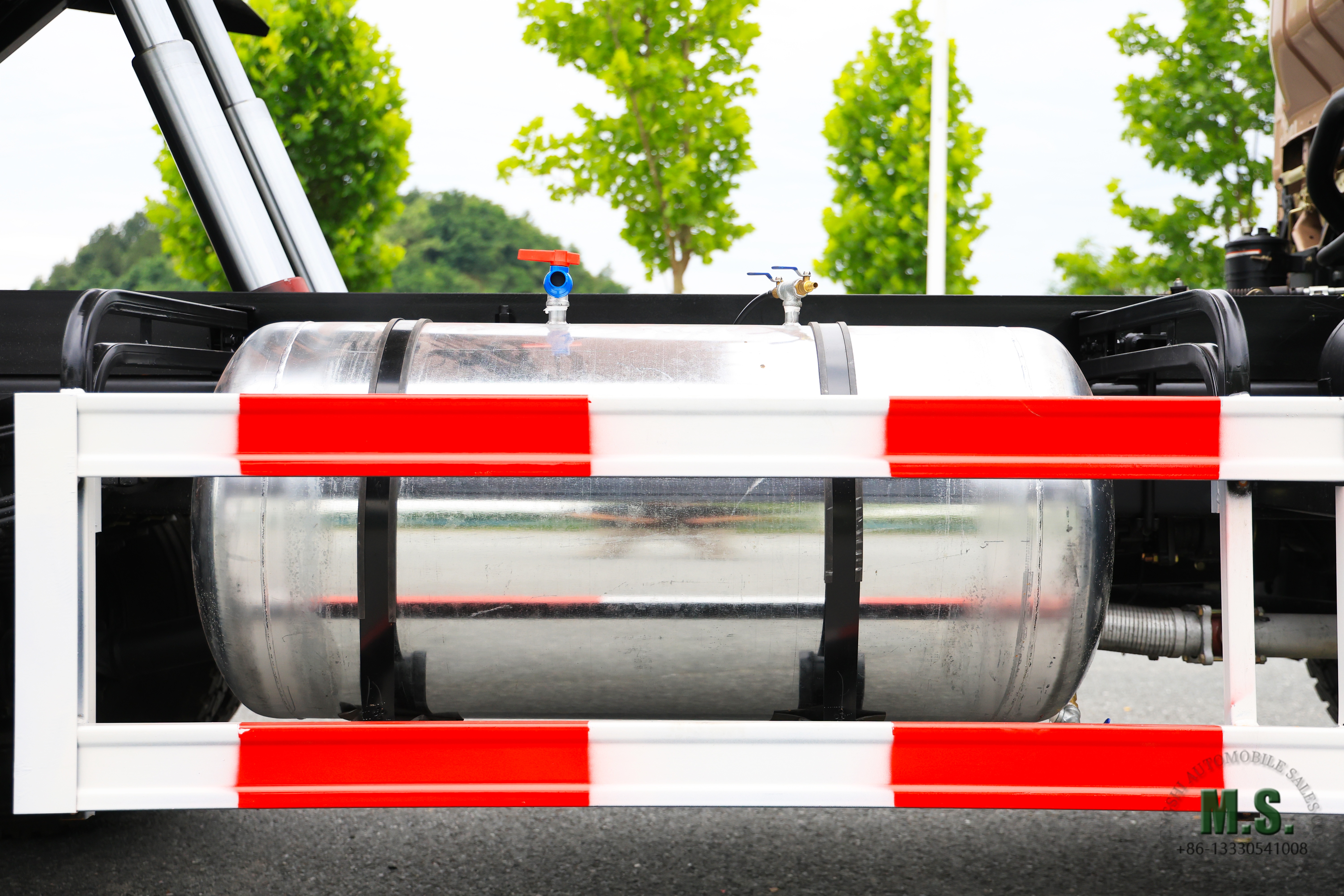

Fuel Tank Capacity | 160L |
Obstacle height | 280mm |
Fording depth | 500mm |
Minimum ground clearance | 720mm |
MAX.Speed | 85km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
