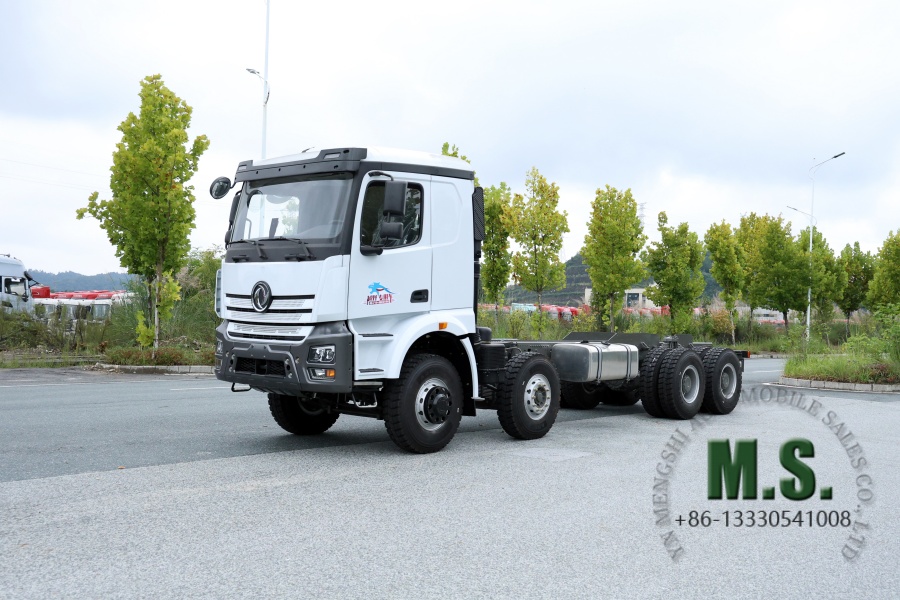

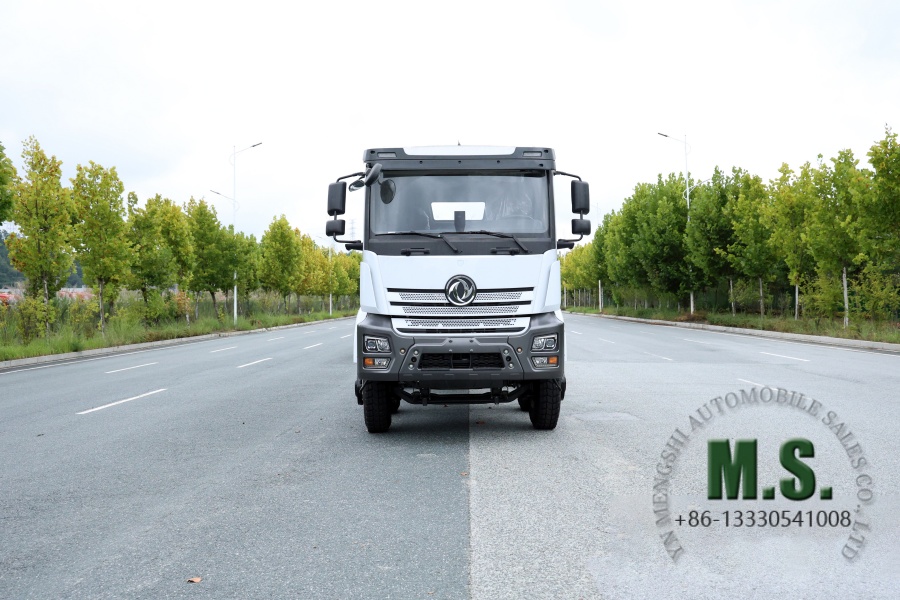

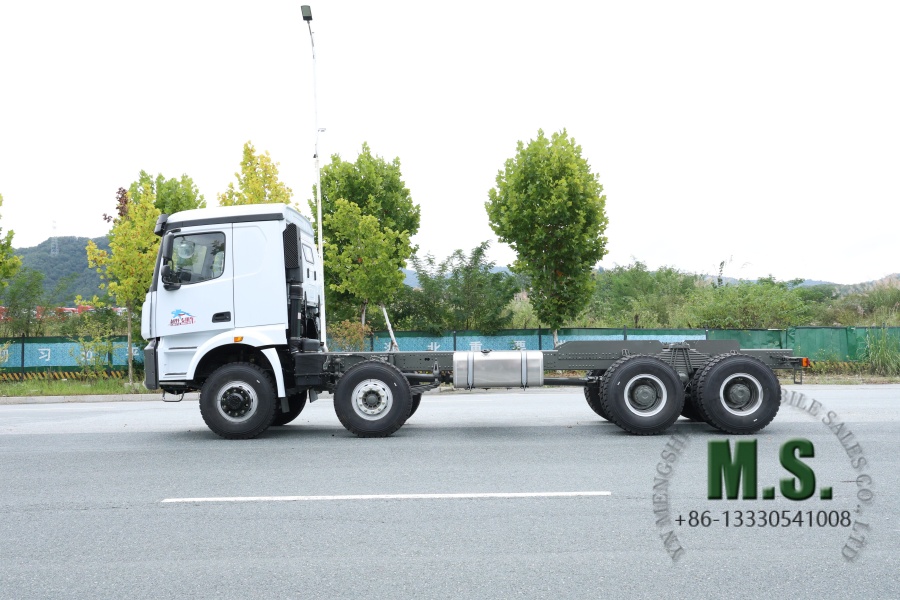

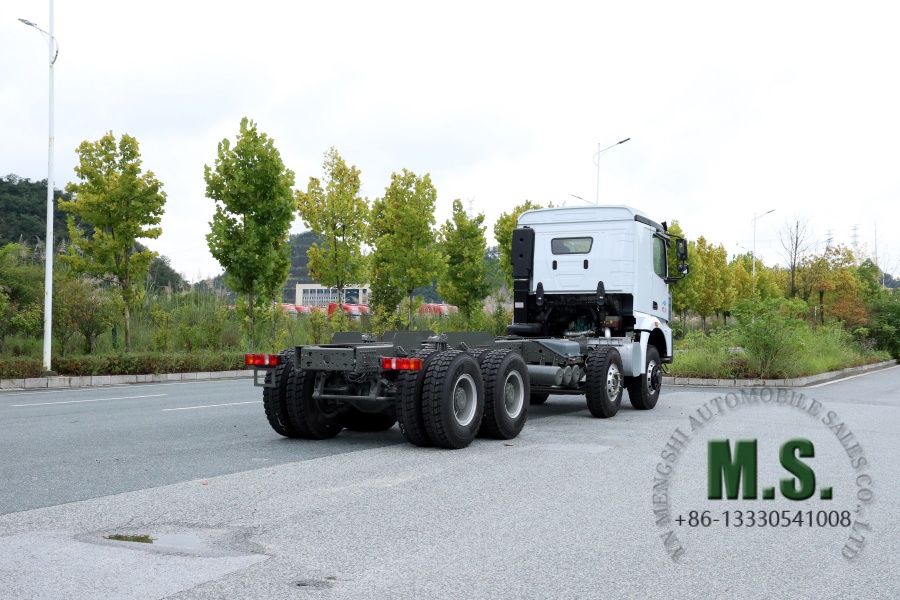

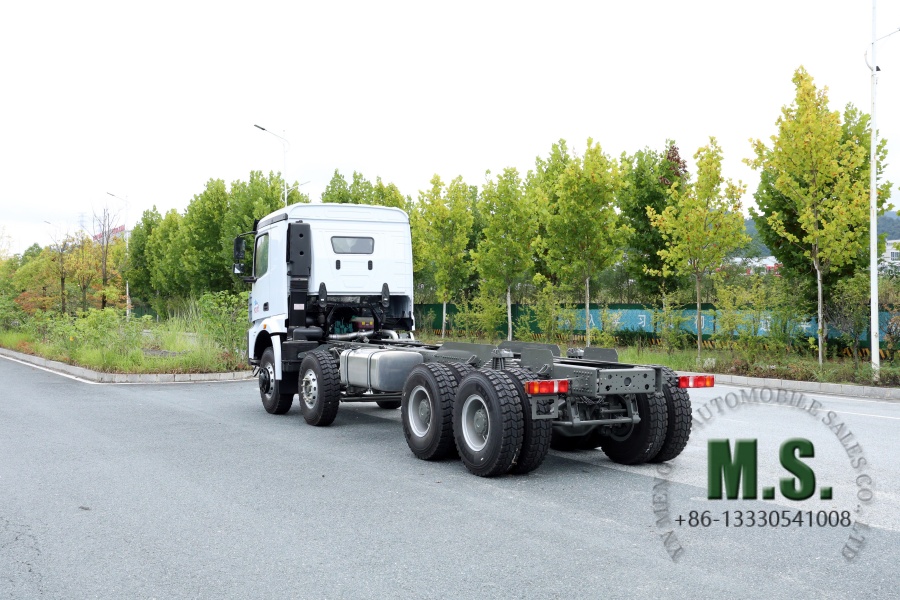

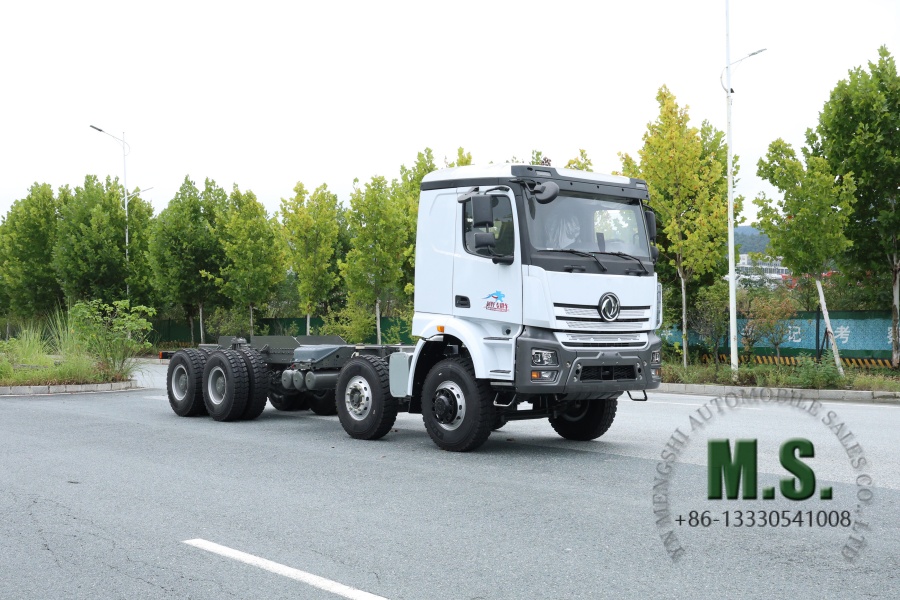

This Dongfeng Mengshi 8×4 heavy-duty chassis is equipped with a 336HP engine and 12-speed manual gearbox, with a 31-ton GVW and strong off-road passability. It can be sold as a bare chassis, and supports private and bulk customization. It is suitable for refitting into cargo trucks and stake body vehicles to meet diverse transportation demands.
Basic configuration | |
|---|---|
Item | Specification |

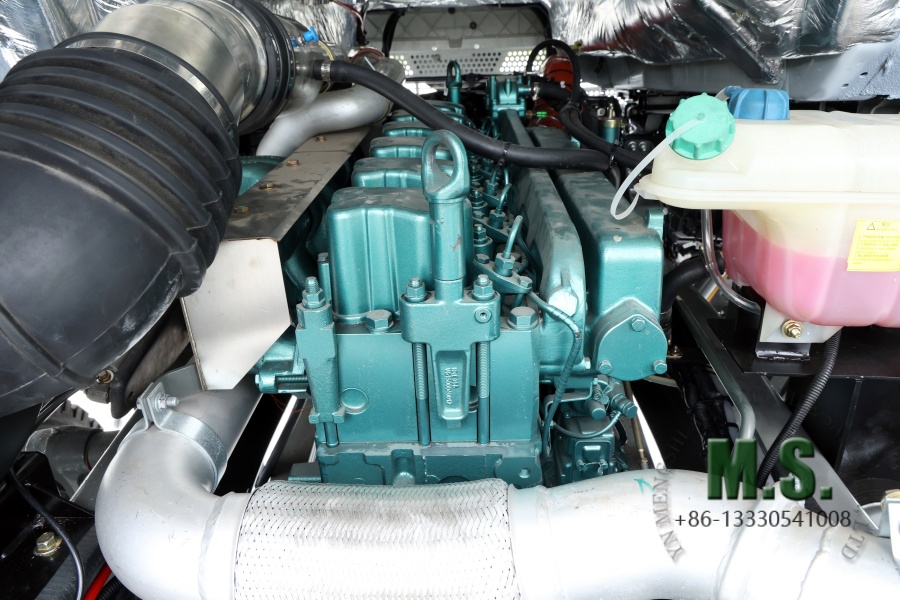

Engine | SINOTRUK WD615.69, 336 HP |

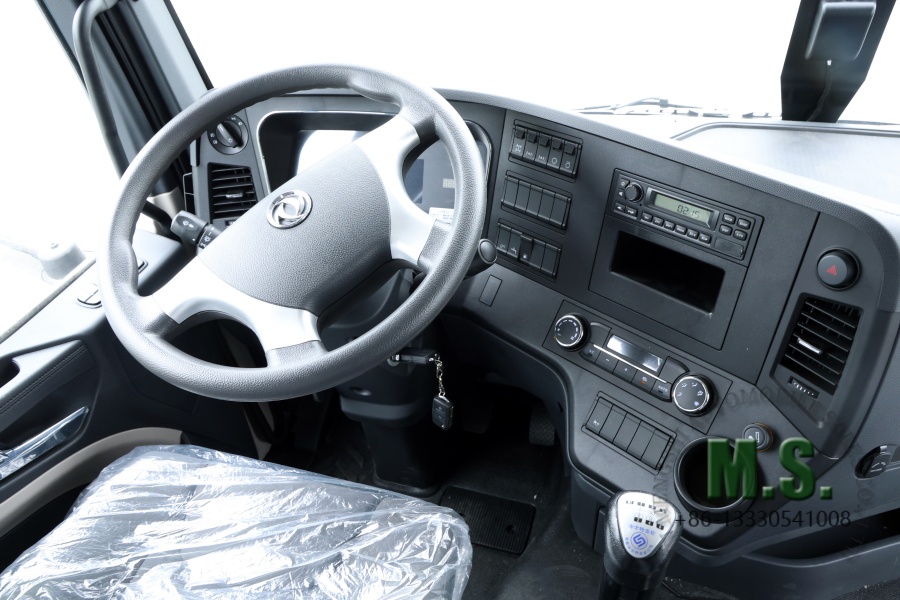

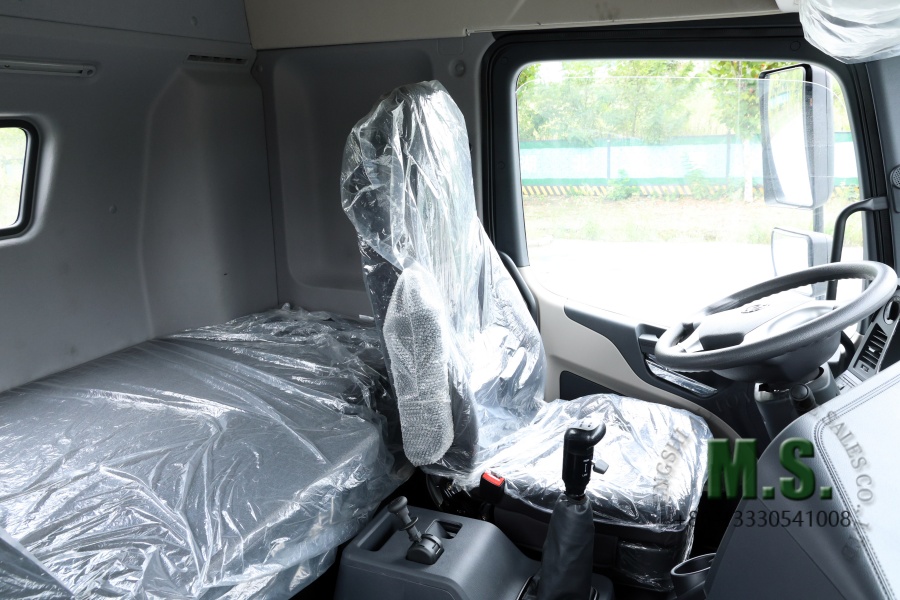

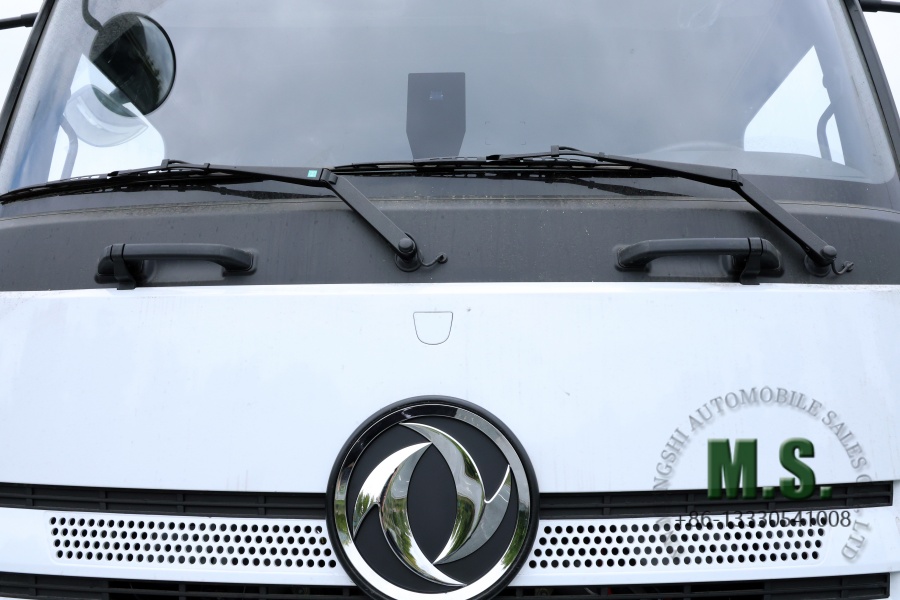

Cab | One and a half row cab |
Frame | 800×300mm (8+8) |

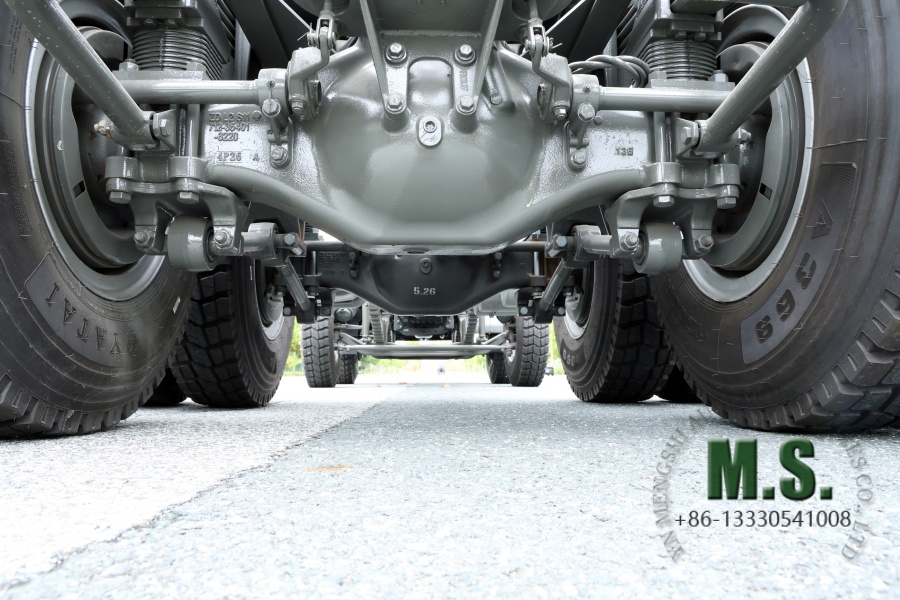

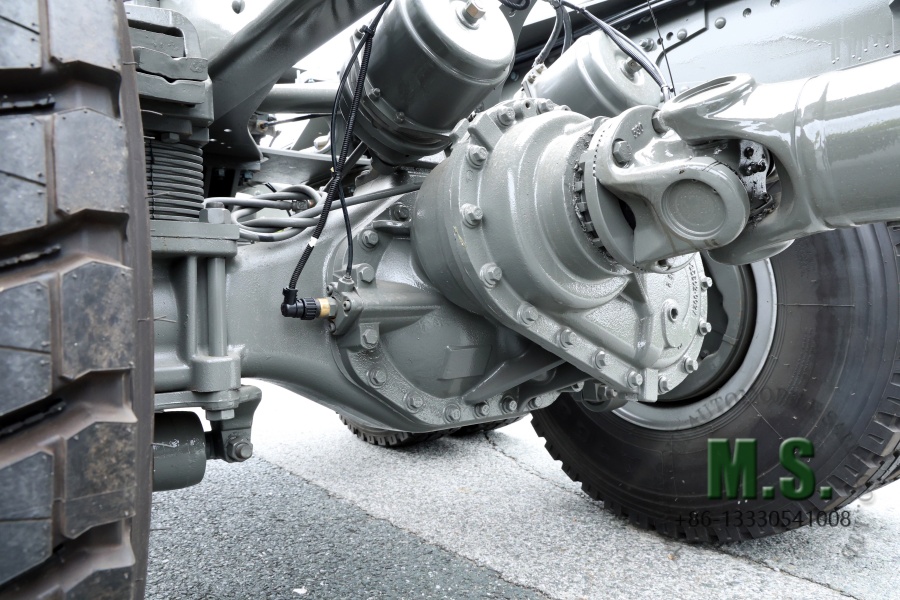

Axle | Dual 9T / Dual 16T |
Transmission | Manual 12-speed |
Transfer Case | None |

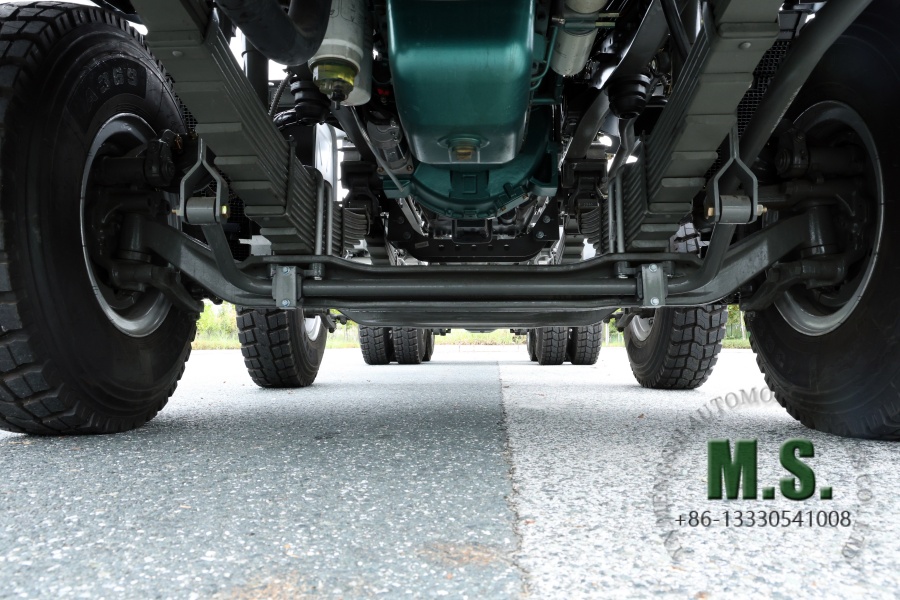

Suspension | Leaf spring 11/11/12 |
Tyres | 12.00R20 (12+1) |
Chassis Dimensions | 9705×2500×3460mm |
Conversion Dimensions | >7100mm |
Displacement | 9.726L |
Power | 196 kW |
Wheelbase | 1950+3850+1350mm |
Trackwidth | 2100 / 1900 mm |
GVW | 31000 kg |
Curb Weight | 11410 kg |
Approach Angle | 21° |
Departure Angle | 40° |
Minimum Ground Clearance | 365 mm |
Fuel Tank Capacity | 420 L |
Fording Depth | 640 mm |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
