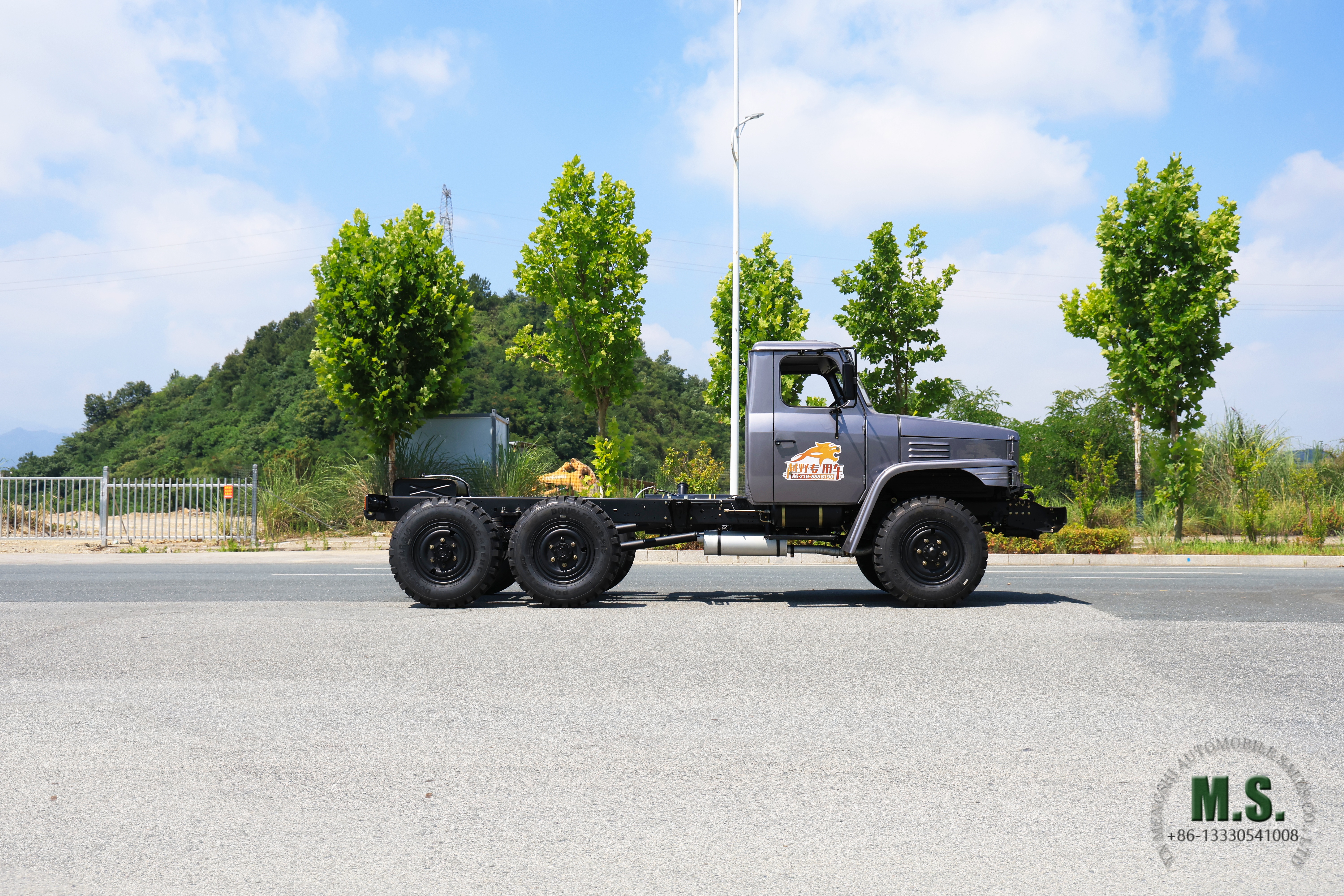

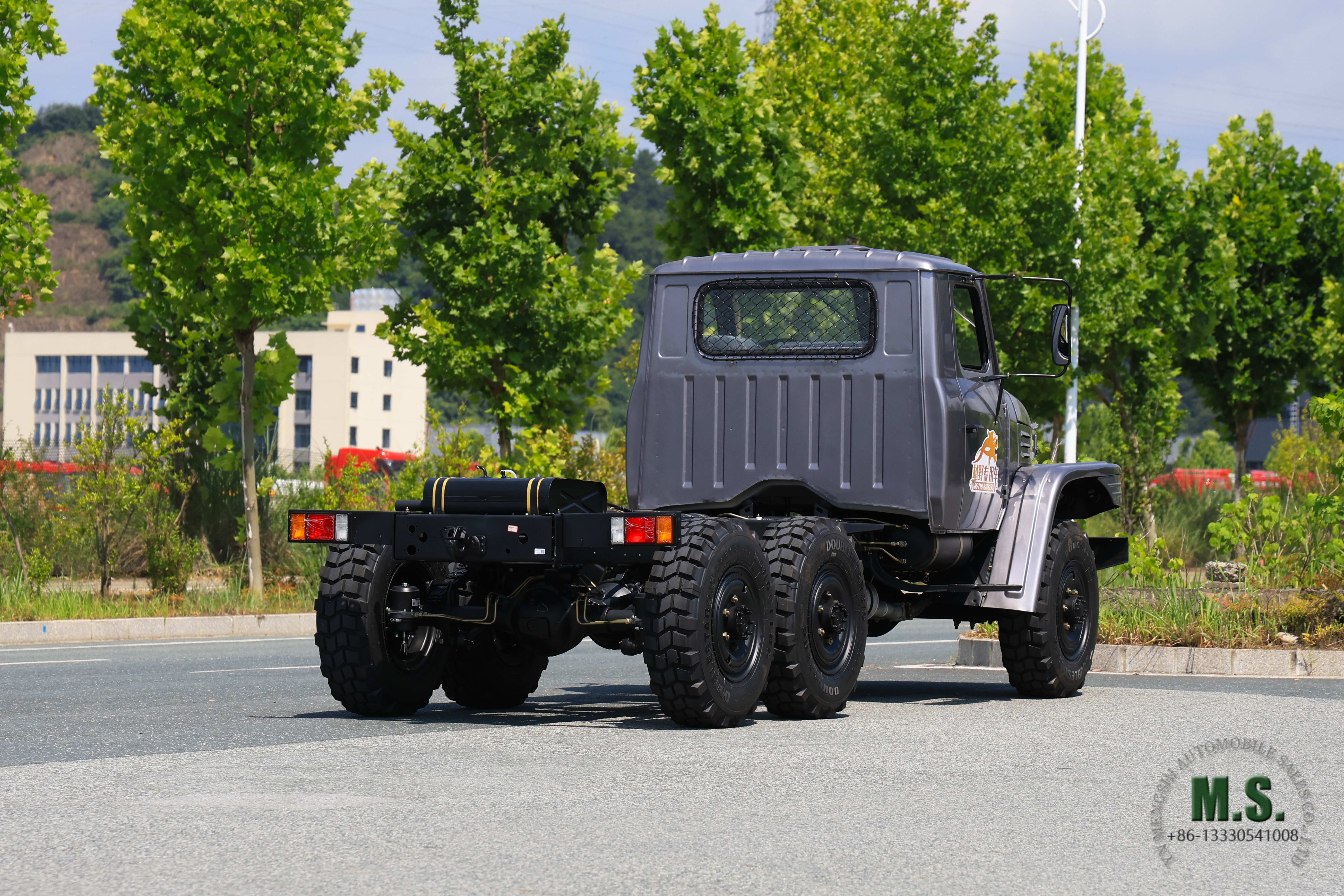

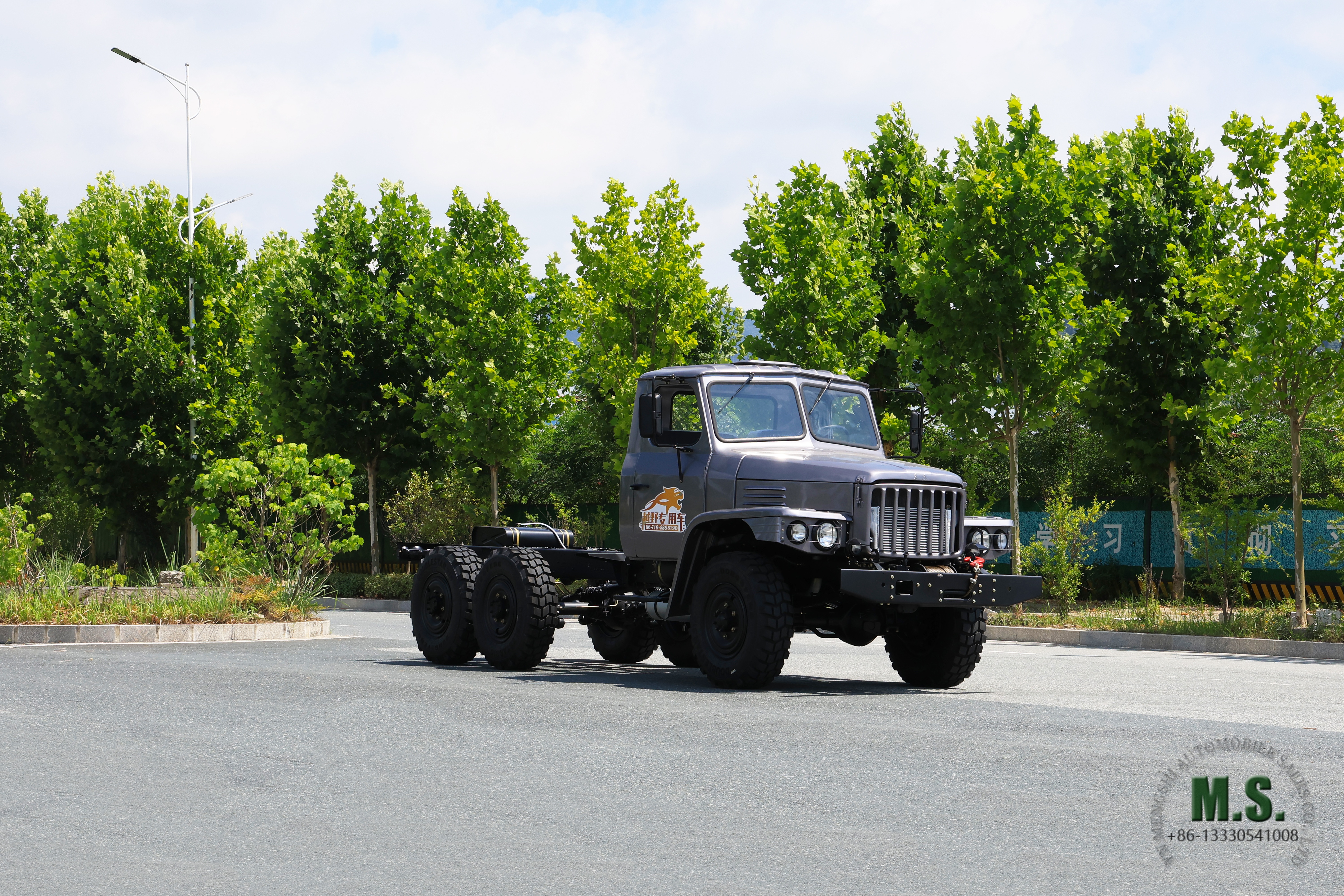

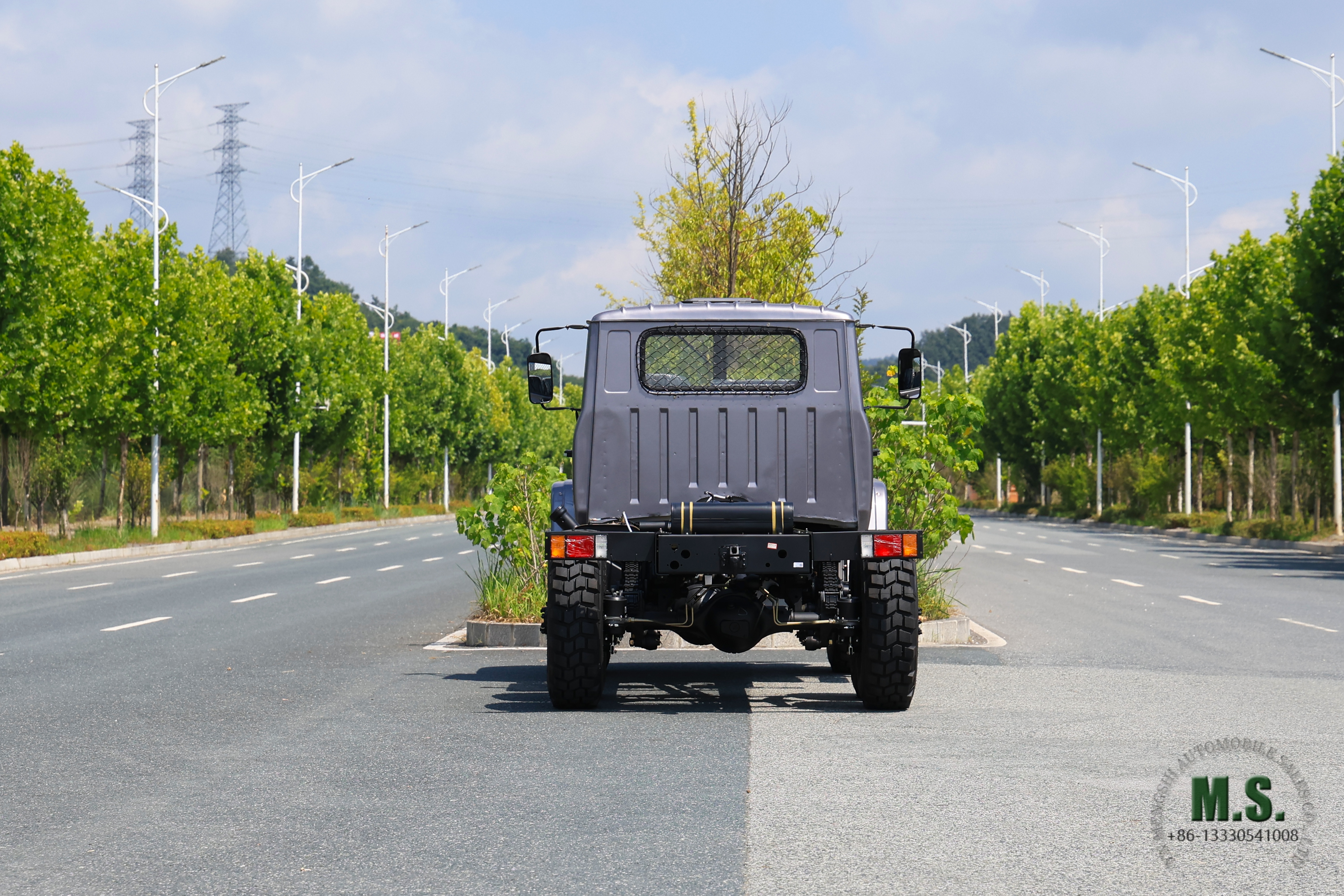

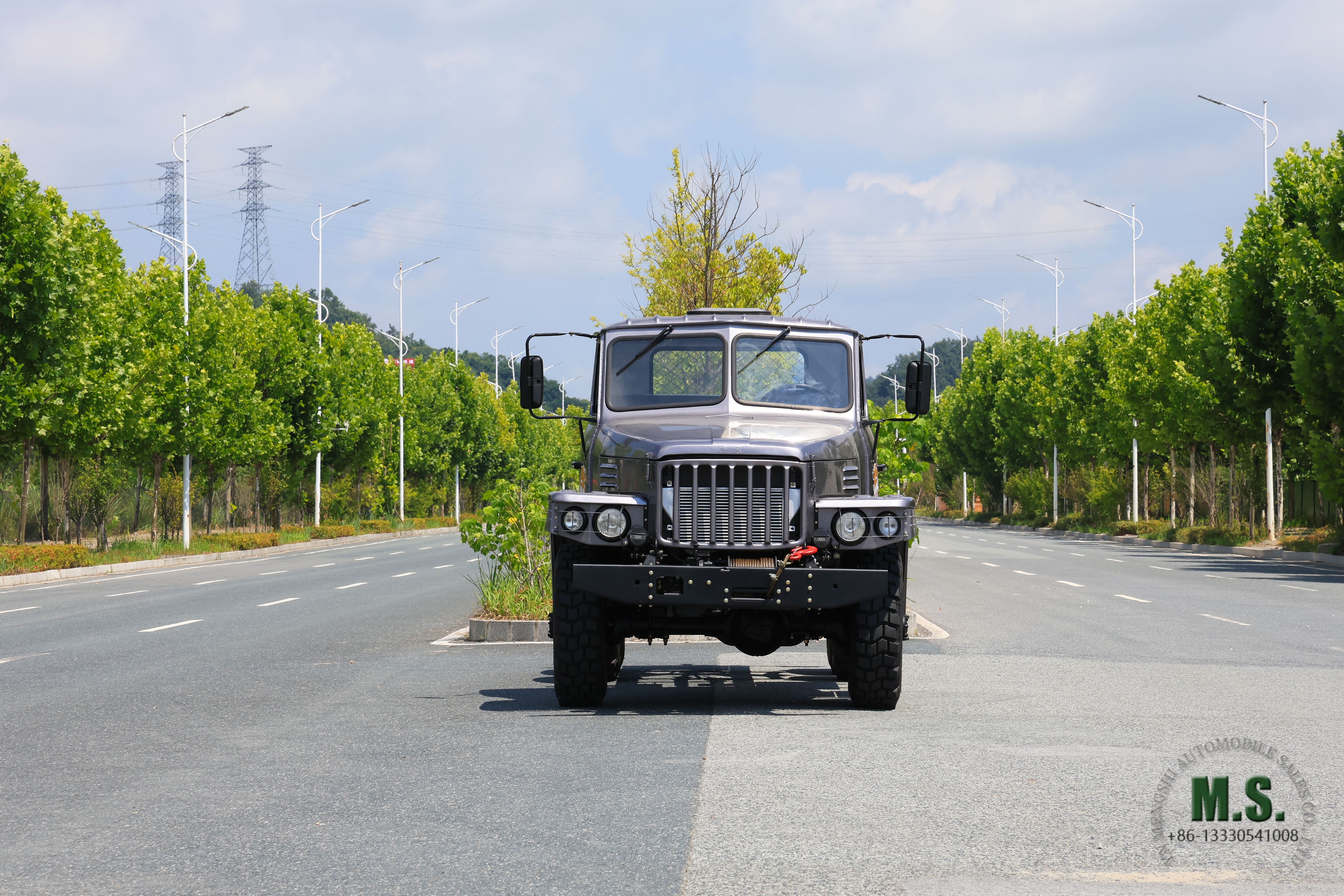

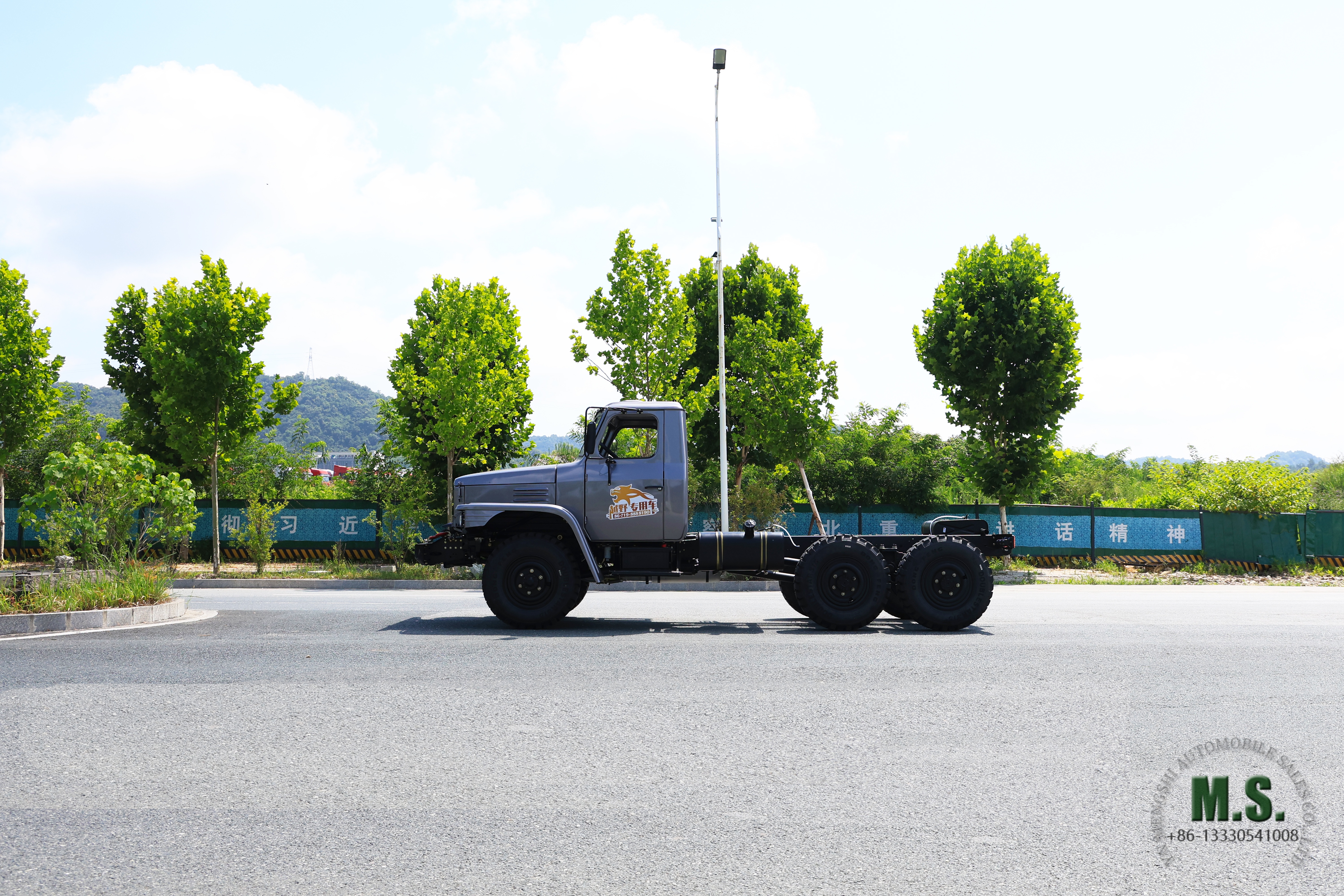

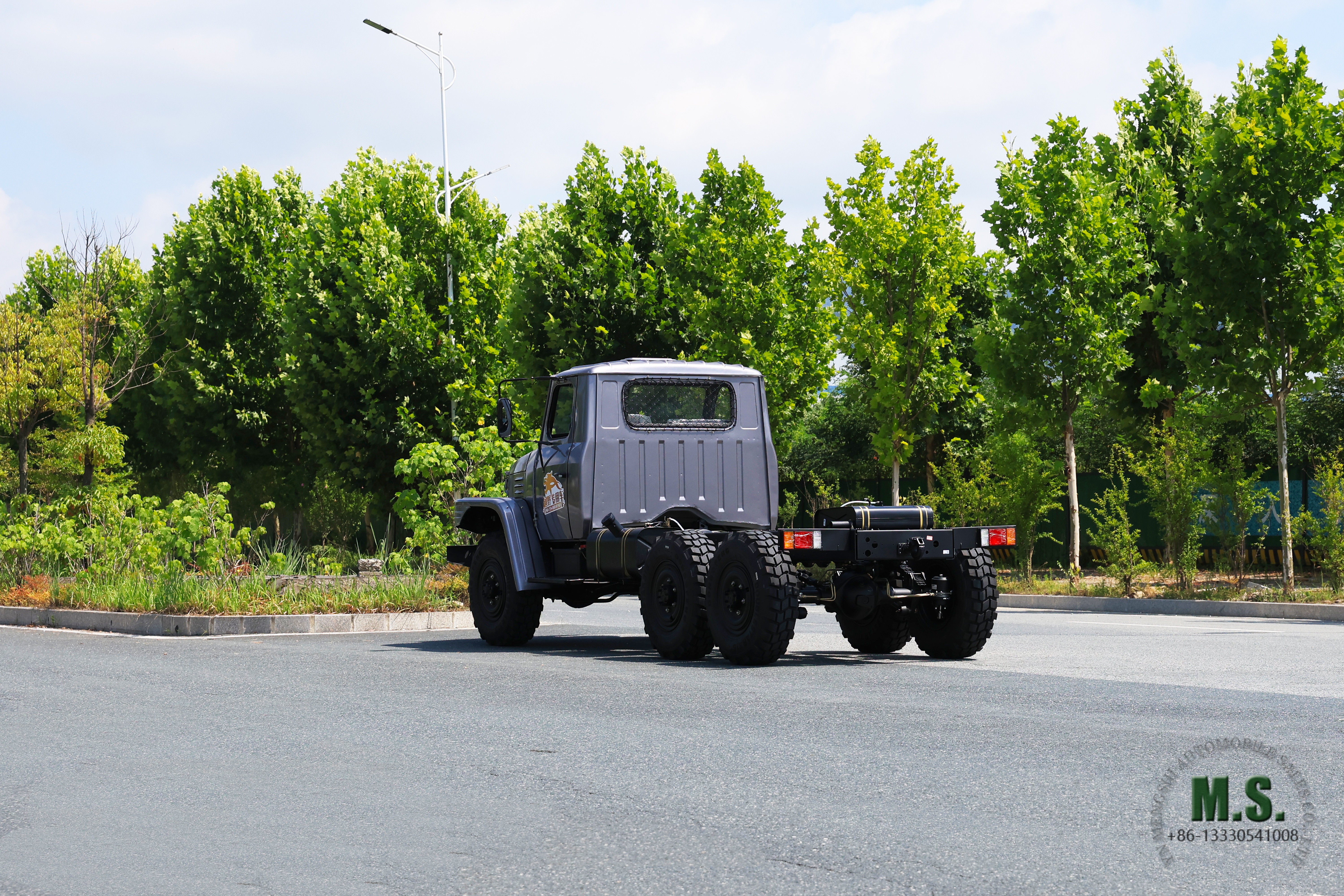

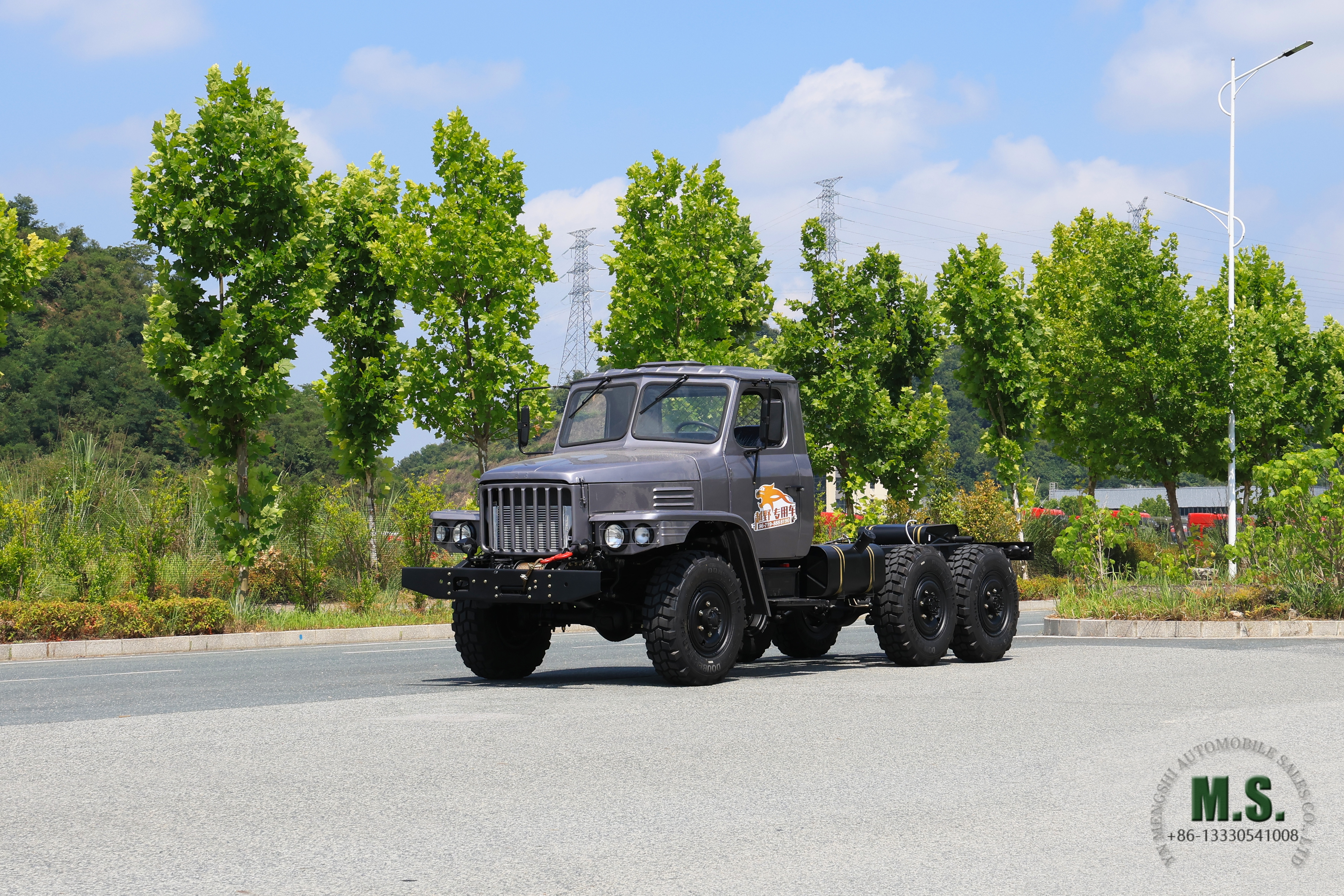

The chassis applied the special purpose truck chassis model, the whole vehicles with very less electronic parts inside. Very durable, suit for harsh operation circumstance. With brake cooling system, no fear of any slope. Durable and good price is what is it for.
Basic configuration | |
|---|---|
Engine | Cummins B170 33 |
Horsepower | 170Hp |
Rated Power | 125kw |
Max Torque | 560N.m |
Displacement | 5.9L |
Emission Standard | Euro-2 |
Gearbox | Manual Five-speed |
Transfer Box | 2 Speed |
Wheelbase | 3190+1100mm |
Track Width | 1740/1992mm |
Overall Dimension | 6520×2540×2560mm |
Superstructure Length | ≥3410mm |
Suspension | Leaf Spring |
G.V.W | 9800kg |
Curb Weight | 4760kg |
Minimum Ground Clearance | 280mm |
Obstacle Crossing Height | 430mm |
Wading Depth | 570mm |
Tyre | 8.25R20（10+1） |
Fuel Tank | 160L |
Brake cooling water tank | 200L |

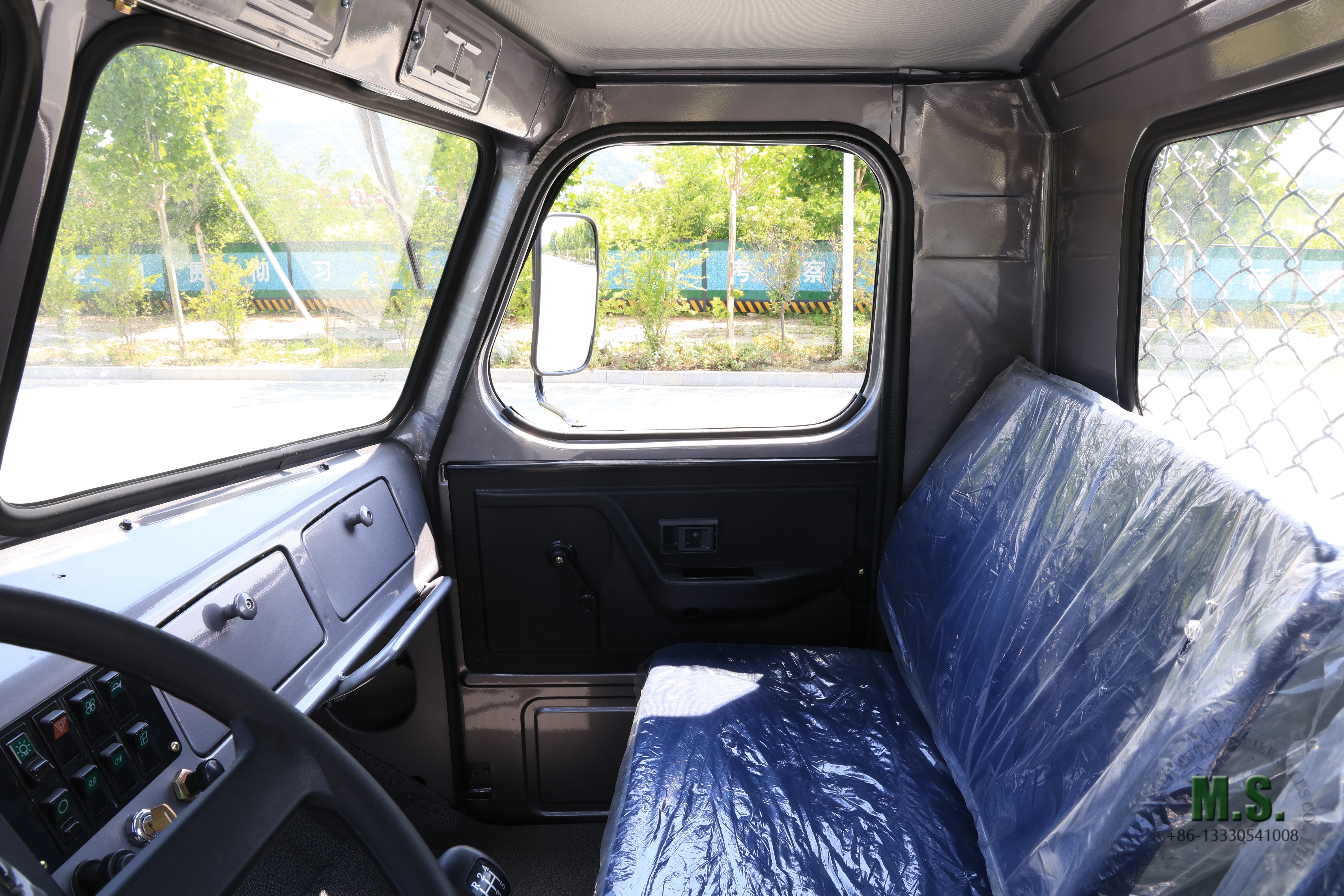

Seats | 2 |
Max Speed | 85km/h |
Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
