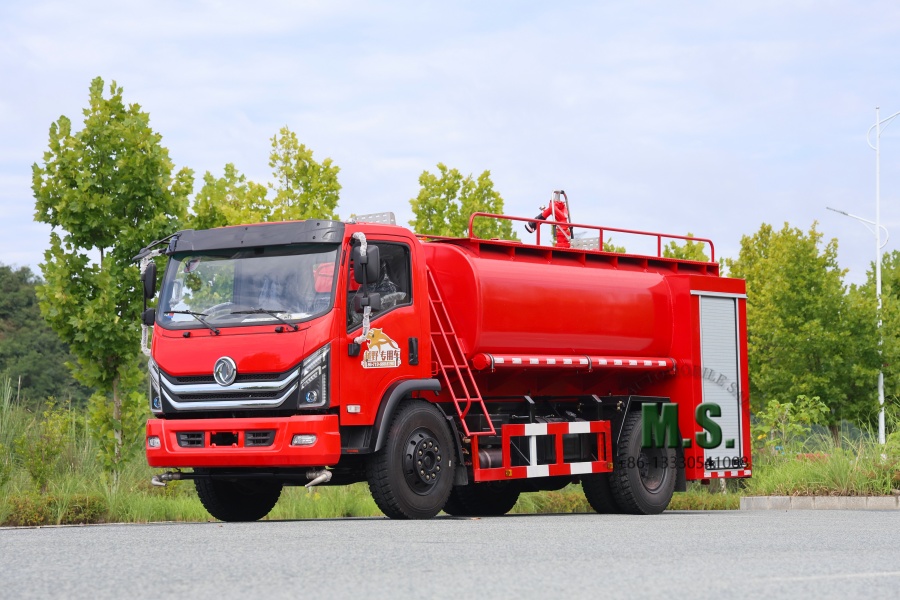

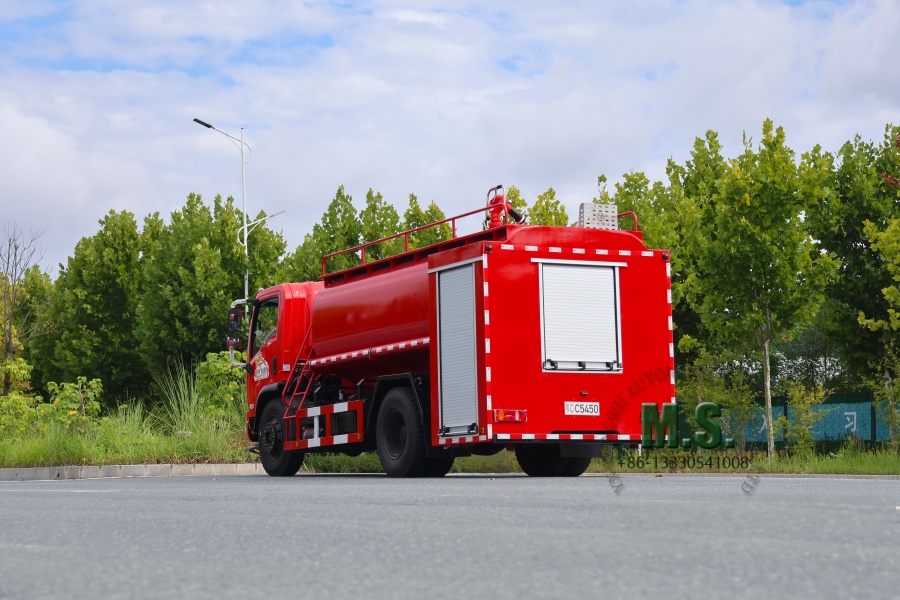

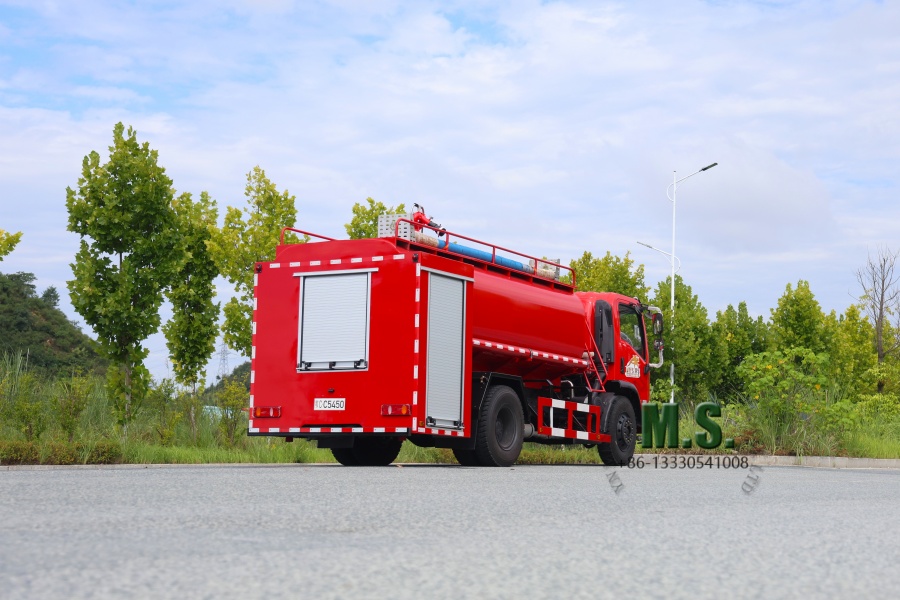

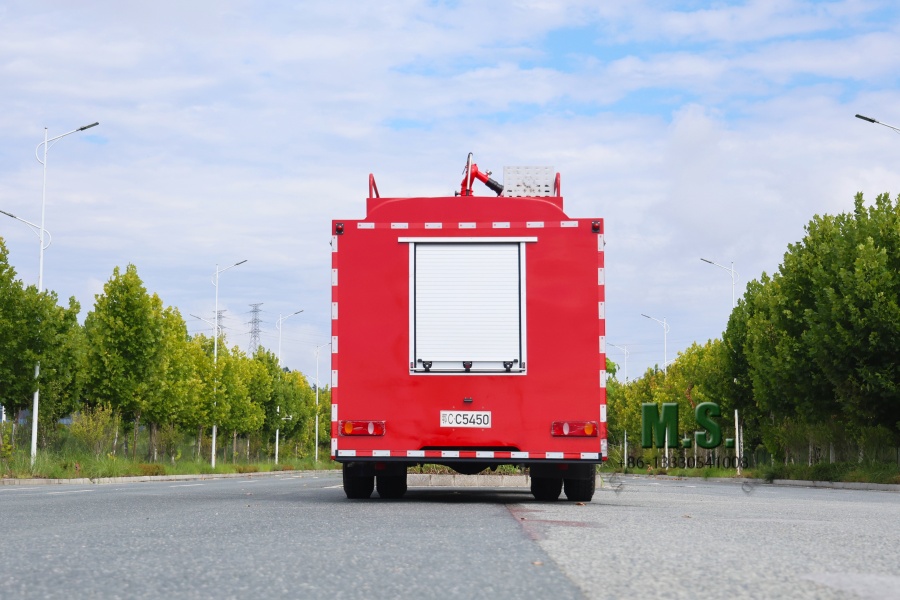

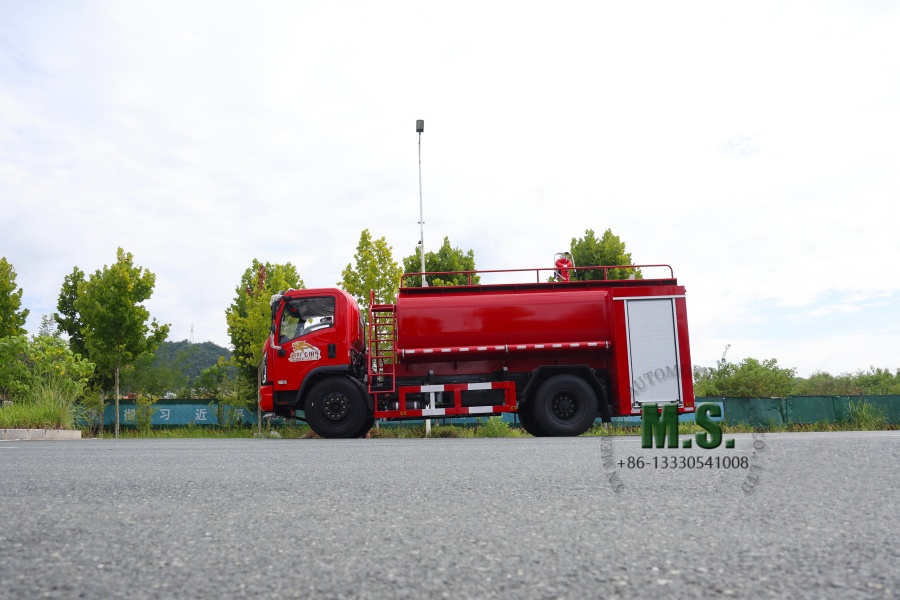

4×2 7 Cubic Meter Fire Truck with Cummins B170 Engine for Fire Rescue

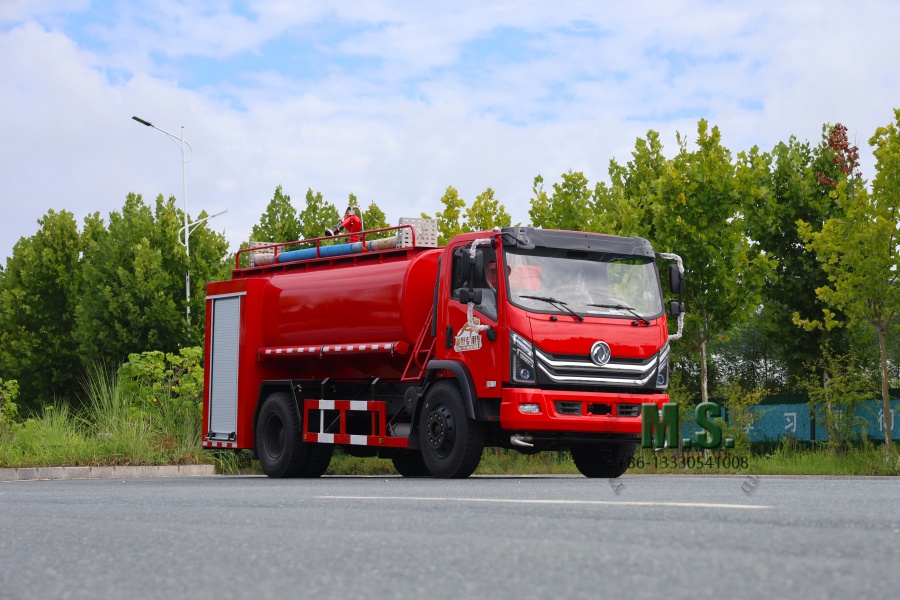

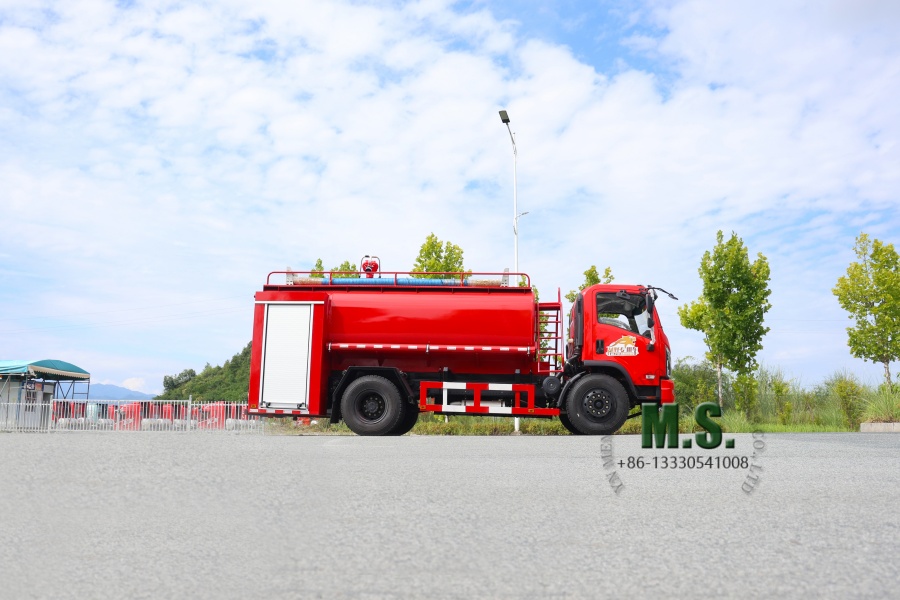

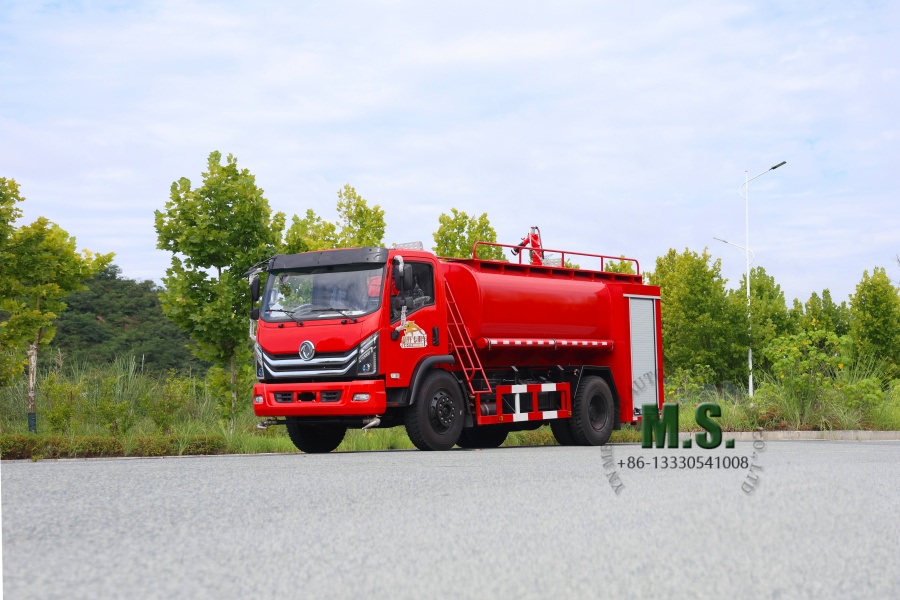

This 4×2 7m³ fire truck is powered by a robust Cummins B170 engine with 125kW output. Built with heavy-duty axles and leaf spring suspension, it features a 7 cubic meter water tank to meet emergency fire-fighting demands. It has a large 250L fuel tank for long-distance rescue missions, stable driving performance and good off-road capability, a reliable emergency rescue vehicle for export.

Quantity:
Availability:





Inquire Add to Basket

This 4×2 7m³ fire truck is equipped with a reliable Cummins B170 engine of 125kW power. It adopts a sturdy leaf spring suspension and heavy-duty axle design, with a 7 cubic meter tank for fire fighting water storage. With a large 250L fuel tank, solid frame structure and good cross-country ability, this fire truck delivers stable power and long endurance for fire rescue tasks.

Basic configuration
Specification	Details
Engine	Cummins B170 33

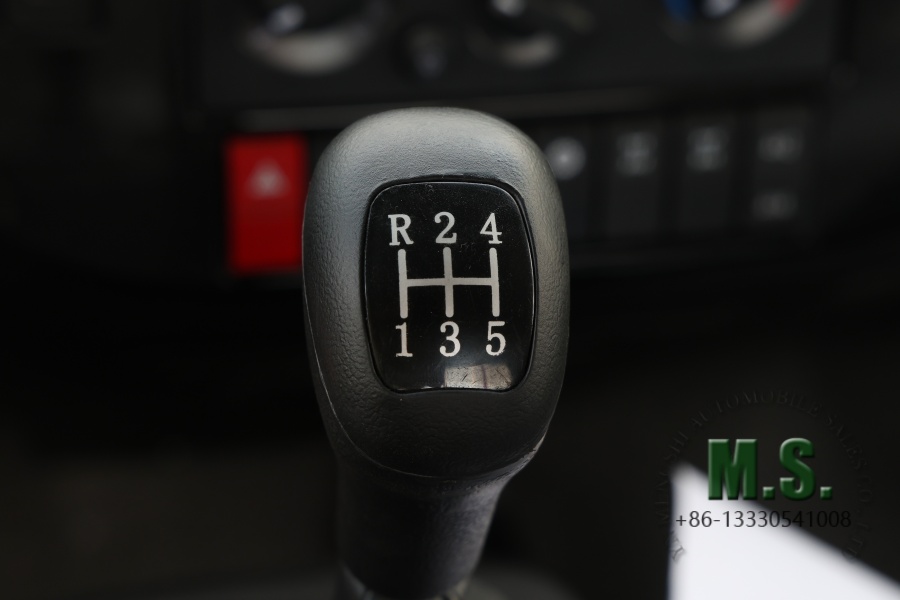

Transmission	Manual five speed

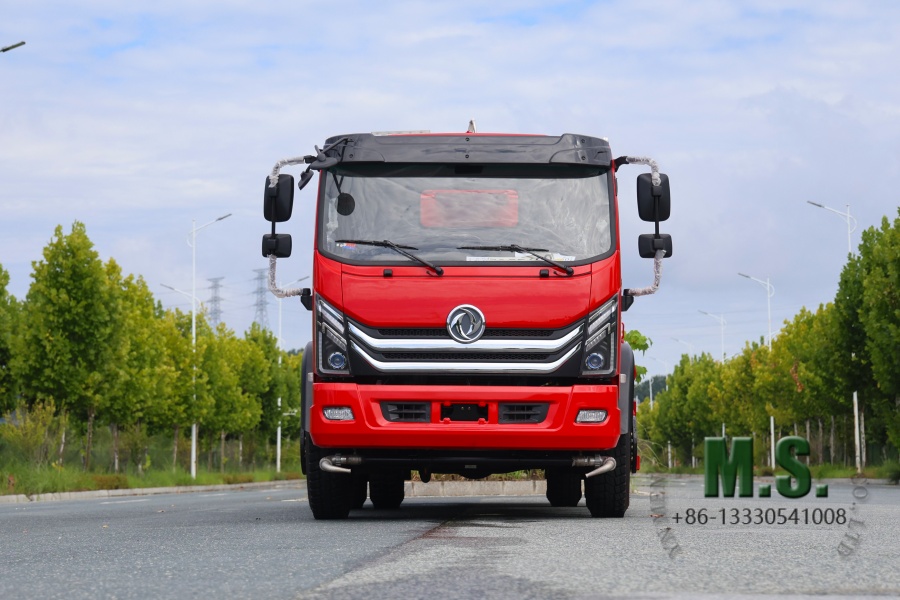

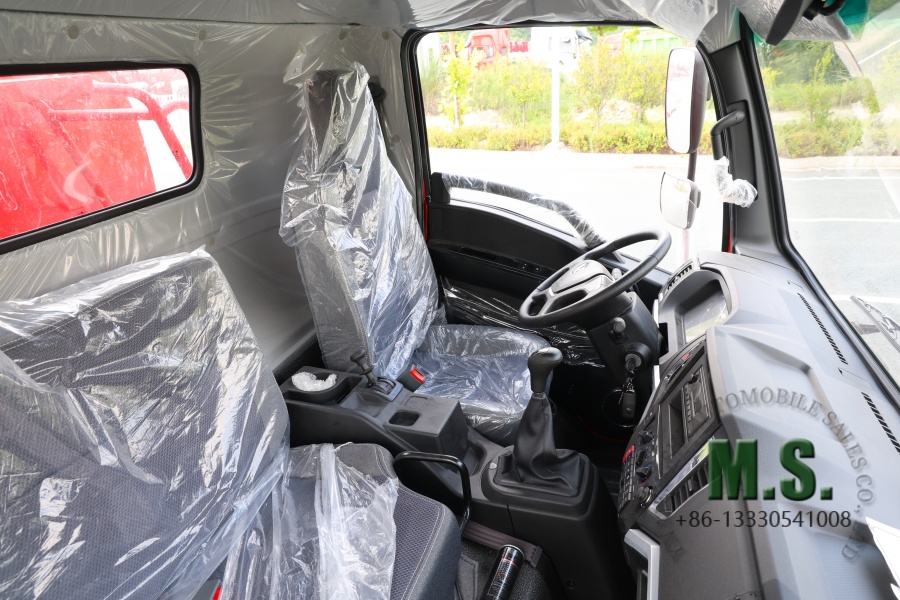

Cab	Flathead single cab
Transfer Case	High and low speed
Frame	860×250 (8+4)
Suspension	Leaf spring 9/10+8

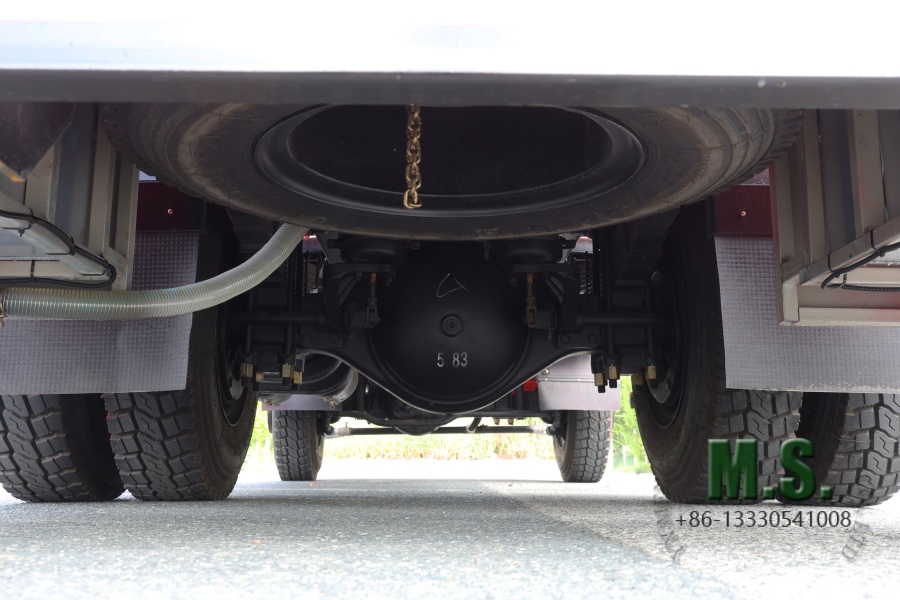

Axle	5T/10T
Tyres	10.00R20 (6+1)
Vehicle Dimensions	7300×2500×3120mm
Tank Capacity	7m³
Displacement	5.9L
Power	125kW
Chassis Dimensions	7160×2480×2720mm
Conversion Dimensions	＞4570mm
Wheelbase	3800mm
Track Width	1850/1780mm
GVW	15000kg
Curb Weight	7990kg (complete) / 5230kg (chassis)
Approach Angle	24°
Departure Angle	22°
Minimum Ground Clearance	250mm

Note: This specification is for reference only, please refer to the actual vehicles. The factory reserves the final right to interpret the specification.
