330-horsepower 12-ton Gross Weight 4x4 Off-road Armored People Carrier Bus_Cummins Engine, Front Double Wishbone Independent Suspenssion, Armored Version Available, 10 Seats_Manufacturer Direct

Armored people carrier, fully customizable.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Using an extremely advanced off-road chassis, a fully customizable van cargo truck bus. It can be modified into a police personnel transport vehicle or prisoner transport vehicle, fully customizable. The powerful engine provides a maximum torque of 1200. Use ZQC1200 Transfer Case.


Basic configuration

 Engine Cummins ISDE6.7-330
Horsepower330Hp
Max Torque1200N.m
Displacement6.7L
Emission StandardEuro-3
 Gearbox Manual Automatic Transmission
 Transfer Box 2 Speed
Wheelbase3700mm
Overall Dimension
6200*2500*2100mm
Approach/Dparture Angle40°/25°
G.V.W12000kg
Curb Weight5500kg
Towing Capacity5000kg
Axle4T/8T
Vertical Through Angle30°
Front/Rear Overhang1050/1150
Ramp Hold Ability40%
Gradeability40%
Minimum Ground Clearance370mm
Vertical Obstacle Crossing Height500mm
Trench Crossing Width
800mm
Wading Depth1000mm
Turning Redius17m
Tyre395/85/r20 CTIS, Run-flat optional
Fuel Consumption≤19L/100km
Seats10
Max Speed120km/h


Note: This specification is for reference only,  please refer to the actual vehicles. The factory reserves the final right to interpret the specification.

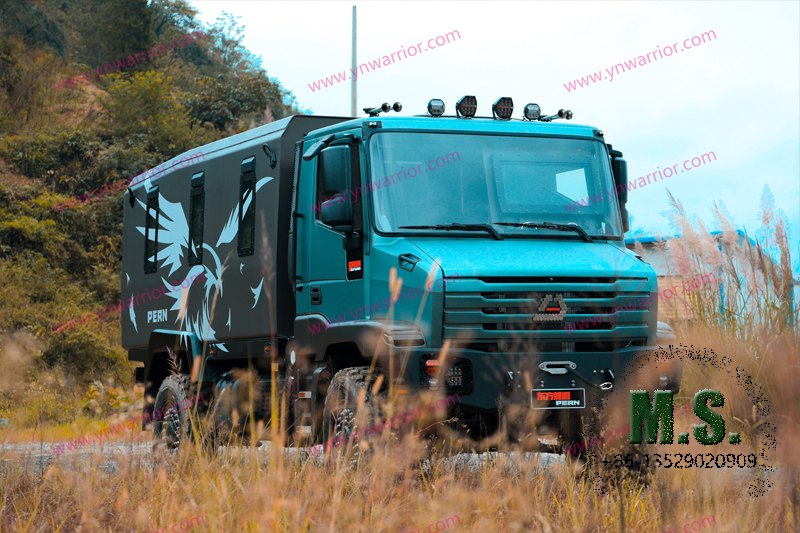

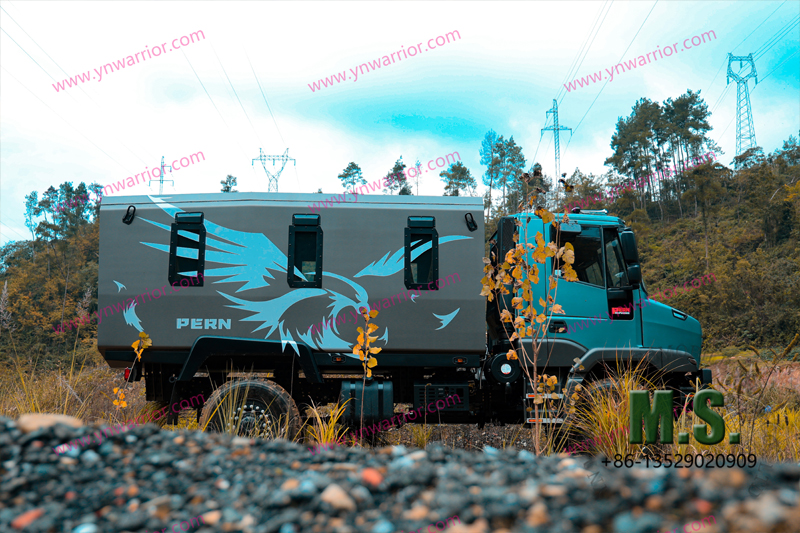

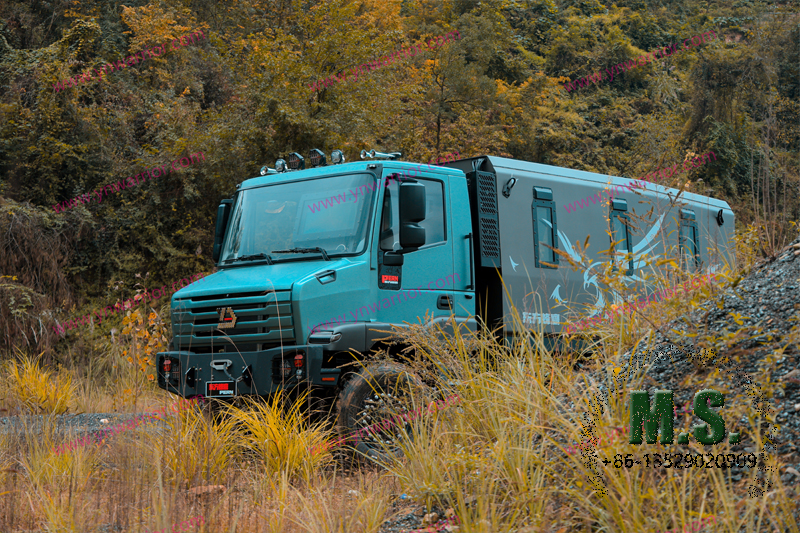

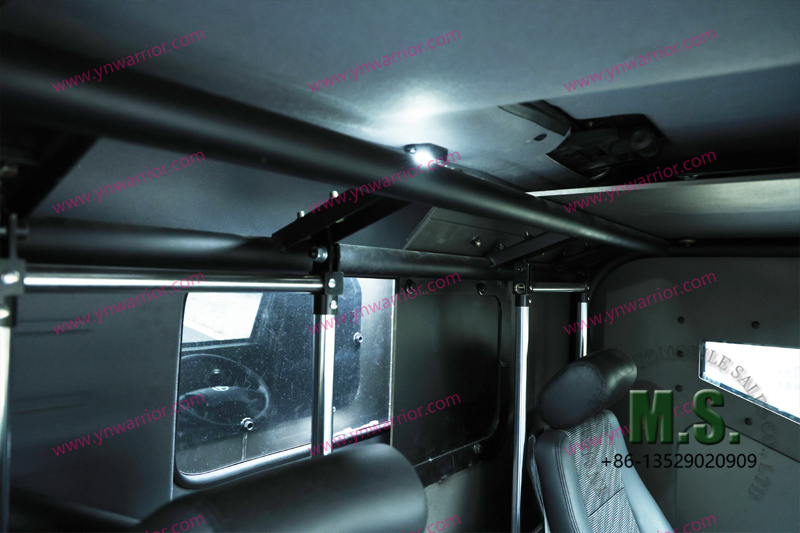

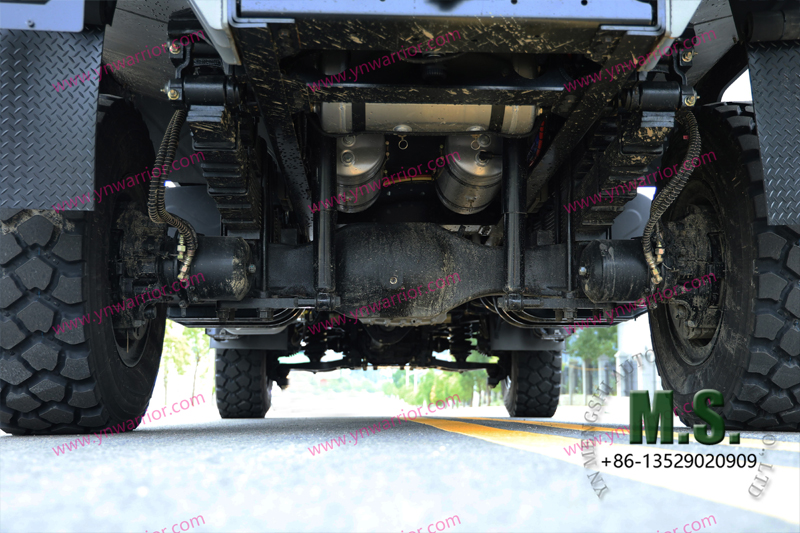

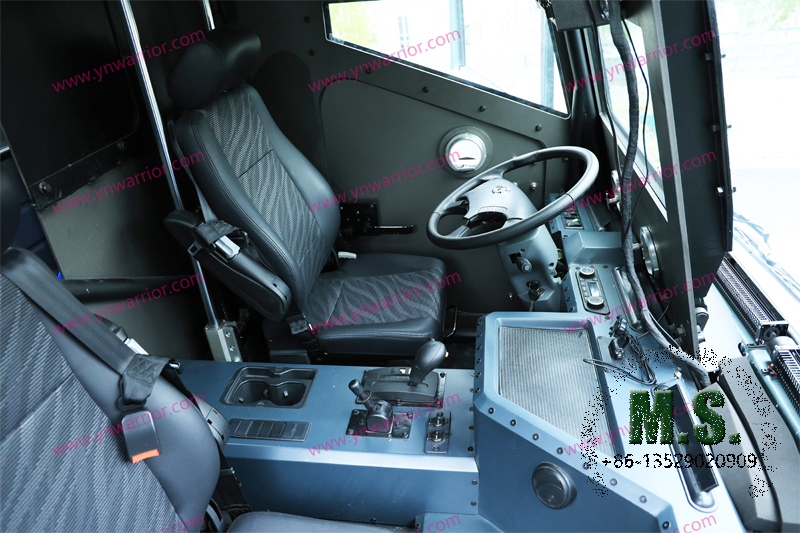

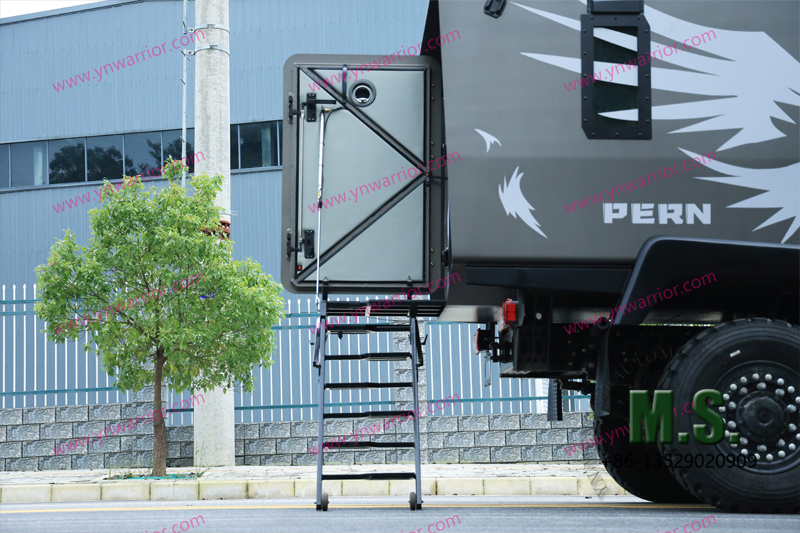

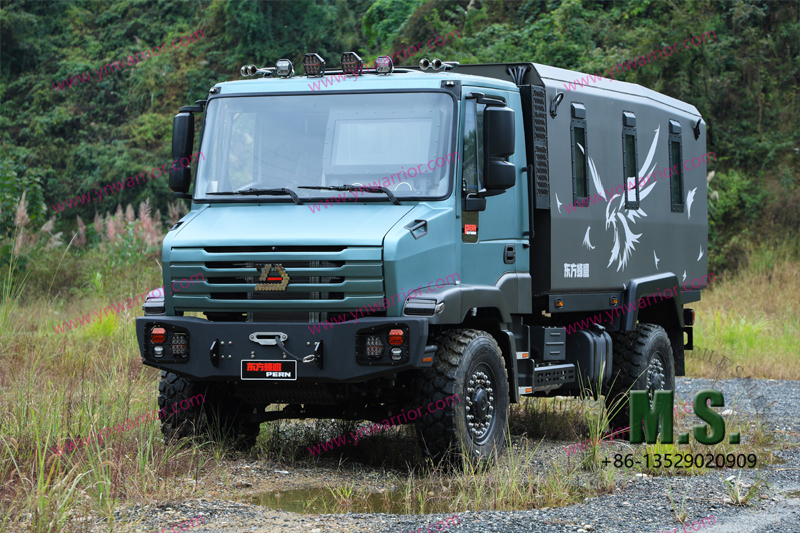

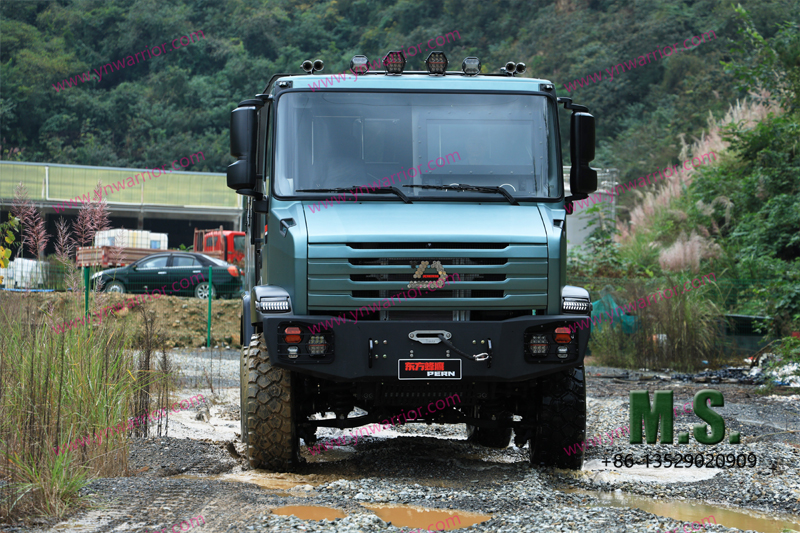

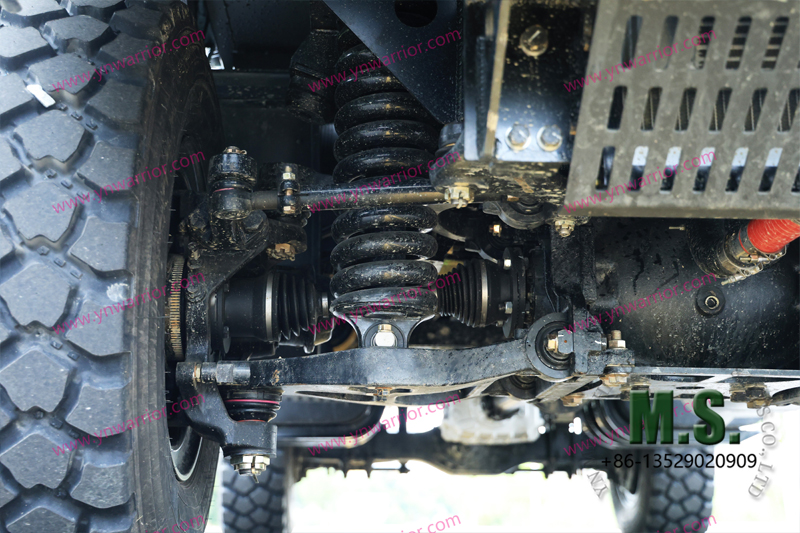

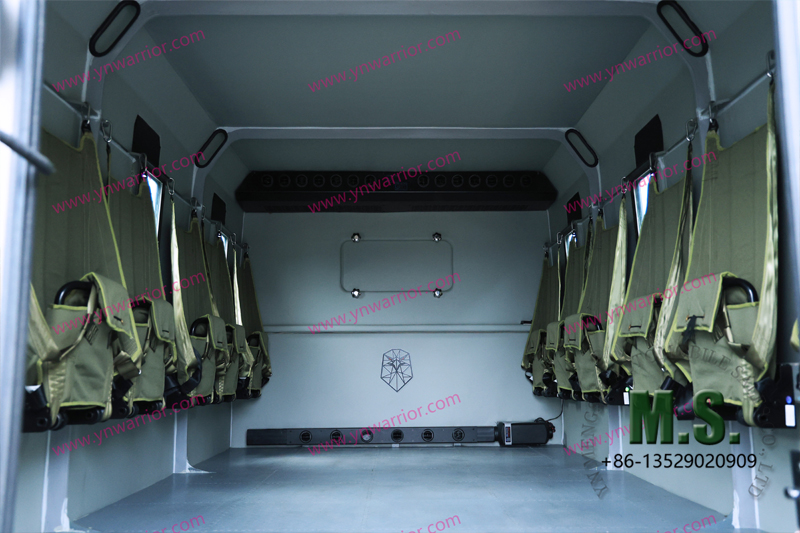

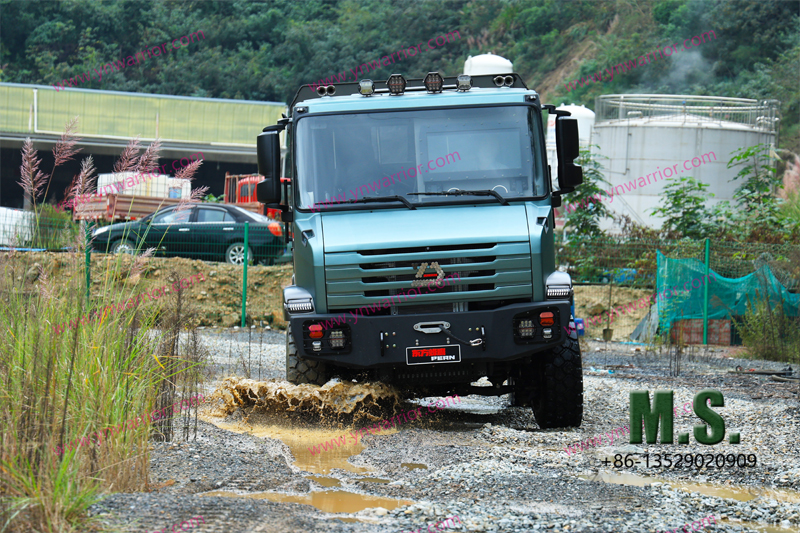

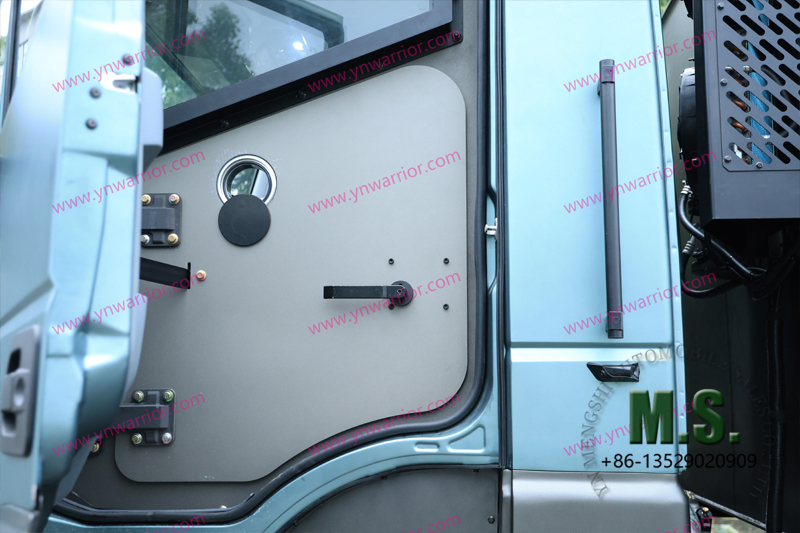

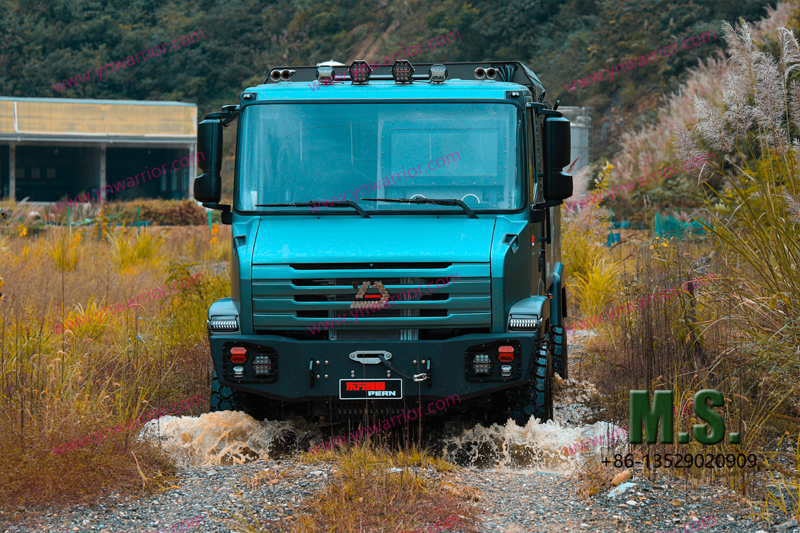

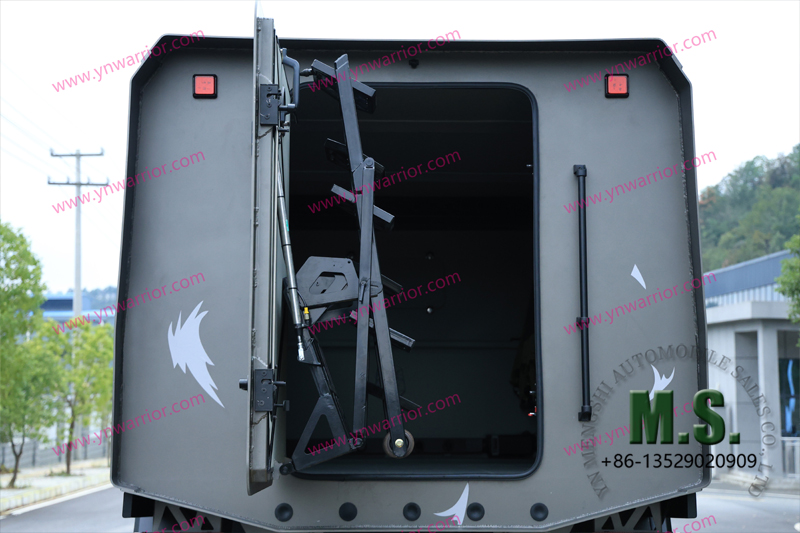

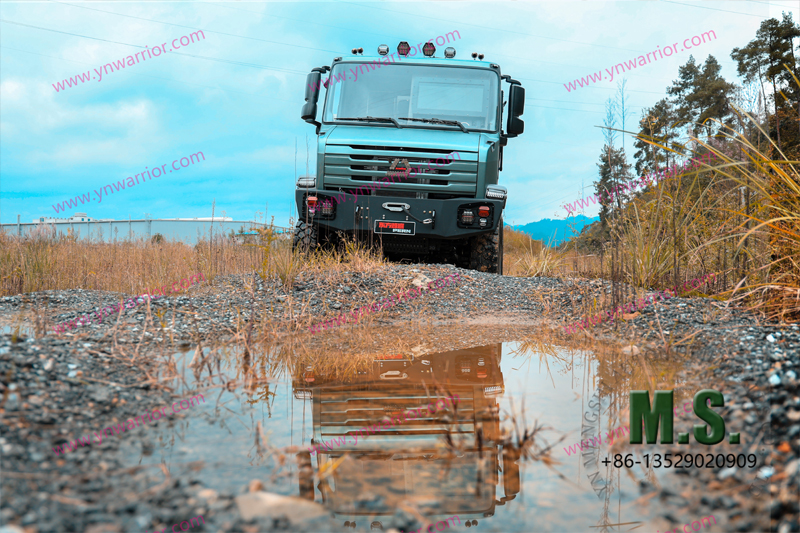

van trunk soldier transport truck 4x4tough terrain off-road armored vehicle made in Chinamilitary standard off-road truckMade in China 4x4 off-road prisoner transportation truckhigh-end off-road capacity Chinese made camper truck or soldier carrier truckhigh wading dept of Chiense made armored truckfront independent suspension truck armoredclose compartment 4x4 off-road truck militarybullet proof+ shooting hole of armored vehicledouble safty doors of armored vehiclefront double wishbone independent suspension ofinterior of Chiense soldier carrier armored vehicleinterior view of cab of Chinese made 4x4 armored vehiclerear foldable ladder armored truckrear leaf spring suspension of Chinese Armored troops carriershooting hole of door of cab of armored vehiclesolid chassis of chinese armored vehiclewindows and ventilation between the cab and rear van trunk of soldier carrier

未标题-1

transportation

        For 50% of our shipment, the vehicle will be transported by sea, to all main continents such as Africa, South America, Middle East, Oceania and Southeast Asia, either by container or RoRo/Bulk shipment. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Myanmar, Vietnam etc. , we can transport vehicles by land.

       For light spare parts in urgent need. We can send it by international courier service, such as DHL, TNT, UPS, or Fedex.

payment

       On T/T term, 50% down payment is required in advance,and the 50% balance shall be settled before shipment or when products are out of the factory. T/T payment can be negotiated.

custom

       Our professional team will provide you with one-stop customs clearance service. We can provide EXW, FOB, FCA payment terms according to customer's need.
