260-horsepower 26-ton Gross Weight 6x6 Off-road Dongfeng Truck Chassis with Cab_With PTO, Front Electric Winch, Mechanical Injection Cummins Engine, Protective Grid on Lights, for Drill Truck

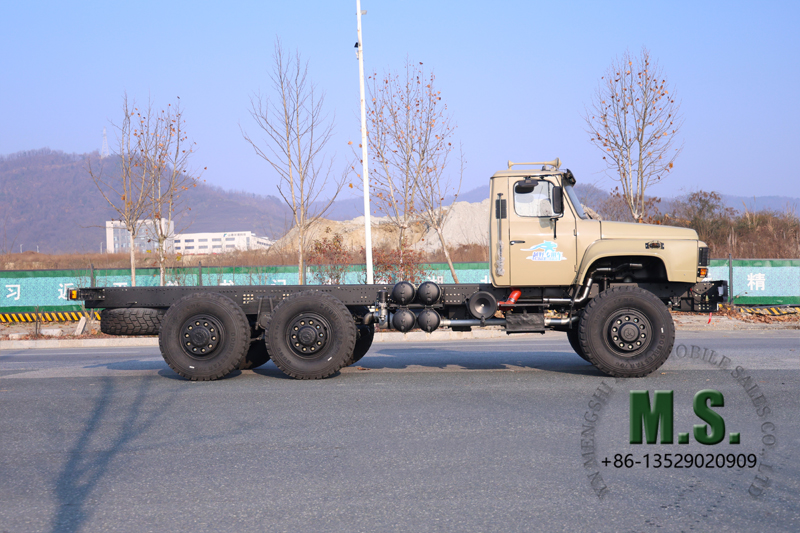

Very strong truck chassis in order to install big drill rig on it.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

It uses the design model of Chinese military trucks, but with a strong and sturdy frame, axles, suspension, engine, and transmission. A chassis specially designed for harsh conditions, capable of installing a heavy-duty drilling rig for field operations. Very robust.


With Winch and PTO.


Basic configuration

 Engine             Cummins C260 33
Horsepower            260Hp
Rated Power            191kw
Max Torque            1090N.m
Displacement            8.3L
Emission Standard            Euro-2
 Gearbox             Manual 8-speed
 Transfer Box             2 Speed
Wheelbase            3850+1350mm
Track Width            2010mm
Axle6.5T/10T/10T
G.V.W25000kg
Curb Weight
7410kg
Frame
860×280(8+6)
Overall Dimension       8230×2525×2740mm
Superstructure≥5250mm
Approach/Dparture Angle            31°/22°
Gradeability            60%
Minimum Ground Clearance            295mm
Obstacle Crossing Height            480mm
Wading Depth            620mm
SuspensionLeaf spring

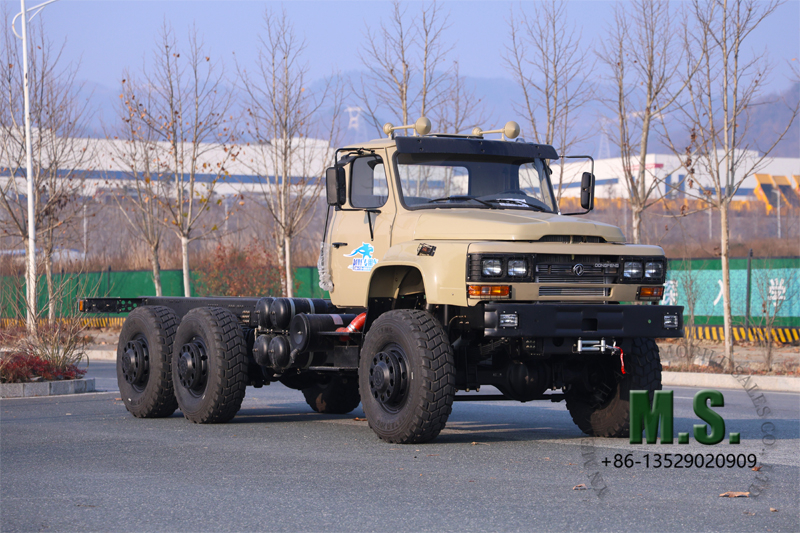

Tyre            12.5R20(6+1)
Fuel Tank            300L
Seats            2
Max Speed            85km/h


Note: This specification is for reference only,  please refer to the actual vehicles. The factory reserves the final right to interpret the specification.

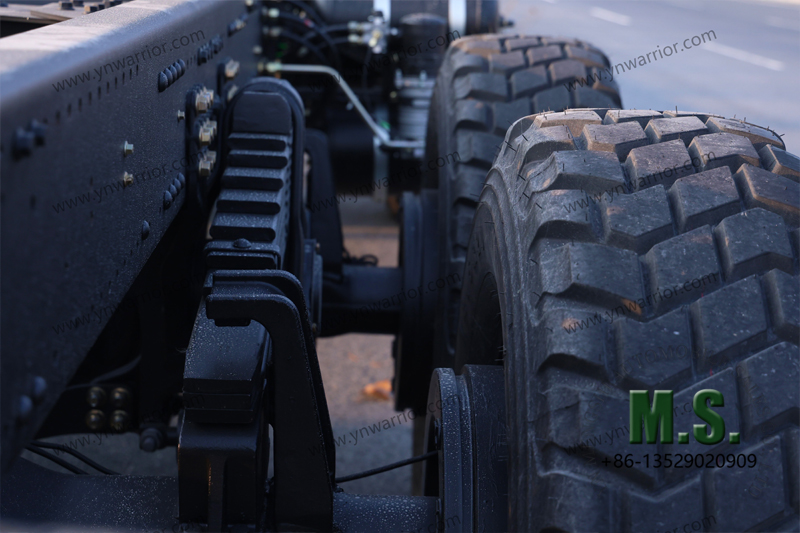

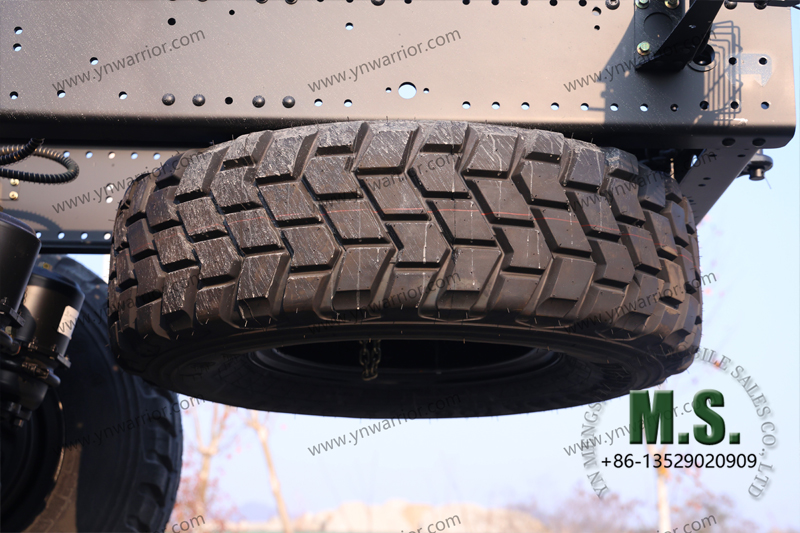

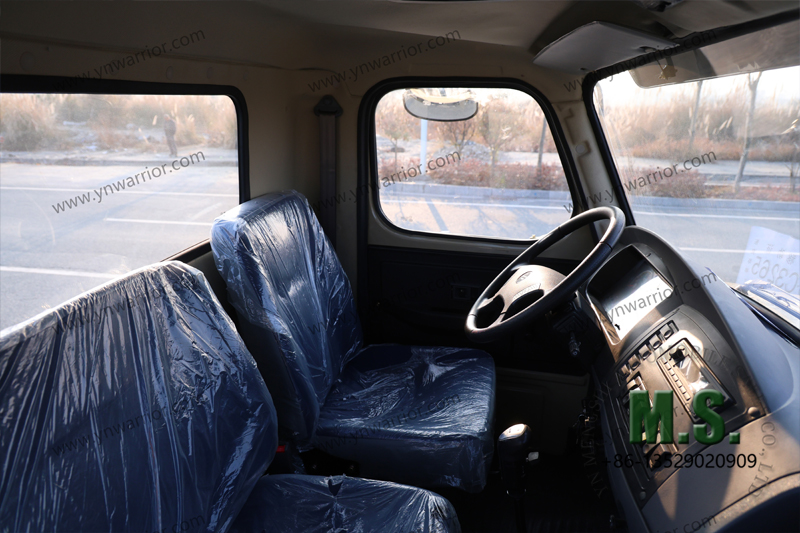

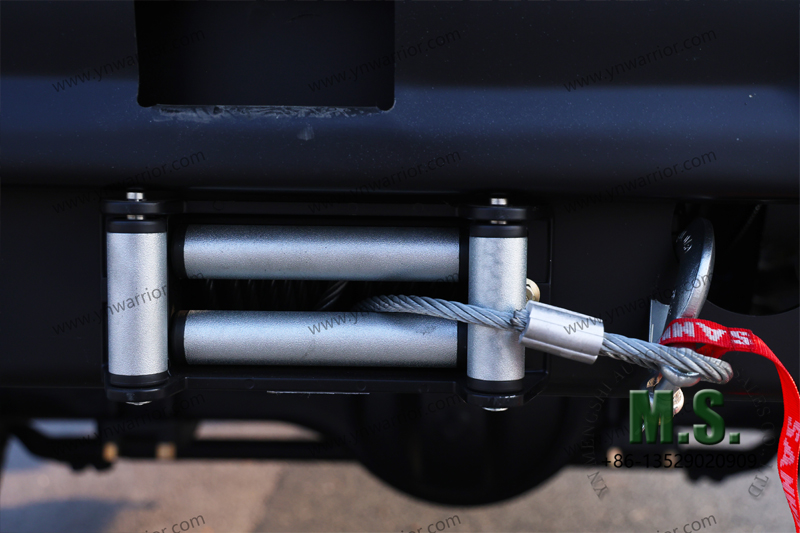

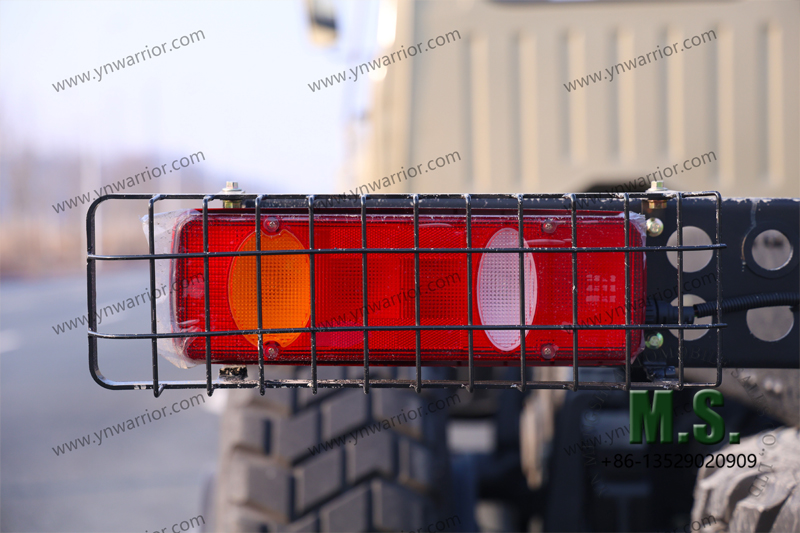

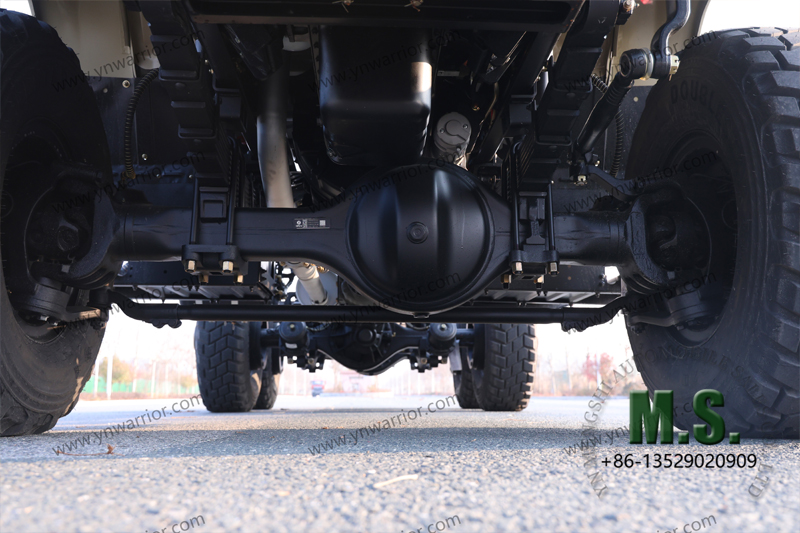

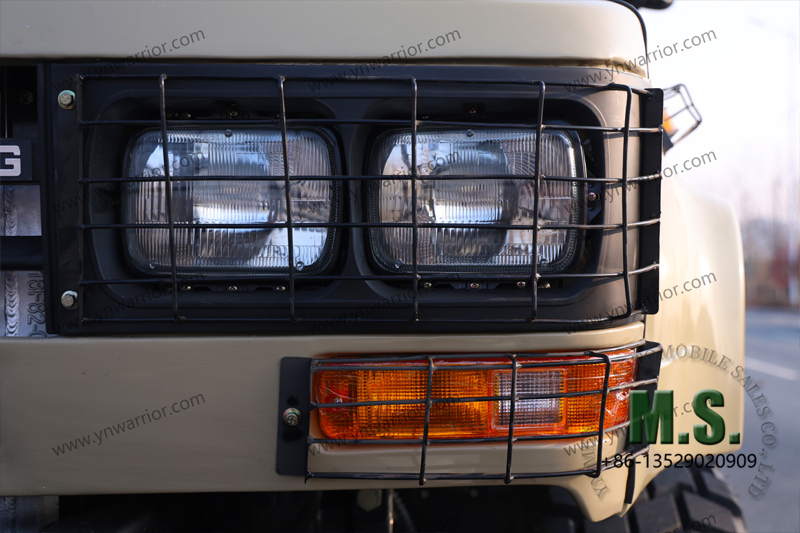

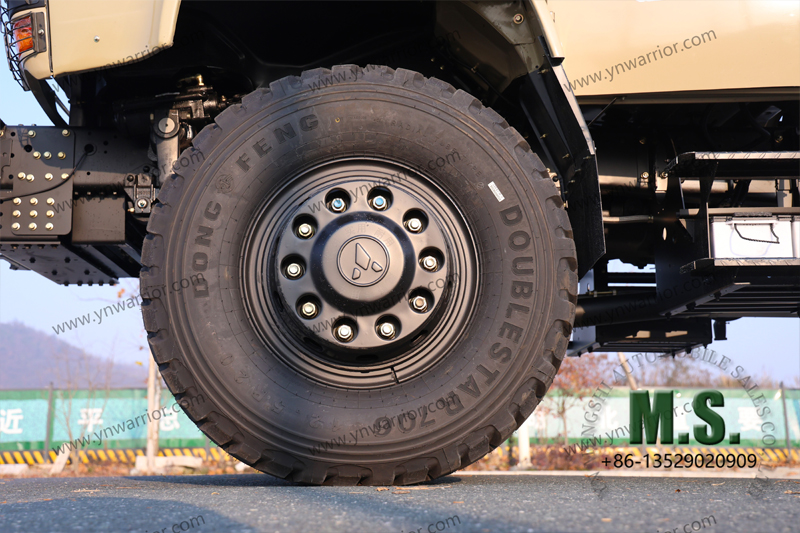

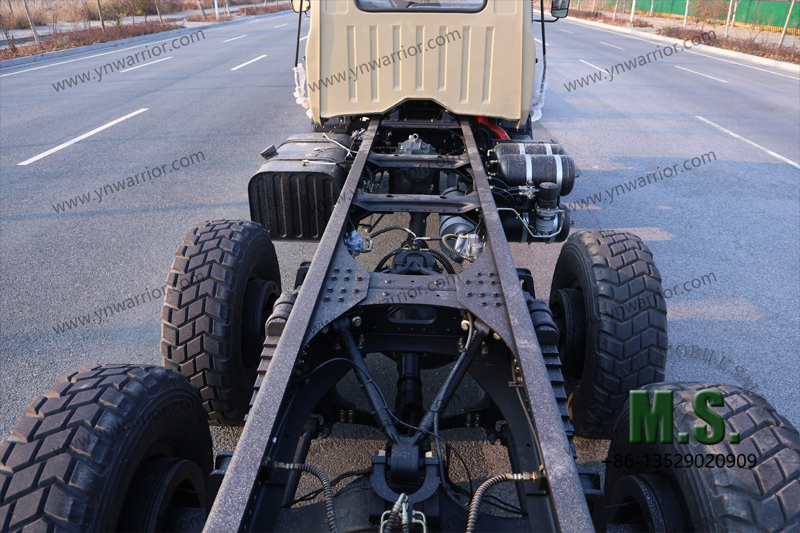

dongfeng 6x6 long nose truck chassis with cab air brake cylinderdongfeng 6x6 long nose truck chassis with cab chassis detailsdongfeng 6x6 long nose truck chassis with cab heavy standard leaf springdongfeng 6x6 long nose truck chassis with cab in side the cabdongfeng 6x6 long nose truck chassis with cab protective grid conver the front head lightdongfeng 6x6 long nose truck chassis with cab protective grid conver the turning ligthdongfeng 6x6 long nose truck chassis with cab protective grid covered the brake lightdongfeng 6x6 long nose truck chassis with cab single rear tyre with CTISdongfeng 6x6 long nose truck chassis with cab solid rigid chassisdongfeng 6x6 long nose truck chassis with cab spare tyre under chassis framedongfeng 6x6 long nose truck chassis with cab with electric front winchdongfeng 6x6 long nose truck chassis with cab with PTO
